SW-6090 мини низкая цена ЧПУ маршрутизатор машина/настольный

Описание и отзывы

Характеристики

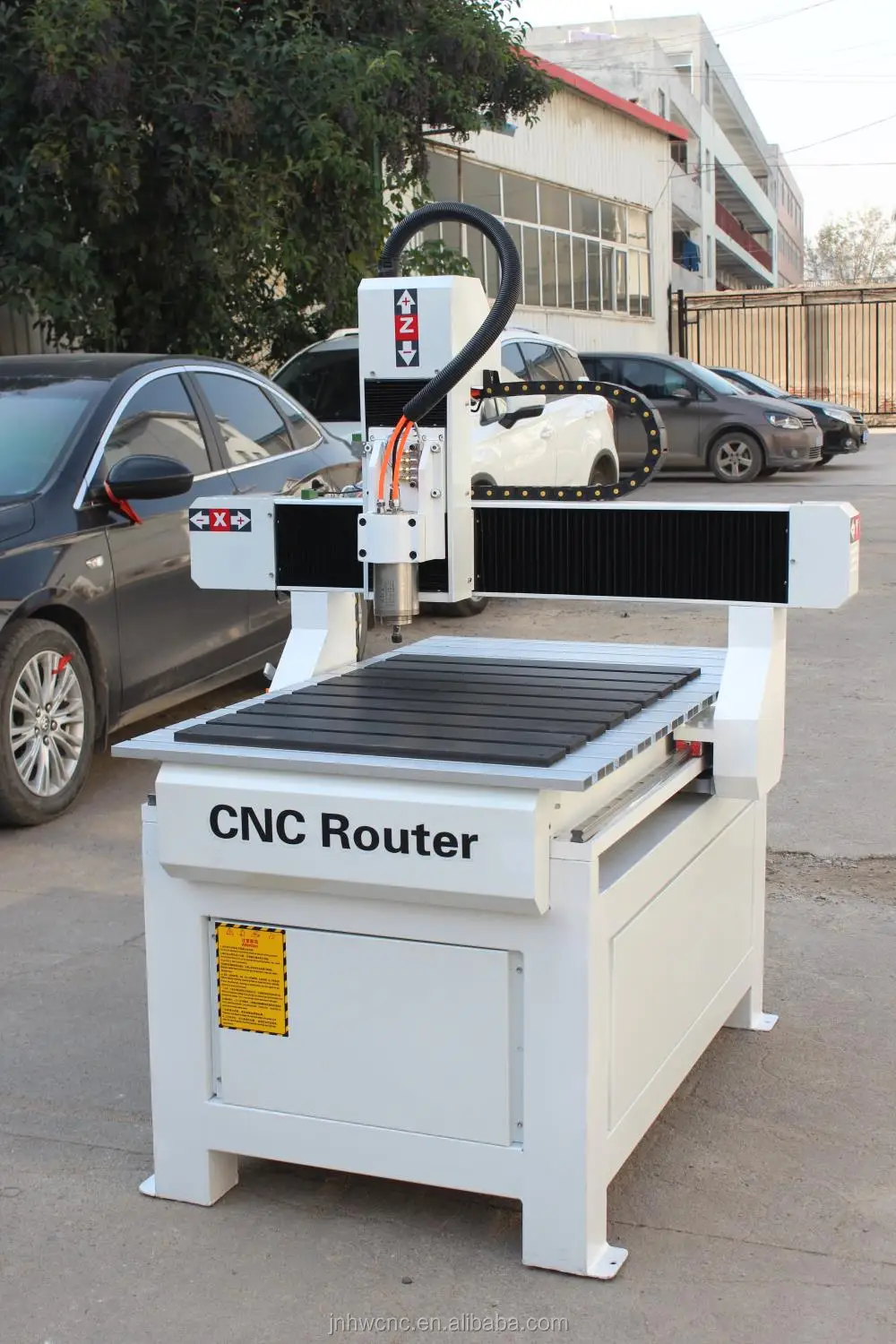

 SW-6090 mini low price cnc router machine /desktop cnc router 6090 / mini cnc router woodworking



Features:



1 Whole cast iron machine bed ,cast aluminum gantry with dust proof system ,higher cutting engraving

precision

2 Imported high quality ball screw ,precision segmentation ,to achieve the high precision engraving

3 Adopt imported linear square guide rail (PMI ,Taiwan) with high precision ,ensure machine frame much stability

 and durable

4 Water cooling system ,cooling the tools and prolong the tool use time

5 Using high power driver and stepper motor ,makes the machine run smoothly and higher efficiency

6 Water cooling spindle little noise ,high power

7 Optional control system ,NcStudio /DSP/Mach3,high stability ,high efficiency ,easy to learn

8 Continuing working after the break point /power failure ,lower the rejection rate

9 Good software compatibility ,can compatible with the Artcam,/Type3/Ucancam/JDPaint/ such CAD/CAM

 software ,2D/3D processing ,more convenient to using

Parameter:

1	X,Y,Z working area	600x900x120mm
2	Structure	X HIWIN square guide rail
		Y HIWIN square guide rail
		Z HIWIN square guide rail
3	Transmission	X,Y ball screw
		Z ball screw
4	table	T-slot table
5	Resolution	<0.02mm
6	Drive motors	Stepper motors and drivers
7	Max working speed	24000mm/min
8	Spindle	1.5kw,water-cooling
9	Spindle revolving speed	6000-24000rpm
10	Frequency inverter	Fuling
11	Working voltage	220V
12	Command language	G-Code
13	Operating system	Ncstudio system
14	Computer interface	USB
15	Flash memory	128M(U Disk)
16	Collet	ER11(3.175/4/6mm. Optional )
17	Software compatiliby	Type3/Artcam/Artcut/Ucancam/JDpaint etc
18	Running environment temperature	0-45 centigrade
19	Relative humidity	30%-75%

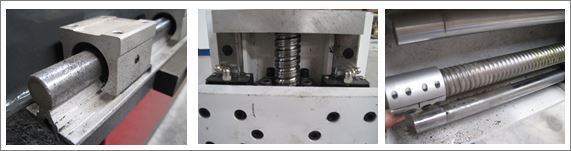

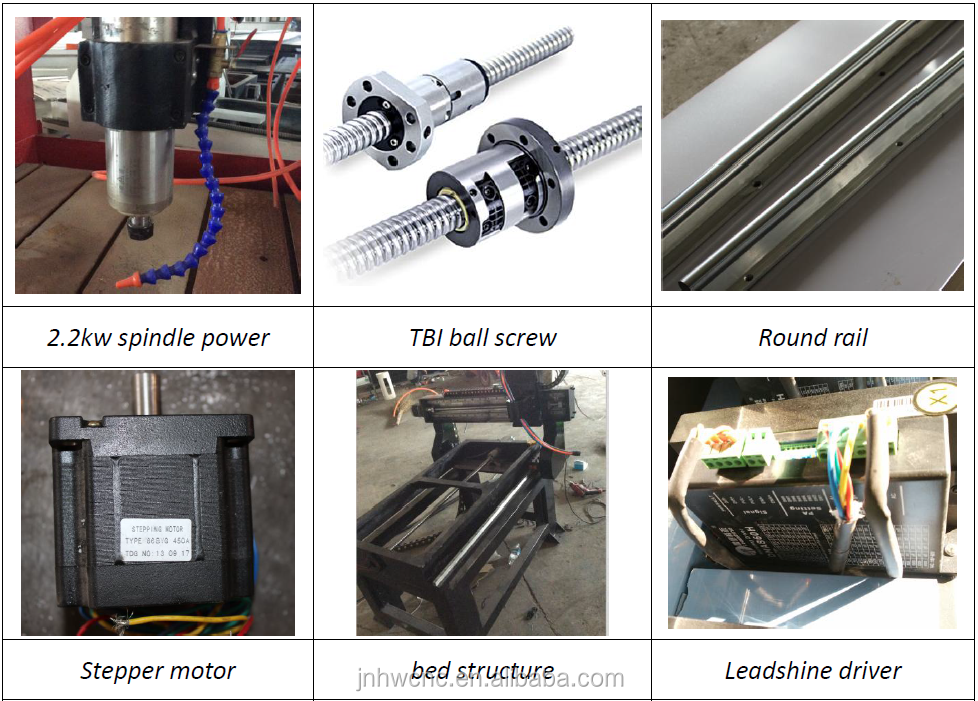

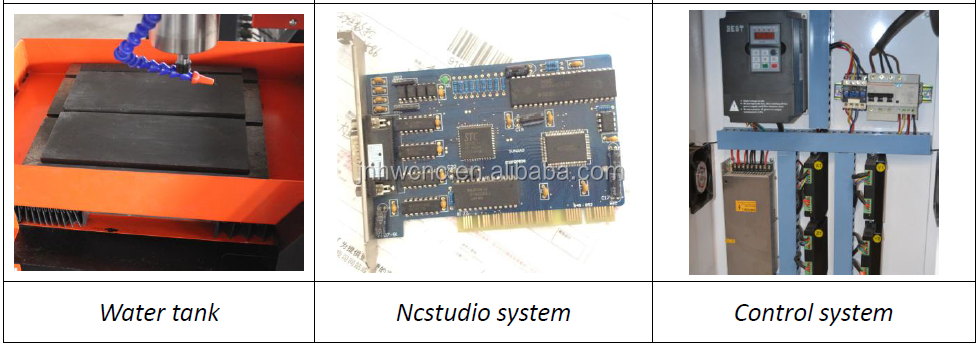

 Machine Parts Showing:



Applications:

1.Widely used for

Natural marble, granite, artificial stone, tombstones, milestones, ceramic tiles, glasses, jewellery and many other materials, such as wood, acrylic, plastic, dual color board, etc.

2.Also suitable for

acrylic,PVC,wood,marble,wood,mould,metal,stone,handicraft,embossed pictures etc.

3.Power cutting,3D characters and enchase production ect

4.Fast speed,suitable for larger Characters processing,relief processing and 3D processing etc.

5.Especially for metal engraving and cutting.

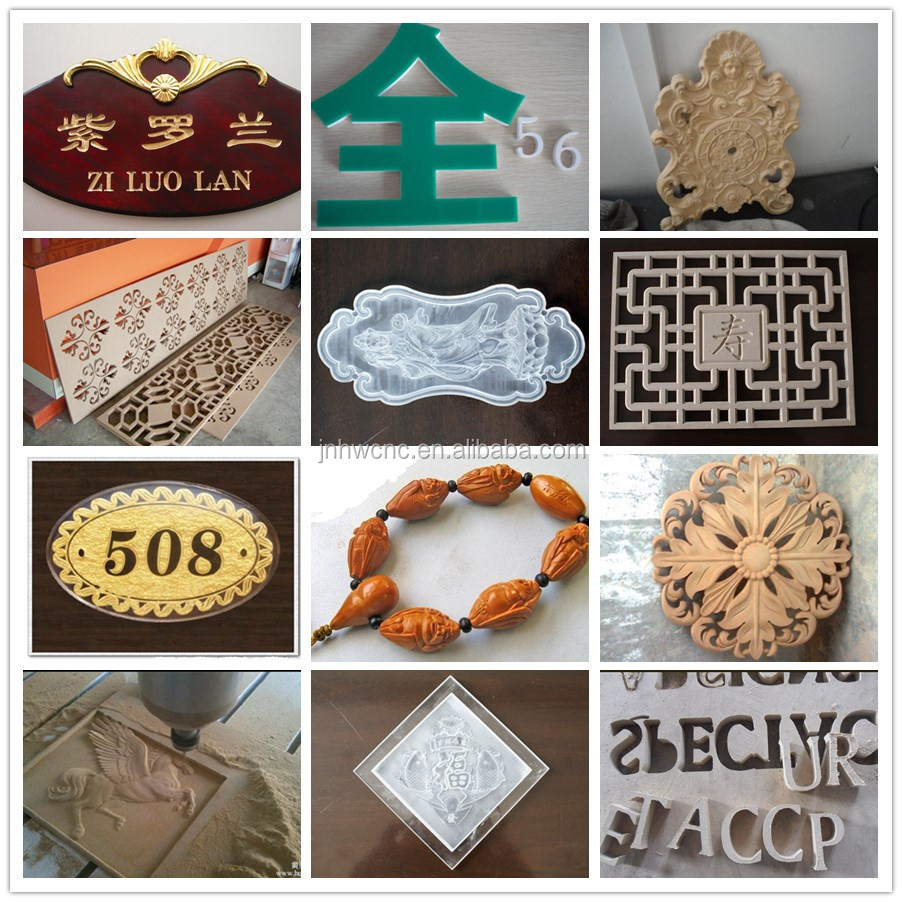

 Samples:



Delivery and Transport:

1.FOB QingDao. If other port needed,please tell me in advance.

2.CIF. Please tell me your destination port in advance. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.

3.If  you need others, please tell me and we're pleased to do it for you.



This is the first time I use this kind of machine, is it easy to operate?

1.English guide video and instruction book are sent to you free together with the cnc router.

2.Free training course in our factory . Engineers  are available to serve overseas but all the expense needs being paid by your side.

3. 24 hours technical support by calling, video and email.



If cnc router has a problem after I ordered it, how could I do?

This is related to our after-sale service.

1.Within 7 days since your local customs clearance: if the cnc machine’s any part has any problem, we will change it free.

2.Exceed 7 days since your local customs clearance but within warranty period: if the cnc machine parts have any problem, we can change the old machine parts to new ones free.

3.Exceed warranty period: if the cnc machine parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.



If you want to know whether the machine can work on your material, please tell me:

1.What materials do you want to engrave or cut?

For different types of cnc routers apply to  different materials (wood ,stone, metal, foam etc.)

2. What's the max. size of the materials? (Length*Width*Thickness)

For it decides the working size of machine.(for example: SW-1325: 1300*2500*200mm)

Once you tell me all about this, then I’m able to recommand the most suitable machine and the best price for you. Or we can customize one for you.
