Станок для резки и гравировки алюминия металлический гравировальный станок с
- Категории: >>>
- Поставщик: Jinan,Huawei,CNC,Machinery,Co.,Ltd
Поделиться:
Описание и отзывы
Характеристики

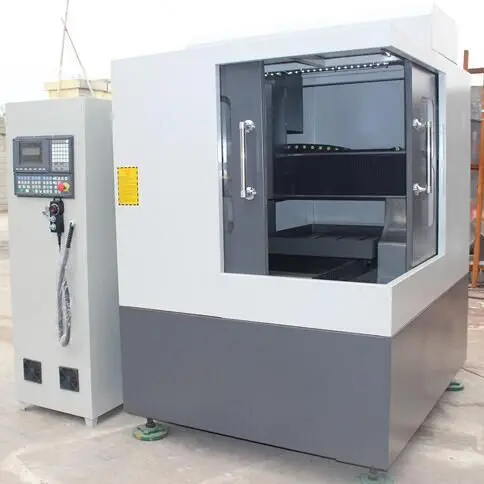

aluminum cutting and engraving machine provided by huawei company metal cnc engraving machine
Company Information
Brief introduction about Jinan Huawei CNC Machienry CO.,Ltd
We’re a cnc router manufacturer and trading company in Jinan ( the main cnc router manufacture city in China ) for 11 years. We combine R&D, sale and after-sale service as a whole. We’re devoted to manufacturing cnc routers especially wood cnc routers and stone cnc routers.
We have a huge domestic market as well as hot sale in EU, Egypt, Africa, Belgium, Southeast Asia etc with CE certification. What we’re pursuing as following:
1.Quality is life.
2.Continuous Innovation
3.Long term partnership, close ties with customers to insure we understand their needs, and interpret it into actions of satisfactions, and both get positive ROI.
Product Description
| Features | ||||||
| 1.Lathe bed: welded by thick square steel tube or cast iron lathe bed, robust without deformation, long service time. Gantry and side arms: welded by steel plate, 8mm thickness , higher precision, longer service life. Table-board: pvc or aluminium, good strength and rigidity, great weight bearing, protect spindle from damage. | ||||||
| 2.X,Y HIWIN square guide rail,ball screw; Z HIWIN square guide rail, ball screw. HIWIN square guide rail:great wear resistant, high speed, low resistance, stable movement. Ball screw: high accuracy. | ||||||
| 3.Spindle 1.5KW for relief carving. Higher power spindle also works. Water-cooling system escapes spindle from damage in case of high temperature. | ||||||
| 4.Optional automatic lubrication system fulfills the periodic lubrication maintenance just by one single touch. | ||||||
| 5.The software system adopts international instruction format, strong compatibility, type3 / Actcam/Castmate/UG/Proe/wen tai and other CAD/CAM design software are compatible. | ||||||
| 6.DSP operating system, continued carving after power failure, re-processing,work off-line,little professional knowledge required of the operator,convenient and practical,concise and humanized. Standard USB connection, data transmission more stable, U flash memory output directly. | ||||||
| 7.Best mechanical and electrical design with well-selected brand pars minimize breakdown rate. | ||||||
| 8.With rotary attachment, it can engrave both flat and cylinder materials. | ||||||
| 9.Fast speed, high precision and low cost. | ||||||
| 10.Higher power spindle for both carving and cutting. | ||||||
| 11.Multi spindle for mass production, time saving. |
Configuration
| X,Y,Z working area | 600*600*120mm | |||||
| Structure | X HIWIN ball guide rail | |||||
| Y HIWIN ball guide rail | ||||||
| Z HIWIN ball guide rail | ||||||
| Transmission | X,Y ball screw | |||||
| Z ball screw | ||||||
| Workpiece hold | By clamp | |||||
| Resolution | <0.03mm | |||||
| Drivers and motors | Stepper motors and drivers | |||||
| Max working speed | 18000mm/min | |||||
| Feeding speed | 0-6000mm/min | |||||
| Spindle | 1.5KW,water-cooling | |||||
| Spindle revolving speed | 6000-24000rpm | |||||
| Frequency inverter | Fuling/Rituo/BEST | |||||
| Working voltage | 220V,50/60HZ | |||||
| Command language | G-Code | |||||
| Operating system | DSP or Nc studio control system | |||||
| Computer interface | USB | |||||
| Flash memory | 128M(U Disk) | |||||
| Collet | E11(3.175/4/6mm. Optional ) | |||||
| Software compatiliby | Type3/Artcam/Artcut/Ucancam/JDpaint etc | |||||
| Running environment temperature | 0-45 centigrade | |||||
| Relative humidity | 30%-75% | |||||

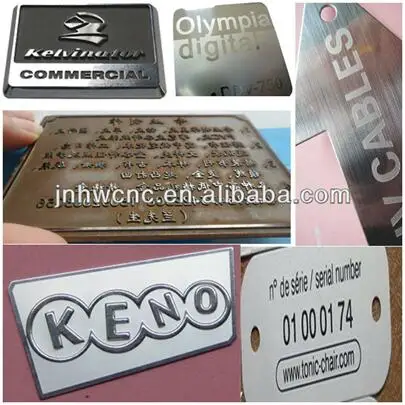

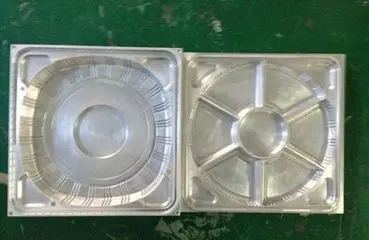

Application
Our Services
Payment terms
1. 30% T/T in advance, balance paid before delivery (FOB).
2. 30% T/T in advance, balance paid against copy of B/L (CIF).
3. L/C
4. D/P, D/A, Western Union, MoneyGram, Paypal, Escrow.
5. O/A ( for long partnership or more than 5 sets ).
6. We accept various payment. If you have other payment, please tell us,
we're glad to do it for you, for your convenience.
| 1. We respect your feed back after receiving the goods. |
| 2. Tracing the working condition by email per month. |
After-sale service
| 3. 24 hours technical support by email, call, video. |
| 4.English CD and manual for machine using and maintenance. |
| 5. Whole machine one year warranty. |
| 6. Gantry, lathe bed, stand whole life warranty. |
| 7. Exceed warranty period 1 year: if the cnc machine parts have any problem, we can offer new machine parts with cost price and your side pay all the shipping cost. |
| 8. Engineers available to serve and train overseas, but your side should pay all the expense. |
| Package | 1. Foam and wrapping film on the surface of the machine inside, rain-proof, rust-proof. | |||
2. Standard free fumigation plywood case with upwards, rain-proof etc. shipping marks stamped outside. Safety guaranteed. | ||||
| Transport | 1.From Jinan, Shandong to Tianjin or Qingdao Port. | |||
| 2. From Tianjin or Qingdao Port to your destination port by sea. | ||||
| 3. If you want other transport, please tell us, we're glad to do it for you, for your convenience. | ||||
Quality
control | 1. After order, engineers discuss manufacturing procedure. | |||
| 2. Every component and part elaborately selected and assembled, making sure minimum breakdown rate. | ||||
| 3. 48 hours continuous test of the machine before leaving the factory. | ||||
Contact me
If you choose us, we can do that:
1. High quality of every machine parts. warranty one year. Our machine has the ability of 24 hours of continuous work.
2. Good service. If you have any questions, you can contact me at any time. we are on service for 24 hours.
3.Competitive price for distributor. we are the manufacturer so our price is most competitive in the market.
4.Timely delivery. If our clients are badly in need of the machine, we can overtime work.
Any questions,please feel free to contact me !
