50000 liter lpg gas filling station

ChengLi Special Automobile Co.,Ltd, which is a big and famous special function vehicle manufacturer in China, We produce many kinds of special vehicles, also include LPG Storage tank, LPG filling plant, LPG container tank, and LPG Trailer.
Currently our company produce the lpg tank, lpg tank trailer,lpg tank truck to loading and transporting.
The LPG tank volume from 5~120 m3 for above ground, 5~100 m3 for underground.
The LPG tank trailer volume from 30~60 m3 with two axles or three axles.
The LPG tank truck with the volume from 5~35 m3.

• LPG Storage tank for liquid gas in detail as following.
• 50000 liter lpg gas filling station
• lpg filling station , lpg gas filling station , lpg gas station

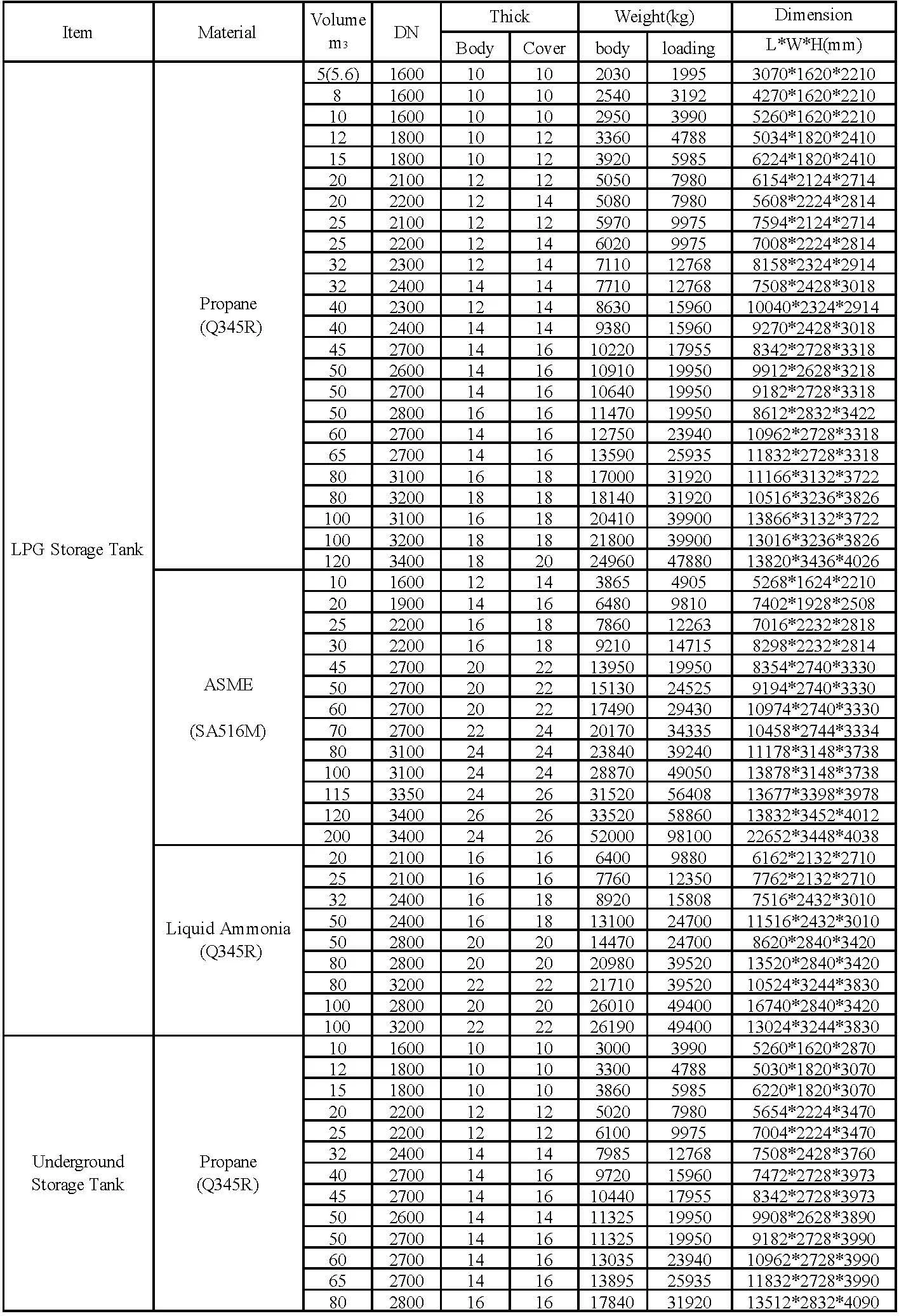

• Main Specification.



• LPG filling Station introduction in detail
• 50000 liter lpg gas filling station
• lpg filling station , lpg gas filling station , lpg gas station

• Main Specification

Item	Product					Description
1	Dispenser x 1 , Or LPG filling weighter x2					one gun, with total print function, liter Unit or Gallon Unit
2	Pump for liquid output x1 ( pump out )					Installing Vibration-proof pipe, filter net for pump in,ball valve for input and output, pressure gauge with valve x 1. Safety valve x1 Air gas valve x2, liquid gas valve x2, metal soft pipe 3.5 m x 2 Unit ( DN50, DN 25)
3	Pump with one Compressor
4	Urgent cutt off valve with ball valve x 1
5	liquid level gauge					with valve x 2
6	Safety valve x1					Between tank and dispenser
7	Valve for wasted and unusefull liquid x2
8	Urgent cutt off valve x 2 Unit					Tank liquid gas output point,
9	Temperaturer gauge x1,pressure gauge x1					In stalling on tank
10	Safety electric system					Safety Switch x 3 set with safety electric box.
11	Alarm system					Around pipe, to checking whether leaking gas.

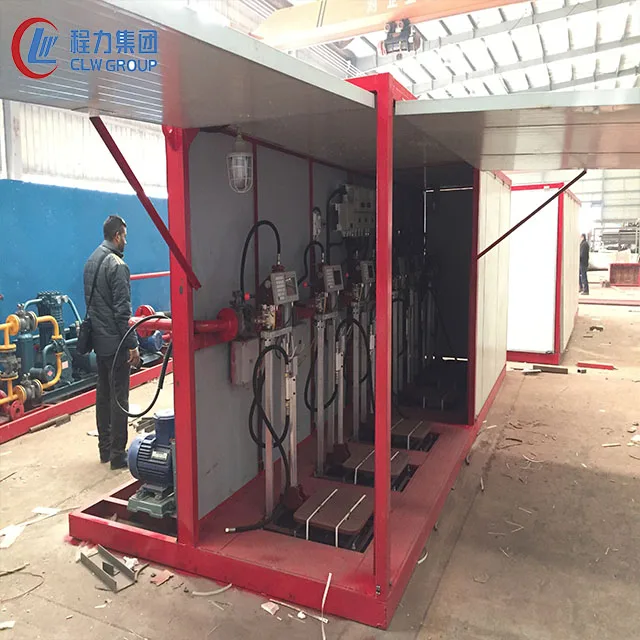

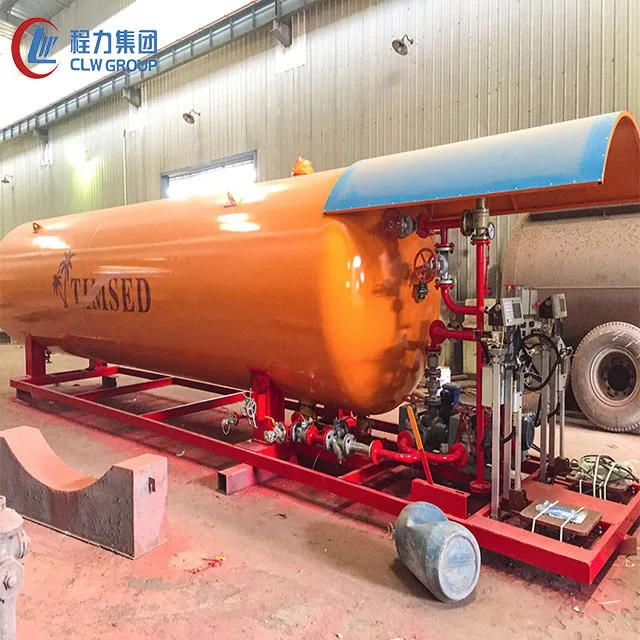

• LPG filling Plant , Some more OEM product photo showing.
• 50000 liter lpg gas filling station
• lpg filling station , lpg gas filling station , lpg gas station

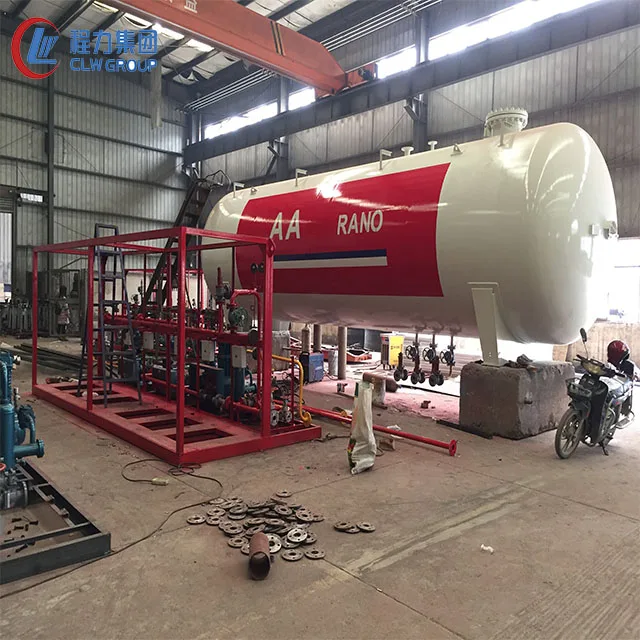

• Nigeria A A Naro 50 m3 LPG filling plant design

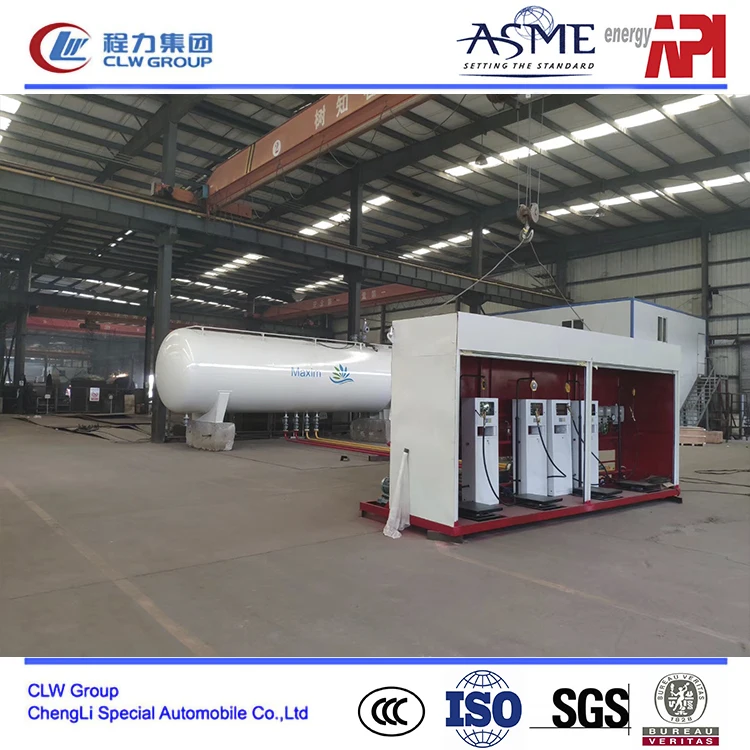

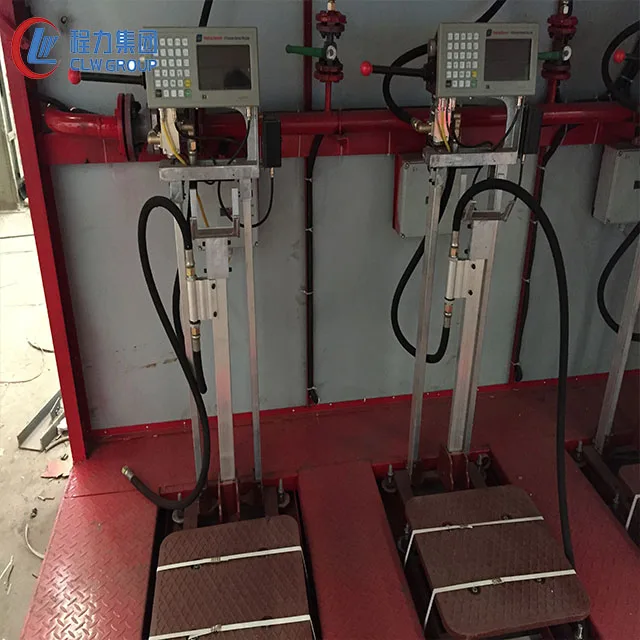

• More Prdouct photo showing
• 50000 liter lpg gas filling station
• lpg filling station , lpg gas filling station , lpg gas station
