Specifications

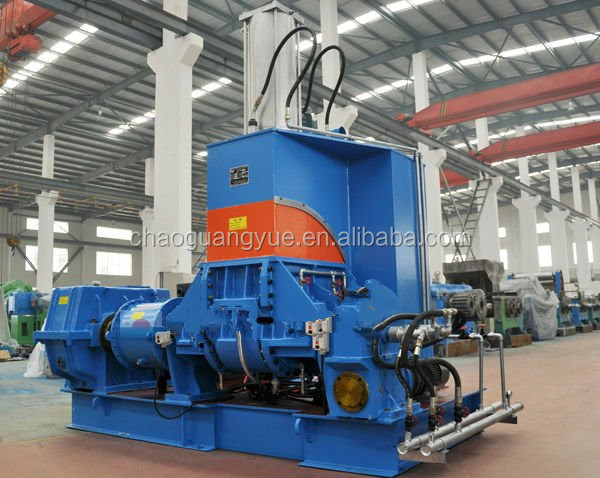

Rubber kneader mixing machine.
1.Motor:55KW.
2.Super seal,no leakage.
3.Whole mixing chamber electric plating with chromium.
rubber kneader mixing machine dispersion kneading mixer
1. Basic information:
This intensive mixer has a wide range of applications, including in mixing and refining Raw materials, such asraw rubber, synthetic rubber, resin, asphalt, celluiese, PVC or EVA into even mixed stock. The body and structure of this machine are strong and durable, making it suitable for heavy-duty mixing and refining operations.
2. Machine Parameters:
| Kneader mixer | X(S)N-5 | X(S)N-20 | X(S)N-35 | X(S)N-55 | X(S)N-75 | X(S)N-95 | X(S)N-110 |
| Mixing capacity (L) | 5 | 20 | 35 | 55 | 75 | 95 | 110 |
| Actuating motor (kw) | 7.5 | 37 | 55 | 55/75 | 90/110 | 132 | 160/200 |
| Turnover motor(kw) | 0.75 | 1.5 | 2.2 | 3.0 | 4.0 | 5.5 | 5.5 |
| Turnover angle (º) | 110 | 110 | 140 | 140 | 140 | 140 | 140 |
| Air compressor motor (kw) | 1.5 | 3.0 | 5.5 | 7.5 | 11.0 | 15.0 | 15.0 |
| Dust cleaner | HLL-10 | HLL-10 | HLL-10 | HLL-15 | HLL-20 | HLL-30 | HLL-30 |
| Water cooling(Rubber refining) Mpa | 0.2-0.4 | 0.2-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 |
| Steam heating(Plastic refining) Mpa | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 |
| Electrical heating(Plastic refining) KW | 4 | 9 | 12 | 15 | 18 | 24 | 24 |
| Weight (kg) | 1200 | 4500 | 6500 | 7800 | 10500 | 12500 | 14500 |
| Dimension (LXWXH) (mm) | 1900x950 x2400 | 2600x1400 x2600 | 3200x1900 x3000 | 3500x2600 x3300 | 3900x2900 x3400 | 4000x3200 x3700 | 4100x2900 x3800 |
3. Advantages:
1.Maximum Dispersion & High Production
Double blades with special spiral angle, proper clearance & high cooling effect gives excellent dispersion which can not be obtained from an open mill. Its production is 4 to 5 times more than an ordinary mixing mill thus saving on labor and electricity.
2.Super sealing,no powder leakages.
Both sides of the rotor blades are injected welding a iron alloy ring, which assures sealing and protects the blades from abrasion.Imported bakelite sealing ring,which make super sealing.The chamber around are designed with groove,then embeded with rubber stip,this make sure the whole mixing chamber is well sealed.
3.No Foundation Requirement
The Kneader has a common bed plate for all parts and not require foundation.
4.Easy Cleaning & Colour Change

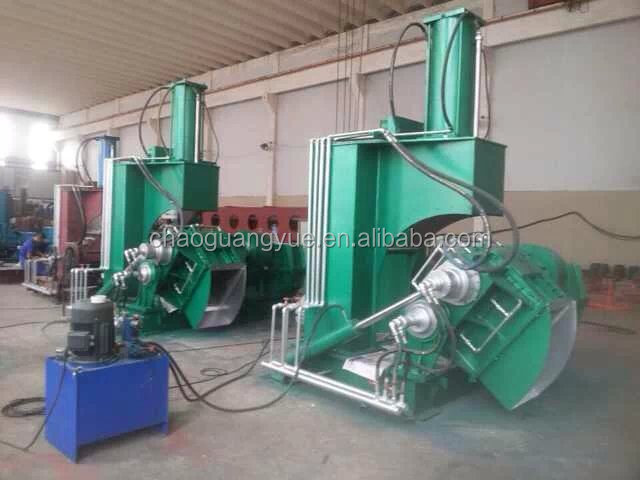

Mixing chamber can be tilted down for 140degree, which enables easy cleaning, because of this, different coloured compounds can be made without trouble.
5.Easy Operation
Easy operation with Push-buttons and hand lever valves from the operation board.
6.Short Mixing Time
Mixing time ranges from 6 to 12 minutes depending on compound's specific gravity.
4, Machines:

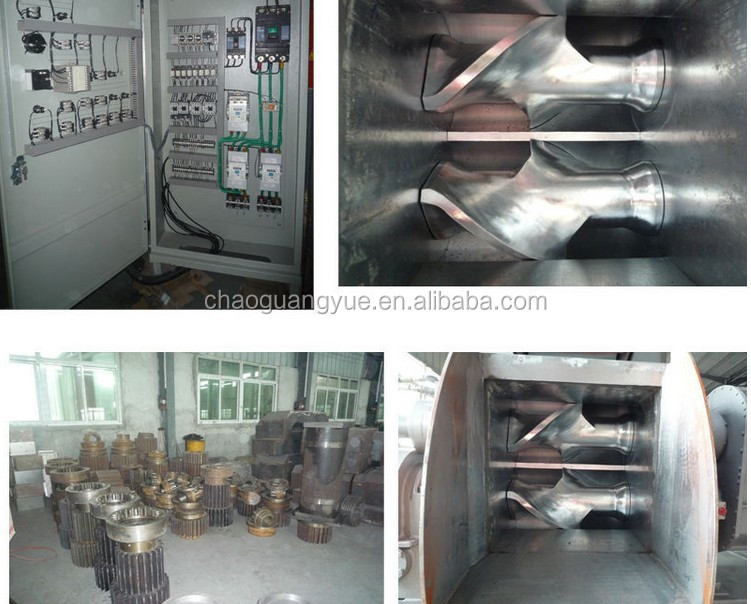

Siemens electric parts and rotor ( surface welded with cobalt-base hard alloy and grinding, then plating with hard chrome and polishing.)
35L,55L,75L,110L

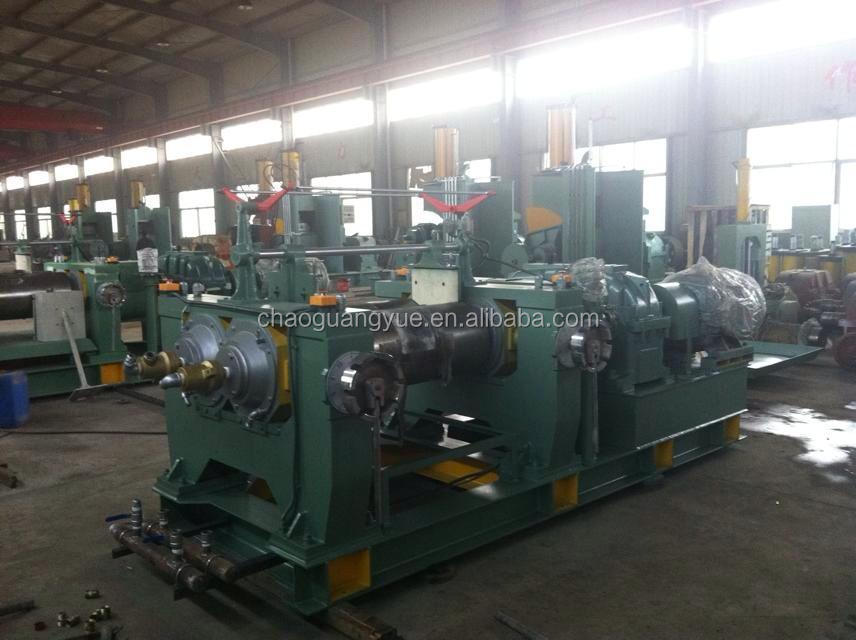

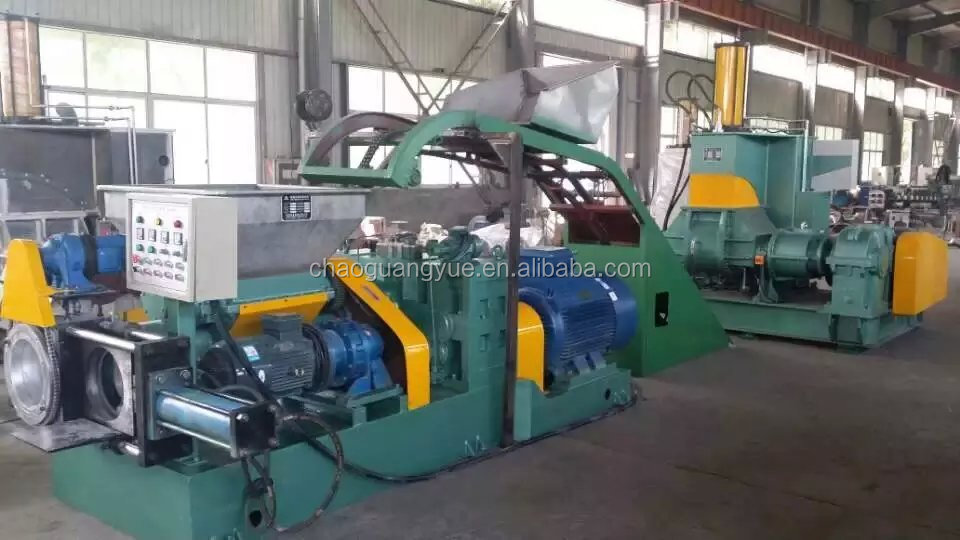

Kneader --conveyor - open mixing mill line
Customers visiting:

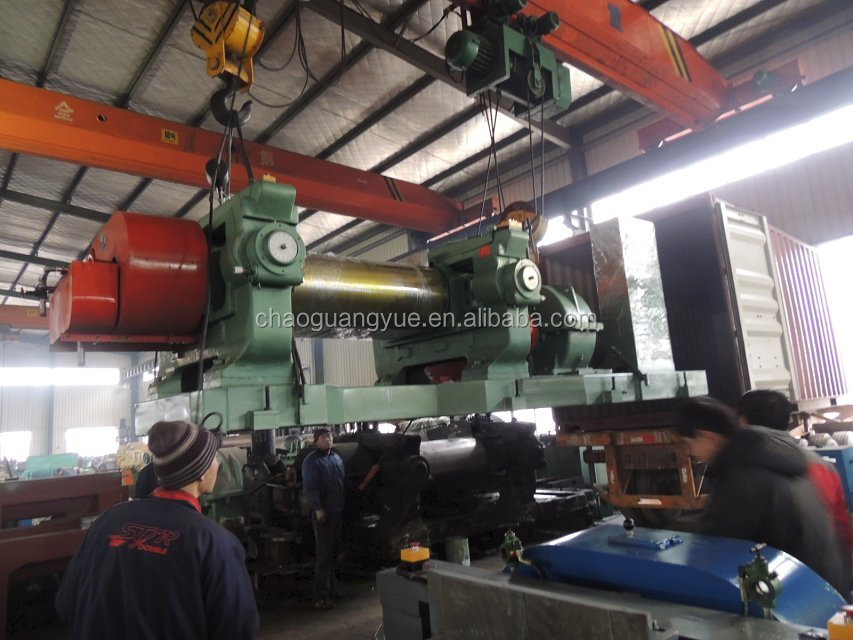

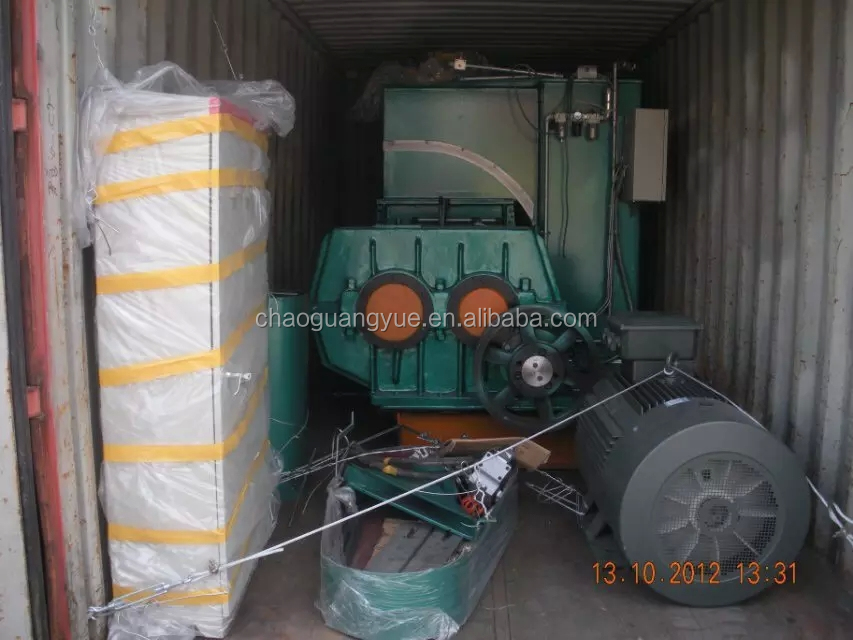

Delivery and shipment:
5 ,Certification: CE,SGS,ISO9001
6, FAQ:
1.Q:Are you a factory or trading company?A:We are factory.
2.Q:Where is your factory?How can i visit ?
A:Our factory located in qingdao city.You can fly to qingdao liuting airport,then we can pick you up to our facotry to visit.Warm welcome to visit us.
3.Q:How does your factory control the quality of machines and after sales service?
A:Our machines passed CE,ISO,SGS certification,pls confirm the quality.All our machines have 1 year guarantee, will provide lifetime maintenance.
4.What’s your payment term?
A:Common is 30% deposit by T/T,the balance paid against shipping documents.
Or L/C at sight.
5.Q:Can you design new product for us?
A:we have a professional development team that make new products according to your requirements.
