Taps and dies are hand cutting tools used to create screw threads, which is called threading. A tap is used to cut the female portion of the mating pair (e.g., anut). A die is used to cut the male portion of the mating pair (e.g., a screw). The process of cutting threads using a tap is called tapping, whereas the process using a die is called threading. Both tools can be used to clean up a thread, which is called chasing.

Product Description

Specifications

Model: PT16-3
Our Brand: TUNGSTEN
Metrail: Alloy steel Gcr15,9Crsior HSS4241/4341/6542/5341/M2 or Carbon Steel (optional) HCR: 58-63 Package: Drawer type plastic case
Color: Bright, Black,Golden Process: grinding,drilling,tapping,milling,stamping,heat treating,chamfering
1.OEM: Accpetable 2.Logo Printing: We can print your LOGO on the handle and package. 3.Free Samples: We are willing to provde free samples. 4.Payment term: T/T,L/C,Western Union,Paypal and etc. 5.Delivery: within 15-40 days after the order be confirmed 16pc high speed steel HSS tap and die set M3x0.5-M12x1.75

Model: PT16-3

Our Brand: TUNGSTEN

Metrail: Alloy steel Gcr15,9Crsior HSS4241/4341/6542/5341/M2 or Carbon Steel (optional) HCR: 58-63

Package: Drawer type plastic case

Color: Bright, Black,Golden

Process: grinding,drilling,tapping,milling,stamping,heat treating,chamfering

1.OEM: Accpetable

2.Logo Printing: We can print your LOGO on the handle and package.

3.Free Samples: We are willing to provde free samples.

4.Payment term: T/T,L/C,Western Union,Paypal and etc.

5.Delivery: within 15-40 days after the order be confirmed

16pc high speed steel HSS tap and die set M3x0.5-M12x1.75

DIN
7PC Dies:3×0.5, 4×0.7, 5×0.8, 6×1.0, 8×1.25, 10×1.5, 12×1.75 7PC Taps:same size as dies 1PC Tap wrench 1PC Die handle:1"OD
METRIC
7PC Dies:M3×0.5, M4×0.7,M5×0.8, M6×1.0, M8×1.25, M10×1.5, M12×1.75 7PC Taps:same size as dies 1PC Die Handle:1"OD 7PC Tap Wrench M3-M12
SAE
7PC Dies:6-32,8-32,1/4-20,5/16-18,3/8-16,7/16-14,1/2-13 7PC Taps: same size as dies 1PC Die Handle 7PC Tap Wrench M3-M12

DIN

7PC Dies:3×0.5, 4×0.7, 5×0.8, 6×1.0, 8×1.25, 10×1.5, 12×1.75
7PC Taps:same size as dies
1PC Tap wrench
1PC Die handle:1"OD

METRIC

7PC Dies:M3×0.5, M4×0.7,M5×0.8, M6×1.0, M8×1.25, M10×1.5, M12×1.75
7PC Taps:same size as dies
1PC Die Handle:1"OD
7PC Tap Wrench M3-M12

SAE

7PC Dies:6-32,8-32,1/4-20,5/16-18,3/8-16,7/16-14,1/2-13
7PC Taps: same size as dies
1PC Die Handle
7PC Tap Wrench M3-M12

Pictures

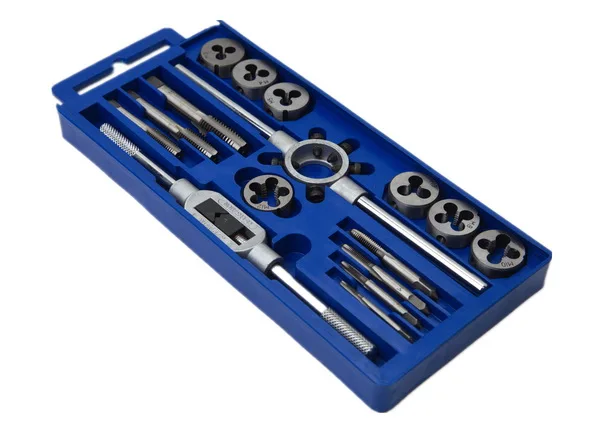

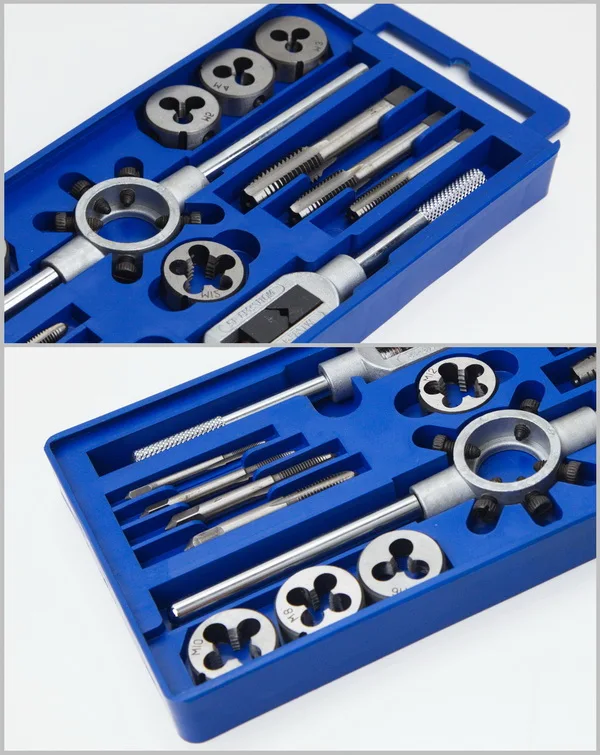

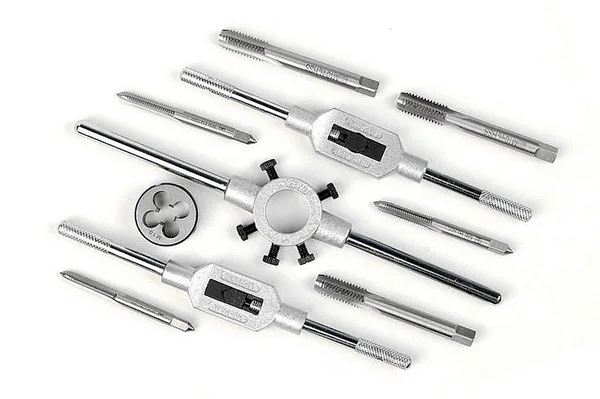

16PC Hand Tools Kit contains: 7 Taps + 7 Dies + 1 Tap wrench + 1 Die handle

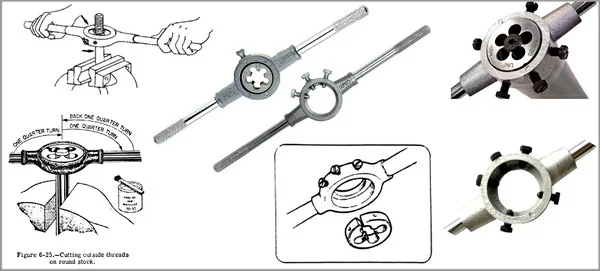

Hand Threading Taps and Cuttting dies:

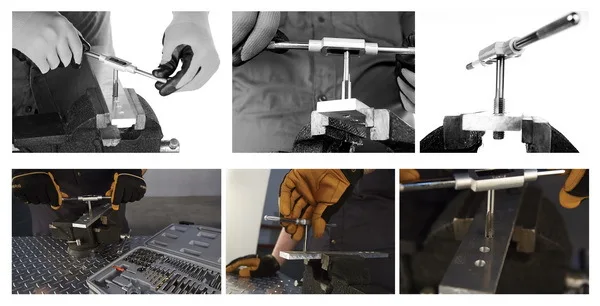

How to create internal screw threads :

1.Choose the required thread diameter and the associated thread pitch.

2.Drill a pilot hole in the appropriate diameter.

3.Fix a suitable tap in the tap wrench. Cut the thread by truning the tapping tool backwards and forwards a few times,at the same time putting cutting oil into the drilled hole.

How to create outernal screw threads :

1.Choose the required thread diameter and the associated thread pitch.

2.Select a suitable bolt,and fix a suitable die in the die stock. Before positioning the die over the bolt, deburr workpiece and file it to a slightly taper.

3.Cut the outside thread by turning the die stock backwards and forwards several times. Keep the workpiece lubricated with cutting oil.State cutting only possible from the marked side.
