60-100 кг/ч машина для обработки небольших кормовых
- Категории: Wood Pellet Mill >>>
- Поставщик: Laizhou,Chengda,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Know our company who produce factory price best quality pellet machine 220v 50/60hz single pellet machinery
Laizhou chengda machinery co.,ltd is one of the leading supplier of biomass macinery in China. Machines for make pellet wood are one of our main products.
We have more than 20years exporting experience about the biomass machinery. And choose us, you will get a very trust worthy partner. The quality of our products and service of our sales are A-class.
Product Description
1, | According to the different usage, we have: |
- Animal feed pellet making machine. | |
- Biomass fuel pellet making machine. | |
- Feed pellet & fuel pellet making machine. | |
So, what do you want to produce? Fuel pellets or feed pellets? | |
2, | According to the different engine types, we have: |
- Electric engine. | |
- Diesel engine. | |
- Gasoline / petrol engine. | |
- PTO type (Tractor driven). | |
So, which engine type do you want? | |
raw materials for factory price best quality pellet machine 220v 50/60hz single pellet machinery
Our pellet machine for make pellet wood, they can adapt to wood, straw, cotton stalk, rice husk, peanut shell, bamboo, empty fruit branch, pulverized coal and waste paper, etc. See the following photos:
Technical data of factory price best quality pellet machine 220v 50/60hz single pellet machinery
| KL-A series | ||||||
| Power | Capacity(kg/h) | |||||
| Model No. | Diesel Engine | Feed output | Wood output | N/G weight(kg) | Pellet diameter | Packing Size(cm) |

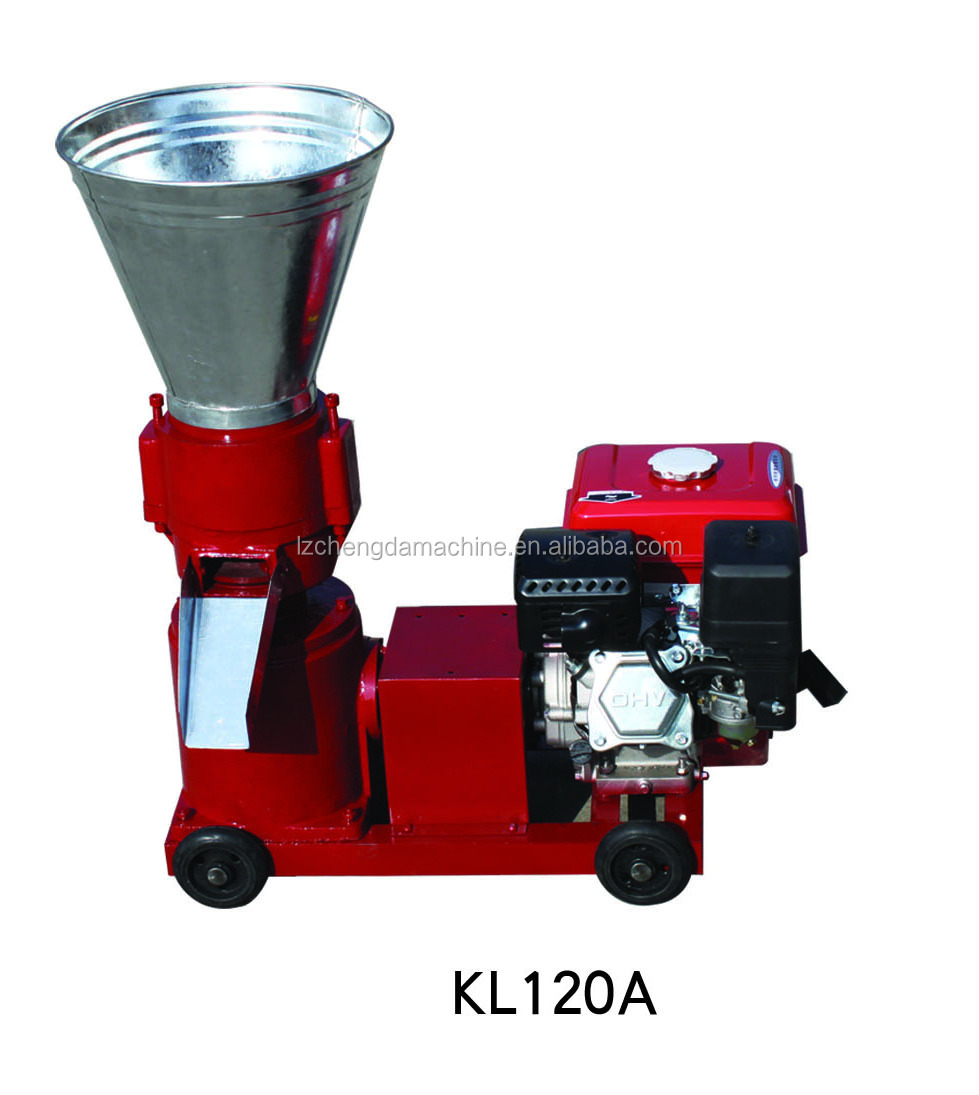

| KL120A | 8HP Diesel Engine | 60-100 | 40-60 | 120/140 | 2.5-10mm | 87*44*73 |

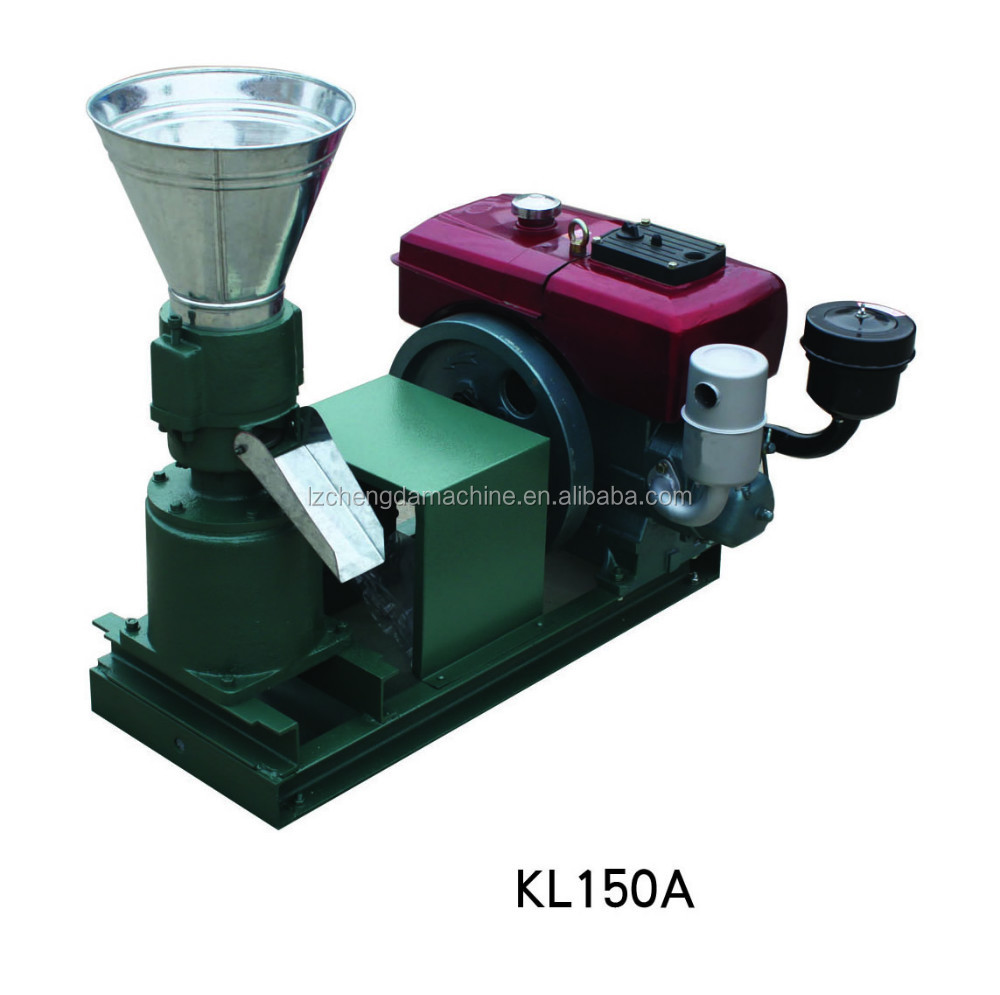

| KL150A | 8HP Diesel Engine | 90-120 | 50-90 | 120/140 | 2.5-10mm | 76*43*71 |
| KL200A | 15HP diesel engine | 200-300 | 110-140 | 280/310 | 2.5-10mm | 118*56*95 |
| KL230A | 22HP diesel engine | 300-400 | 150-190 | 280/310 | 2.5-10mm | 118*56*95 |
| KL260A | 35HP diesel engine | 400-600 | 220-280 | 450/480 | 2.5-10mm | 184*70*116 |
| KL300A | 55HP diesel engine | 600-800 | 280-320 | 520/560 | 2.5-10mm | 220*60*123 |
| KL360A | 55HP diesel engine | 700-900 | 300-380 | 600/620 | 2.5-10mm | 227*62*126 |
| KL400A | 55HP diesel engine | 900-1100 | 400-550 | 750/780 | 2.5-10mm | 227*62*126 |
| Model No. | gasoline engine | Feed output | Wood output | N/G weight(kg) | Pellet diameter | Packing Size(cm) |
| KL120A | 7.5HP gasoline engine | 60-100 | 40-60 | 80/100 | 2.5-10mm | 76*43*71 |
| KL150A | 7.5HP gasoline engine | 90-120 | 50-90 | 95/115 | 2.5-10mm | 76*43*71 |
| KL150A | 13HP gasoline engine | 200-300 | 110-140 | 95/115 | 2.5-10mm | 87*46*73 |
| KL-B series | ||||||
| Voltage | Capacity(kg/h) | |||||

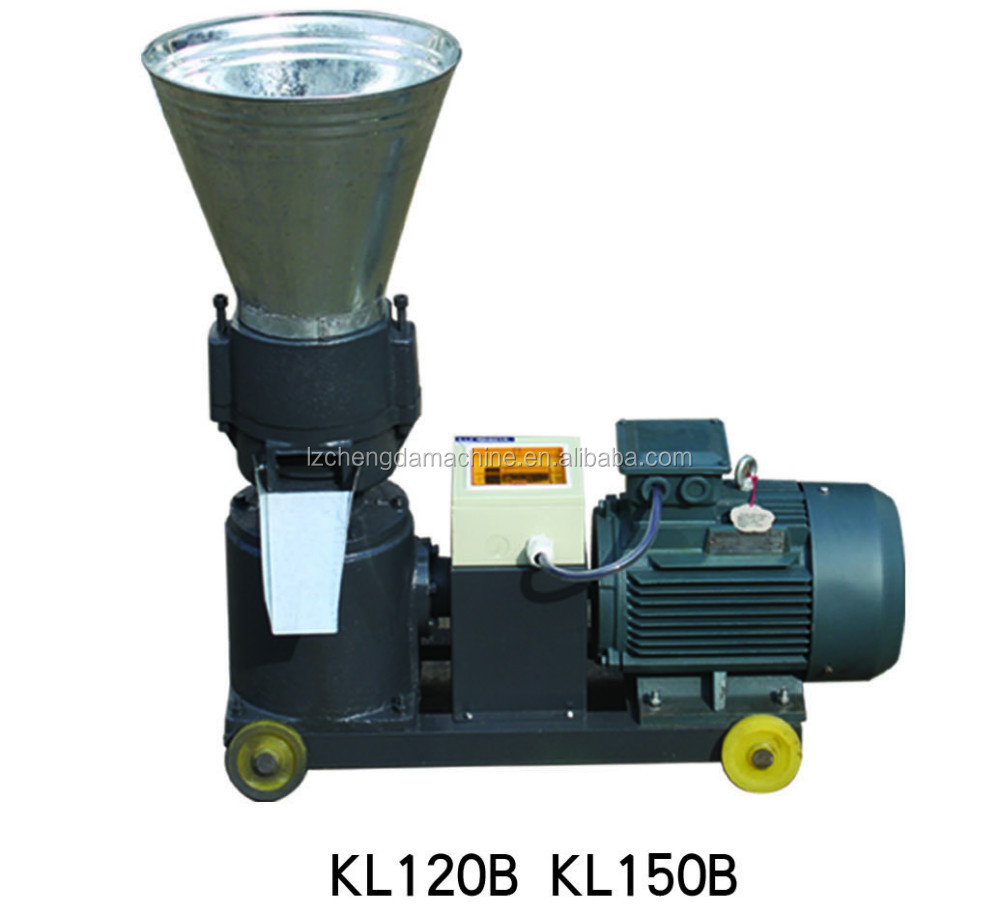

| Model No. | Power(E-motor) 60HZ | Feed output | Wood output | N/G weight(kg) | Pellet diameter | Packing Size(cm) |
| KL120B | 2.2kw220v 1phase | 30-60 | 20-30 | 80/100 | 2.5-10mm | 75*32*62 |
| KL120B | 3kw 220v 3phase | 50-100 | 30-50 | 80/100 | 2.5-10mm | 75*32*62 |
| KL150B | 4kw 220v 3phase | 90-120 | 50-90 | 95/115 | 2.5-10mm | 77*34*68 |
| KL200B | 7.5kw 220v 3phase | 200-300 | 110-140 | 200/230 | 2.5-10mm | 100*43*95 |
| KL230B | 11kw 220v 3phase | 300-400 | 150-190 | 290/320 | 2.5-10mm | 114*47*97 |

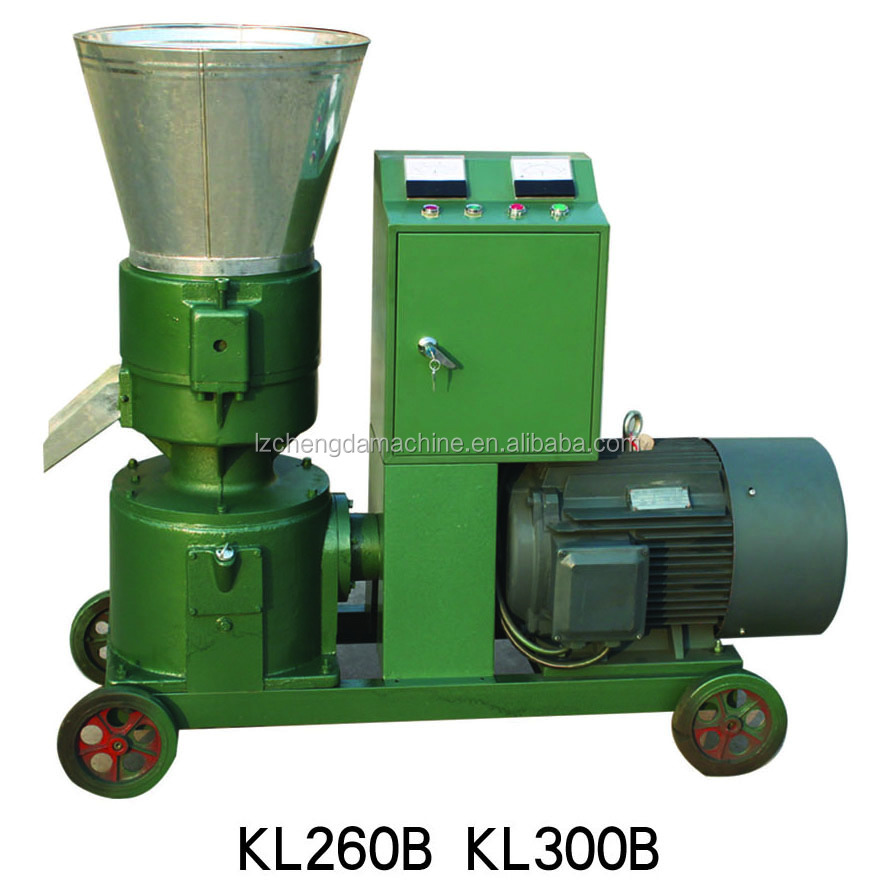

| KL260B | 15kw 220v 3phase | 400-600 | 220-280 | 330/360 | 2.5-10mm | 120*52*107 |
| KL300B | 22kw 220v 3phase | 600-800 | 280-320 | 410/450 | 2.5-10mm | 127*52*107 |
| KL-C series | ||||||
| Voltage | Capacity(kg/h) | |||||
| Model No. | Power(E-motor)60hz | Feed output | Wood output | N/G weight(kg) | Pellet diameter | Packing Size(cm) |
| KL120C | 2.2kw 220v 1phase | 60-100 | 40-60 | 80/100kg | 2.5-10mm | 75*35*65 |
| KL120C | 3km 220v 1phase | 60-100 | 40-60 | 80/100kg | 2.5-10mm | 75*35*65 |
| KL150C | 4km 220v 3phase | 90-120 | 50-90 | 95/115kg | 2.5-10mm | 75*35*65 |

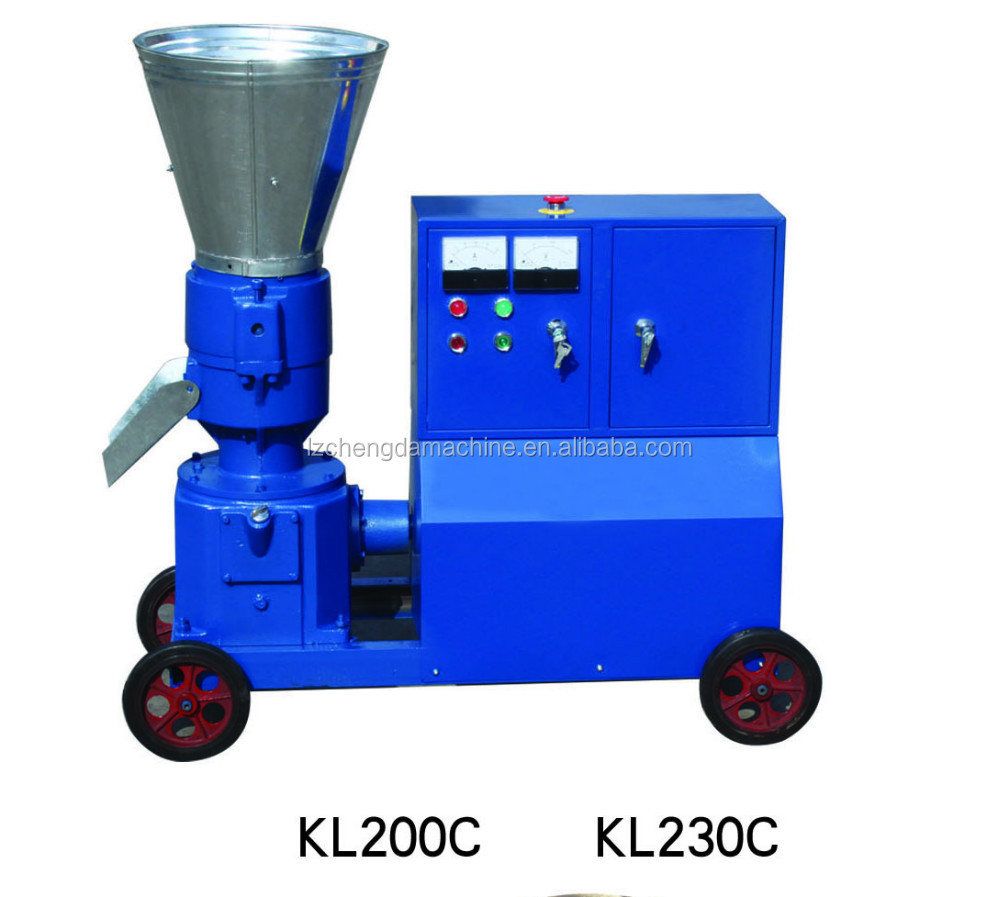

| KL200C | 7.5km 220v 3phase | 200-300 | 110-140 | 200/230kg | 2.5-10mm | 100*46*90 |
| KL230C | 11km 220v 3phase | 300-400 | 150-190 | 290/320kg | 2.5-10mm | 114*54*93 |
| KL260C | 15km 220v 3phase | 400-600 | 220-280 | 330/360kg | 2.5-10mm | 122*53*107 |
| KL300C | 22km 220v 3phase | 600-800 | 300-360 | 410/450kg | 2.5-10mm | 128*58*105 |
| KL360C | 22km 220v 3phase | 700-900 | 300-380 | 470/550kg | 2.5-10mm | 134*58*106 |
| KL400C | 30km 220v 3phase | 900-1100 | 400-550 | 630/660kg | 2.5-10mm | 145*62*115 |
| KL-L series | ||||||
| Voltage | Capacity(kg/h) | |||||
| Model No. | Power(E-motor),60hz | Feed output | Wood output | N/G weight(kg) | Pellet diameter | Packing Size(cm) |
| KL120 | 1.5kw 220v 1 phase | |||||
| 2.2kw 220v 1phase | ||||||
| KL120L | 3kw 380v 3phase | 50-100 | 30-50 | 90/110 | 2.5-10mm | 75*32*65 |
| KL150L | 5.5kw 380v 3phase | 100-150 | 90-120 | 130/180 | 2.5-10mm | 75*35*60 |
| KL-P series | ||||||
| Voltage | Capacity(kg/h) | |||||
| Model | Tractor Power | Feed output | Wood output | N/G weight(kg) | Die Hole | Packing Size |
| KL120P | 6-10HP | 60-100 | 40-60 | 70/90 | 2.5-10mm | 76*42*71 |
| KL150P | 6-12HP | 90-120 | 50-90 | 90/100 | 2.5-10mm | 76*72*71 |
| KL200P | 10-18HP | 200-300 | 110-140 | 140/160 | 2.5-10mm | 77*56*102 |
| KL230P | 18-28HP | 300-400 | 150-190 | 150/180 | 2.5-10mm | 77*56*102 |
| KL260P | 28-45HP | 400-600 | 220-280 | 200/230 | 2.5-10mm | 77*56*115 |
| KL300P | 45-55HP | 600-800 | 300-350 | 260/290 | 2.5-10mm | 77*56*115 |
| KL360P | 50-60HP | 700-900 | 300-380 | 300/330 | 2.5-10mm | 87*85*116 |
| KL400P | 50-70HP | 900-1100 | 400-550 | 400/420 | 2.5-10mm | 87*85*116 |
We have 4mm, 5mm, 6mm, 8mm, 10mm and 12mm mould for your choice. The 6mm and 8mm are the most common size. These two size are very suitable for making wood fuel pellets.
The details of factory price best quality pellet machine 220v 50/60hz single pellet machinery :
(1) The speed of our factory price best quality pellet machine 220v 50/60hz single pellet machinery :
The motor speed is fixed, all of the particles machine motor speed is 1400RPM.
Our pellet machine's speed is 200-300RPM, inside the machine with a relatively simple homemade gear.
(2) Fuel consumption of our factory price best quality pellet machine 220v 50/60hz single pellet machinery
Diesel engine pellet machine's fuel consumption: For 8Hp, it is 1.23L/H.For 15Hp, it is 2.31L/H.For 22Hp, it is 3.36L/H.
For 35HP, it is 5.39L/H. 7.5HP gasoline guzzling about 1.2L / Hour.
(3) Wheel of our factory price best quality pellet machine 220v 50/60hz single pellet machinery :
Motor-driven particle machine not with wheels, diesel particulate gasoline powered machines with wheels.
(4) Transmission of our factory price best quality pellet machine 220v 50/60hz single pellet machinery
Motor is shaft drive. Diesel, 120 to 230 is a belt drive, 260 to 400 is a shaft drive.
(5) Package
Packaging is plywood wood care, non-wood, fumigation.
(6) Spare parts and lubrication
The machines' spare parts case takes a Grease gun, used to add lubricating oil pressure roller and spindle bearings, where oil use Lithium-based lubricants: GB7324-94.
(7) Emergency stop switch
If you need, we can add the emergency stop switch for you.
(8) Only KL360, KL400, KL 335, KL 395 is three pressure rollers. At the time of installation, the gap between the pressure roller and the disc needs adjusted 0 ~ 0.5mm. (The thickness of a sheet of A4 paper is about 0.1mm) smaller the gap, the material will be sooner, but the disc and the pressure roller loss is also faster.
(9) Star-delta starter of pellet machinery
It is main used to protect the motor.
(10)pellet's length of our pellet machinery
The pellet isn't fixed, it is 2-5cm.But you can adjust the spout's screw to change the position of the blade, it could also conteol the pellet's length.
(11) pellet machinery 220v 's raw material
The pellet machine's shell use the cast iron(model is HT200 ), the roller and die use the alloy steel (alloy wear-resistant steel), bearing use steel.
(12) pellet machinery 220v 's density
The pellet's density is about 900~1200KG/CBM.
the output pellets of our pellet machine 220v
| Parameters of the output pellets | |
| calorific value | >4500~4800 kcal/kg |
| density | >1.1~1.3t/m³ |
| moisture | <=10% |
| combustion ratio | >=98% |
| heat efficiency | >=81% |
| ringelman emittance | <1 |
| discharged dust consistence | <=80mg/m³ |
| ash content | <=2% |
The production of pellet machinery:
FAQ
1, What is your raw material?
2, What capacity do you need?
3, What is the mositure and size of the raw material?
If you have any question, feel free to contact us:
Company name | Laizhou Chengda Machinery Co.,TD |
Contact person | Ruby Sun |
Website | |
ruby(at)lzchengdamachine.com.cn | |
Phone NO. | 0086-1564530427 |
MSN | |
Skype | rubyivan200612101020 |
Tel number | 86-18953512176 |
