Винтовой насос серии G для шлама угля цемента

Описание и отзывы

Характеристики

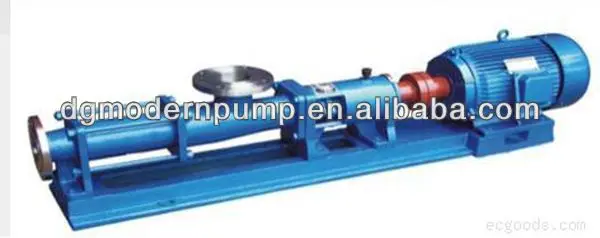

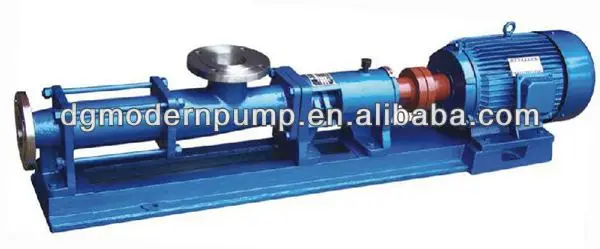

G series screw pump for coal slurry,cement,mortar

G type single screw pump for a single screw-type transport pumps, because of its excellent performance in recent years in the domestic application of rapid expansion. Its most important feature of the media flexibility and a smooth flow, pressure, pulse of small, self-absorption capacity, which is by any other species can not replace the pump can be realized liquid, gas, solid multiphase lose, applied to Chemical, pharmaceutical, electroplating, printing and dyeing, paper, electricity and other transportation industries lubrication or non-lubricating medium, corrosive media, containing a small amount of tiny solid particles of medium and low viscosity of the medium to high viscosity,



Range of Application



Mono screw pump is a type of general purpose pump. Flow can be adjusted by speed according to requirement, operation speed can be high or slow. Outlet pressure can be added by stages, add one stage can up 0.6Mpa.Widely used in below industry:

1. 1.    environmental protection: industrial sewage, sanitary sewage, sewage with solid and fibre, specially for oil-water separator, frame filter


2. 2.    Shipbuilding: shipping bottom cleaning, oil/water, oil residue, oily water and other medium of transmission


3. 3.    Petroleum industry: transfer of crude oil, the mixture of oil and water, the mixture of coal gas and water, pour polymer into stratum and so on, which reduces the cost of mechanical oil production and coal field gas, increase the oil recovery efficiency


4. 4.    Pharmaceutical, cosmetic:various viscous slurry, emulsion,cream cosmetics


5. 5.    Canned food industry: all kinds of thick starch, edible oil, honey, syrup, sauce, butter, minced fish meat and the scraps.


6. 6.    Brewing industry: viscous slag slurry, thick vinasse, food products, all kinds of paste, slurry and mucus containing massive solids


7. 7.    Construction industry: cement mortar, lime, paint and other paste


8. 8.    Mining industry: groundwater containing solid particles and sewage in mine well


9. 9.    Chemical industry: all kinds of suspending liquid, oil, all kinds of colloid, all kinds of adhesive

10.Printing, paper making industry: wallpaper, PVC polymer plastic paste and various concentration of pulp, short fibre pulp



11.Industrial boilers, power plants:convey coal water slurry

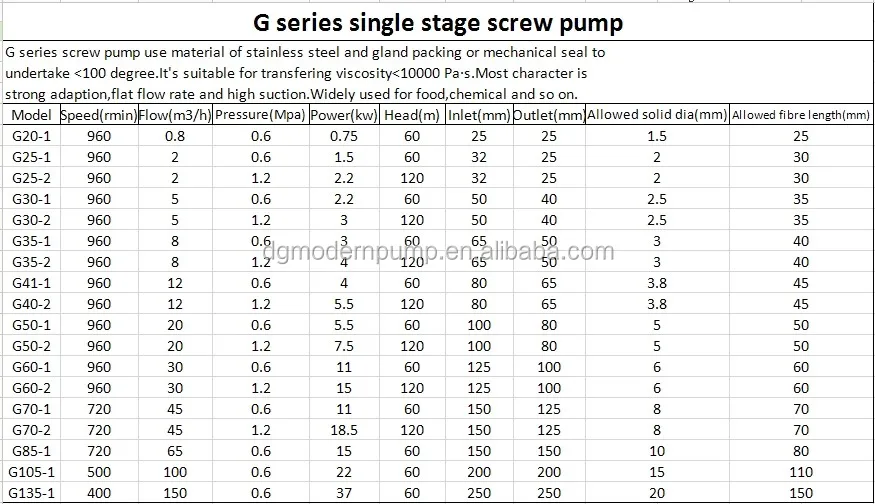

Technology Parameters



Flow 0-150 m3/h

Head 60-120 m

Power 0.75-37 kw

Rotary speed 500-960 r/min

Calibre 20-135 mm

Temperature -15-200 C



Item	Mono screw pump
Suction	Self priming
Model	G series
Material	Cast iron or stainless steel
Mode	Horizontal
Drive	Direct coupling
Rotor	Stainless steel
Stator	NBR, FPM, EPDM, NR
Seal	Pack seal
Speed	960r/min
Theory	Positive displacement
Pressure	Mono(0.6Mpa) ,Double(1.2Mpa)
Usage	High viscosity liquid
Power	Electric
Standard or Non	Standard
Outlet diameter	25-250mm
Capacity	0.8-150m³/h
Head	60-120m
Power	0.75-37kw
Warranty	12 months
Certificate	ISO9001:2008
OEM	Acceptable
Feature	Adjustable speed
Passed solid diameter	1.5-20mm
Passed fiber length	25-150mm

*All of the enquiry will be replied within 8 working hours

*Professional pump producer, with design team.

*All of the goods are packed with standard export wooden case(non-fumigation)

*Fast delivery time: common stock model, customed type:7 working days

*Support OEM or ODM

*Fast after-service

Our company established in 1998.With 20 years developing , now our group own three factory(Pearl Pump, Modern Pump and Urumchi Pump) in Chengdu, Dongguan and Urumchi. Head office in Chengdu ,Sichuan province own 50000 s.q meters new plant, 600 professional workers, hundred million equipments and total output thousands of pumps.
To be a group, our business scope have covered all kinds of pumps, like centrifugal pump,submersible pump, vacuum pump, sewage pump, chemical pump, screw pump, diaphragm pump, fire pump, water supply equipment and so on. Also welcome custom-made and OEM service. Pearl Pump is a famous brand in China, and having 20 branches in whole country. Each city have our distributors. If you like, you can be this one in your country.
Cooperating with hundreds of middle traders before 2008,in order to service our big customers better, we built up the overseas department. Dongguan in Guangdong province is our logistics center, you can choose Guangzhou, Shenzhen, Hong Kong to ship.
Every customer mostly care products quality, our group have passed ISO9001:2008 quality control system. Double testing is our quality policy. 12 months warranty time and necessary spare parts are welcomed by our customers. For international trade, third party inspection is supported



Q1:Are you manufacturer or trading company?

Our company are professional producer for pumps,and export pumps by ourselves.



Q2:What's your business scope?

We manufacture end/double suction centrifugal pump,vertical/horizontal multistage pump,sewage pump,vacuum pump,chemical pump, oil pump,screw pump, diaphragm pump, fire pump, constant pressure VFD water supply system and so on.



Q3:What's information for enquiry?

Basic information:flow and head.If special design,pls provide drawing.50HZ or 60HZ are both OK.



Q4:What's your payment terms?

Common payment terms:T/T 30% deposit,balance payment before shipment.

Western Union



Q5:How about warranty and after-service?

12 months warranty time after receiving days,not include quick-wear parts and default phase.We promise 24 hours action for your problem.And send parts by air or express for your fix.
