Product Description
Overview
LBC series Battery Charger is a charger which using latest switch power programs, and
specifically for the charging characteristics of lead-acid batteries designed for engine start, suitable
for lead-acid batteries of long-term supplemental charge (float), you can select the appropriate one
according to the selection table.
LBC series Battery Charger is a charger which using latest switch power programs, and
specifically for the charging characteristics of lead-acid batteries designed for engine start, suitable
for lead-acid batteries of long-term supplemental charge (float), you can select the appropriate one
according to the selection table.
Model | Output Voltage | Output Current | Charge Fail | BOOST |
LBC2403 | 24V | 3A | ||
LBC2403B | 24V | 3A | ● | ● |
LBC1206 | 12V | 6A | ||
LBC1206B | 12V | 6A | ● | ● |
LBC2403-1206 | 24V or 12V | 24V/3A 12V/6A | ||
LBC2403-1206B | 24V or 12V | 24V/3A 12V/6A | ● | ● |
Features
12V / 24V voltage selection, the use of imported high quality DIP makes it more reliable and stable, easily toggle switch to select.
Take Switch Power Structure, wide range of AC input voltage, small volume, light weight, high efficience.
Using Multistage Charging Method (constant voltage, constant current, trickle float, full stop) automatic charging, fully charged according to the battery charging characteristics to prevent lead-acid battery overcharge, can maximize battery life.
With the flow, short circuit, reverse polarity protection.
With Charging Failure Alarm Output Function (Passive Relay Contact), more convenient and safe.
Charging voltage and current values can be adjusted at the scene by the potentiometer.
BOOST boost function, short BOOST port can boost 1.0 V of output voltage, with compensation for rechargeable dissatisfaction in the winter, and better for the old battery.
Suitable for 24V battery pack, rated charging current is 3A.
Suitable for 12V battery pack, rated charging current is 6A.
Charging status LED indication: Power Indication (green), Charging Indication (red), filled with lights off.
12V / 24V voltage selection, the use of imported high quality DIP makes it more reliable and stable, easily toggle switch to select.
Take Switch Power Structure, wide range of AC input voltage, small volume, light weight, high efficience.
Using Multistage Charging Method (constant voltage, constant current, trickle float, full stop) automatic charging, fully charged according to the battery charging characteristics to prevent lead-acid battery overcharge, can maximize battery life.
With the flow, short circuit, reverse polarity protection.
With Charging Failure Alarm Output Function (Passive Relay Contact), more convenient and safe.
Charging voltage and current values can be adjusted at the scene by the potentiometer.
BOOST boost function, short BOOST port can boost 1.0 V of output voltage, with compensation for rechargeable dissatisfaction in the winter, and better for the old battery.
Suitable for 24V battery pack, rated charging current is 3A.
Suitable for 12V battery pack, rated charging current is 6A.
Charging status LED indication: Power Indication (green), Charging Indication (red), filled with lights off.
Specification
Category | Project | Specification | ||
Input Characteri stic | nominal AC input voltage range | AC (100~240)V | ||
Max. AC input voltage range | AC (95~280)V | |||
AC frequency | 50 Hz/60 Hz | |||
No-load power consumption | <3 W | |||
efficiency | AC 110 V | AC 220 V | ||
>82% | >86% | |||
Max. input active power | LBC 2403 | LBC 1206 | ||
130 W | 130 W | |||
Max. Input current | 2.5 A | 2.5 A | ||
Output Characteri stic | No-load output voltage | 27.6 V，error ±1% | 13.8 V, error ±1% | |
rated charging current | 3 A，error ±2% | 6 A,error ±2% | ||
rated output | 85 W | 85 W | ||
Alarm Output | relay contact | 0.5 A/250 VAC(Only useful with B suffixes, such as LBC2403B) | ||
Insulating Property | insulating resistor | Input and output、input and shell both read DC500V 1min RL ≧500MΩ | ||
insulating voltage | Input and output、input and shell both read AC1500V 50Hz 1min leak current IL ≦ 3.5 mA | |||
Working Situation | working temperature | (-30~55)°C | ||
store humidity | (-40~85)°C | |||
working humidity | 20% RH~ 93% RH( no condensation) | |||
storage humidity | 10% RH~ 95% RH(no condensation) | |||
weight | 0.63 kg | |||
Configurat ion | size | 138mm×90mm×53mm (length× width× height) | ||

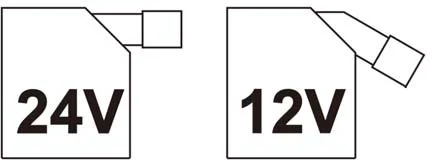

Charging voltage selection

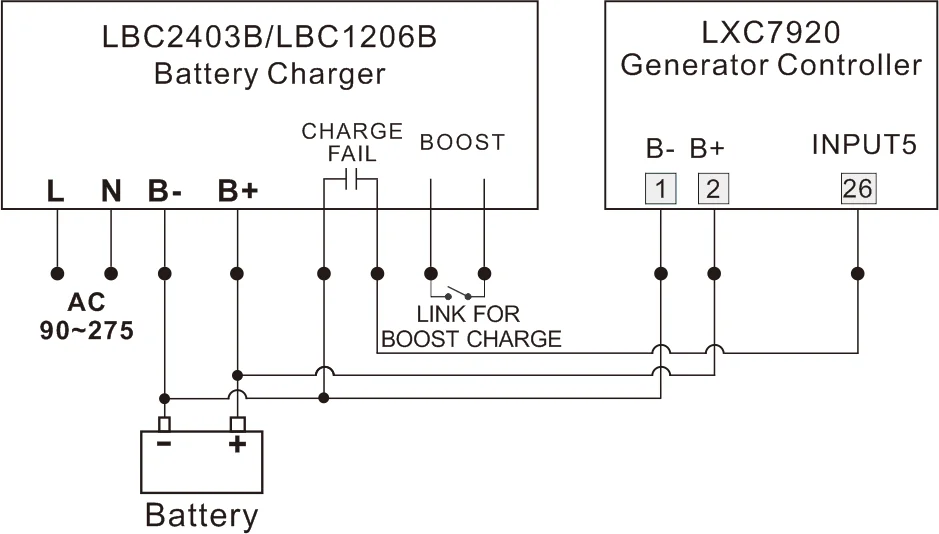

Application of Schematic Diagram

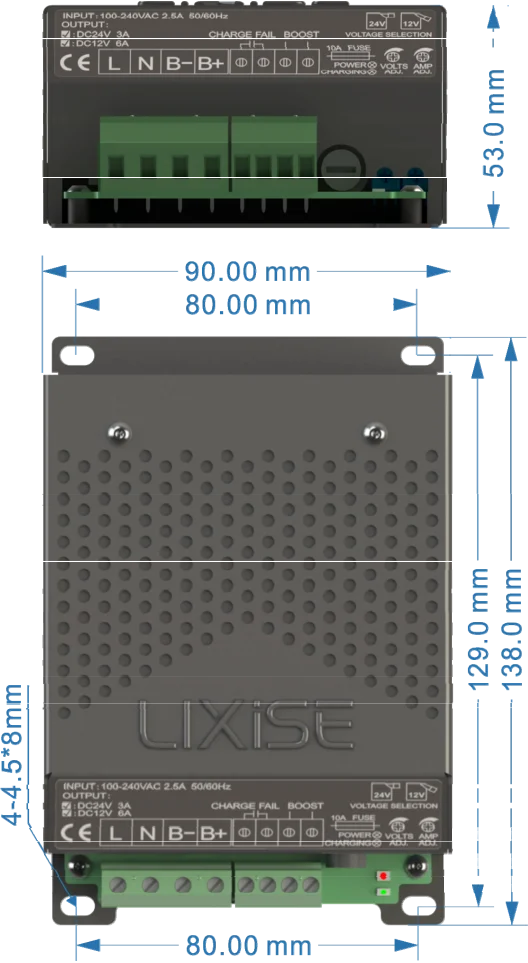

Outline and Installing Dimension

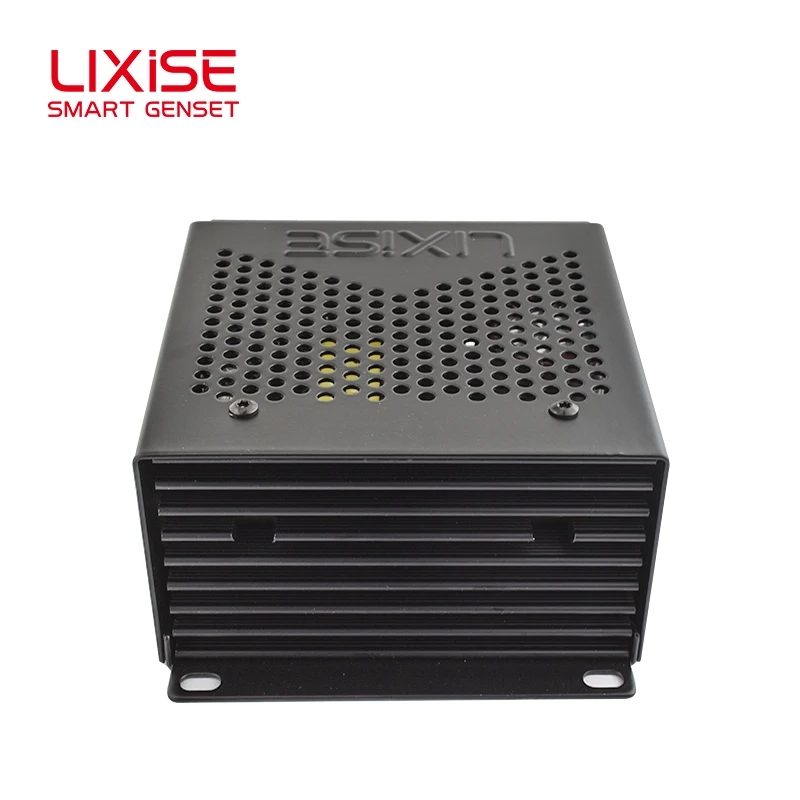

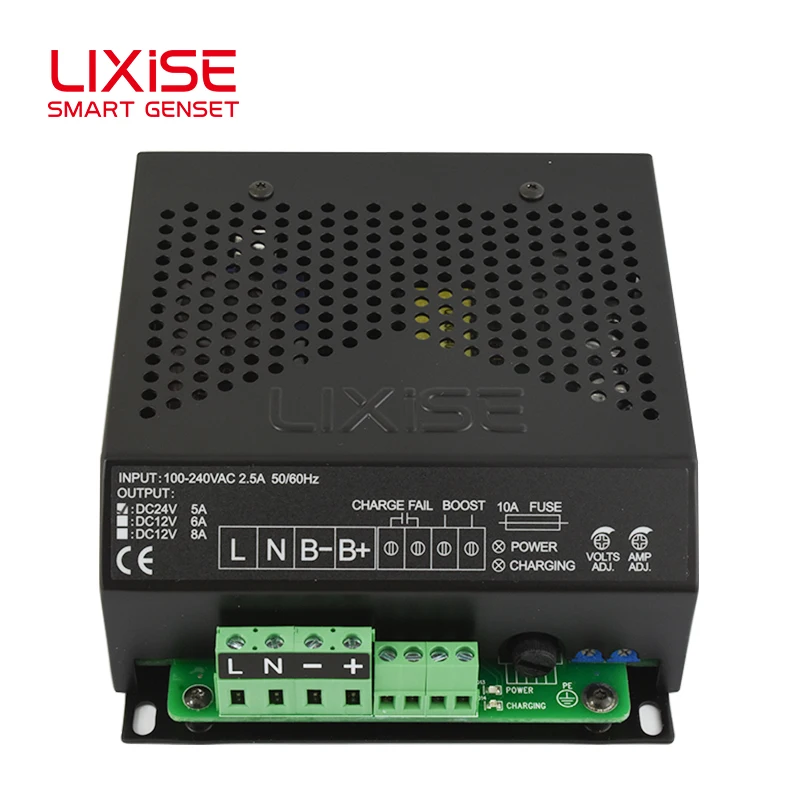

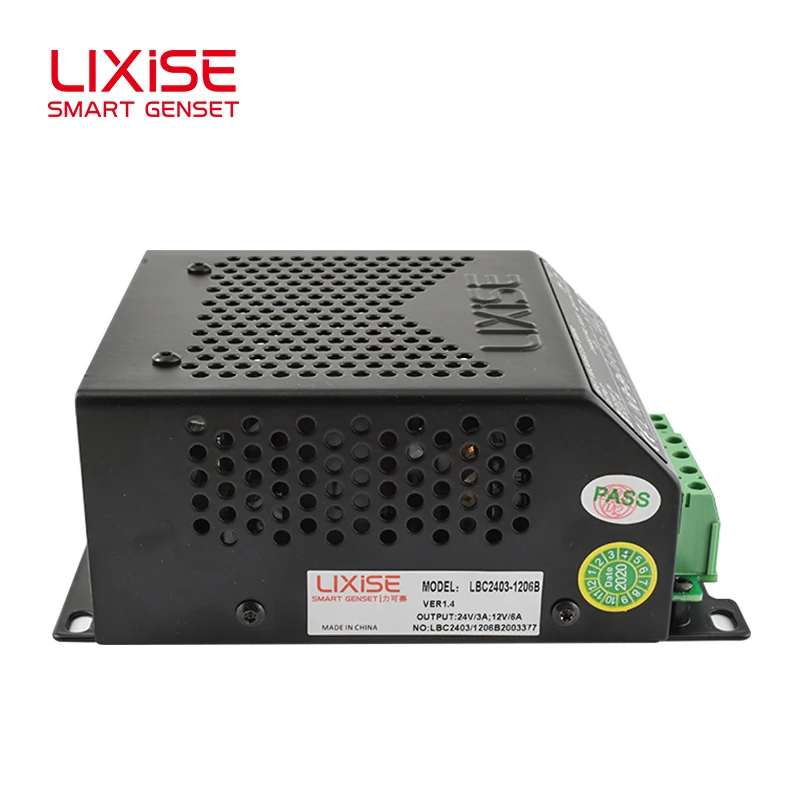

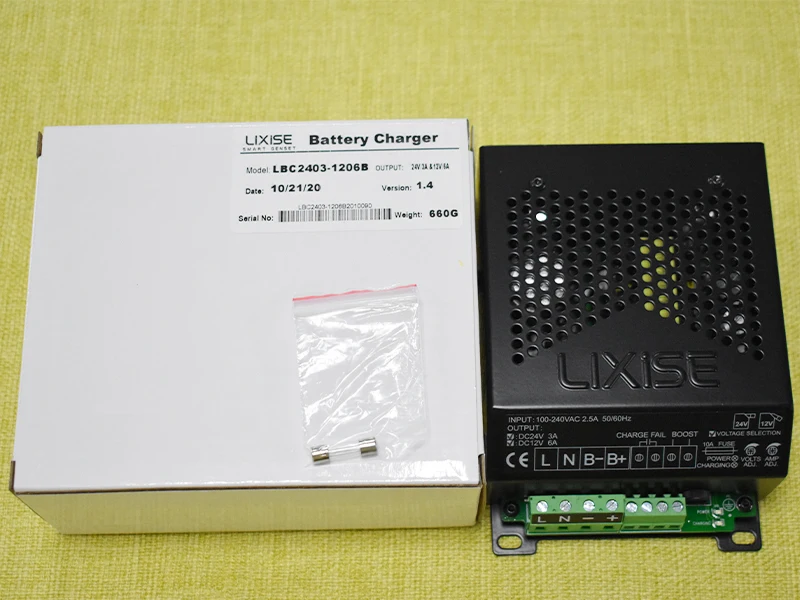

Detail Images
Recommend Products
Packing & Delivery
Special logistics packaging
The packing box of each product is very strong to ensure that the product will not be damaged due to transportation
The packing box of each product is very strong to ensure that the product will not be damaged due to transportation
Shock bubble film:
The inner wall of each carton is cushioned with anti-impact foam to ensure that the product will not be damaged due to transportation.
The inner wall of each carton is cushioned with anti-impact foam to ensure that the product will not be damaged due to transportation.
Suitable carton size:
We will choose the right size box .
Too Much Weight / too little
weight per case is not good for product protection and freight savings for customers.
weight per case is not good for product protection and freight savings for customers.
Packing tape:
In order to avoid damage to the boxes in transit, each box has packing tape. Cases shipped by sea have waterproof film on the outside.
In order to avoid damage to the boxes in transit, each box has packing tape. Cases shipped by sea have waterproof film on the outside.
Company Profile

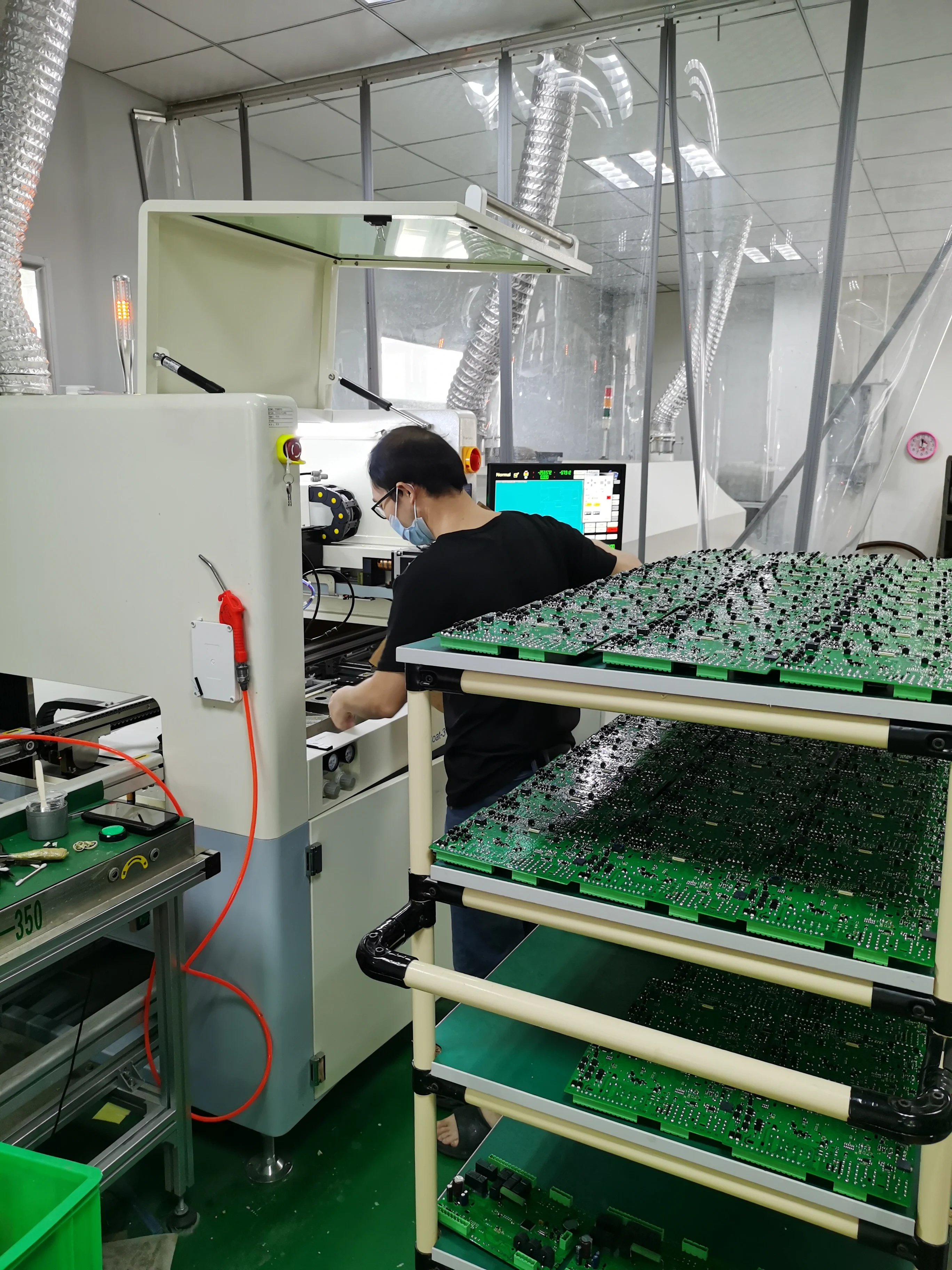

PCBA Automatic Optical Inspection Equipment:
