Антистатический цементный наполненный стальным поднятым доступом пол

Описание и отзывы

Характеристики

XIANGLI RAISED FLOOR, HELP YOU SUCCESSFUL IN PROJECTS

We have 20 years of professional experience in raised floor field, any specific color you need can be customized for you!



Structure:

1.        Full steel,cementitious infull steel raised access floor system

2.         Bottom plate is ST14 stretched plate, top plate is SPCC hard steel painted with epoxy resin;

3.         Foaming cement infilled;

4.         Top tile:HPL,PVC,Ceramic,Granite.

5.         Adjustable height for pedestal, assembly agility, large wire, good exchange ability

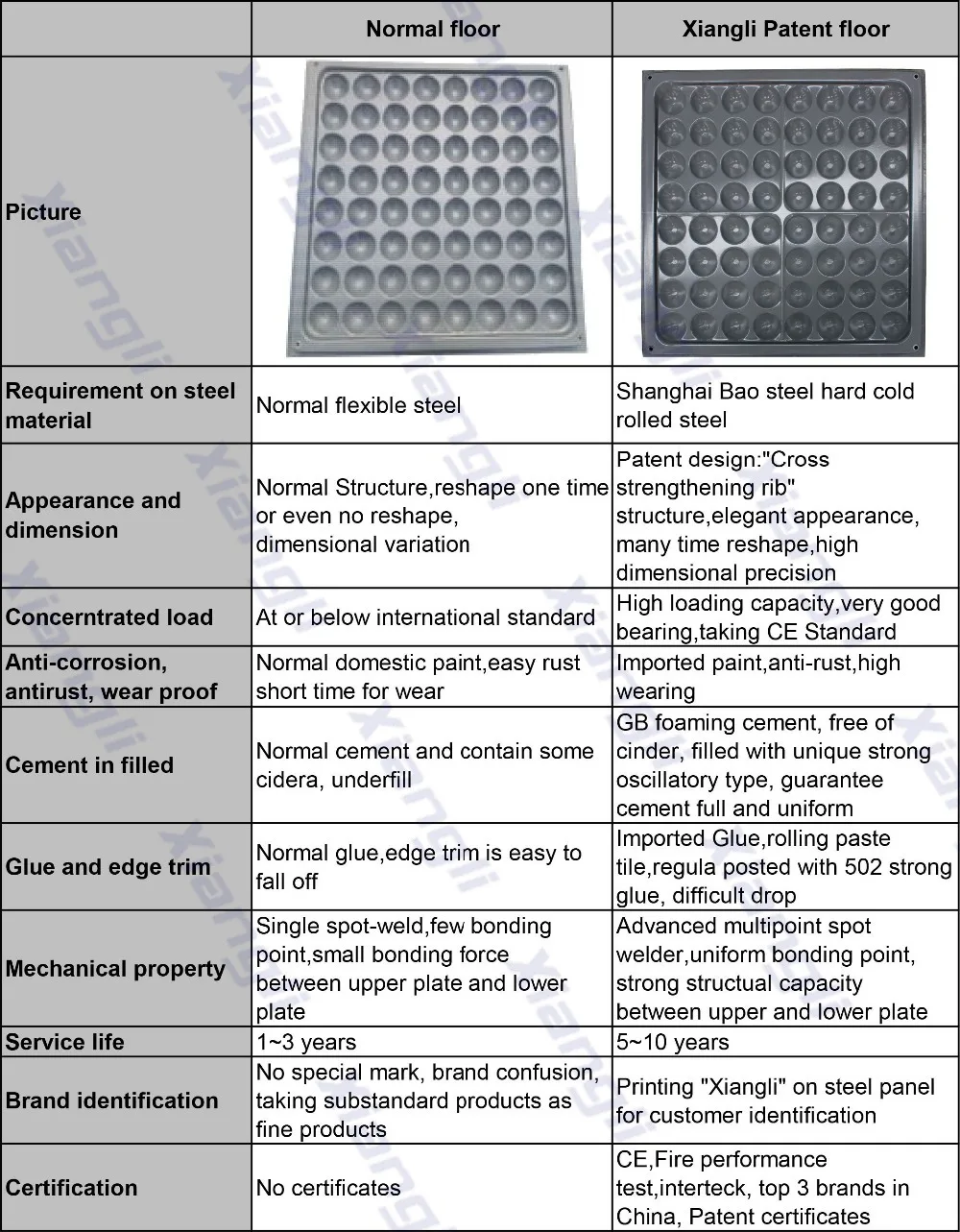

Our advantage

Technical information

Type	Size (mm)	Fire Performance	Concentrated load			Impact load (N)	Ultimated load (N)	Uniform Load (N/m2)	Rolling load(N)
			LB	N	KG				10 times	10000 times
XL-1001 (FS440)	600x600x35	A	≥440	≥1960	≥200	≥295	≥5880	≥9272	1958	1566
XL-1002 (FS662)	600x600x35	A	≥662	≥2950	≥301	≥445	≥8850	≥1250	2946	2356
XL-1003 (FS800)	600x600x35	A	≥800	≥3550	≥363	≥536	≥11250	≥16100	3560	2670
XL-1004 (FS1000)	600x600x35	A	≥1000	≥4450	≥450	≥670	≥13350	≥23000	4450	3560
XL-1005 (FS1250)	600x600x35	A	≥1250	≥5560	≥567	≥670	≥16680	≥33000	5560	4450
XL-1006 (FS1500)	600x600x35	A	≥1500	≥6660	≥680	≥780	≥26690	≥43000	6670	5560
XL-1007 (FS2000)	600x600x35	A	≥2000	≥8800	≥906	≥890	≥31130	≥58000	8800	8000

 Size could be 24"*24"



Tile

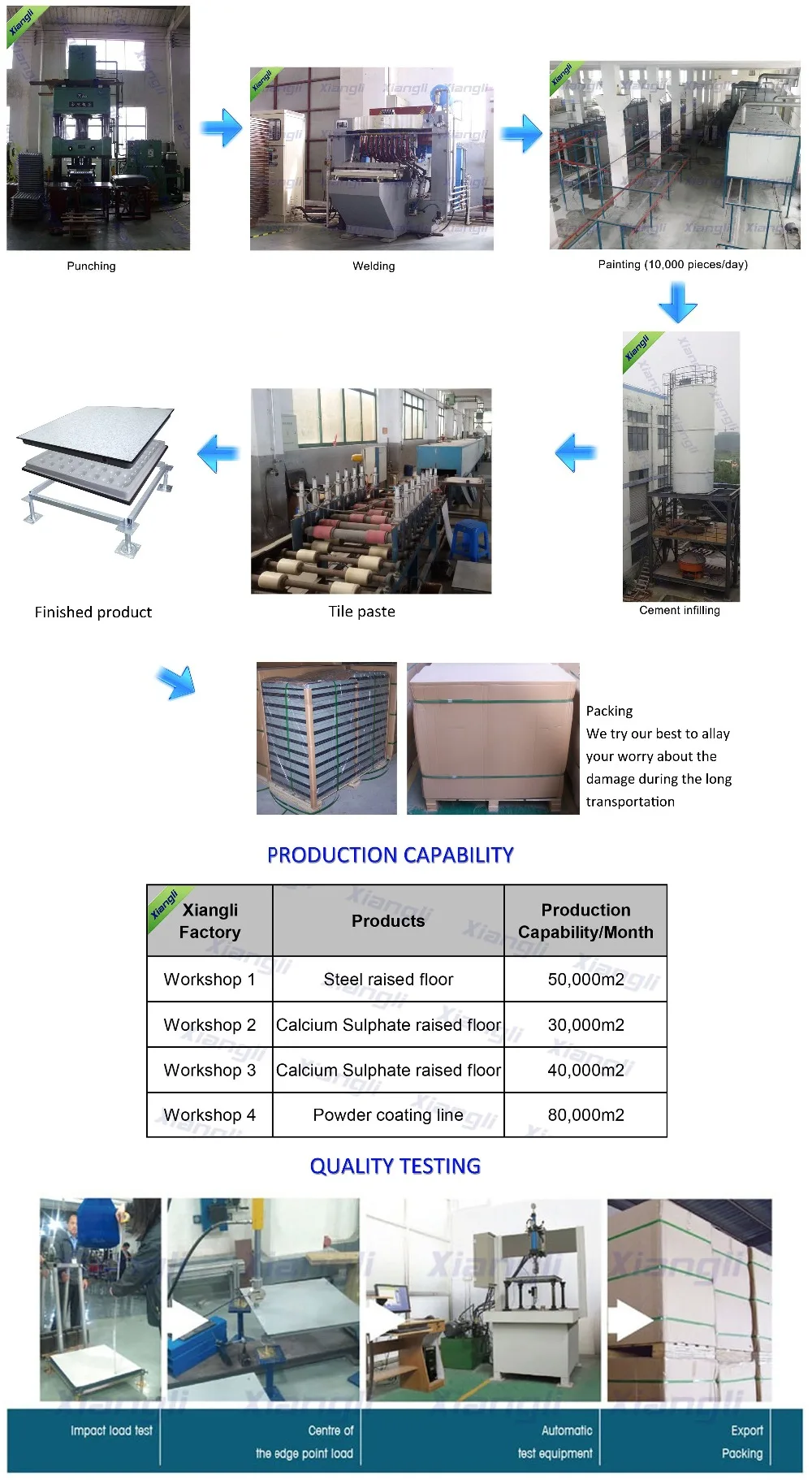

Production
