Инфракрасная каталитическая газовая

Описание и отзывы

Характеристики

Why do you choose Catalytic infrared heaters???

•


  Saving 20%~30% energy than common gas burner.





•


  Friendly to environment.





•


  Long useful time:≥11000hr





•


  Completed thermostat controlling system




Condition:	New	Type:	Infrared Heater,Infrared heater	Power Source:	LPG/NG
Place of Origin:	China			Model Number:	HD162
Dimension(L*W*H):	570*130*175(mm)	Weight:	8 kgs	Voltage:	110V/220V
Power(W):	9.4KW/H	Certification:	SES	Warranty:	1 year
		Shell:	cast iron	Nozzle:	Brass
Upcover:	stamped iron	Use time:	above 11000hr	Use:	industrial oven, power coating oven, curing oven, baking

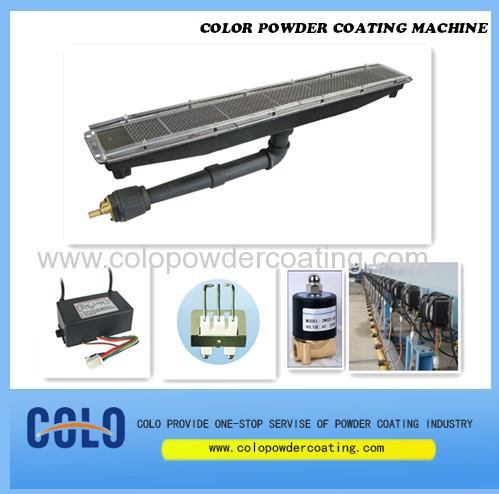

 Infrared Catalytic Gas Fired Burner (HD162)







Model	Length (mm)	Width (mm)	Hight(mm)	Weight (kg)	Heat Output
					KW/H	Kcal/h
HD82	219	164	109	4.8	3.1	2700
HD61	423	80	94	3.8	2.4	2030
HD101	690	80	115	6.9	3.9	3380
HD162	570	130	175	8.0	6.3	5400
HD242	840	130	175	11.7	9.4	8120
HD262	930	130	175	13.0	10.9	9360







Working principles of industrial oven gas burner infrared HD162:

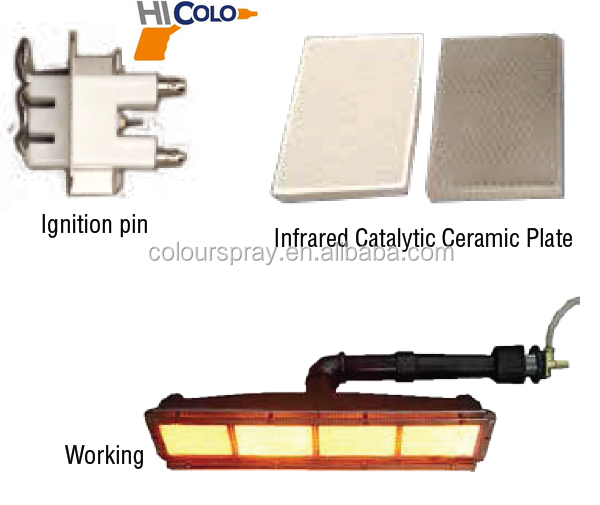

Infrared catalytic heater uses the porous cordierite honeycomb combustion plate with a special catalyst coated as a core component Its catalytic combustion is the best combustion mode ,which means that gas(natural gas, liquefied petroleum gas) and combustion-supportinggas (air) are mixed according to the scientific proportion throughburner shell (pre-mixed room) with the precise design and manufacturing .Ignited by the ignition, the gas mixture is burning on surface ofcatalyst which lies in the holes of porous cordierite honeycomb plate.The vast majority(95%) of the heat generatedin the form of infraredradiation penetrate the object directly,put an end to energy loss causedby heating the air to heat the object, the mode of heat convectionheating , greatly improvethe energy conversion ability so as to further save the energy (save 60% of the operation costs under the sameindustrial conditions compared to the ordinary heating mode --electricheating ).Gas is almost under complete combustion as a result ofcatalytic combustio. the flue gas pollution is extremely low (CO<0.02%, NOX <10ppm) ,fully meeting the national environmentalstandards andthere is no need for direct exhaustfan
