Высоко гибкий Windjet воздушные шары паук рука Воздушный Шабер для напитков

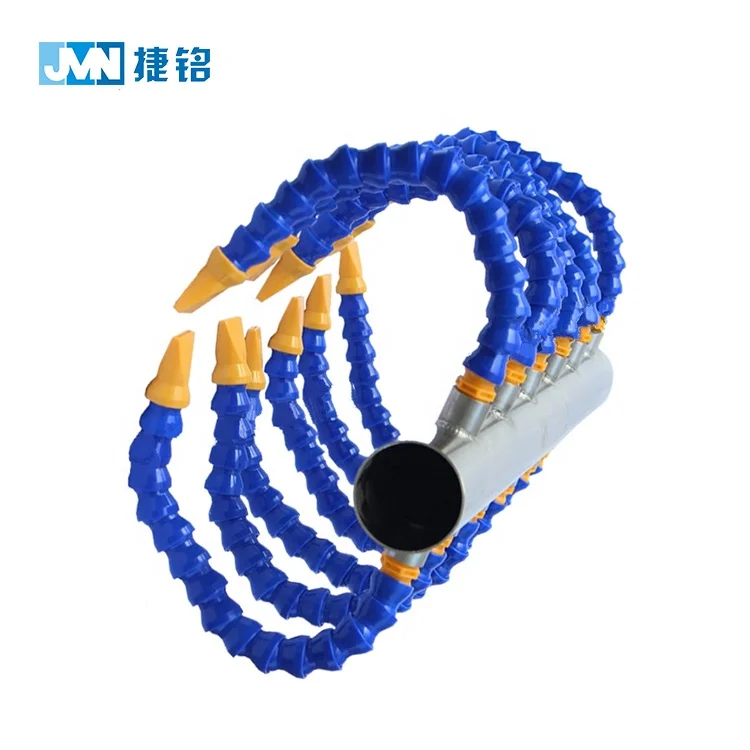

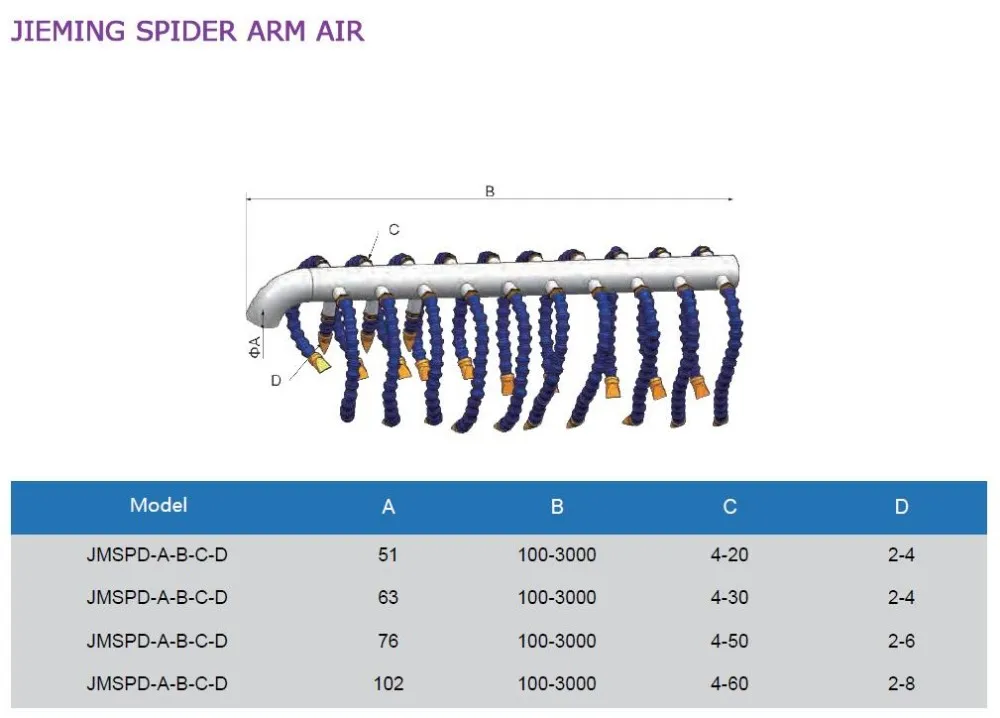

1, Model coding of JIEMING Spider Arm Air Knife, for example, JMSPD-A-B-C-D, presume air knives size is 2000mm, air distributor diameter is 76mm, lateral inline nozzles number is 44 pieces. Inline nozzles number at the bottom is 3 pieces.It works out to model number: JMSPD-A76-B2000-C44-D3.

2, Please kindly notice that spider arm's valid length B is including elbow length. Spyder arm nozzle is 25*1.8mm in size.

3, Please satte the length of nozzles very clearly like 100mm*3pcs, 300mm*12pcs, 400mm*12pcs, 500mm*10pcs,600mm*10pcs, totally 47 pcs.

4, Available in SUS304 Stainless steel for main body, and polyoxymethylene for the nozzles, JIEMING Spider Arm Air Knife is wear-resistant and heat-resistant and can be use in -50 to 110℃ for a long time.

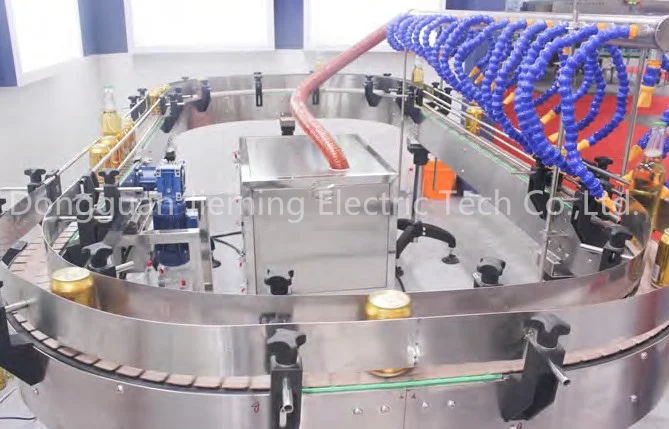

5, Spider arm air knives should be installed as a"multi-step"production lines, high to low as the upstream prodcution lines go towards.

6, If your reuired size is beyond those sizes in the chart, please call 86 13790229580 Notices:

Please be careful that keep away from the air knives. Do not use hard or rough thing to rub the knives, or they are broke or blocking the air flow.

Air knives are custom-engineered by customers' needs and requirement. If you want to change the width of the knives, please inquire JIEMING engineers, otherwise their performance will be weaken by unwanted operations.

1,Can be used for harmful gases, dust, hot and cold air barrier free separation, printing paper to the paper blowing and printing dry.

2, Can be used in food, medicine rapid heating, thawing and high temperature sterilization.

3, Especially suitable for ultrasonic cleaning, glass cleaning machine, circuit boards, electroplating parts, coating, coating, non-ferrous metal plate / wire production in various industries, such as water drying process.

Establish in July 2002,Factory space 9000m2.
Dia casting machine,CNC machining equipment, automatic wire winding machine,electric test machine,rotor balancing
machining machine,impeller balancing testing and machining machine.
Professional R&D , Technicists and management.Quality First,Customer first.
CCC,CE,Energy and environment protection Certificate.

♦18 months warranty and long-term marketing, after-sale support.
♦Professional engineer will help to recommend the most suitable models after studying customers' requirements,
and customize solution for any of your special applications Such as ATEX, gas tight,special voltage special design etc
OEM service available.
♦Clear pictures, curves and dimensions are ready for your website development.
♦24 hours service online,you can touch us by email, skype , wechat , what's app,telephone ,QQ etc
♦7 days delivery time and safe shipment
♦Best prices and best quality always.
♦Customer first service first,Quality first.

♦CIF by sea or air freight terms
♦FOB terms SHENZHEN/GUANGZHOU and other sea port is ok
♦EX-WORK TERMS
♦DDP/DDU
♦DHL fast delivery shipping door to door
♦Other delivery terms are negotiable.
♦Best package suitable for export shipping request.
♦Air shipping Fob shen zhen , guangzhou ,shanghai condition.
♦Other shipping method based on customers' request.
