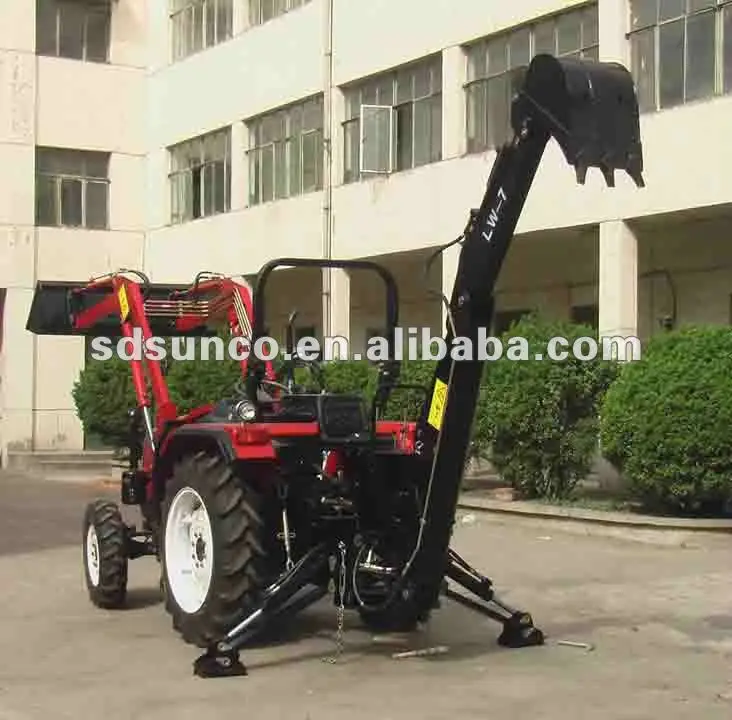

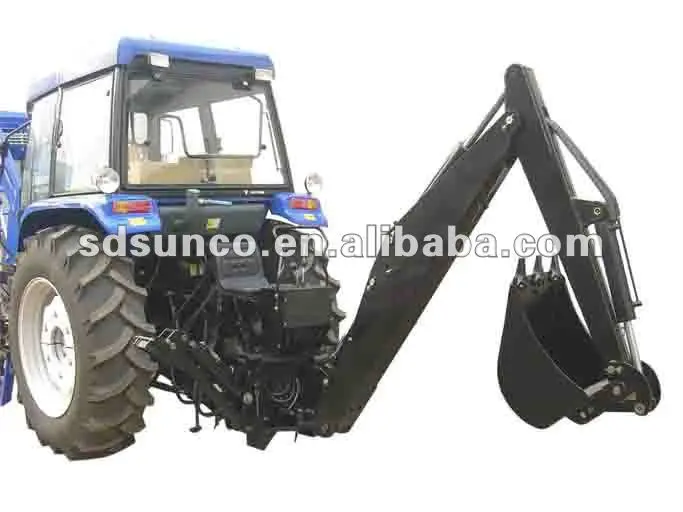

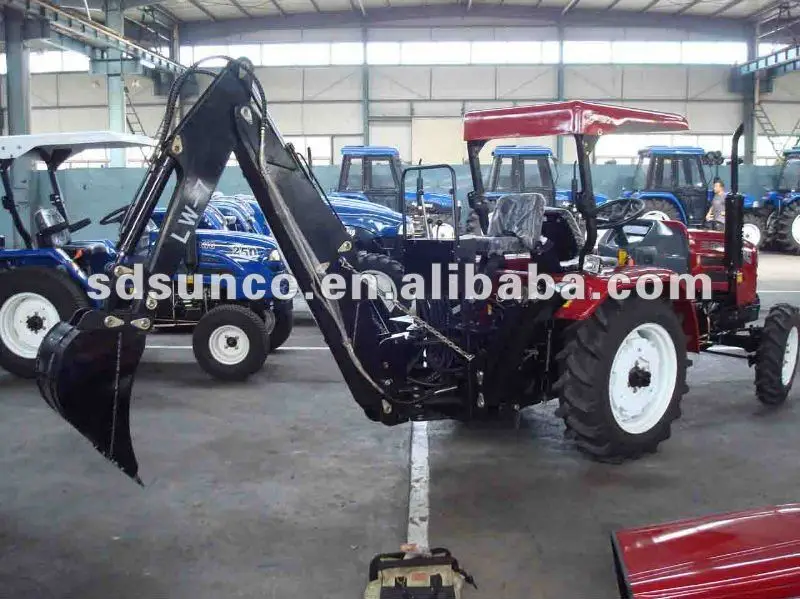

Backhoe Excavator for Tractor



 Descripion:

LW Series Backhoe Excavator for tractor is used for ditching in farms and grazing lands, digging pool, cleaning waterways as well as assistant excavating work in construction and building roads, etc.To better accomplish different kinds of work, buckets of different sizes can be selected and mounted on it.

 Features:



1 Different sizes Buckets are optional

2 CE Certificate

3 Compact structure with high quality materials

4 Flexibility and convenient operation;

5 Quick mounting and dismounting

Application:



LW Series Backhoe Excavator for tractor is widely used in farm, grazing land, construction etc, mainly in ditching, digging pool, cleaning waterways as well as assistant excavating work in construction and building roads.



Specification



Main Specifications of Backhoe Series
Model of Backhoe		LW-6 (HW-03)	LW-7 (HW-05)
Matching Tractor	Kw (hp)	14.7~22.1(20~30)	22.1~36.8 (30~50)
Max. Digging Depth	mm	1700	2100
Max. Unloading Height	mm	1700	2300
Max. Digging Height	mm	2700	3300
Max. Digging Depth Flat Bottom	mm	1600	2000
Max. Swing Angle	(° )	180°	180°
Bucket Rotation Angle	(° )	160°	160°
Bucket Capacity	m3	0.03	0.048
Weight	kg	450	500
Main Specifications of Backhoe Series
Model of Backhoe		LW-8 (HW-06)	LW-12 (HW-12)
Matching Tractor	Kw (hp)	36.8~58.8 (50~80)	88.2~102.9 (120~140)
Max. Digging Depth	mm	2600	3600
Max. Unloading Height	mm	2500	3200
Max. Digging Height	mm	3400	4500
Max. Digging Depth Flat Bottom	mm	2500	3500
Max. Swing Angle	(° )	180°	180°
Bucket Rotation Angle	(° )	160°	174°
Bucket Capacity	m3	0.06	0.2
Weight	kg	540	1050



Our Advantages:



1. Strong Technical Support:



More than 80 professional and technical personnels;

Top universities and institutes cooperator;

A subordinate to Shandong Agricultural Machinery Research Institute



2. Top Quality Assurance:



Strict control and selection of materials;

Completely self manufactured and installed;

Advanced equipments and first-class production technology;

Sound management system and solid economic strength



3. Advanced Testing Measures:



Exclusive R&D, testing center;

Capable of undertaking national research projects;

Exclusive professional platform



4. Sound after-sale system, sincere and all-aspect service



5. OEM service is acceptable, every products can be customized





Certificate



Company Information

 Our company:

1.A holding company of Shandong Academy of Agricultural

Machinery Sciences. It was established on the basis of Academy's Technology Centre and Trail Production Factory in 2001, and was formally

registered in 2009.

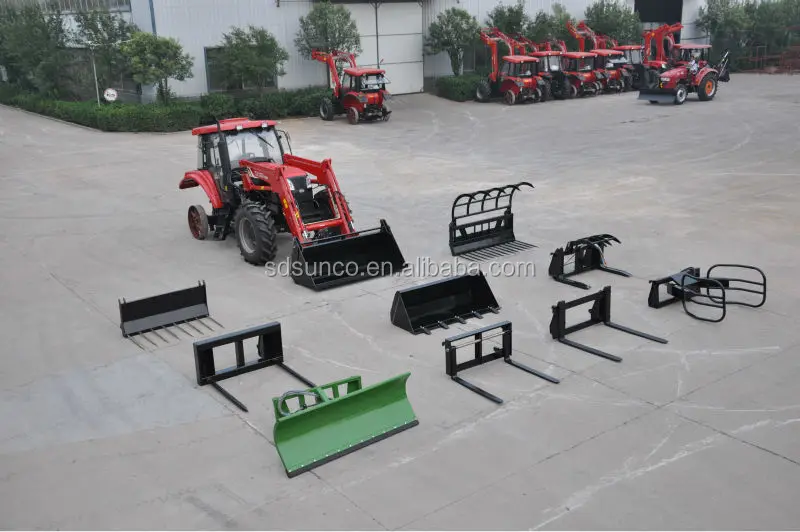

2.Main products of our company including: Front end loader,Backhoe,

Snow removing machineries( like Snow blade, Snow sweeper, Snow blower etc), Forestry machineries( like Log trailerwith crane, Log splitter, Wood chipper etc), Front linkage and

PTO, Grass mower, Dozer blade and Compost turner etc.

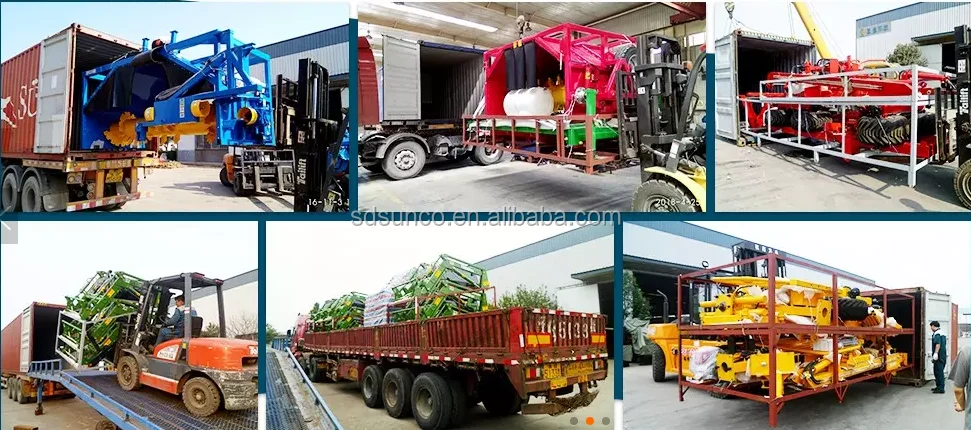

Packing & shipment:



Why should you choose us:

I. Strong Technical Support:

1.More than 80 professional and technical personnels;

2.Top universities and institutes cooperator;

3. A subordinate to Shandong Agricultural Machinery Research Institute



II. Top Quality Assurance:

1. Strict control and selection of materials;

2. Completely self manufactured and installed;

3. Advanced equipments and first-class production technology;

4.Sound management system and solid economic strength



III. Advanced Testing Measures:

1. Exclusive R&D, testing center;

2. Capable of undertaking national research projects;

3. Exclusive professional platform



Our Services

After service and Guaranty of our factory:

1.1years quality guaranty, the machine with main parts (excluding the

consumables) shall be changed free of charge when if any problem

during the warranty period.

2. 12 hours on line service each day, free technical support.

3. Machine has been adjusted before delivery.

4. Provide technical services to the door (We have professional

engineers to offer machine installation commissioning and maintenance)
