Water Atomization Euipment
Product Description
1. Introduciton
The method of powder atomizing equipment is a kind of new technology in the powder metallurgy industry which was developed in recent years. It is with the characteristics of simple craft, easy to master technology, not easy oxidizing material, and high degree of automation.
2.Features
- manufacturing most of metal powder and its alloy powder with low production cost
- manufacturing spherical or irregular powder
- Because of rapid solidification without segregation phenomenon, many special alloy powder can be produced
- using right craft can make the powder particle size to achieve a required range
3.Main Technical Parameter
| Model of powder atomization equipment | EFSWH-30 | EFSWH- 50 | EFSWH-100 | EFSWH-300 | EFSWH-500 | EFSWH-1000 |
| Pressure of High Pressure Water(Mpa) | 100-300 | |||||
| Flow of High Pressure Water(L/min) | 50-800 | |||||
Furnace Charging Weight(Kg) | 30 | 50 | 100 | 300 | 500 | 1000 |
| Max. Smelting Temperature(°C) | 1750 | |||||
| Smelting Heating Power(KW) | 50 | 80 | 130 | 200 | 260 | 400 |
| Temperature Measuring Method | Infrared, WRe5.26 | |||||
| Tundish Heating Power(KW) | 10-20 | |||||
| Supply Power | Three Phase, 380V, 50Hz | |||||
| Total Installed Powder(KW) | To be determined | |||||
| Flow of Cooling Power (L/min) | 150 | 150 | 150 | 300 | 400 | 700 |
| Cooling Water Device | Air cooling tower, water cooling unit, heat exchanger | |||||
| Flow of Soft Water(m3/h) | 6-20 | |||||
| Control Method | Relay or PLC | |||||
| Operating Interface | Button type or touch screen | |||||
| Data Record | 12 data curve record, LCD monitor and display | |||||
| Overall Dimension(LxWxH)mm | 7500x4000 x6500 | 7500x4200 x6500 | 8200x4200 x6500 | 8200x4500 x6500 | 8500x4500 x6500 | 9200x5000 x6500 |

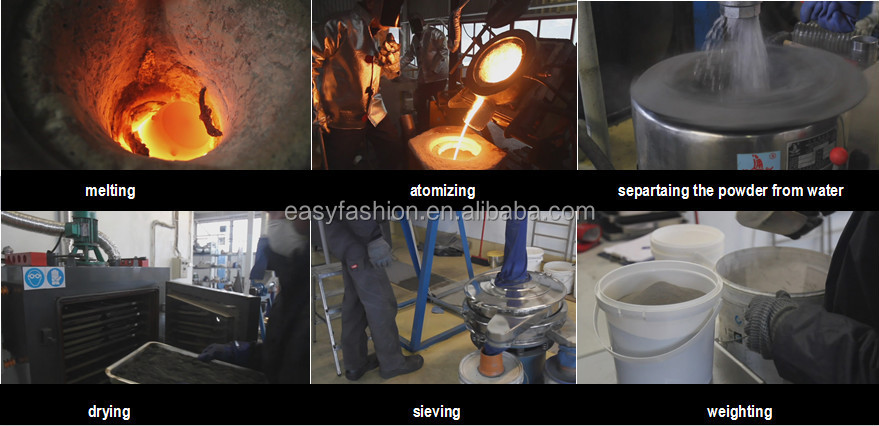

4.Atomizing Process
5.Newest order of water atomizing equipment

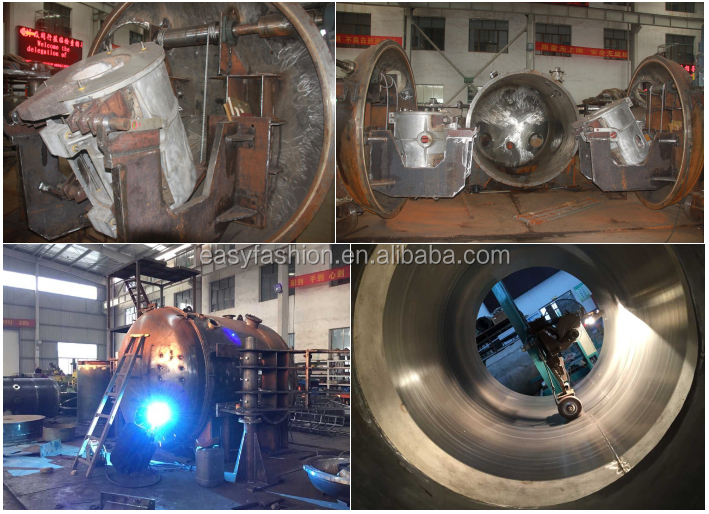

Under manufacturing in our factory:

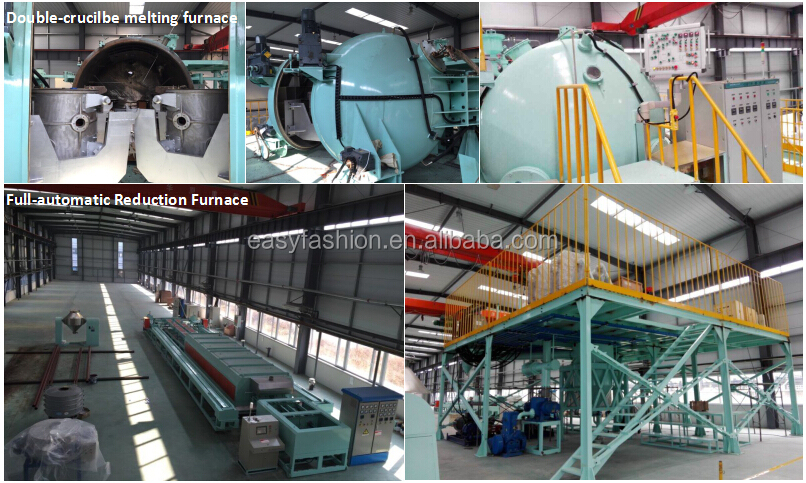

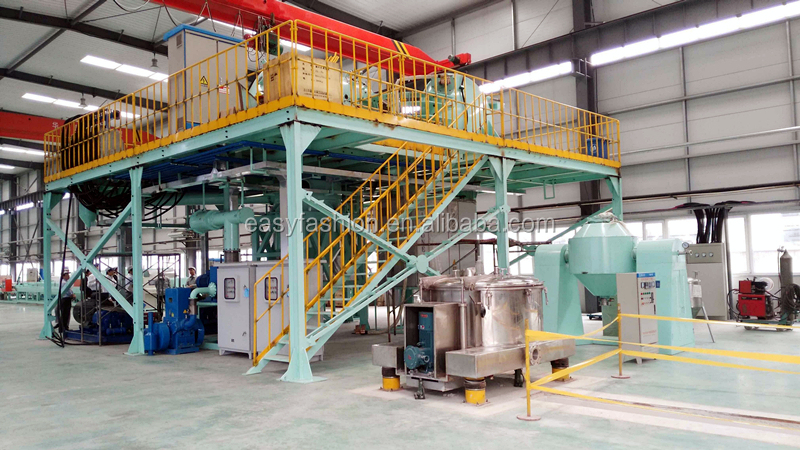

Installation finished at client site:

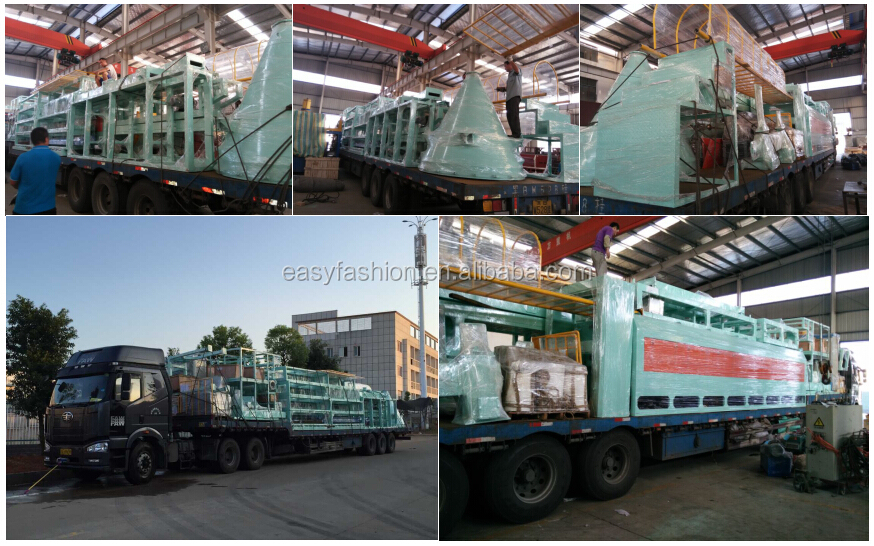

Packaging & Shipping
Certifications
Customers
FAQ
1.What if the above technical parameter can't meet my requirements ?
Our equipment can be customized according to your requirements.
2.How can I believe your quality ?
Our equipment are eqquiped with mechanical parts of world renowned brands like Schneider, Omron and so on and also approved ISO9001 certification.
3.Are you a trade company or a factory ?
We are a manufacturer with a huge factory.Warmly welcome to visit our factory and contact with us.
