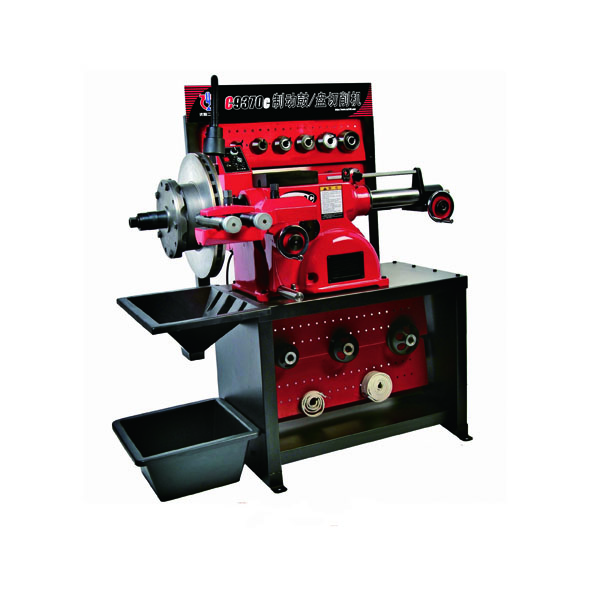

C9370 машина для резки тормозного ротора с диаметром барабана 28

    C9370 brake lathe is capable of faster,more accurate and easier resurfacing the lathe,Infinitely adjustable feed rates allow you to easily modify cut durm,Fast and slow setting allow cutting the rotoe .There are three kinds of spindle speeds to choose 70,88,118RPM. With cross feed extension plate will be increase the maximum rotor diameter to 22"/588mm.

Parameters :

Rotor Diameter:7—18"(180—457mm)
Rotor Thickness:4"(102mm)
Drum Diameter:6—28"(152—711mm)
Drum Depth:9.875(251mm)
Power:1P/220V / 50Hz,
1P/110V / 60Hz,
3P/380V / 50Hz,
Dimension:1100x1070x1140mm
Site Requirements:1525x1270x1780mm

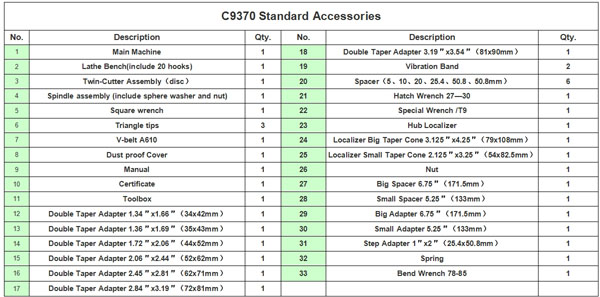

Packing list :

 About Warranty

All the products we will offer 1-years warranty .

Our Payment & Our Shipment

Our Factory
