Новая Foton 8x4 колеса 12 кузов рефрижераторного в продаже
US $6000-$10000
Грузовик с замороженным фургоном JAC легкий Холодильный
- Категории: Refrigerator Trucks >>>
- Поставщик: Chengli,Special,Automobile,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
JAC frozen van truck, light refrigerated van
ChengLi Special Automobile Co.,Ltd , which is a big and famous special function manaufactuere in China, we produce many kind of special vehicles, also inlcuce refrigerator trucks.Currently we produce the refrigerator trucks from 1 ton loading capacity to 30 ton loading capacity type, with many brand, such as Dongfeng, Foton, Sino,FAW, also inlcude Japan brand.
- JAC frozen van truck, light refrigerated van
- light refrigerated van,light refrigerated van, light refrigerated van
| Item | Unit | Description | ||||||||
| Model | JAC refrigerator truck | |||||||||
| Dimension | mm | 9990*2490*3850 | ||||||||
| Box Dimension | mm | 7400*2280*2400 | ||||||||
| Material | Inside and outside plate with fiber glass, 80 mm PVC between two plate | |||||||||
| Option | Aluminum, Stainless steel, Carbon Steel | |||||||||
| Curb Weight | kg | 6015 | ||||||||
| G.V.W | Kg | 10000 around | ||||||||
| Loading weight | kg | 16000 | ||||||||
| Wheel Base | mm | 5000 | ||||||||
| F/R track base | mm | 1900 / 1800 | ||||||||
| F/R Axle-load | Kg | 5000 / 10000 | ||||||||
| Approach/Departure angle | . | 19/10 | ||||||||
| Traction system | Type | 4x2 | ||||||||
| Max speed | Km/h | 90 | ||||||||
| Tire Specification/Number | Model | 10.00R20 , 6 Unit +1 Spare Unit | ||||||||
| Engine model | Model | CA6DF2D-19 | ||||||||
| Emission | 6557 cc | |||||||||
| Horse Power | 190 Hp ~ 140 Kw | |||||||||
| Power | 680 N.m-1400~2300r/min | |||||||||
| Type | Diesel, 6 cylinder, Turbocharge , inter-cooling. | |||||||||
| manufactuere | FAW Group~ Wuxi Diesel Engine | |||||||||
| Standard | Euro II | |||||||||
| Gear box | Type | 6F&1R, Manual , CA6T138-85 | ||||||||
| Electric system | V | 24 | ||||||||
| Cab | Person | 3 | ||||||||
| Type | Reversable, Manual | |||||||||
| Steering | Powering , LHD or RHD | |||||||||
| Installing | Mp3, Radio | |||||||||
| Air Conditioner | Hot Wind / Cold Wind | |||||||||
| Refrigerator | keep the temperature -18~0 C of inside box. China brand | |||||||||
| Option | Side Door Open, One door , or two door | |||||||||
| Option 2 | Box inside top installing slip track hock | |||||||||
| Option 3 | Box inside bottow , installing aluminum track for wind blowing | |||||||||

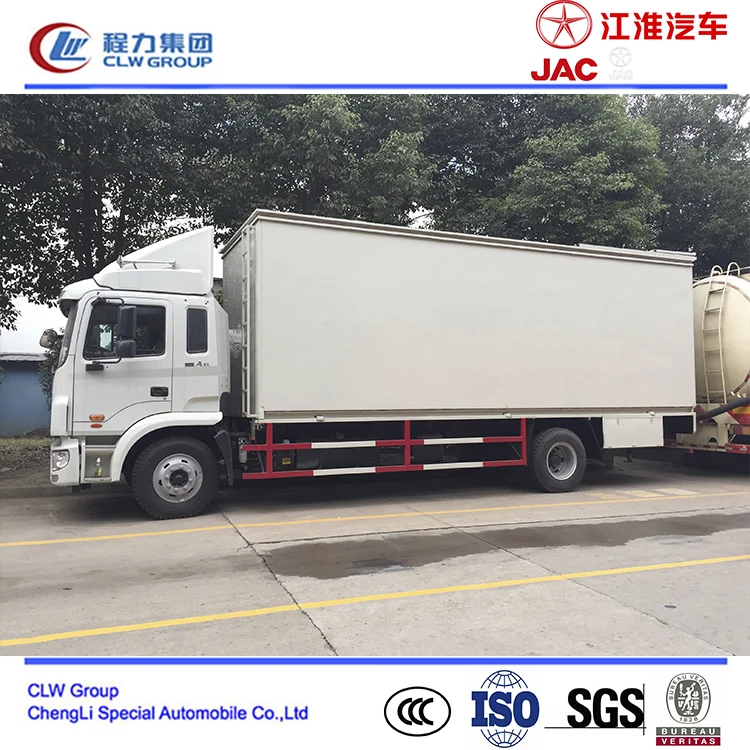

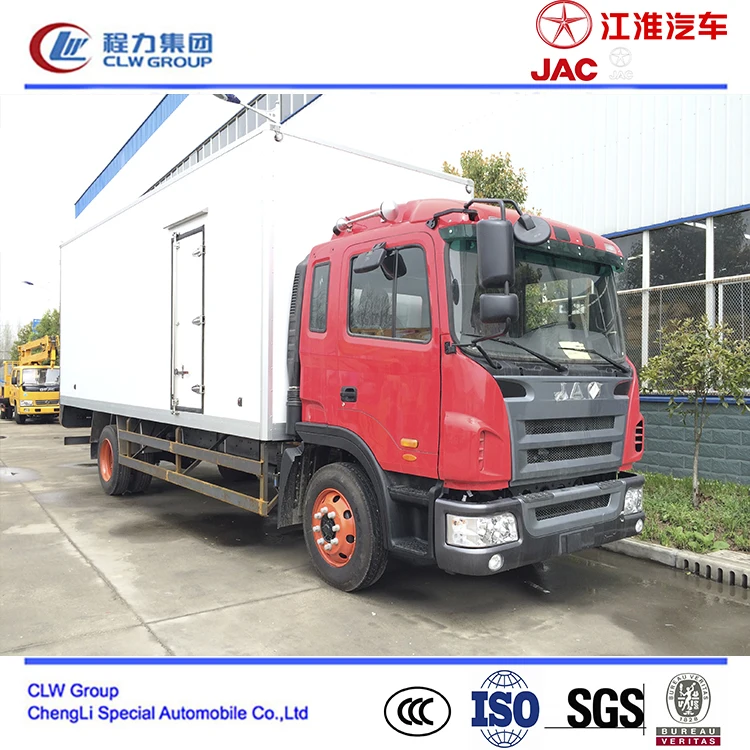

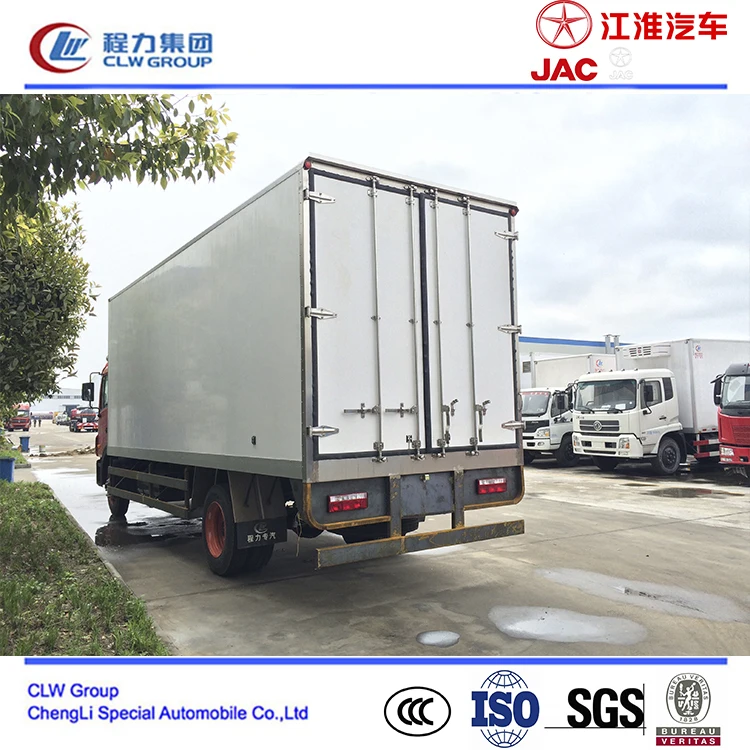

- JAC frozen van truck, light refrigerated van, More photos showing
- light refrigerated van,light refrigerated van,light refrigerated van
- More photos showing about our refrigerator trucks
- light refrigerated van,light refrigerated van,light refrigerated van
Contact
CLW Group_ChengLi Special Automobile Co.,Ltd
