Ls6-Box-6(2) 6 цепей системы напольного отопления Центрального управления
- Категории: >>>
- Поставщик: Menred,Group,Yueqing,Import,And,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Why Choose Us
1.We are the biggest Chinese production base of HVAC products
2.460 works and 20 years experiences, ISO, CE, RoHS, CCC etc. certificated,120 patents,near Shanghai/Ningbo port.
3.We have our own R&D center, Equipment from Germany, Japan.

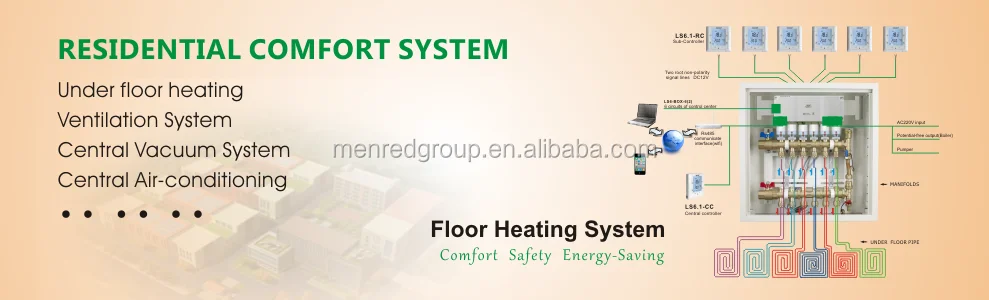

LS6-BOS-6(2) 6 circuits of central control center
Description
The voltage of input is AC, this power supplies actuator of each manifolds branch and pump directly, the power line and signal line of room thermostat( sub-controller) are shared two lines. The actuator's ON/OFF controlled by the corresponding sub-controller. This central centre can connect with LS6.1-CC, LS6.1-CC can check and modify each sub-controller work mode and technical date.
This central centre has 485 communicate interface which can connect to the computer and controlled by PC, Phone, PAD.
If not connect with the LS6.1-CC and pump, that central center will become to 7 circuits.
Technical data
Voltage: AC 85V-250V
Frequency: 50/60Hz
Current: Max.3A
Pump linkage port: Power auxiliary output
Boiler linkage port: Potential-free normal open contact switch
Delay time of Auxiliary port: 150s, pump and boiler Synchronous
Circuit Number: 6 circuits
Class of protection: IP40
Ambient temperature: -5...50℃
Humidity: less than 95%rh
Related products
Radiant Floor Heating Products:
Thermostats, Electro-thermal Actuators, Thermostatic head and valve,Manifolds &fittings, Water-mixing Center,Wiring Boxes,Energy Meters , PE-Xa pipes
Central Air-Conditioning Products:
FCU Thermostats,FCU Motorized Valves , Electro-thermal Actuators ,Temperature (Humidity) Sensors,University Controller,Modulating Valves & Actuators
Ventilation system:
Ventilator and fittings
Central vacuum cleaner system:
Cleaner host and fittings
Intelligent home system
Ecological construction-Radiant heating and cooling system of building construc
Company Information
About memred
Menred Group Yueqing Import and Export Co.Ltd.is belong to MENRED GROUP.We were founded in 2005 and re-established in 2015, our HQ is located in the city of yueqing which is famous for the production of “Low voltage application” in Zhejiang province.We devote ourselves to R&D production, sale and service of energy-saving products. Our core business is radiant heating and cooling system, ventilation system, vacuum cleaner system central air-conditioning and intelligent home. The products we exported included thermostats, switches, manifolds, actuators, valves, ventilators, cleaners, water purifiers and so on.
Workshop
Our team
We are ambitious, also down-to-earth.Therefore menred has the firm faith,and devote ourselves to developing pragmatic, market-oriented and highly effective strategies at the same time, just because we understand that only win consumers in the future market, we will really get the confidence.
Exhibition
We are able to customize products individually for each of our customers to meet their diverse requirements. Besides that, menred is a popular brand in HVAC industrial in China, for the overseas market, we are professional and experienced for the OEM and ODM service, our products have exported to UK, Germany, Russia, Japan, Finland, Poland, Australia, Brazil etc.
Certifications
We have passed ISO 9001:2008 as well as ISO14001:2004, and all of our products have acquired the CE certificate. Holding more than 100 patents and 20 software copyrights to protect our intellectual property rights.
FAQ
Q: Are you a factory?
A: Yes, we are a international trading department belong to MENRED Group, Our Group has three factories,one is in Germany, another two in China.
Q: I need your price list of all your products, do you have a price list ?
A: We do not have a price list of all of our products. Because we have so many items,and it’s impossible to mark all of their price on a list.And the price are always changing because of the producing cost.If you want to check any price of our products, please feel free to contact us.We will send offer to you soon!
Q: I can’t find the product on your catalogue, can you make this product for me?
A: Our catalogue shows most of our products,but not all.So just let us know what product do you need,
and how many do you want.If we do not have it,we can also design and make a new mould to produce
it.For your reference,making a ordinary mould will take about 35-45 days.
Q : Can you make customized products and customized packing?
A: Yes.We made a lot of customized products for our customer before.(mainly wire harness) And we made many moulds for our customers alread.About customized packing,we can put your Logo or other info on the packing.There is no problem.Just have to point out that ,it will cause some additional cost.
Q: Can you provide samples ? Are the samples free ?
A: Yes,we can provide samples.Normally,we provide 1-3pcs free samples for test or quality checking.
But you have to pay for the shipping cos.If you need many items, or need more qty for each item,
we will charge for the samples.
Q : How to ship my order ? Is it safe?
A: For small package, we will send it by Express, tsuch as DHL,FedEx,,UPS,TNT,EMS.That’s a
Door to Door service.
For big packages, we will send them by Air or By sea.We will use good packing and ensure
the safety.We will be responsible to any product damage caused on deliver.
Q: Do youu have a guarantee of your product quality?
A: We have a guarantee of one year.
Q: Can I become an Agent / Dealer of MENRED products?
A: Welcome! But please let me know your Country/Area fisrt,We will have a check and then
talk about this.If you want any other kind of cooperation,do not hesitate to contact us.
Any requirements or question,welcome to "Send" us an e-mail Now!!!
