Мощный Новый дизайн Открыватель поворотных ворот 24 В постоянного тока мотор автоматического

Описание и отзывы

Характеристики

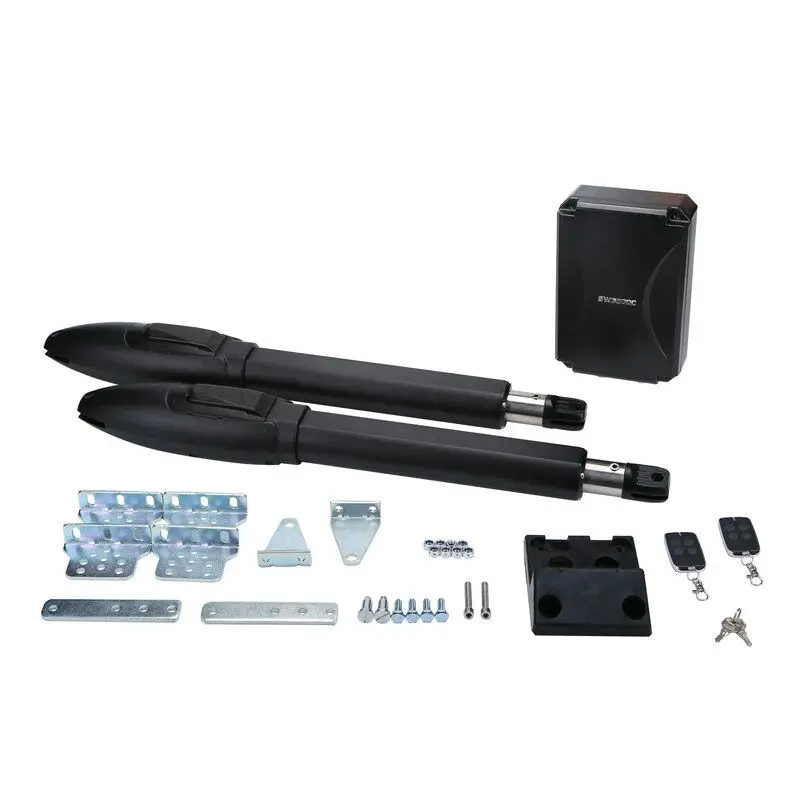

Automatic Swing Gate Opener Double Arm Swing motor





2* Motors

2* Transmitters

1* Control Box

2* Gate Bracket

2* Post Bracket

1* Manual

2* Allen Key

A set of Hardware Accessories











Functions:

• Soft start and soft stop


• Emergency release key in case of power failure


• Dual/Single gate running mode


• Adjustable opening/closing interval between master and slave gate


• Stop/Reverse in case of obstruction during gate opening/closing.


• Built in adjustable auto-close (0-99 seconds)


• Built in max Motor Running Time (MRT) adjustable for multiple safety protection (1-50 seconds)


• Digital display indicates the running situation and setting menu


• Reliable electromagnetism limit for easy adjustment


• Can be equipped with a wide range of accessories

Features:

• Thermal protection built in motor.


• Drive setup is made up of turbine and down, working placidly.


• Assemble easily. In case of power failure, the gate can be opened and closed manually after release clutch.



Technical Data:



Supply  power	220V/50HzAC
Motor	DC24
Protection fuse	8A
Environment temperature	-20℃~+60℃
Max Gate Weight	300KG
Auto closing delay time	Adjustable
Running time protection	Adjustable
