Introduction of bow shackle

Shackles are generally regarded as U-shaped pieces of steel with a securing pin (Clevis Pin). They are manufactured from a range of materials however we Specialize on 304/316 grade stainless steel shackles for corrosion resistance and are load rated.

Our shackles are generally used as a connecting link in all manner of rigging systems, from boats and ships to industrial crane rigging. They are used with stainless wire cables & rope, in railings or with stainless rod. They are often found connecting chain or rope and or tied into lashing & webbing as they allow different rigging subsets to be connected/disconnected.

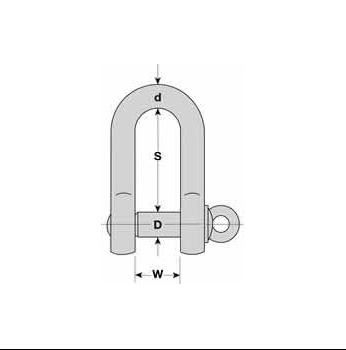

Size tables for your reference





CODE	D(mm)	d(mm)	S(mm)	SWL(tones)	W(mm)	Weight(kg)
ZBSSD1	11	10	31	1	17	0.14
ZBSSD2	16	12	41	2	20	0.38
ZBSSD3	20	16	52	3	26	0.66
ZBSSD4	22	20	62	4	32	1.05
ZBSSD5	26	22	72	5	36	1.46
ZBSSD6	28	25	81	6	41	2.59



Product	Stainless Steel wire rope shackles
Material:	AISI304/AISI316
Size:	4-36mm
Type:	EU ,US ,JIS, BOW/ ANCHOR SHACKLE
Brand Name:	Zhibo
Surface Treatment:	Polished
Casting method:	Precision Investment Casting, Lost wax casting, Silica sol casting, drop forged, zincification
Application:	Rigging hardware or Marine hardware, Wire rope accessories
Payment Terms:	L/C,T/T, Western Union
Min Order Quantity	200 Piece/Pieces
Port:	Qingdao, Tianjin
Place of Origin:	Wudi, Shandong, China (Mainland)
Packaging Detail:	Clean plastic bags and cartons and pallets or as per request
Delivery Detail:	10~25 working days, based on Qty.



















































There are number of different shackle types available:

1.    D-shackles

2.    Long D- shackles

3.    Twisted shackles

4.    Bow shackles

There are a range of clevis pins available (used to form the fastening element of the shackle)

1.    Twist lock clevis pins

2.    Coined clevis pins

3.    slot head clevis pins

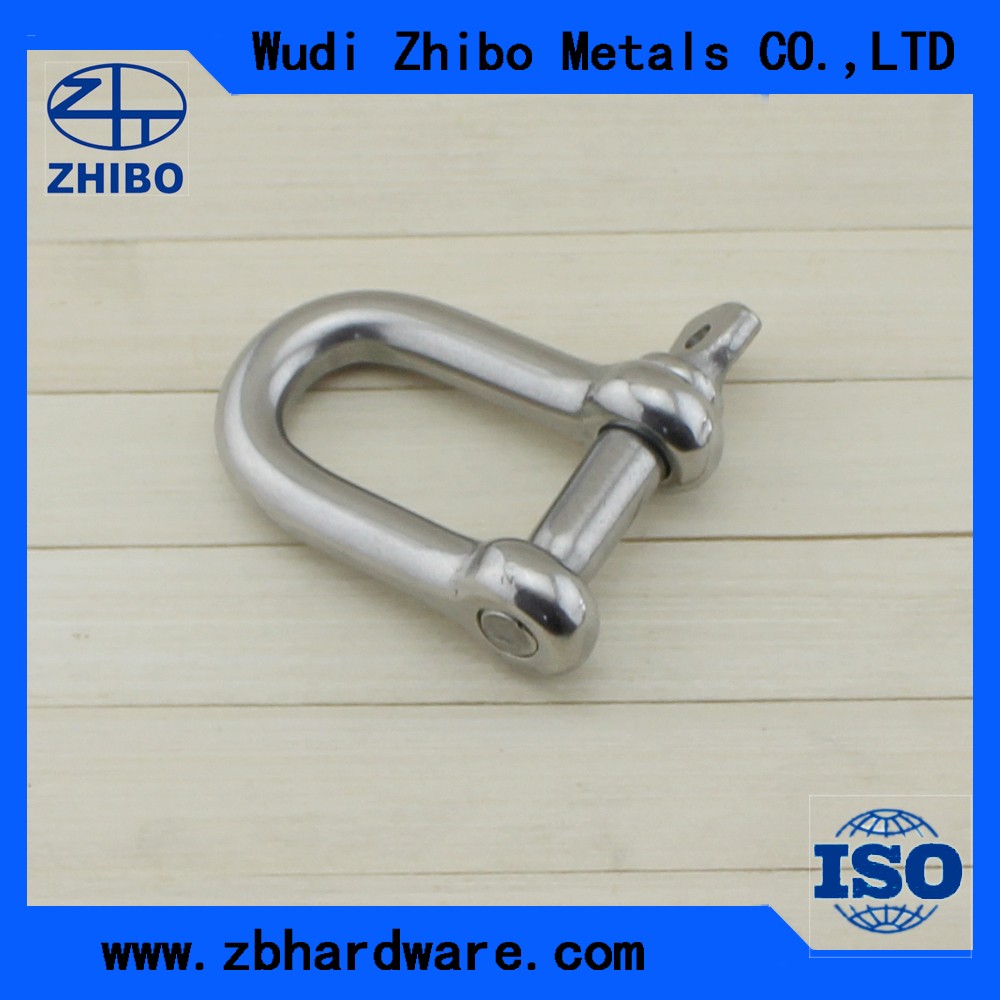

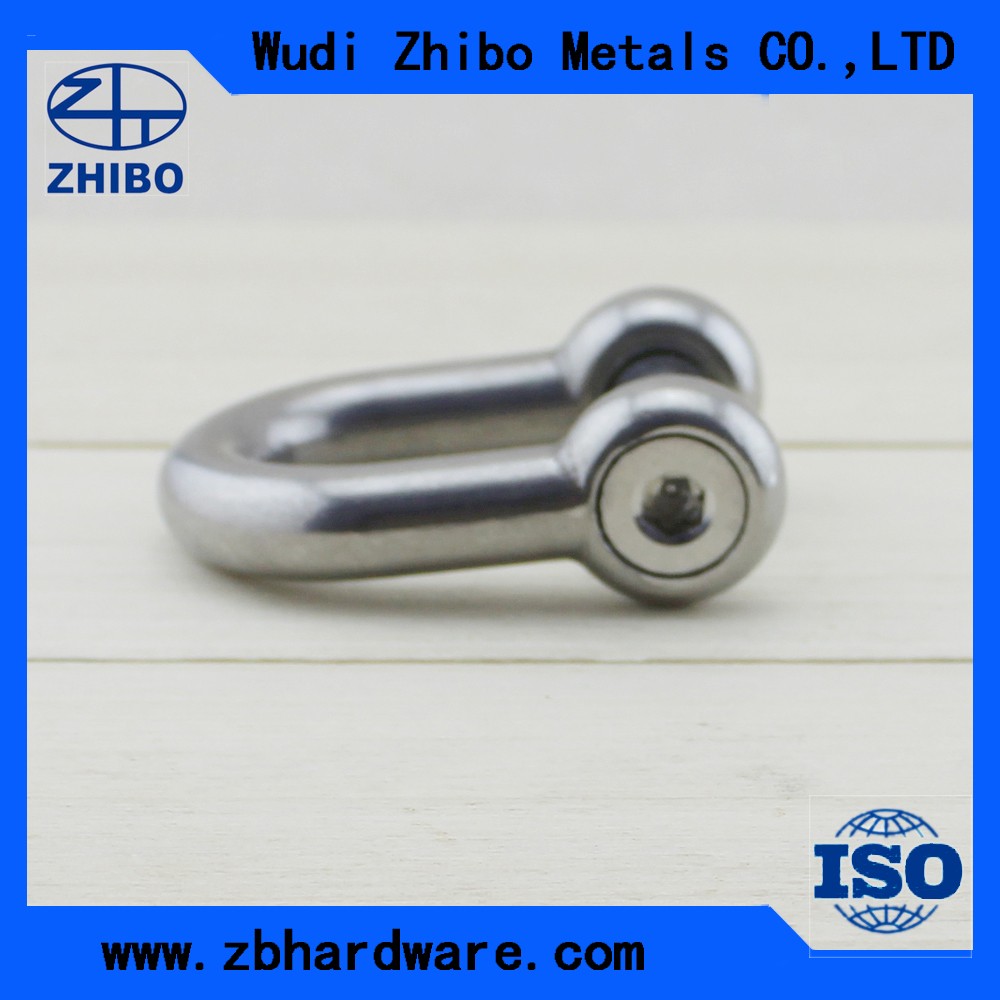

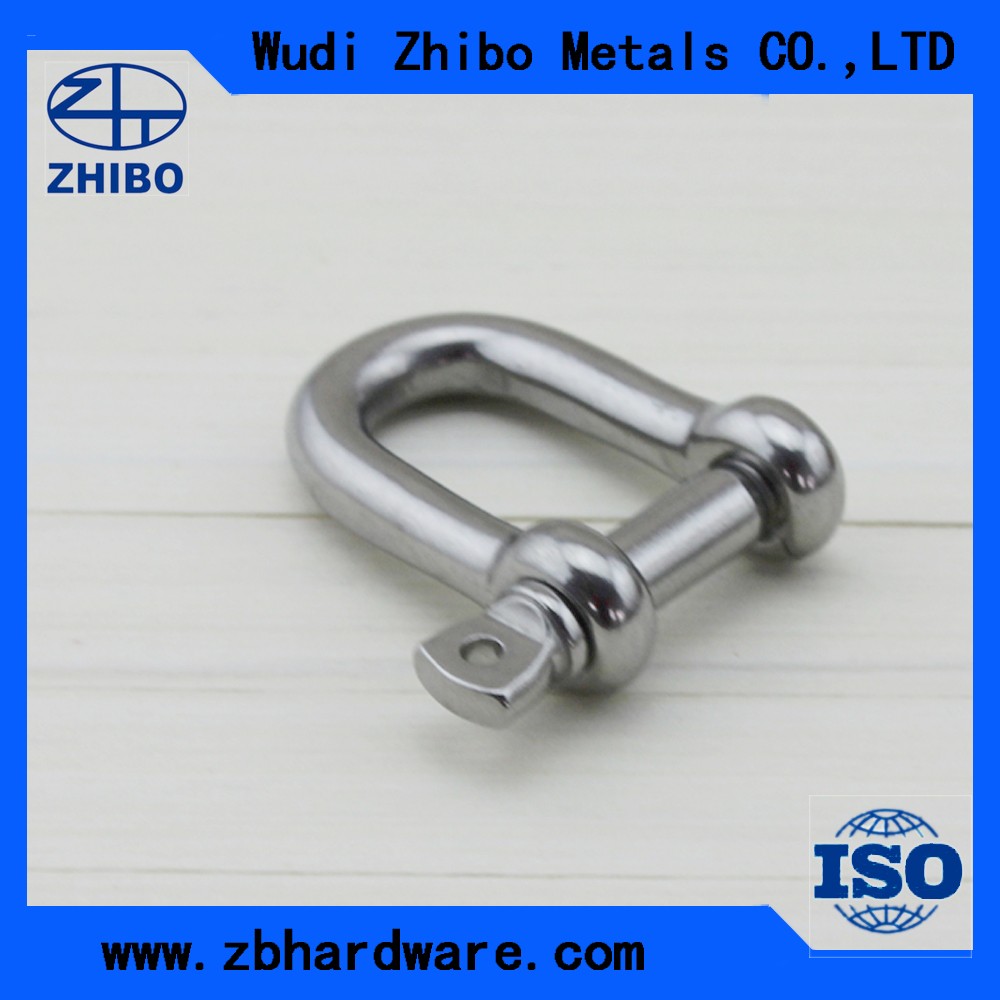

Detailed image of the shackle





1. One-to-one service with efficient support;



2. OEM&ODM: all customized products we can help you to produce;



3. Protection of your design and all your private information;



4. We could supply unique items;



5. Quality stability, can to provide certification of products;



6. Convenient payment methods: PayPal, T/T and Western Union, L/C;



7. Speedy shipment: we could arrange the shipment within 5 business days.



8. Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.



9. Quick Lead Time: We're dedicated to providing the quickest turnaround times and work very Hard to ensure that all of your deadlines are met.



10.Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you!

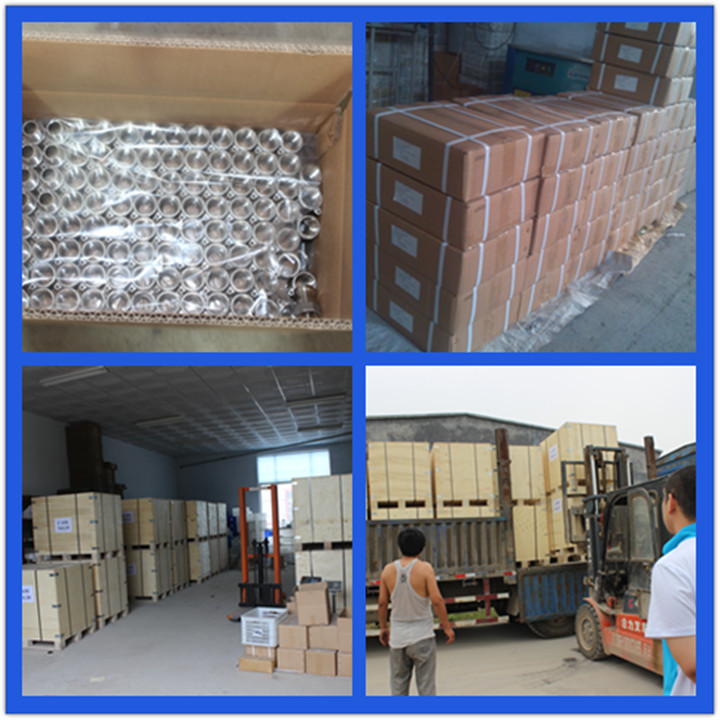

Packaging Detail:

Inner plastic bag, outer carton, then wooden pallet; or as  per customer’s requirement

Shipping Port: Qingdao, Tianjin

Deliver Time: Usually 15-20 days after order confirmed Or according to quantity.







• Professional manufacturer for metal products with the standards of API ANSI BS DIN JIS.



•Our products: cam lock coupling, rigging hardware, marine hardware, auto accessories ,as well as the machine parts .



•The products are exported to many countries and gain many trust and favorable receptions home and abroad.



•Obedience to the idea of “Quality First, Creditable Management " and objective of the "Win-Win"



Welcome to visit our company and make business negotiations!!!
