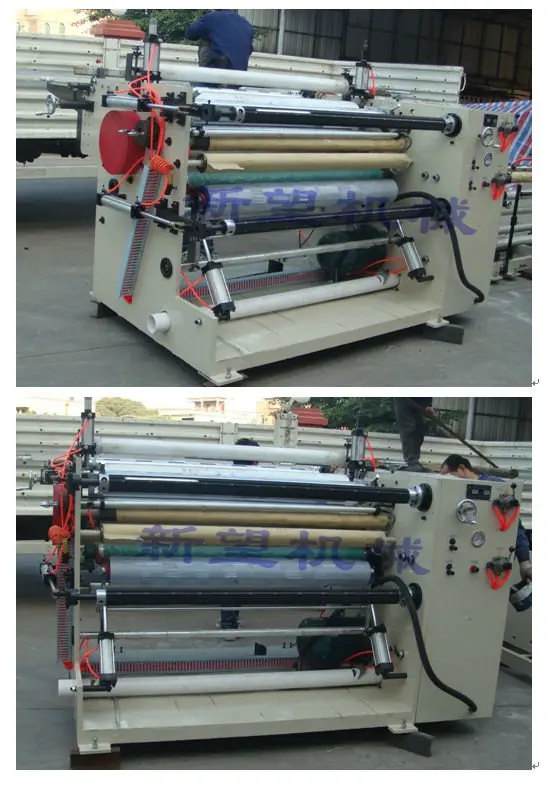

Mutifuction Bubble Free Laminating and Slitting Machine



This machine is suitable for laminating and slitting and rewinding Foam tape,PET, PE, EVA, PVC, electrostatic membrane, double-side adhesive tape, conductive fabric etc.,

 The air pressure power and the enlarged rubber roller make the lamination smooth and non-bubbled. In addition, the double-shaft winding, matched to the winding roller and unwinding roller, makes it come true to laminate ,slit and rewind materials at the same time.





The heating laminating equipment and three layers equipment can be set up in accordance to your requirement



1.Name:XW-802  lamination and slitting and rewinding machine /lamination machine /laminating machine
2.Max rewinding diameter450mm
3.Max working width1300mm1600mm
4.Min slitting width25mm
5.Max working speed80m/min

6.Max.unwinding diameter:800mm for the first layer,500mm for the second layer.







Delivery time: 30 days after receiving the deposit

Package type: seaworthy wooden case

Size: 2350*2200*1300







Dongguan XinWang Package Machine Co.,Ltd was established over ten years, authenticated ISO9001:2000 by International Quality System Management Verification Center, having a integrate work line of design& development---process---sale. As a professional company of producing coating machine line, adhesive tapes complete line, soft package machine, paper & plastic machine, printing machine, we are addicted to promote our company to be a one hundred years leading package equipment enterprise!













XW-802 High Precison Lamination slitting machine serie
Application		This machine is suitable for laminating film,fabric and adhesive products.
Summary		Main equipments and technology parameters .
Parametes	Max. working width	1300mm or as request
	Max. unwinding diameter	Φ800mm
	Sub-unwinding diameter	500mm
	Max. rewinding diameter	Φ450mm
	Max. speed	0~100/Min( refer to materials)
	Machine size	2350mm(Width)x2200mm(Length)x1300mm(Height)
Main structure	Wall	25mm steel sheets with 20# U-steel structure
		Surface precision-machined treatment
Unwinding parts	Unwind stander	Tailstock with auto correction controller & air shaft	1set
	Auto edge controller	EPC auto edge controller	1set
	Uwind shaft	3" air shaft	2sets
	Unwinding brake	5kg magnetic powder brake	1set
		10kg magnetic powder brake	1set
	Tension control	Manul tension control the tightness of roll	1set
	Layout unwind design		1team
Lamination parts	Lamination type	Up&Down roll to implement high precision lamination
	UP lamination roll	Φ160mm wear-resistant silicone rubber roll	1set
	Down Lamination roll	Φ162mm bare-barrel drum	1team
	Adjust way	Adjustable air cylinder with graduator ( pressure size can be set)	2sets
	Lamination slide	Line slide	2sets
Slit parts	Slit type	Up&Down round blade	15sets
	Up blade	Φ105 up blade	15sets
	Down blade	Φ108 down blade	1team
	Shim	Φ80x50mm anodizing accurate grinding ( customer order the width)
Rewinding parts	Rewinding type	Centre rewind
	Rewinding shaft	3" air shaft	1set
	Rewinding clutch	5kg magnetic powder clutch	1set
	Main drive	After motor input ,then pass transition wheel incoming rewinding clutch
	Main motor	5.5kw motor	1set
	Extending device	Φ100mm arch wheel	1team
		Φ80mm adjust wheel	1team
		Φ80mm rubber wheel	1team
	Transmission way	Gear matching with chain	1set
	Bearing	bearing	1set
	High processing	High processing for each part	1team
	Panit	Machine paint
Electric parts	Electric control box	Stand-alone control box	1set
		5.5kw inverter	1set
		Two phases counter	1set
		Switch
