Products Description
1.The chassis is thick, resistant to falling, shockproof and not easily deformed.
2.MOS tubes, ICs, and triodes are all new imported raw materials.
3.Toroidal transformer, small no-load current, low loss, high efficiency
4.The process is good, the wiring is complete, the circuit board wire head is not easy to loose, and the failure rate is reduced.
5.Power board brushed three anti-paint, moisture-proof, dust-proof, anti-static, improve work efficiency
6.Design life is 10 years
2.MOS tubes, ICs, and triodes are all new imported raw materials.
3.Toroidal transformer, small no-load current, low loss, high efficiency
4.The process is good, the wiring is complete, the circuit board wire head is not easy to loose, and the failure rate is reduced.
5.Power board brushed three anti-paint, moisture-proof, dust-proof, anti-static, improve work efficiency
6.Design life is 10 years
1. Since the establishment of our inverter factory, we have been purchasing transformers and capacitors from the same supplier.
2. MOS tube adopts imported IR brand.
3. SCR adopts imported from Germany.
4. IGBT adopts Japanese Mitsubishi brand.
2. MOS tube adopts imported IR brand.
3. SCR adopts imported from Germany.
4. IGBT adopts Japanese Mitsubishi brand.

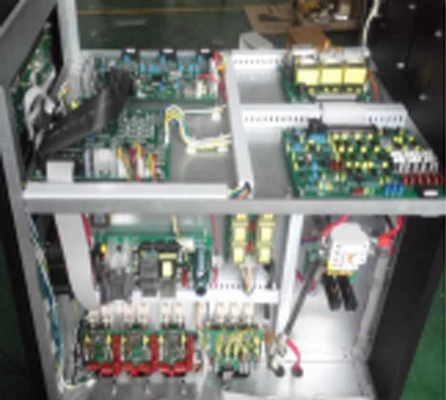

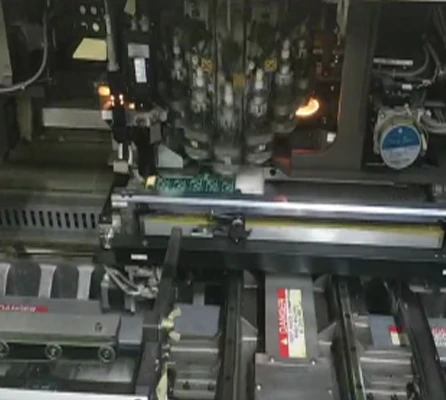

Wall-mounted inverter board production uses automated machine plug-ins. Improve efficiency, reduce loss, and enhance stability

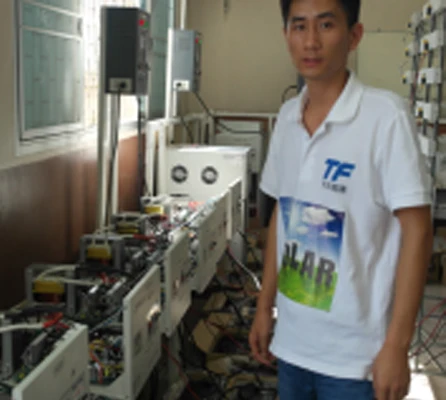

ICT test, pinhole alignment PCB board, check all lines, reduce the failure rate.

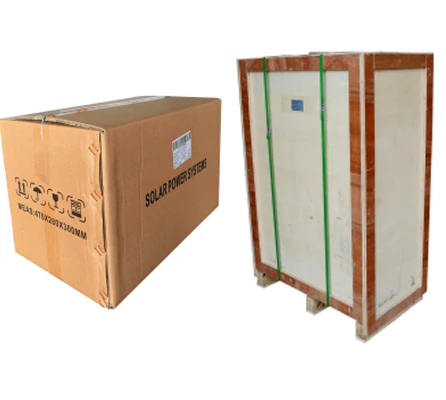

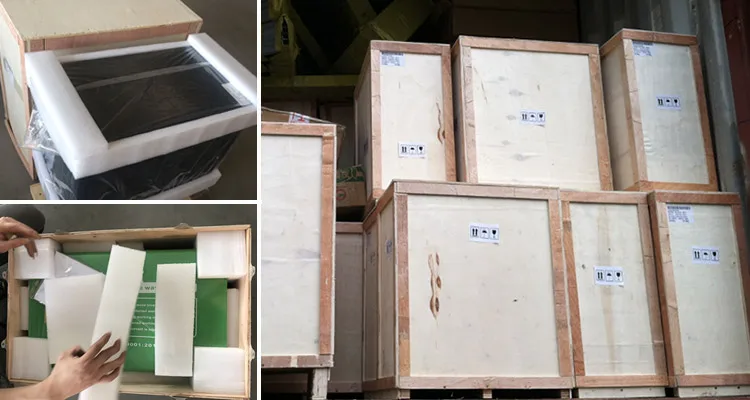

Power lower than 1KW inverter carton packaging, containing pearl cotton; power higher than 2KW inverter plywood wooden box packaging, containing pearl cotton. One piece one packaging.
Our inverter has passed 100 times of ultimate power-off test. According to statistics, 99% of the tested inverter can work very stable.
After Sales Service System
All inverters are free to send new spare boards within the warranty. For more services, please click the link to view.
Parameters
Model | T10KW | T20KW | T30KW | ||||
Rated Power | 10KW | 25KW | 30KW | ||||
Power Factor | 0.8 | 45KW | 60KW | ||||
Input | Phase | 3 phase 4 wire and ground | |||||
Voltage Range | 380V± 20%(3 phase), phase voltage 220V | ||||||
Frequency Range | 45 – 65Hz | ||||||
Rectifier | 3 phase 6 pulses, 12 pulses is optional | ||||||
Output | Phase | 3 phase 4 wire and ground | |||||
Wave form | Pure sine wave | 15KW | 20KW | ||||
Rated voltage | 380/400/415V optional+ -1% for static load, 5% forfluctuant load | ||||||
Transient response | +/-5%, 10ms | ||||||
Frequency | 50 / 60 Hz + / - 0.05% | ||||||
Short circuit current | Short current for 0.1s (200% current) | ||||||
Overload capacity | Pure sine wave | ||||||
Battery | Battery | Maintenance free lead-acid cell | |||||
DC Voltage | 48v or 96V(1-10kw,MOS) | 384V | |||||
Max Charge Current | 6-30A adjustable | ||||||
Bypass | Type | Static state + manual maintenance bypass | |||||
Input Phase | 3 phase 4 wire and ground | ||||||
Input voltage range | 15% - 25% (the front control panel selectable) | 33KG | 35KG | ||||
Transfer time | Inverter / bypass transfer switch time(Overload): 0ms inverter / bypass transfer switch time (fault inverter) 1ms | 39KG | 42KG | ||||
Efficiency | Whole unit | > 85% | |||||
Inverter | 92 | 93 | 93 | ||||
Packing&Delivery
Model | T10K | T20K | T30K |
Product size(mm) | 730*456*1165 | 785*580*1200 | 1000*660*1460 |
product weight(Kg) | 108 | 125 | 190 |
Package size(mm) | 844*615*1410 | 960*730*1410 | |
Package weight(Kg) | 125 | 145 | 215 |
Foshan Tanfon Energy Technology Co., Ltd is a professional manufacturer of green energy products with great commitment, contribution heart, and responsibility.
We are specialized in the R&D, manufacture, and sale of high-quality inverters, all kinds of pure sine wave inverter(off-grid and on-grid, single-phase and three-phase).
We are specialized in the R&D, manufacture, and sale of high-quality inverters, all kinds of pure sine wave inverter(off-grid and on-grid, single-phase and three-phase).
