CNC glass working centure from eword machine



Product Description















































































CNC Glass engraving and milling machine  Main Application


Drilling, Milling, Internal and External grinding and polishing, Writing, Shaped Notching, Engraving


on glass





CNC Glass engraving and milling machine Mechanic Structure


1.The machine tool and beam adopt welded steel structure. With special heat treatment, the structure


is firm and can work for a long time.


2.The machine uses automobile paint which is more rust-resistant.


3.Total weight: about 7 tons (including peripheral accessories and electric cabinet).





CNC Glass engraving and milling machine Mechanic Transmission


The machine is transmitted through AC servo motor by synchronic belt and synchronic belt wheel


driven spindle. There is automatic lubricating system for the screw nut and guide-rail slider of the


 transmitting parts.





CNC Glass engraving and milling machine  Servo System


It adopts Mitsubishi/Hitachi AC servo system


Screw: all the screws are from KGF series double nut screw (German NEFF)



 p331573001305269271



redA1







Technical parameter:



Transverse



axis XX = 1800 mm



CNC Glass engraving and milling machine Length ways



axis Y: Y = 1200 mm



Vertical



axis Z: Z = 250 mm



Allocating accuracy(X,Y,Z)



0.01*002*0.01



CNC Glass engraving and milling machine  Speed(X,Y)



5m/minute



Power supply



220 V, 60 Hz, 3 phases



Environment temperature



0 – 50 ℃



Relative humidity



< 90%



Compressed air



≥ 0.6 Mpa



Product Description:



CNC Glass engraving and milling machine Worktable


1.There is a multi-location worktable of large size in front of the machine. With function of automatic


rubdown of high precision, users can adjust the flatness of the worktable when needed. This is to


keep a flat worktable.


2. CNC Glass engraving and milling machine  There are positioning blocks for the work piece and vacuum system.


3.There is a tool library with 2 x 5 tools. There is a tool library with 5 tools at both left and right side


of the machine. Users can select different tools and optimize route according to processing


requirements.





Parts of Main Spindle


1.Motor of the main spindle: it adopts asynchronous speed-adjust sensor motor of high efficiency.


Adjusting range of rotating speed: 0 – 9000.


2. CNC Glass engraving and milling machine The machine equips 10 pieces of IOS 40 handles.


The cone part adopts 7:24 international uniform standard which is easy to be changed.


Grinding wheel with outer diameter 170 mm can be used.


Electric Cabinet The distributing of electric cabinet can be designed according to customer’s


requirements.Each terminal is clearly marked. This is convenient for the maintenance in the future.





CNC Glass engraving and milling machine  Drawing Software


With Auto CAD software, user can design any geometrical pattern on PC with mouse and keyboard.


Typesetting System


With combination of CNC engraving system, user can set the variable parameter of processing


 pattern and then it will generate G code automatically.





Safety and Reliability of Operation


1. CNC Glass engraving and milling machine  The moving parts are lubricated by automatic lubricating system.


2. Electric cabinet adopts IP54 industrial standard and equips air-conditioner.


3.The electric parts inside electric cabinet are common products in the market which is easily


changed.


4. CNC Glass engraving and milling machine  The main fault will be automatically reminded.


Central Lubricating System It adopts PDI lubricating system of American BIJUR –DELIMON


which can timely lubricate the transmitting parts by separate setting to PLC.

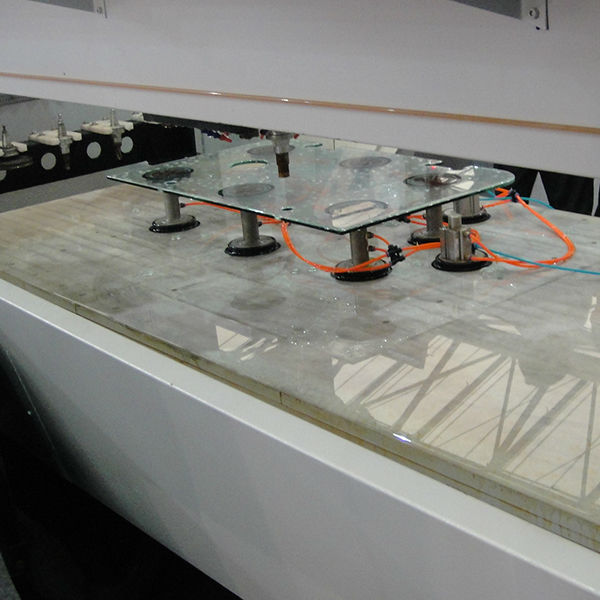

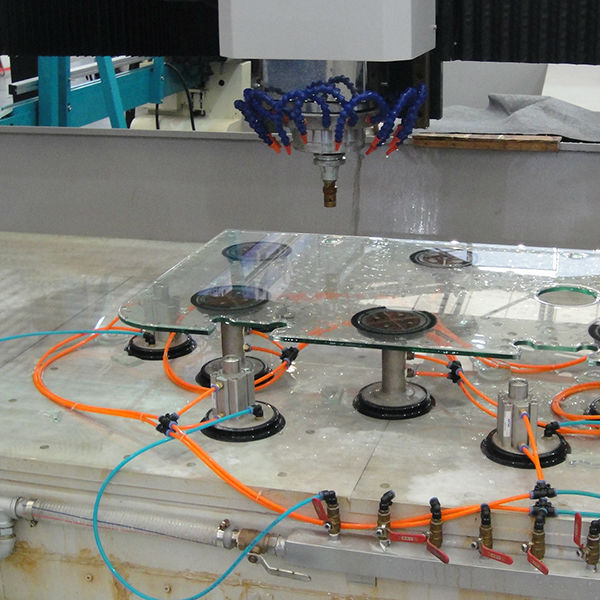

Our products details:



DSC03015



DSC03014



DSC03013


DSC03010

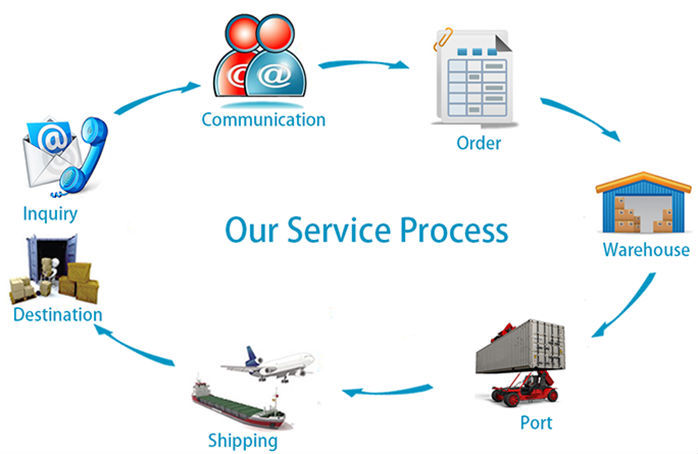

Our Services


Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.





By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.





Eworld Machine always looking for long term cooperaion, not one time deal







Company Information

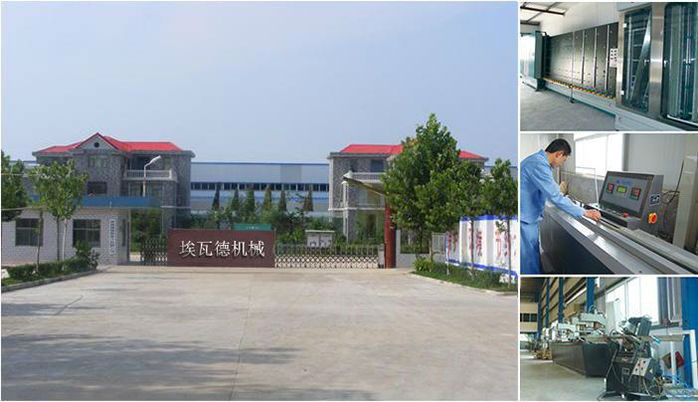

Our Corporation



Shandong Eworld Machine Co., Ltd. founded in 2002,has been a high and new technology enterprise specializing in developing, empoldering and selling a series of automatic glass machines, laser engraving machine,CNC router machine,window machines and door machines for many years.





Main products: Automatic Laminated glass (various shapes and low-E) production lines, automatic insulating glass production line, glass washing and drying machines, Automatic glass cutting machines, glass engraving machines, laser engraving machine,CNC router machine,CNC Woodworking machine,CNC Advertising machine,PVC window machine,PVC door machine,PVC window and door machine,PVC bending machines,PVC and Aluminum welding machine,PVC and Aluminum cutting saw,corner cleaning machine and other related products.





Advanced products, exquisite techniques, solid working and cordial services all give birth to the unique culture of EWORLD today. EWORLD always keeps step on the latest technology and is committed to providing the most advanced products for our customers. Moreover,EWORLD always emphasizes the training and quality of our staff.








During recent years, our company has taken "customer the highest, technique the first, service following" as our notion, "to be the most customer-oriented and service aware" as our task and "let customer fully know and select the product they need, provide customer the best solutions they need" as our responsibility. Constantly, our company provides high quality services and products for customers. That's why our company receives unanimous trust and good comments from our clients.





Shandong Eworld Machine co.,Ltd ,hopes to set up resplendence with wise people by superior qualitative products and high efficient services.



Eworldmachine (1)



Product case:



Eworldmachine (2)



Certificate:



Eworldmachine (3)






FAQ


















Frequently Questions



1.Question:Are you manufacture?


Answer:


Yes,we are the professional manufacture which have more than 5 workshops.








2.Question: How about the service ?
Answer:
1).reply it at once if from Ali-trademanager,if by email,it reply it within 12 hour
2).deliver max. days within 15 days
3).24 hours for after -sale serive
4).more than 12 years experience in this kind machine field
5).fluent english ,communication barrier free








3.Question:What’s the guarantee ?
Answer:
1).Our guarantee for 18 months.
2).24 hour’s technical support by email or calling
3).English manual and video tutorial
4).2 year quality guaranty for the machine (excluding the consumables)
5).We will provide the consumable parts at an agency price
6).24 hours on line service each day, free technical support.








4. Q: Do you provide equipment operation training?


Answer:
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.








5.Question:if our price is higher than another company or factories ?
Answer:
please check, what is is the different of the machine parts ,service and guarantee,especially the machine inner electric parts, sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, but we use the famous and reliable parts for the machines inside.








6.Question:How long is the delivery time ?
Answer:
For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days.








7.Question: What is the payment ?
Answer:
Any payment method you want,such as L/C,T/T,D/P,West-union and so on.
