Популярный товар 720P ИК Ночное Видение P2P CCTV Bullet 4CH AHD DVR комплект камеры
- Категории: Surveillance Systems >>>
- Поставщик: Shenzhen,Ccdcam,Technology,Co.,Limited
Поделиться:
Описание и отзывы
Характеристики

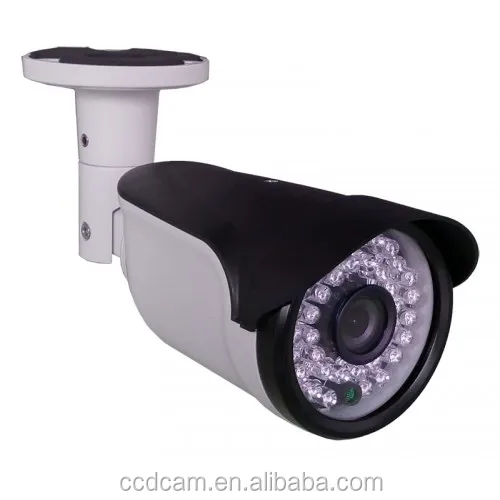

720P AHD Camera (3.6mm Lens, 36pcs IR Leds with IR Distance 30m, 500m Video Transmission )
720P AHD DVR (Play back 4CH 720P, support 1pcs HDD Up to 4TB Capacity )
Free CMS, P2P Software
View live video via DVR, CMS, Smartmeye or Web.
| AKIT3104 | ||

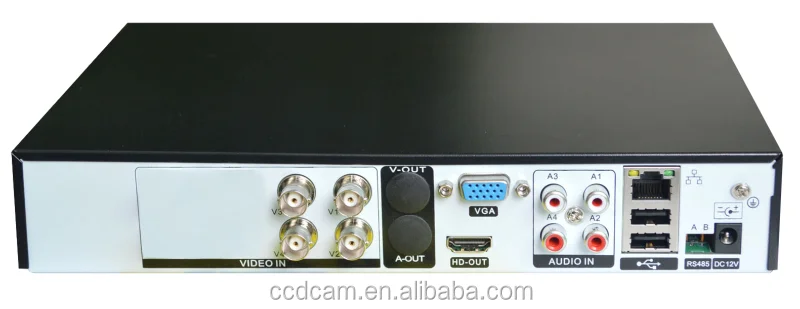

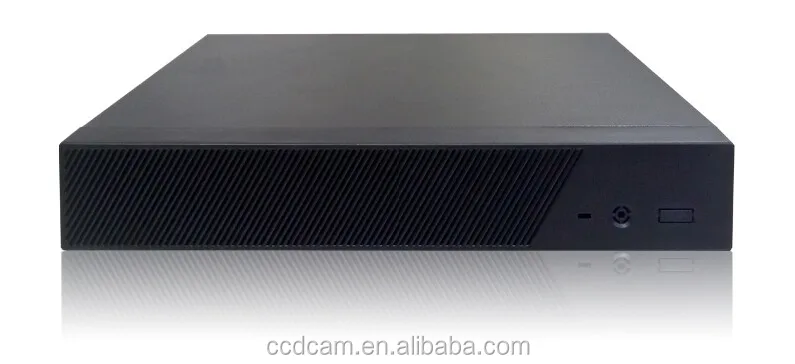

| AHD DVR | ||
| System | Main processor | High performance embedded microprocessor |
| Operating system | Embedded LINUX operating system | |
| System resources | Pentaplex function: Live, recording, playback, backup& remote access | |
| Control mode | USB mouse, Network | |
| Video | Input | 4CH,AHD/Analog input BNC(1.0Vp-p, 75Ω) |
| Output | 1HDMI, 1 VGA | |
| Standard | PAL / NTSC | |
| Audio | Input | 4CH, RCA(200-2800mV,30KΩ) |
| Display | Display split | 1CH 720P / 4CH 960H |
| Resolution | 720P(1280*720),960H,D1,CIF | |
| OSD | Camera title, time, video loss, camera block, | |
| motion detection, recording | ||
| Record | Video resolution | H.264 |
| Audio resolution | adpcm,G711 | |
| Image resolution | 720P(1280x720),960H(960x576,960x480),D1(704 X 576/704 X 480) | |
| Encoding speed | Main stream: CH1~4 720P/960H(1~25/30FPS) | |
| Sub stream: CIF(1~5FPS),QCIF(1~5FPS) | ||
| Image quality | 1~6 level (level 6 is the best),VBR effectively | |
| Record mode | Manual,always, motion detection, alarm | |
| Record sequence | Manual>Alarm>Motion detection>General | |
| Alarm | Triggering event | Record, Snapshot, Alarm, Email |
| Motion detection | Area: 192(16*12), Sensitivity: 1-6 level | |
| Video loss | Support | |
| Playback and backup | Playback channel | 4ch 720P/960H |
| Playback speed | 960H 100/120FPS ,720P 100/120FPS | |
| Search mode | Time/Date, Alarm, Motion detection Exact search(accurate to second) | |
| Playback function | Play, Pause, Stop, Fast play, Slow play, full screen, backup | |
| Back mode | Flash drive/USB HDD/CD-DVD RW/Network download | |
| Network | Interface | RJ-45 port(10/100M) |
| Network functions | TCP/IP,UDP,DHCP,DNS,IPFilter,DDNS,FTP,Email,UPNP,P2P | |
| Remote operation | Monitor, PTZ control, Playback, System setting, File download, Log information | |
| Hard disk | Interface management | 1 SATA ports, each port support max 4TB HDD. |
| Auxiliary interface | USB Ports | 2 USB Ports: 1 for mouse control, 1 for backup |
| Environment | Power supply | DC 12V |

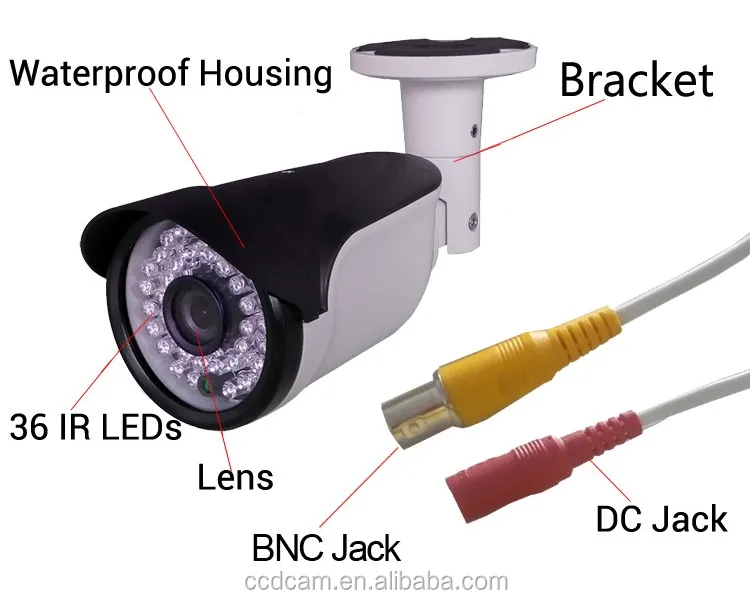

| 4*AHD Camera | ||
| Camera Type | 720P AHD camera 1.0 megapixel 1/4 CMOS | |
| Effective Pixels | PAL:1280x720@25fps NTSC:1280x720@30fps | |
| IR-LED | 36pcs IR led 30m IR Distance | |
| Day/Night | IR-CUT filter Color 1.0Lux/F1.2,B/W 0.1Lux/F1.2 | |
| Electronic Shutter | 4/25-1/45,000s | |
| Lens | 3.6/6mm Fixed Lens | |
| Lens Mount | C/CS | |
| Output | 1CH AHD Video output | |
| Waterproof Criterion | IP66 | |
| Power | DC 12V | |
| Image | Auto BLC,Auto White Balance | |
| Max tansmission | common 75-3 lines can be up to 500 m | |
| Kits | ||
| Pcaking list | 1*AHD DVR; 4*1.0MP AHD cameras;4*20M (BNC+DC) cables; 1*quick start guide; 1*mouse; 1*CD; 1*power for DVR; 1*power for cameras; 1* one split four DC cable | |
| Work environment | -10℃~60℃90%RH | |
AHD KIT

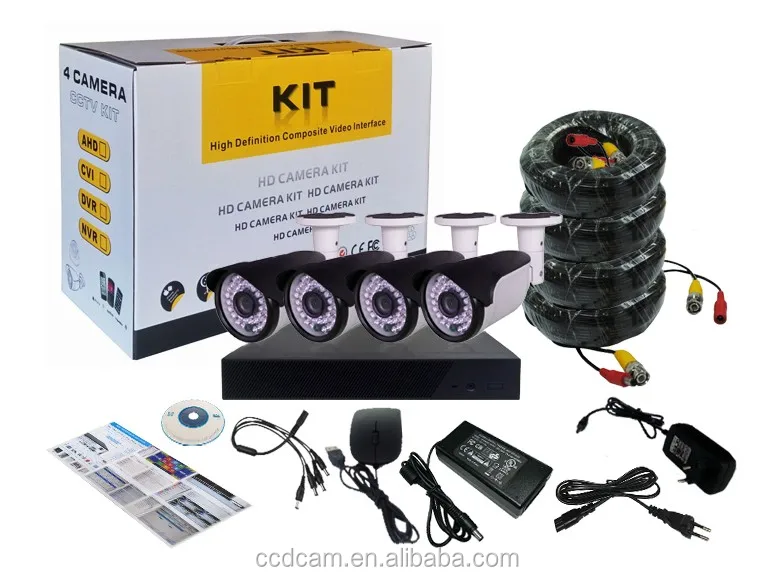

Packing

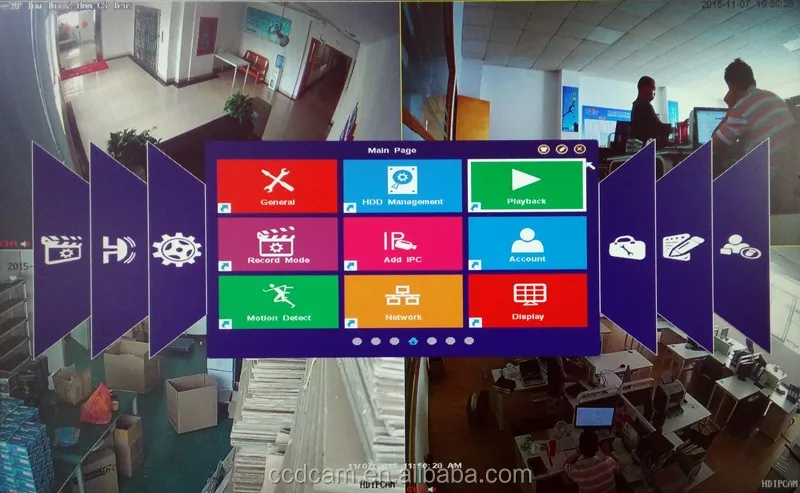

DVR Window8 interface
P2P

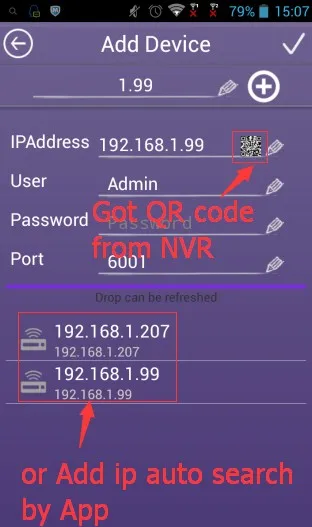

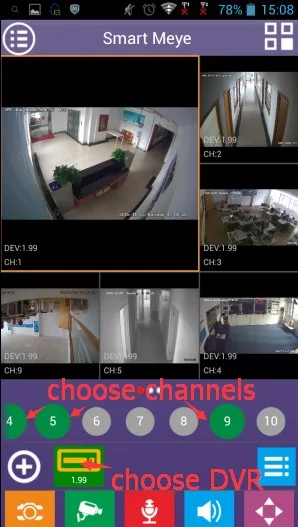

Mobile app

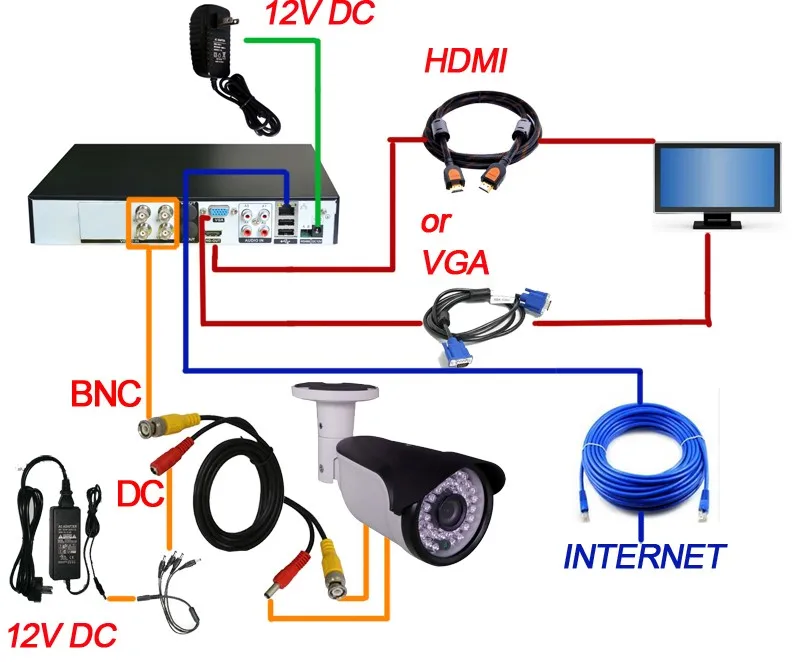

Installation Guide
Application

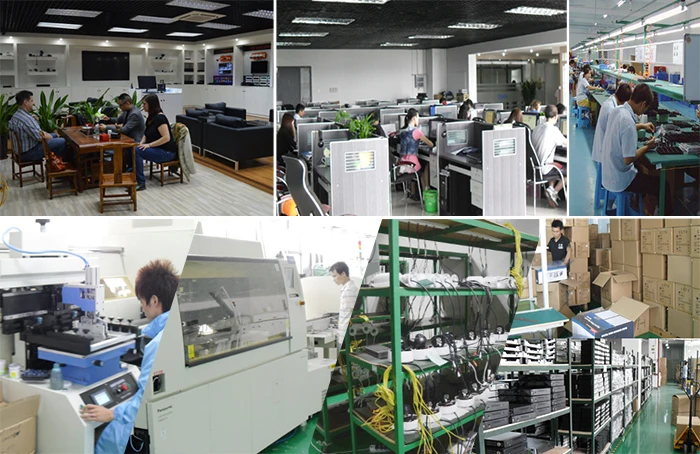

About Factory
Exhibition
Our Company
Other Sevice
1. Good quality products and low factory direct price
2. Free technical support and professional advice,timely communication and after-sale service
3. 24-hours aging test,two years warranty period, CE/FCC/Rohs passed
4. OEM/ODM service
1)customized camera housing
2)print logo on the camera
3)Any your idea on camera we can help you design and put it into production .
5.Fast delivery , 3-7 days for production
6.Accept paypal, tt, western union payment.
7. Delivery by DHL, EMS, Fedex, air, sea etc.
Cetificate
How to contact us:
1. send inquiry to me
2. add my skype: ccdcamp
