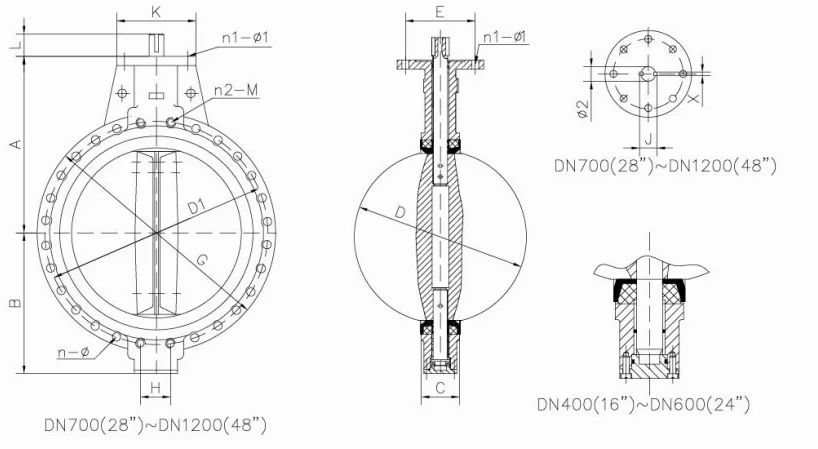

DN 700 ~ 1200 PN10/16 чугунный запорный

Cast Iron Wafer Butterfly Valve

=======================================

DESCRIPTION:


DN700~1200 PN10/16
End flange: ANSI B 16.1, EN 1092, AS 2129
F/F: ANSI B 16.10

BRIEF  INTRODUCTION:

Butterfly valve is mainly consisted of body, stem, disc, seat and driver(lever, gearbox, pneumatic and electric Actuator) and so on. On off and controlling flow of valve are made by turning stem and disc together.

PRODUCT ADVANTAGES:

1)Small in size and light in weight and maintaince.
   It can be mounted whereever needed.

2)Simple, compact structure, quick 90 degree on-off operation.

3)Disc has two-way bearing, perfect seal, without leakage under
   the pressure test.

4)Flow curve tending to straight-line. Excellent regulation performance.

5)Various kinds of materials, applicable to different medium.

6)Strong wash and brush resistance and can fit to bad working condition.

7)Center plate structure, small torque of open and close.

8)Long service life. Standing the test of ten thousands opening and
   closing operation.

9)Can be used in cutting off and regulation medium.

PRODUCT INFORMATION:

BRIEF INTRODUCTION:

Butterfly valve is mainly consisted of body, stem, disc, seat and driver(lever, gearbox, pneumatic and electric Actuator) and so on. On off and controlling f

low of valve are made by turning stem and disc together.

MATERIAL:

Other choices of material:

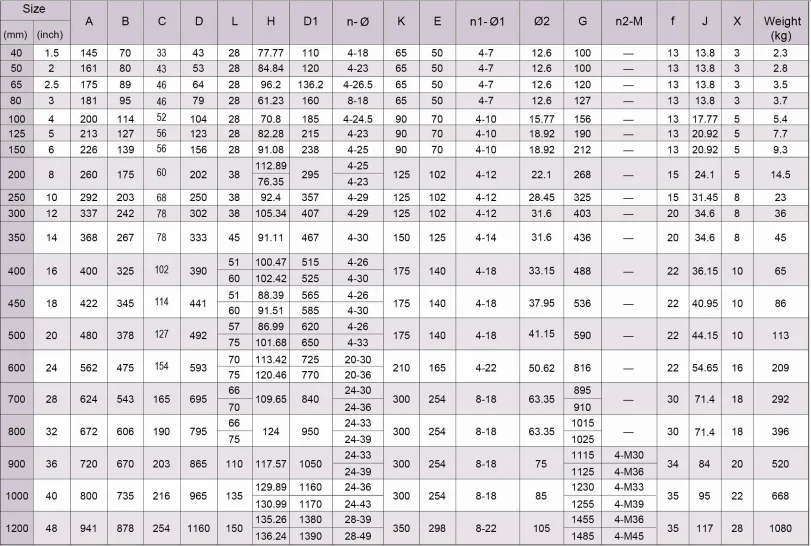

TECHNICAL DATA:

COMPANY PROFILE

Tianjin Tanggu Water-Seal Valve Co., Ltd. was established in 2003 and specialized in manufacture following valves:

Wafer butterfly valve, lug butterfly valve, double flanged butterfly valve, u type butterfly valve, grooved end butterfly valve, double eccentric butterfly valve, dual plate check valves, resilient seat gate valves, backflow preventer, y-strainer, balancing valve, and related series products.

CLICK TO OUR HOMEPAGE!

FACTORY

Why choose our products

1.100%pressure test, zero leakage;

2. High-end CNC machine tools, precise control of the Valve size;

3. Advanced valve Assembly lines, 25000 units/month;

4. Multi-standard valve design adapted to national needs;

5. Advanced testing equipment, from raw material to finished product, full control of quality;

6. A variety of materials matching, is applicable to water supply, sewage, electric power, metallurgy, shipbuilding, building, petroleum chemical, food and other working conditions;

7. Provide professional technical support, within 1 day to provide the CAD, 3D and other technical information;

OUR TEAM

MAIN PRODUCTS

The strength of the company

1. The first Chinese butterfly valve manufacturer, has 50 many years through the valve manufacturing experience;

2. Large diameter Butterfly Valve professional manufacturers, the largest to DN2600;

3. WRAS,CE,ISO9001 certified manufacturers;

4. In North China the largest valve parameters of the test station;

5. TOP 5 Valve Corporation OEM more 10 years ;

6. Professional R & D team, with 28 patents.

QUALITY CONTROL

CERTIFICATES

EXHIBITION

CUSTOMERS

CLICK TO OUR HOMEPAGE!

Genearl packing of Butterfly Valve/Gate Valve/Check Valve;

· Standard Export Package: plywood wooden box.

· Box Size: 1.1*1.1.0.6m, 1.1*1.1*0.7m, 1.1*1.1*0.9m, or other customerized size.

           ·  Packing: 1 set valve in a poly bag, then some pieces in a wooden box
