Twintex Фуэнте 1000W Переключить 4 цифры светодиодный дисплей Регулируемый 100V 10A переменная источник питания постоянного

Output capacity

200W~6kW

Working mode

PWM

Output

Output voltage

DC 0~100% full range adjustable

Output current

DC 0~100% full range adjustable

O.V.P. range

DC 1~100% rated output

O.C.P. range

DC fixed 105% max. output

Line regulation

CV≤0.2% +2 digits

CC≤0.5% +2 digits

Load regulation

≤0.5% +2 digits

Ripple & Noise

≤1% rms full scale

Display

Voltmeter

4 digits LED display

Ammeter

4 digits LED display

Voltage resolution

0.000-9.999V; 00.00-99.99V; 000.0-999.9V

Current resolution

0.000-9.999A; 00.00-99.99A; 000.0-999.9A

Accuracy

±(1% FS+1 digit)

Optional functions

Display meter

4 1/2 digits LED display (Max. display 19999)

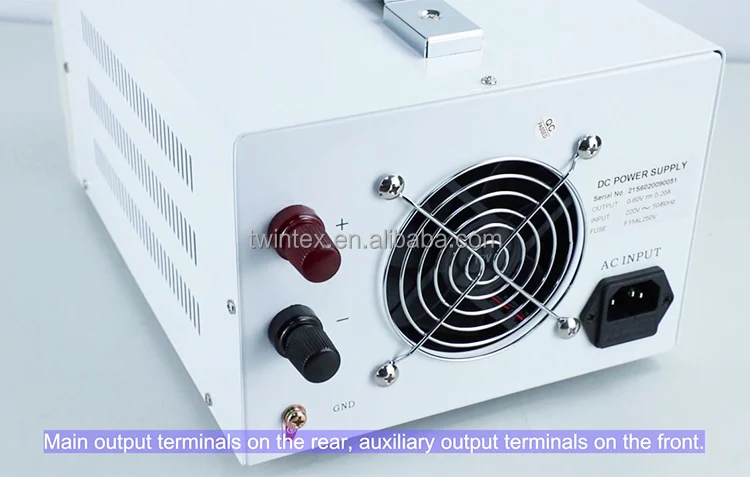

Output terminal

On front panel; or on rear panel; or on both front and rear panels

Output ON/OFF

Front panel switch

Terminal block or Wires on rear panel for remote control

General

Protection

Over voltage, over current, over temperature and over load protections

Operating environment

0°C~40°C, <80%RH

Storage environment

-10°C ~70°C, <80%RH

Power source

AC110V/220V±10%, 50/60Hz

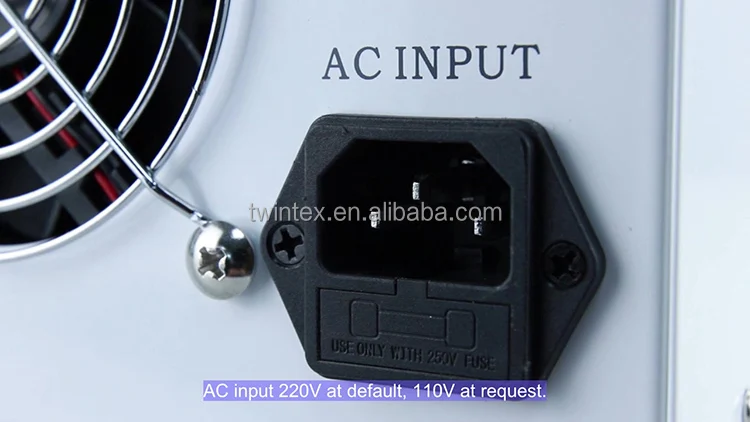

Input module

Power socket or terminal block
