Соединительный штуцер для труб 1/8-4 дюйма из нержавеющей стали SS

Описание и отзывы

Характеристики

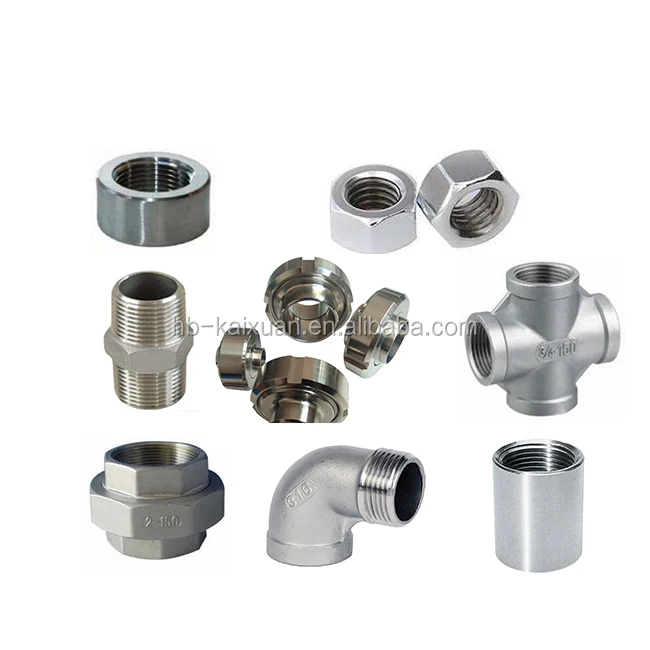

1/8"-4" Stainless Steel SS 304 316 Pipe Fitting Union

Product Intropduction



                                      >>>>>> Contact Us

Product Specification

Material	stainless steel ANSI 304,316,304L,316L.
Size	1/8"~6" inch stainless steel threaded elbow
Standard	ANSI,DIN,JIS or as your request
Function	Connect the pipeline
Thread	NPT,BSPT,BSP,DIN
Pressure	10KG / CM2 (150LBS), 60kg / cm2 (1000WOG)
Technology	Investment casting.precision casting,CNC machine
Packing	pcs/polybag, polybag/carton ,cartons/pallet or according to your requirement
Certificate	ISO9001:2000 & CE
Process	CNC machine,Testing equipment
Application	They are widely used as linkages of pipes for the transportation of water ,oil, gas and every kind of corrosive suitable for stainless steel.
Note	1)We can provide OEM and Customized service
	2)We can manufacture 150lbs stainless steel thread fittings,800PSI/1000PSI ball valves,and quick couplings for your choice.                                                            >>>>>>>>>>Please tell us your inquiry

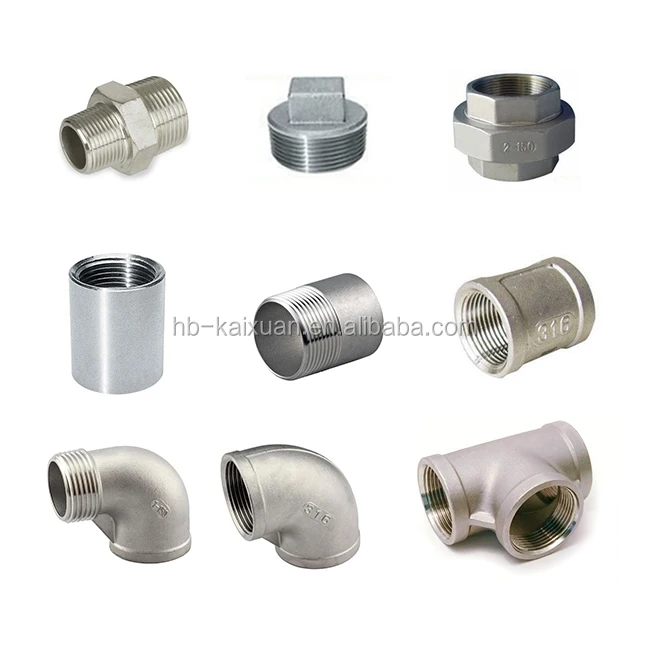

Related Product





                                                                                                                                                         >>>>>> Inquiry

Product Compared

Product Process

1. Do the product mold, wax mould processing.

2. The combination type wax.

3. To set a good wax mucilage, 4-5 times

4. Dry processing.

5. In the heart of the dewaxing kettle wax processing.

6. In the high temperature furnace roasting.

7. The key casting operations.

8. The product grinding.

9. The product cut apart.

10. for blasting processing.

11. CNC machining thread.

Product Application

                                                                               >>>>> Tell Us Your Requestment

Product Packing & Shipping

Packing :

1). Our regular packing is that the ball valve and parts are placed in the carton,finally are placed on the pallet or in a big wooden case if the customers have this requirement of package of pipe fitting .

2). Of course if the customers have specifical packing requirement, we can make adjustment according to your request .

3). Standard Carton Size: 32cm×22cm×20cm

4). Standard Wooden Case Size: 105cm×105cm×95cm

5). Sually,48 small cartons are loaded into a big pallet.(We can make adjustment on the size according to the cargo quatity.)
