1. The bolt of Metal Cable Connector is made of brass material, beautiful outlook and high quality.
2. Compact structure, water resistant, anti-oil, anti-corrosive.
3. DDJB Metal Cable Connectors are the fittings for cables. The joints can lock the cables tight and protectively.
Specification | Screw Thread |
| ||
Metric System | British Standard Pipe Thread(BSP) | Germany Standard | ||
DDP | M12*1.5 |
| PG7 | 3-6 |
DDP | M16*1.5 | G3/8 | PG9 | 4-8 |
DDP | M18*1.5 |
| PG11 | 5-10 |
DDP | M20*1.5 | G1/2 | PG13.5 | 6-12 |
DDP | M24*1.5 |
| PG16 | 10-14 |
DDP | M25*1.5 |
|
| 10-16 |
DDP | M27*2 | G3/4 | PG21 | 13-18 |
DDP | M30*2 |
|
| 13-18 |
DDP | M32*1.5 | G1 |
| 18-22 |
DDP | M32*1.5 | G1 |
| 18-25 |
DDP | M36*1.5 |
| PG29 | 18-25 |
DDP | M40*1.5 | G1-1/4 |
| 22-30 |
DDP | M47*1.5 | G1/1/2 | PG36 | 28-33 |
DDP | M50*1.5 |
| PG42 | 32-38 |
DDP | M60*1.5 | G2 | PG48 | 37-44 |
DDP | M63*1.5 |
|
| 37-44 |
Assemly Fig
Step one: Cut the flexible metal tube according to the required length, put the nut onto flexible metal tube, the put in slide proof washer and seal packing;
Step two: Lock the grounding cone into protective flexible metal tube;
Step three: Put the body onto protective flexible metal tube, then lock nut to the body;
Step four: Put the plastic sheath and seal packing onto the body, and the lock the locknut;
Step five: Finished assembly.

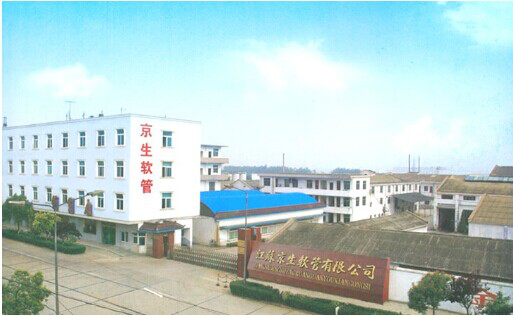

Jiangsu Kinson Conduit Industry Co.,Ltd. is a leading manufacture and exporter, Our company was established in 1988. The main products are EMT, flexible conduit and accessories. And the core product metal conduit sales first throughout our country. With several detection and International certification, kinson is professional extremely. What’s more, High quality, reasonable price and good service ensure our products can be sold well in domestic and abroad, like Southeast Asia and the west.
1. Superior Quality:
All of the materials we used are 1st Class , our PVC Coated Flexible steel conduit are all high-quality , equipment and technics are very advanced. We pay much attention to every details of the quality from production to package.
2. Competitive Prices:
We ourselves bought material for our professional subsidiary factory to apply to producing, therefore, our cost is lower than others and the prices are much more competitive.
3. Convenience For Purchasing:
Customers can find all the related fittings here,and can get all the goods you need In a shorter time.Like set screw coupling\\compression connectors\\strut clamps\\reducing bushings and so on.
4. Good Services:
All of our sales staff are professional and dedicated,and we offer good suggestion according to the demands of different customs from different countries.The most important is that Prostar is always responsible for our products, we offer the complete after-sale service. Exports to North America, the Middle East, Asia and other countries and regions.
1.DO you have factory?
Yes ,welcome to you visit our factory at any time.
2.Can you send us the sample?
Yes ,We are accept your sample requirement.
3.How about the delivery time?
Within 15-20 days after we confirm you requirement
4.what kind of payment does your company support?
T/T, 100% L/C at sight, Cash, Western Union are all accepted
5.How to order steel galvanized pipe ?
Please give us your specification :product type,thickness,OD,quantity
6.Do you have UL/CSA certification?
Yes,most of our products are UL approved.
7.Why choose us?
1. We are China Leading Electrical products Manufacturer.
2. Inspected by the Inspection Institution of UL Certification.
3. 100% QC inspection Before Shipment.
4. Best Quality & Best Service with Competitive price
