Гибкий Мобильный пожарный грузовик 250 куб. См


Поделиться:

Цена:*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики


Flexible Mobile Fire Fighting Truck 250cc ATV

Product Description
Engine
Engine Type250CC, Single cylinder, 4stroke
Cool SystemWater Cooled
Displacement (ml)249.4
Bore x Stroke77 x 64.8
Max. Power (kw/r/min)13 kw / 7000 r / min
Max. Torque (N.m/r/min)21 N.M / 3000 r / min
Max. Speed (km/h)less than70
Starting ModeElectric Start
Ignition ModeCDI
Chasis
Max suction head7 M
DriveTwo Wheel Drive (rear wheel)
Rated Flow   10 L / min
Work Time20 min
Rated Spray Pressure 4-6 mpa
Spray Height 3-6 M
Water Hose 50 M
Hydraulic Giant 1 M
Transmission Systermshaft drive
Gearshif5-speed gearshift
Battery12V/14Ah
Fr. Tyre SizeAT23*7-10/20Kpa
Rr.Tyre Size AT22*10-10/25Kpa2.75-17
Fr./Rr. BrakesDisk/Drum
Reverse GearWith reverse gear
Dimension
Dry Weight (kg)385
Dimenssion (mm)2380*1040*1140mm
Oil Tank (L)12 L
Water Tank (L)200 L
Wheel Base (mm)1170
Climbing Abilityless than 40°

 <

Engine
Engine Type250CC, Single cylinder, 4stroke
Cool SystemWater Cooled
Displacement (ml)249.4
Bore x Stroke77 x 64.8
Max. Power (kw/r/min)13 kw / 7000 r / min
Max. Torque (N.m/r/min)21 N.M / 3000 r / min
Max. Speed (km/h)less than70
Starting ModeElectric Start
Ignition ModeCDI
Chasis
Max suction head7 M
DriveTwo Wheel Drive (rear wheel)
Rated Flow   10 L / min
Work Time20 min
Rated Spray Pressure 4-6 mpa
Spray Height 3-6 M
Water Hose 50 M
Hydraulic Giant 1 M
Transmission Systermshaft drive
Gearshif5-speed gearshift
Battery12V/14Ah
Fr. Tyre SizeAT23*7-10/20Kpa
Rr.Tyre Size AT22*10-10/25Kpa2.75-17
Fr./Rr. BrakesDisk/Drum
Reverse GearWith reverse gear
Dimension
Dry Weight (kg)385
Dimenssion (mm)2380*1040*1140mm
Oil Tank (L)12 L
Water Tank (L)200 L
Wheel Base (mm)1170
Climbing Abilityless than 40°
Detailed Images



MAIN FEATURES

  1. Extinguish Material:   Water  Mist,  can avoid the secondary damage
  2. Fit for:  solid (Also fit for the liquid, gas,melt-able solid condition with equipment along with the motorcycle)
  3. High efficiency, Strong maneuverability
  4. Strong climbing ability
  5. Smart body, fit for many district, such as street/forest/sloping fields etc

 Flexible Mobile Fire Fighting Truck 250cc ATV.jpg

2016 latest mini fire truck, 250CC single cylinder, water-cooled ,four-stroke ATV special engines.

 Low speed and high torque, two-wheel drive,fashionable appearance with front and rear shelf,

 have strong carrying capacity, front disc brakes and rear drum brakes , a manual clutch, four

into a down, shaft drive, has good power, reliability and durability. Use Widening dedicated off-

road tires, it can take three people with two pre-fire extinguisher.

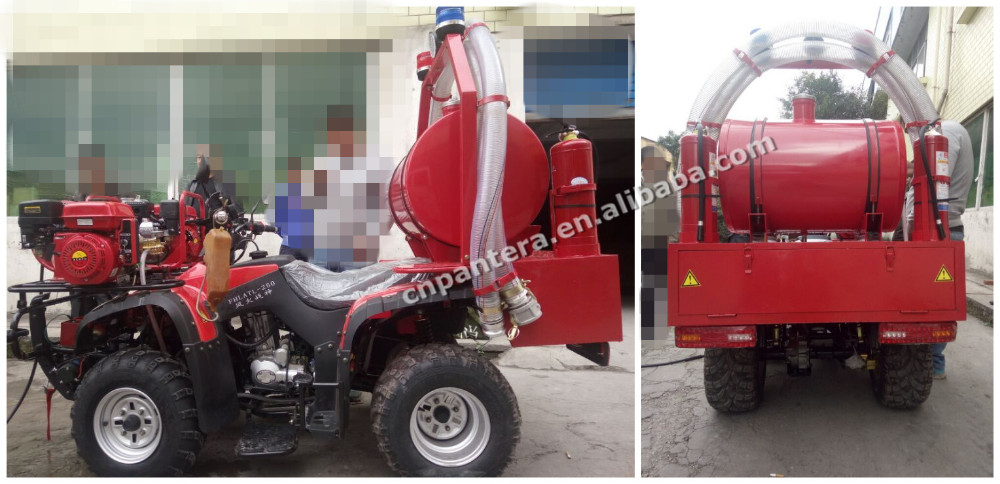

Flexible Mobile Fire Fighting Truck 250cc ATV.jpg

The car is small, mobile and flexible, easy to operate, adapt to the complex road conditions and

urban roadway, and carrying vacuum pump and the corresponding fire fighting equipment, to

overcome the ordinary water pump need to add water when fire, air, can be normal use, shorten

 the preparation time of before the fire, with high extinguishing efficiency.

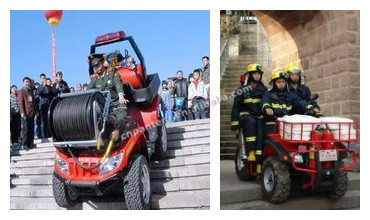

Flexible Mobile Fire Fighting Truck 250cc ATV (3).jpg

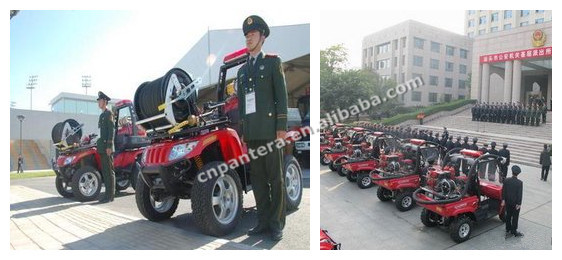

Flexible Mobile Fire Fighting Truck 250cc ATV (2).jpg

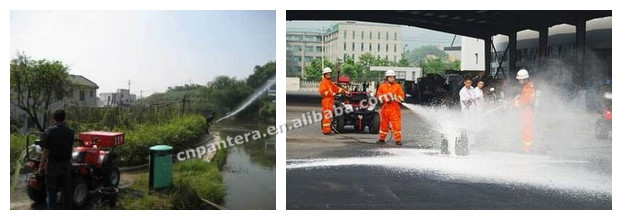

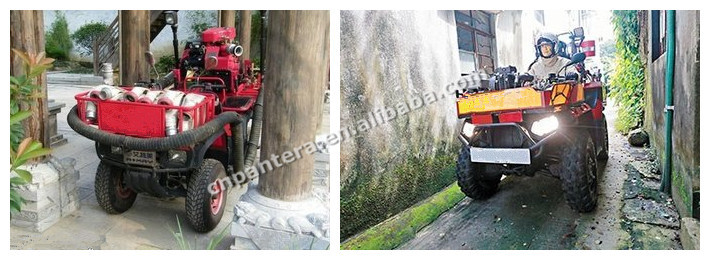

Especially in the old city streets, or other forest fire with slope , the mini atv fire truck can

quickly reach the fire scene, influenced by the width of the streets, traffic jams and other

 factors, also it can not be replaced by other types of motorized fire fighting equipment



Equipment

Flexible Mobile Fire Fighting Truck 250cc ATV (1).jpg

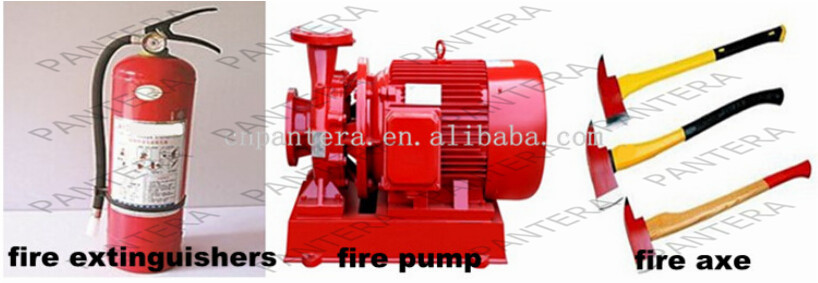

The product configuration fire pumps, fire extinguishers, fire axes and other professional fire equipment, with high extinguishing efficiency, strong mobility and other characteristics.

It is an effective tool for professional fire brigade and the obligation fire brigade.  At the same

time.it is an perfect equipment  for drought, drainage and emergency situation.

Production Line

Flexible Mobile Fire Fighting Truck 250cc ATV (4).jpg

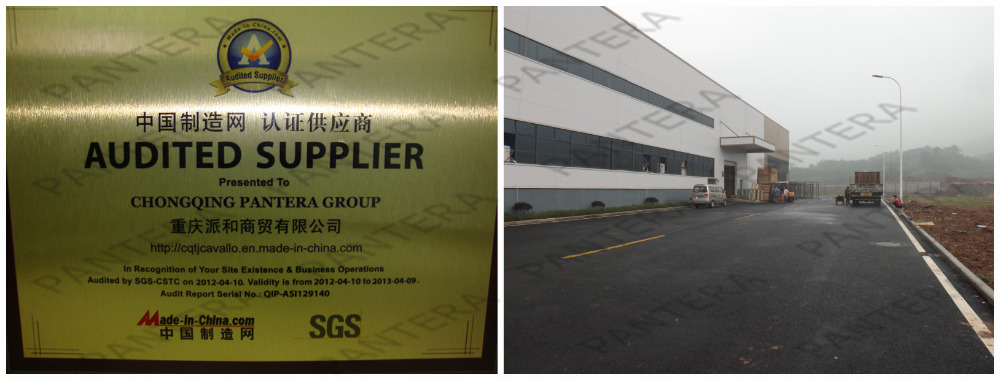

Company Information





About Us:

Chongqing Pantera Trade Co, Ltd. Founded in 2010, located in Chongqing, China. Specializing

in motorcycle and ATV Fire.



All of us is keenly aware that provide the high quality products and professional service is

our common goal. Also, most of our customers are so happy to find working with us because

of our outstanding team work for the benefit of our clients, from design to production process,

also, clients customized for the logo, brand, color, design, packages are all welcome, and all

requirements and complaints are highly respect.

FAQ

 How to place an order?

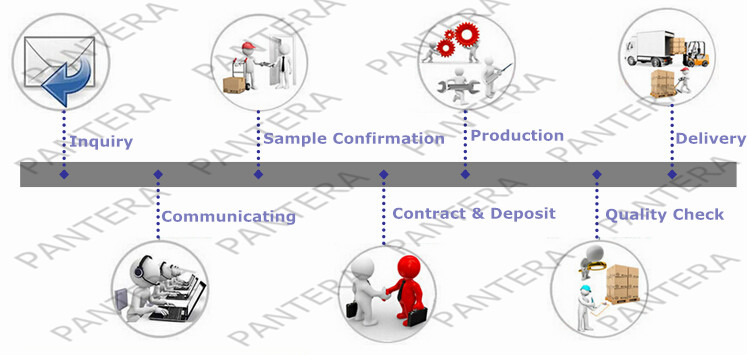

Our Services



Flexible Mobile Fire Fighting Truck 250cc ATVjpg
