Refractory engineering ceramic fiber wool



Product Description:

Ceramic Fiber Blanket is an ideal thermal insulation , fire-proofansound-absorbing material. The Ceramic Fiber Blanket is composed of long, flexible, interwoven fibers manufactured by the blownand the spunprocess yielding a strong, light weight, durable blanket for applications in a temperature range from 1100° C (2012° F ) to 1430° C (2600° F).The ceramic fiber blanket is completely inorganic and is needled to provide exceptional handling strength, used in a variety of heat processing applications.



Standard Dimension

Density: 80-128Kg/m3

Length:3600-14000mm

Width:610mm

Thickness:6-50mm



Product Application:

Ceramic Fiber Blanket is widely used for industrial furnace heat treatment, direct exposure to heat as furnace hot face lining, high temperature filter material, heat treatment insulation, and expansion joints.



Technical Parameters:



DescriptionCommonStandardHigh PurityHigh AluminaZirconia
Maximum temperature (°C)10001260126013601430
Working Temperature (°C)< 10001050110012001350
Colorwhitewhitewhitewhitewhite
Density  (kg/m3)96-12896-12896-128128-160128-160
Shrinkage(%)of heating 24 hours-4-3-3-3-3
(as density 128 kg/m3)(1000°C)(1000°C)(1100°C)(1250°C)(1350°C)
Thermal conductivity  (w/m.k)(Density 128 kgs/ m3)0.09(400°C)0.09(400°C)0.09(400°C)0.12(600°C)0.16(800°C)
0.16(800°C)0.16(800°C)0.16(800°C)0.20(1000°C)0.20(1000°C)
Tensile strength (MPa)0.040.040.040.040.04
(density as 128kg/m3)
Chemical composition(%)AL2O3444647-4952-5539-40
AL2O3 & SIO2969799--
AL2O3 & SIO2 & ZrO2---9999
ZrO2---15-1715-17
Fe2O3<1.2<1.00.20.20.2
Na2O & K2O≤0.5≤0.50.20.20.2

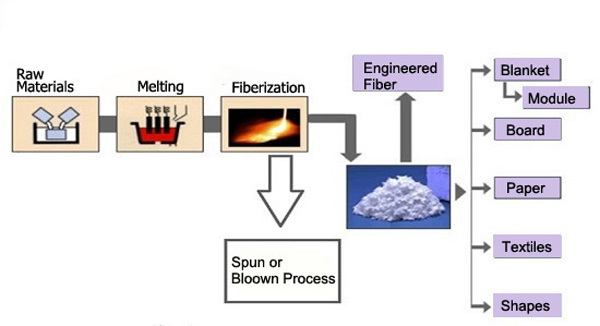

Manufacturing Process:

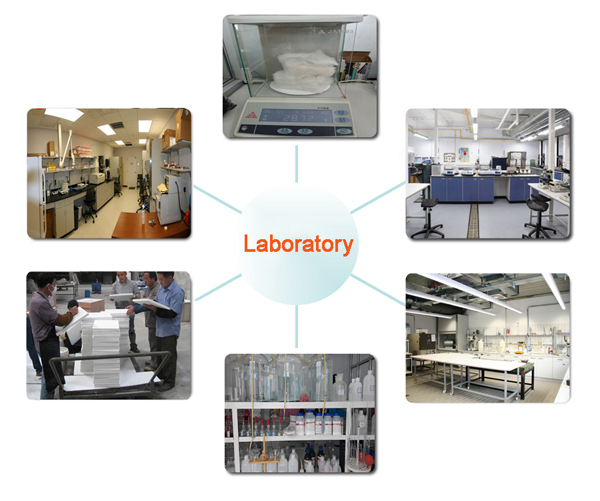

IKING Ceramic Fiber Blanket Laboratory:



Certifications:

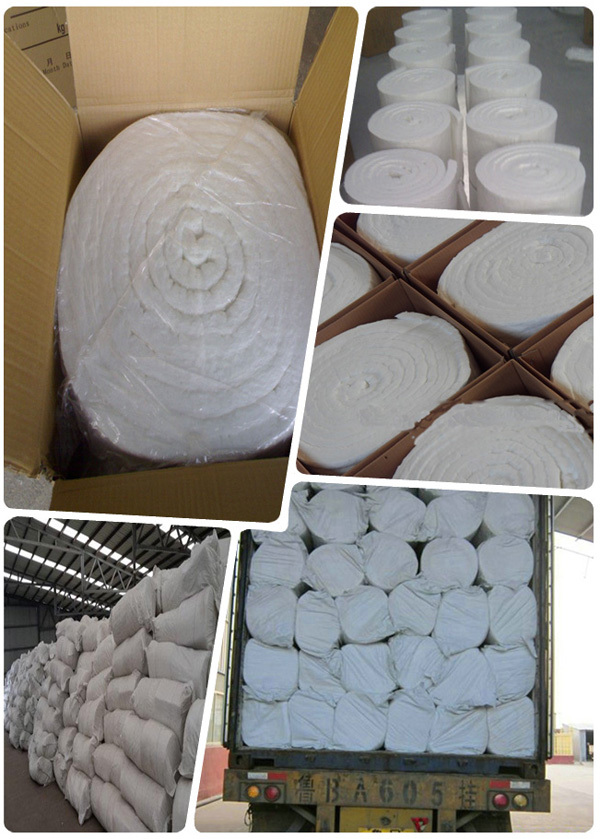

Packing and Shipping:



Welcome to visit our factory any time.
