Product Description



01







Technical data of Type 65 movable partition :


























































ModelWeight
(kg/m)
Fire Rating(min)STC PerformanceSpecificationCarrier
Thickness
(mm)
Width(mm)Height(mm)Top Seal(mm)/ Pressure(kg)

Bottom Seal(mm)/ Pressure(kg)


LCP stretch (mm)
EG65-32226032db65680-12122000-450022.5/3522.5/3514060#
65#
80#
EG65-38276038db65680-12122000-450022.5/3522.5/35140
EG65-45356045db65680-12122000-450022.5/3522.5/35140




Technical data of Type 80 movable partition :


























































ModelWeight
(kg/m)
Fire Rating(min)STC PerformanceSpecificationCarrier
Thickness
(mm)
Width(mm)Height(mm)Top Seal(mm)/ Pressure(kg)Bottom Seal(mm)/ Pressure(kg)LCP stretch (mm)
EG80-40306040db80680-12122000-550022.5/3522.5/3514060#
80#  100#
EG80-45386045db80680-12122000-550022.5/3522.5/35140
EG80-48476048db80680-12122000-550022.5/3522.5/35140




Technical data of Type 100 movable partition :


























































ModelWeight
(kg/m)
Fire Rating(min)STC PerformanceSpecificationCarrier
Thickness
(mm)
Width(mm)Height(mm)Top Seal(mm)/ Pressure(kg)Bottom Seal(mm)/ Pressure(kg)LCP stretch (mm)
EG100-43386043db100680-12192000-750030/4030/40140

60#
80# 100#


EG100-48466048db100680-12192000-750030/4030/40140
EG100-53556053db100680-12192000-750030/4030/40140

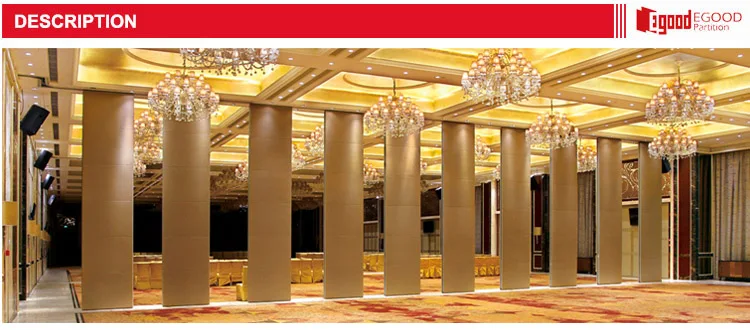

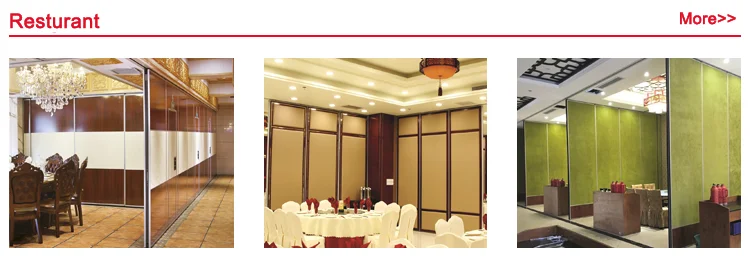

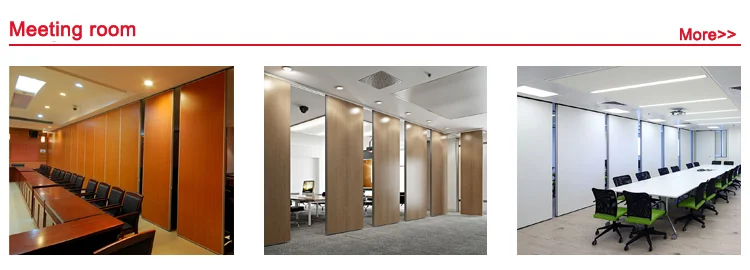

Egood acoustic operable partitions are used to divide meeting rooms, conference rooms, restaurant and banquet halls etc., it provides convenient and effective space management solutions, the panels move on a ceiling track with no requirement of floor guides or rails, its has been extensively applied to hotel industry.

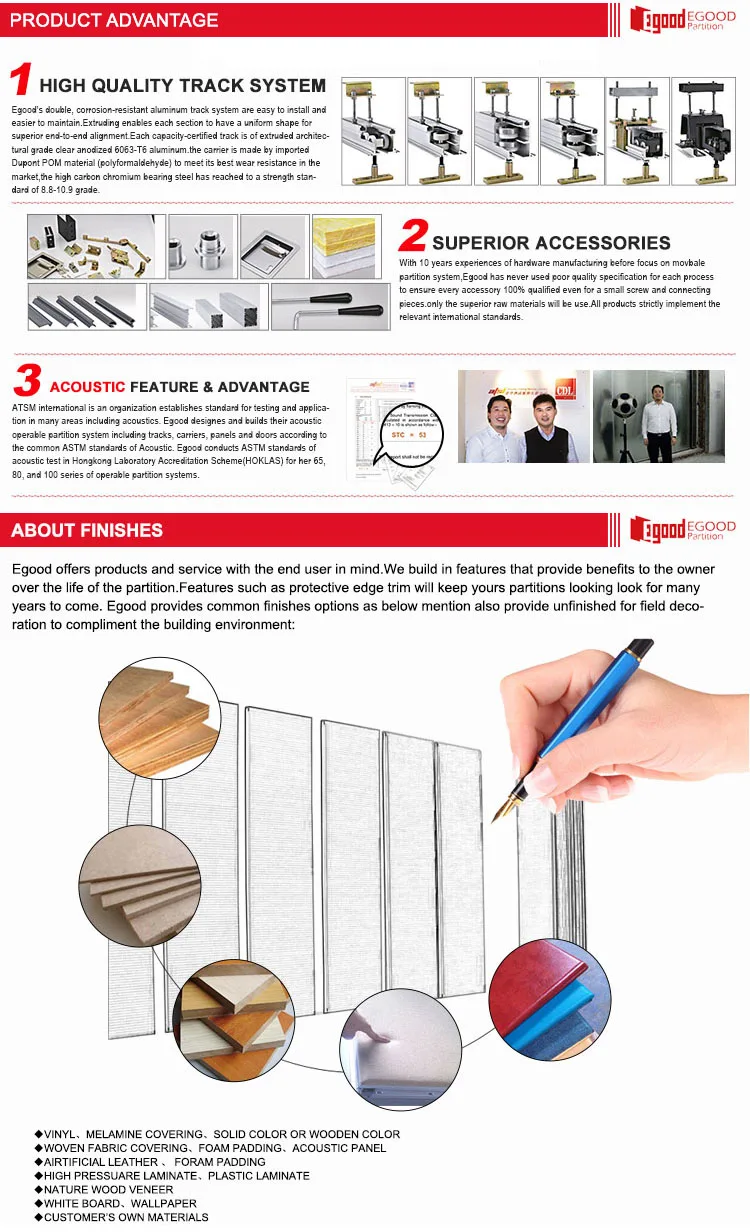

Egood offers products and service with the end user in mind. We build in features that provide benefits to the owner over the life of the partition. Features such as protective edge trim will keep your partitions looking good for many years to come.


The movable partitions consist of a series of interlocking flat panels and the fast set retractable top and bottom seals provide the easiest in-field operation, a simple half-turn of the waist high removable handle extends or retracts the sound seals.


The quick set retractable seals save the owner a great deal of time during setup and take down

Time means money, especially for clients that rent their facilities for meetings and other functions.


Egood provides panel finishes such as melamine, fabric, leather, wood veneer, high-pressure laminate or other custom surfaces, panels also be supplied unfinished(raw mdf or plywood) for field decoration to compliment the building environment.
