 HJI Stamford series brushless alternator 3 phase  10KVA 20KVA 30KVA 50kva  dynamo generator price







1.Brushless synchronous alternator

2.Output:6.5kw-1150kw single-phase and three-phase

3.Convenient installation and maintenance

4.Frequency: 50Hz 60Hz  1500 1800RPM

5.Characters: 4-pole, brushless, H class insulation, IP21



The advantage of our material

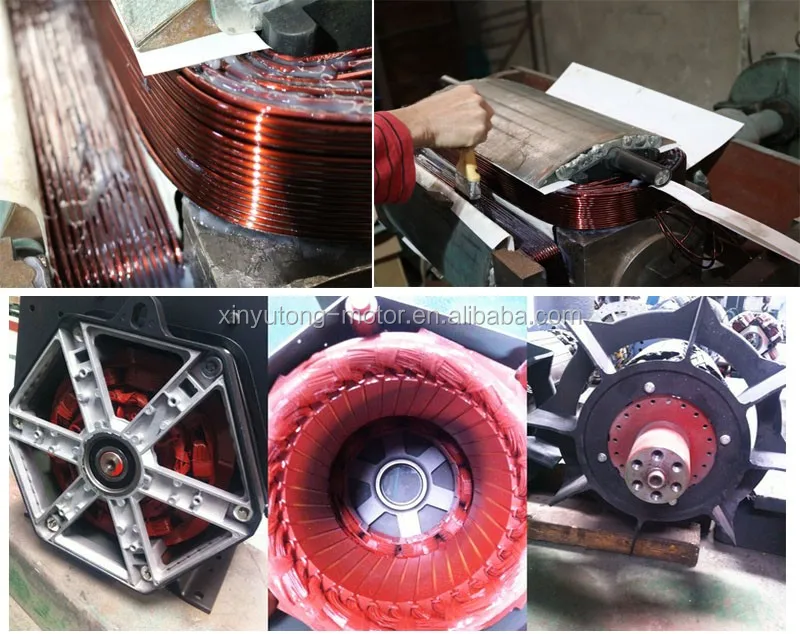

(1)The rotors and stators with 100% copper wire.

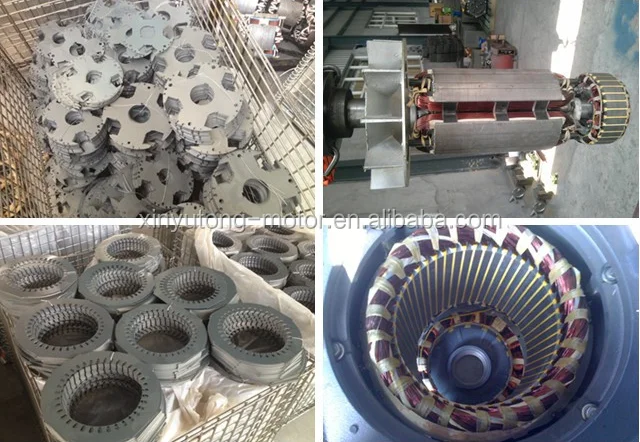

(2)The silicon steel sheet we use is the products of Wugang Brand,800 Series.

    which is the most famous manufacture of steel.And its advantage is its magnetic

    flux is large and its iron loss is small.

(3)The main frame of the alternator and lead box are made of steel

(4)All the components of our factory,the stator,rotor and excitation will be dipping

    lacquer twice.

(5)The rope of best nylon to be used in all the rotors and stators.We promise the

    security of our products.

(6)All the rotors should be tested by dynamic balance  to go on test of balance.

(7)Material print the conformal coating.

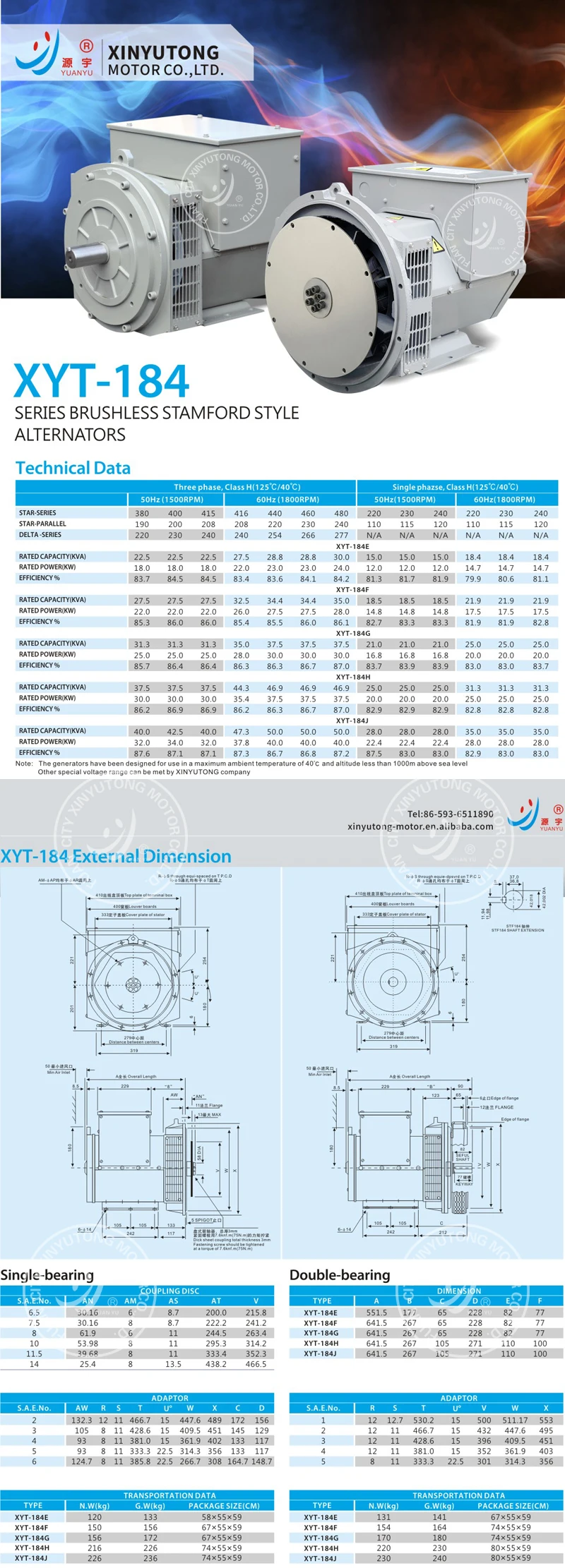

Specifications:



Alternator MECHANICAL FEATURES



Voltage regulation

Voltage regulation refers to the change of voltage from no-load to full-load

with power factor ranging from 0.5 to 1 and 2.8%s fluctuation of the

speed of engine. Voltage is adjusted via potentiometer of AVR,

model: SX460, SX440

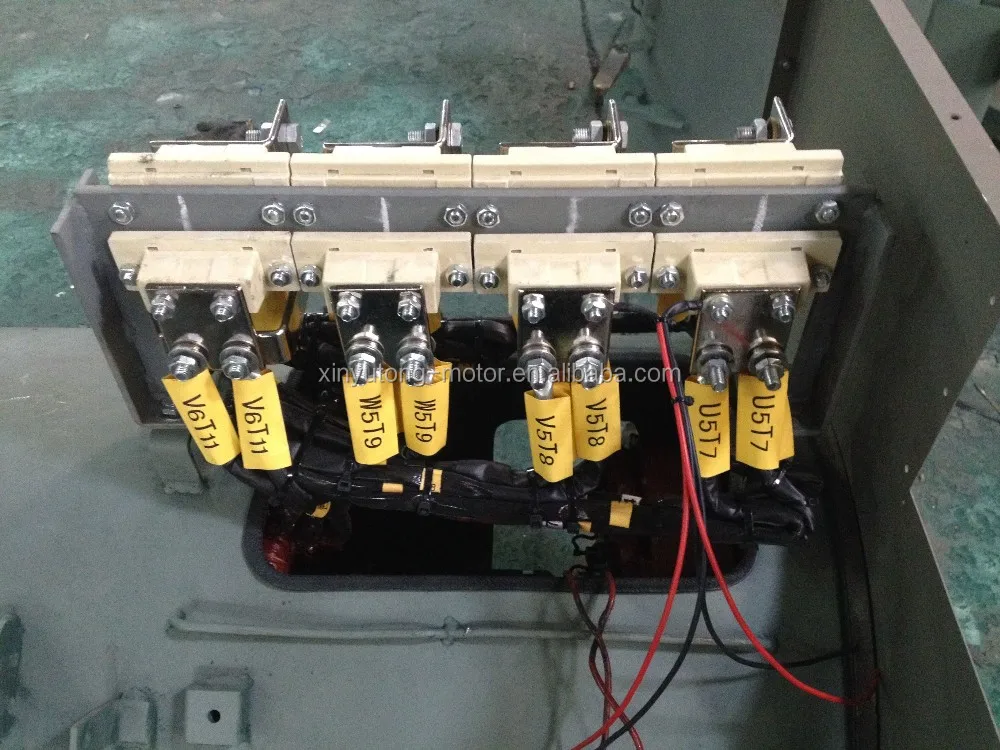

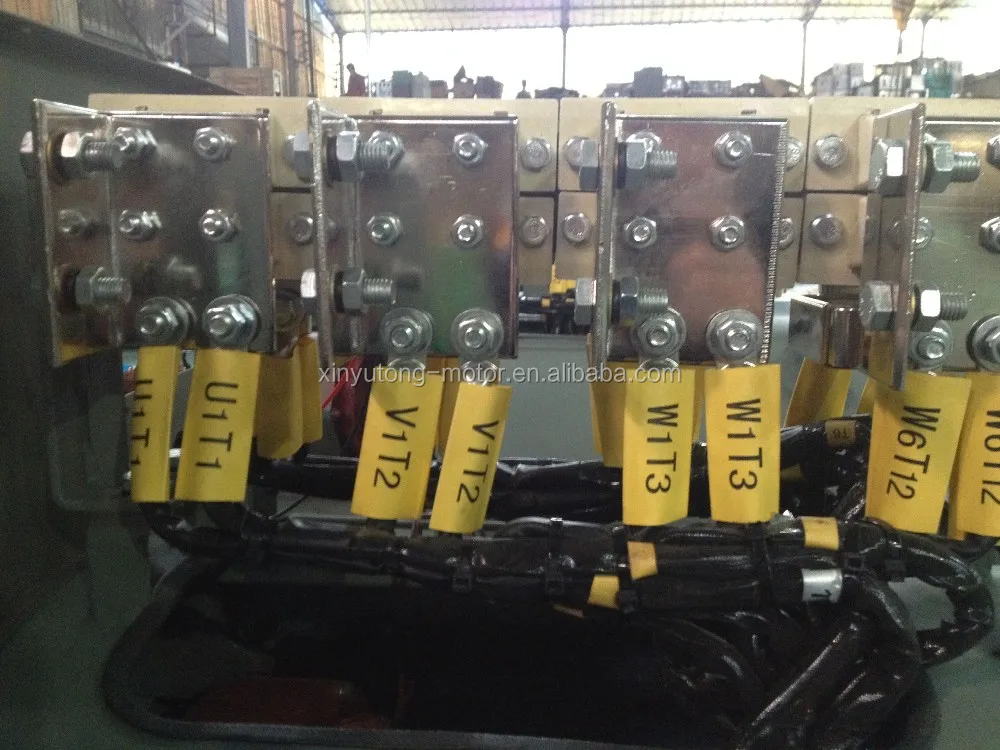

Terminal and terminal box



The three-field alternator had 12 leads brought out to the terminals in the

terminal box. The terminalsare put on the non drive end . The box is

equipped with removable panels.



Alternator ELECTRIC FEATURES



INSULATION AND VARNISH

Insulation Class H



All regulatory components are made up with special materials and are

immersed in lacquer by peculiar tech.Vanish and colophony materials

are develop to strengthen the processing and machinery intensity

of windingsand revolving parts for protecting the alternator work

under corrosive environment.



Winding and electric Performance



2/3 pith winding design can effectively eliminate the third harmonic wave

(3th.9th,15th) of the voltage ,which isthe best design of UPS for nonlinear

load .Connected with the network in parallel, the structure can restrain

excessive currents in the midline. This and the 2/3 pitch help to check the wave

distortion and output voltage.



Phone interference and Radio interference



THF (defined by 40thpart of BS4999) <2%.TIF<50

Brushless apparatus and quality AVR ensure little radio interference in transmission.

RFI noise filter is also available.



Payment Terms
a, T/T 30% in advance,the rest balance beford shipment.
b, L/C at sight.By 100% irrevocable L/C.

Delivery Time

30days after receiving your advanced payment

Warranty Policy   Generator

Guarantee for one year or 1000 hours (accord to whichever reach first) from

ex-factory date.During the guarantee period,our company will provide the free

easy damaged spare part for problems caused by our quality of production or

raw material except the damageable spare parts of diesel engine caused by

customer's incorrect manmade operation.After expiration, our company provides cost parts maintenance for gen-set.
