Станок для профилирования листового

Цена:*

Стоимость в USD (на сегодня):Узнать

Количество:

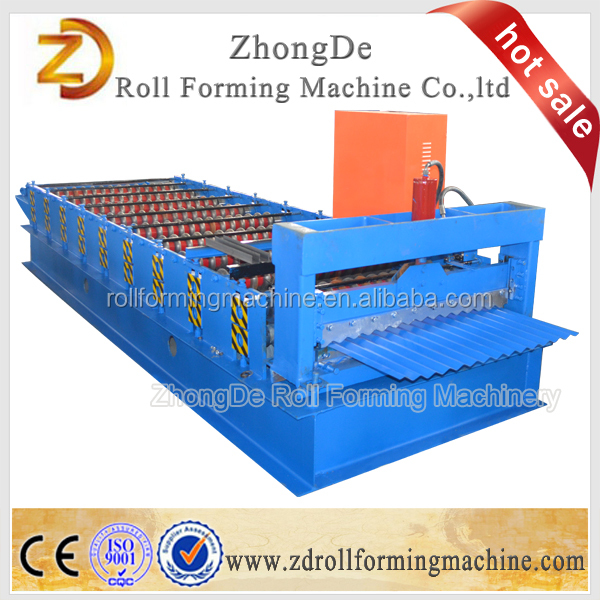

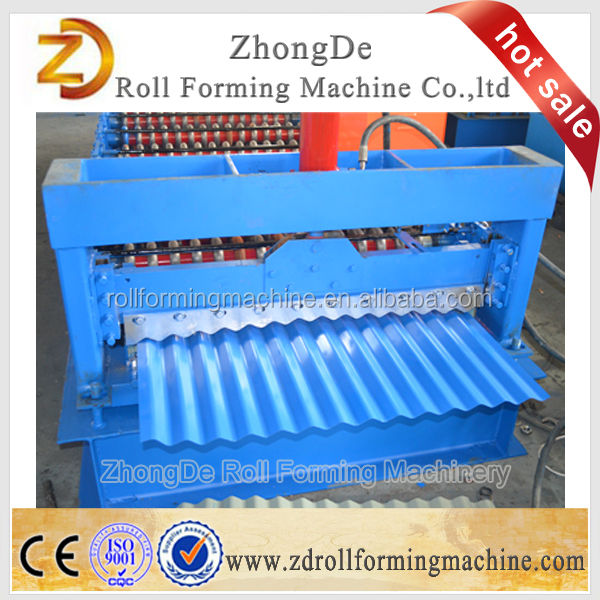

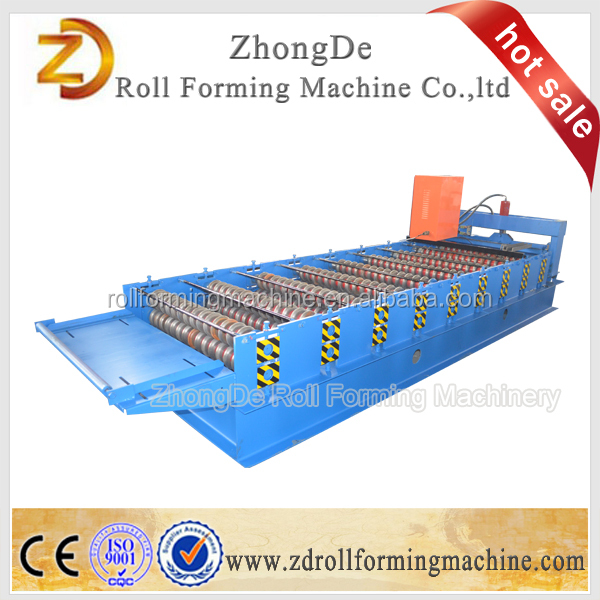

15 Roller steps steel roofing corrugated sheet roll forming machine/ metal roofing sheet making machine

Product Description

Product Show

product Specifications

Usage	Ceiling, wall, roof and structure frame
Roller steps	15
Dimension	750016001550mm
Weight	5t
Feeding width	1200mm
Forming thickness	0.28-0.8mm
Large frame	400mm H-Beam
Diameter of roller	Φ80mm
Middle plate	16-25mm
Chain Size	1 inch
Voltage	380V 50HZ 3 phases or customized
Motor power	4kw
Pump station power	3kw/(7.5kw hydraulic motor)
Transducer power	3.5kw
Cutting system	Hydraulic cutting(avoiding noise and smooth cut)
Material of cutting	Cr12

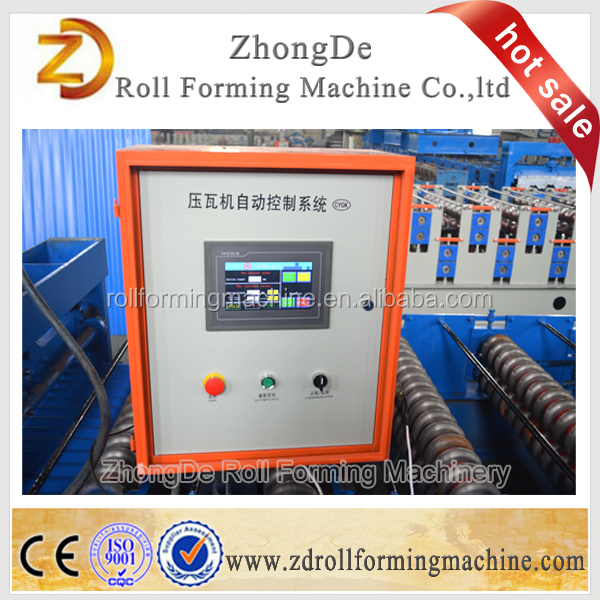

Control system	PLC brand :Panasonic
Control system	Length error : ±2mm
Production capacity	8-12m/min
Warranty	1 year and we provide technical support for whole life, and overseas service
Maintain	Easily :Timely adding oil
Payment terms	30% in advance, the balance before delivery

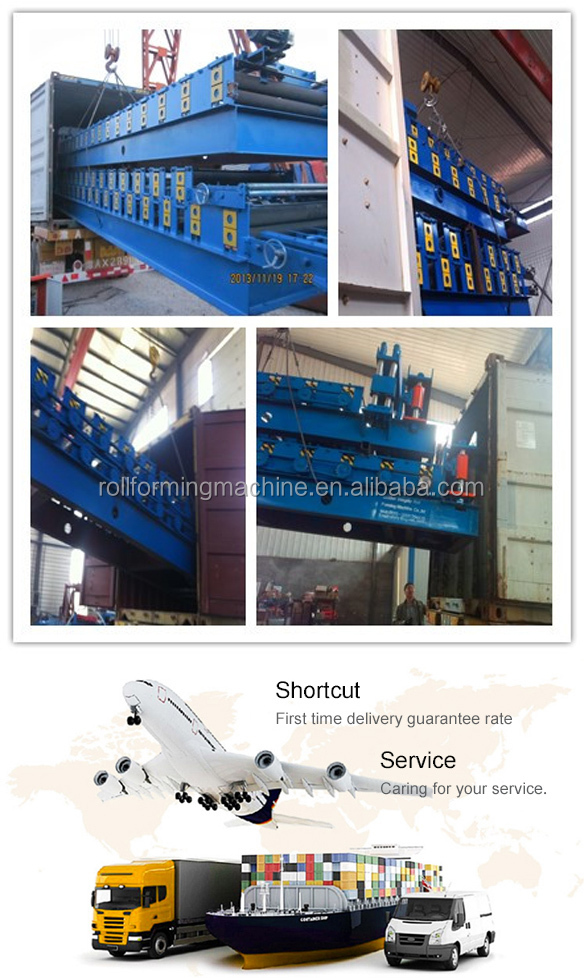

Package	Standard package
Delivery	35 days after receiving the deposit
