Проходной конденсатор

Цена:*

Стоимость в USD (на сегодня):Узнать

Количество:

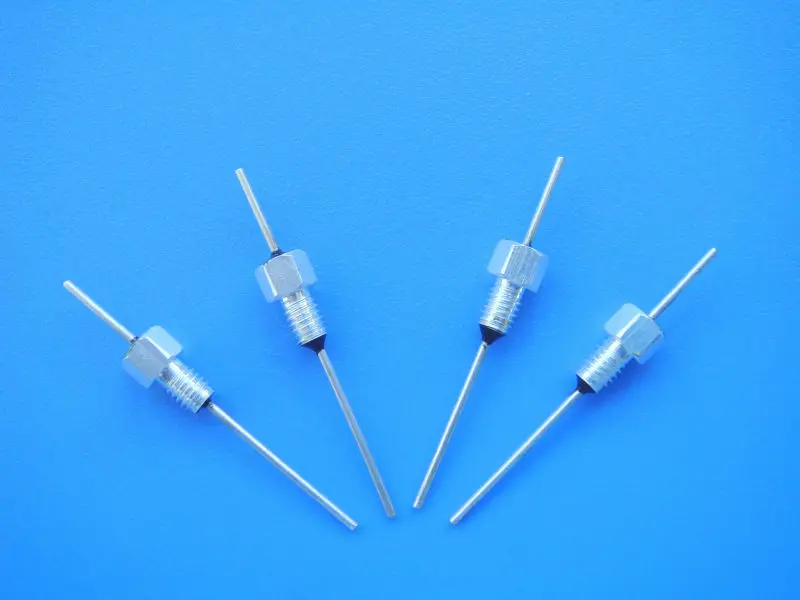

M3 RFI Feedthrough Capacitor 1000PF

Feature:

1). RoHS,REACH,CE approved!
2). Available in RF Components widely!
3).Custom design is available!

4).Certification: ISO9001:2008,ISO14001:2004, ISO18001:2007

Specification:

1. Rated Voltage: 100VDC

2.Caps and Tolerance: 1000PF +80% -20%

3.Dissipate Factor: <3.5%

4.Insulation Resistor: >3000 M Ω

5. Temperature Feature: -55°C ~ +125°C

6.Withstand Voltage: 200VDC

7.thread: M3

8.Circuit Type: C Type

CUSTOM DESIGN IS AVAILABLE.

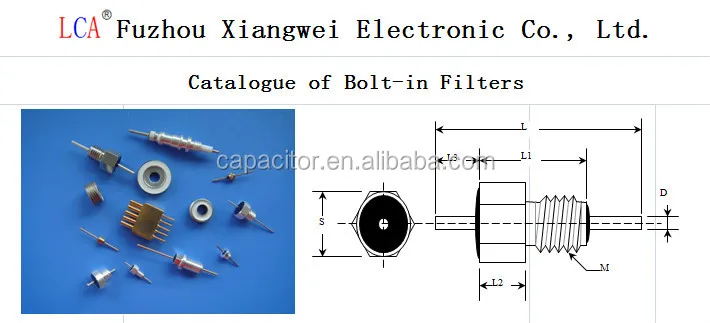

PART NUMBER	Dimension(unit:mm)	CAPACITANCE	WITHSTAND VOLTAGE	CIRCUIT
S	M	L1	L2
XWL3325	3.3	2.5*0.45	6.6	3	5pF-10nF	16VDC-500VDC	C
XWL4030	4	3*0.5	6-12	2.5-3.5	5pF-100nF	16VDC-500VDC	C
XWL5040	5	4*(0.5-0.7)	6.5-13.5	2.5-6	5pF-100nF	16VDC-500VDC	C/PI
XWL6040	6	4*0.7	7.5-11	2.5-4	5pF-100nF	100VDC-1KVDC	C
XWL6050	6	5*0.8	10-15.5	4-4.5	5pF-100nF	100VDC-1.5KVDC	C
XWL7060	7	6*1.0	16	8	101/221	100VDC-1.5KVDC	C
XWL8050	8	5*0.8	10-11	6	5pF-10nF	100VDC-1.5KVDC	C
XWL8060	8	6*(0.75-1.0)	9-15	4-10	5pF-1uF	100VDC-1.5KVDC	C
XWL10080	10	8*(0.75-1.0)	15	7	5pF-100npF	100VDC-1.5KVDC	C
XWL8-32UNC-2A	4.75-5	8-32UNC-2A	5.1-9.2	1.52-2.4	5pF-10nF	100VDC-500VDC	C/PI
XWLL1/4-28UNF-2A	10	1/4-28UNF-2A	7.9-19	3.2-14.3	10nf-1.4uf	100VDC-500VDC	C/PI
XWLL12-28UNF-2A	6	12-28UNF-2A	12	4	103	100VDC-500VDC	C
XWLL6-32UNC-2A	4	6-32UNC-2A	9.1	3.2	331	100VDC-500VDC	C
XWL8-36UNF-2A	5	8-36UNF-2A	3.3	1	221	100VDC-500VDC	C
Lead wire`s diameter: 0.6mm,0.7mm,0.75mm,1.0mm,1.2mm,1.5mm,2.0mm
Custom design is available.

PART NUMBER

Dimension(unit:mm)

CAPACITANCE

WITHSTAND VOLTAGE

CIRCUIT

3.3

2.5*0.45

6.6

5pF-10nF

16VDC-500VDC

XWL4030
