Контроллер солнечного таймера с перезаряжаемым аккумулятором 9 В пластиковый ирригационный электромагнитный клапан 2 дюйма
- Категории: >>>
- Поставщик: Hangzhou,Darhor,Technology,Co.,Limited
Поделиться:
Описание и отзывы
Характеристики
Product Description

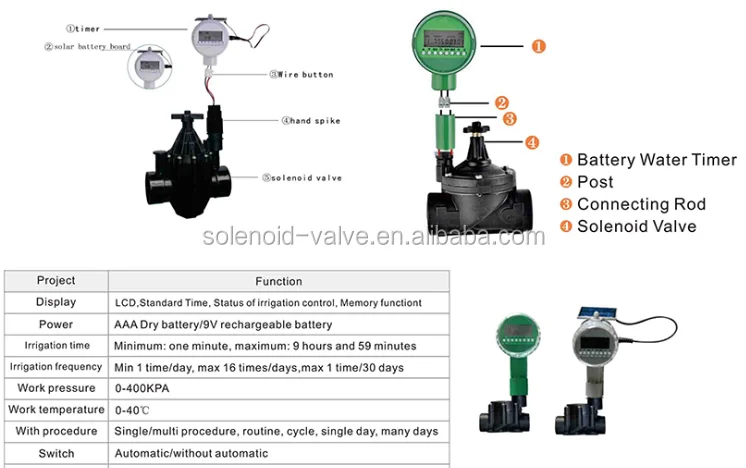

Darhor 2 inch plastic irrigation solenoid valve with 3V rechargeable battery operated solar timer controller
Characteristic:
1.Low power consumption, long life span;
2.Apply for irrigation system;
3.With flow rate control..
2.Apply for irrigation system;
3.With flow rate control..
Material:
Body- PA66(Nylon)
Seal- VITON,NBR, EPDM
Armature Tube-Stainless Steel 304
Plunger- Stainless Steel 430F
Stop- Stainless Steel 430F
Springs- SS304
Shading Rings- SS304
Medium: | Water |
Temperature: | NBR Seal:-10℃ to 80℃ EPDM Seal: - 30℃ to 120℃ VITON Seal: -30℃ to 150℃ |
Pressure: | 0.03-0.8 MPa |
Port Size: | 3/4'',1'', 1 1/2'', 2'',3'' |
Port Thread: | NPT, BSP |
Orifice(mm): | 20,25,40,50,80 |
Voltage: | DC - 12V,24V AC - 110V,220V,240V |
Coils: | Y71B,8VA(AC),6W(DC),IP65 100%ED |
Specifications

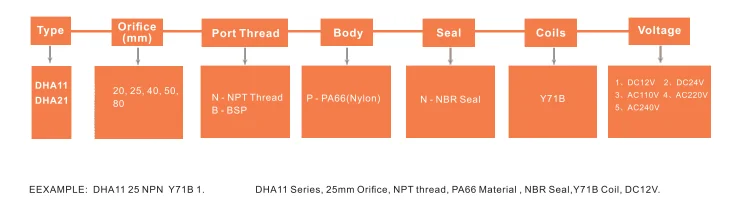

DHA11/21 Normally Closed,with Coil DHA11 | ||||||||||||||||
Valve Body | Port Size | Orifice | Cv | Min Pressure (MPa) | Max Pressure(MPa) | Seals Material | Body Material | |||||||||
AC(8VA) | DC(6W) | |||||||||||||||
DHA1120XXX | 3/4'' | 20 | 0.03 | 0.8 | 0.8 | NBR | PA66 (Nylon) | |||||||||
DHA1125XXX | 1'' | 25 | 12 | 0.03 | 0.8 | 0.8 | ||||||||||
DHA1140XXX | 1 1/2'' | 40 | 28 | 0.03 | 0.8 | 0.8 | ||||||||||
DHA1150XXX | 2'' | 50 | 48 | 0.03 | 0.8 | 0.8 | ||||||||||
DHA1180XXX | 3'' | 80 | 0.03 | 0.8 | 0.8 | |||||||||||
AC(6VA) | DC(5W) | |||||||||||||||
DHA2140XXX | 1 1/2'' | 40 | 28 | 0.03 | 0.8 | 0.8 | ||||||||||
DHA2150XXX | 2'' | 50 | 48 | 0.03 | 0.8 | 0.8 | ||||||||||
Related Products
\t\t\t\t\t\t\t\t\tCertifications \t\t\t\t\t\t\t
Our Company
Each Darhor Valve pass 10 testings to ensure high quality!
Valve testing: Coil testing:
high pressure test low pressure test
leak detection water hammer test lifecycle test
resistance test current test
power test temperature test noise test
Packing & Delivery
Shockproof Bag to protect valve
Strong Cartons
1.English neutral packaging
2.with Darhor logo
3.with your logo (Charged)
membrane outside protect rain
Package more than 40kgs,use
Fumigated wooden case or pallet.
We will compensate to the damage!pls contact within 3 days when you receive.
