Тормозные диски 40206-9X403 402069X60A 5001871214 для nissan

Описание и отзывы

Характеристики



Product Description:

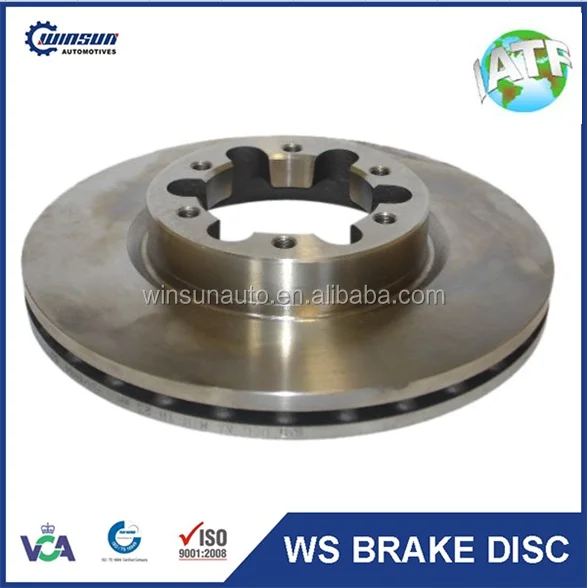

40206-9X403 402069X60A 5001871214  brake discs factory for nissan cabstar







• Location:Front Axle
•
• Height:53 mm
•
• Diameter:290 mm
•
• Centering Diameter:96 mm
•
• Pitch Circle Diameter:118 mm
•
• Brake Disc Thickness:26 mm
•
• Minimum Thickness:23 mm
•
• Number Of Holes:6
•
• Solid Or Vented:V







***********************************************************************************************************************************************************

Material Technical Index:

Standard	C	Si	Mn	P	S	C.E
G3000	3.1~3.4	1.9~2.3	0.6~0.9	≤ 0.15	≤ 0.15	3.90~4.15



2.Mechanical Properties

1) Tensile: ≥ 210 Mpa
2) Hardness : 187~241 HBS

3.Microstructure

Main Graphite Type: A , Grade: 3~5 .
Pearlite: ≥95% Ferrite: <5%

************************************************************************************************************************************************************

The Advantage Of Product:



1.ISO/TS16949 quality control systems

2.Standard Material ASTM G3000(USA)=GG25(EURO)=HT~250(CHINA)
3.100% crucial dimension inspection

4.100% crack detection

5.100% balance inspection
6.Currently the production cover 2500 part numbers that can equip almost all cars circulating in Europe and most of those outside Europe.
7.Competitive price

************************************************************************************************************************************************************

Payment :

 1.We accept T/T, L/C etc.

 2.At least 30% deposit , balance before shipment.

************************************************************************************************************************************************************
