Product Description

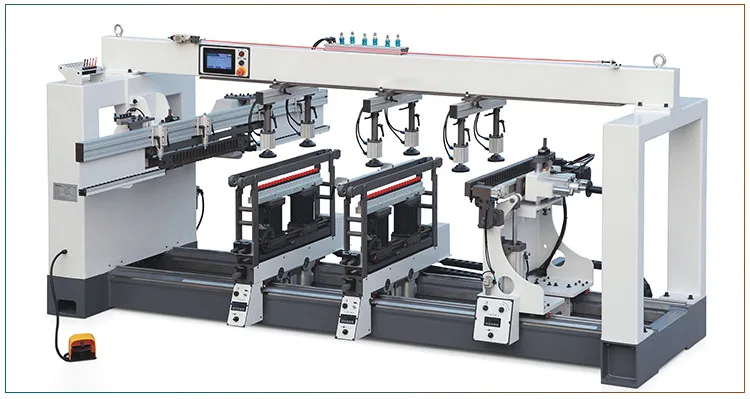

Wood Drilling Machine is used to drill holes on solid wood panel, chipboard, ABS board, PVC board and other boards which have the similar structure and hardness. It's a necessary tool for furniture production and decoration industry.
Max. width of panels | 2450mm |
Max. distance of two horizontal boring position | 640mm |
Min. distance of vertical drilling group | 128mm |
Max. thickness of panels | 78mm |
Max. depth of horizontal boring head | 40mm |
Max. depth of vertical boring head | 70mm |
Rotating speed of boring spindles | 2800rpm (50HZ) |
Vertical boring power | 1.1kw |
Horizontal boring power | 1.5kw |
Woorking pressure | 0.6-0.8MPa |
Dimension of machine | 3700*2500*1760mm |
Packing dimension | 3900*1500*1800mm |
Detailed Images

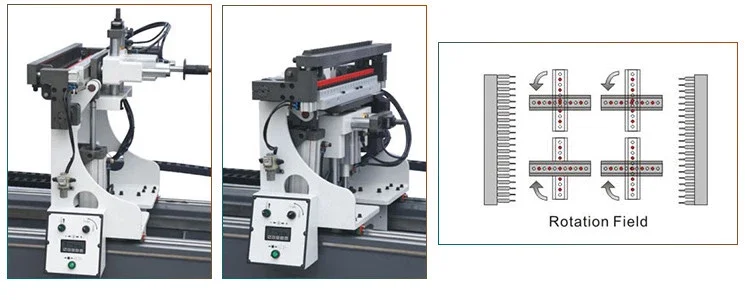

1.vertical boring of right-row rotation
2.horizontal boring of right-row ratation.
2.horizontal boring of right-row ratation.
Precise:

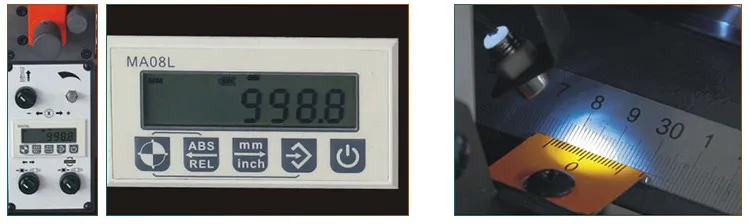

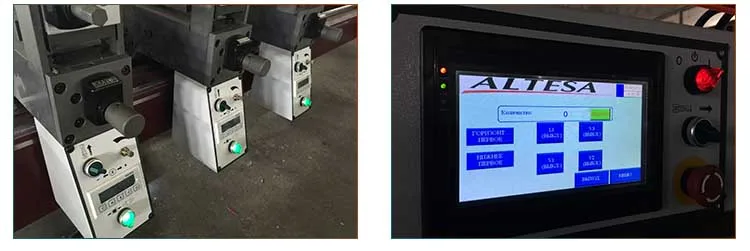

Drilling strike is accurately displayed on imported digital LED display.
Drilling strike is accurately displayed on imported digital LED display.
Application: Wood Door Lock Making Wood Drilling Machine has been widely used at home and aboard.Thanks to its high hardness, reliable precision and long life use, it has ganied good reputation from customers.
How to Maintain
Clean up the table after using the machine
Clean up wood rails to prevent debris interference, causing the machine card machine in the work process.
Regular cleaning of the screw to prevent sticking a foreign body on the screw, screw is the most important equipment, which affects the accuracy of the machine, and screw plays an important role in the transmission process.
Regular cleaning of industrial containers, dust is the biggest killer platoon drill.
To row drilling weekly slide rail dusted oiling work

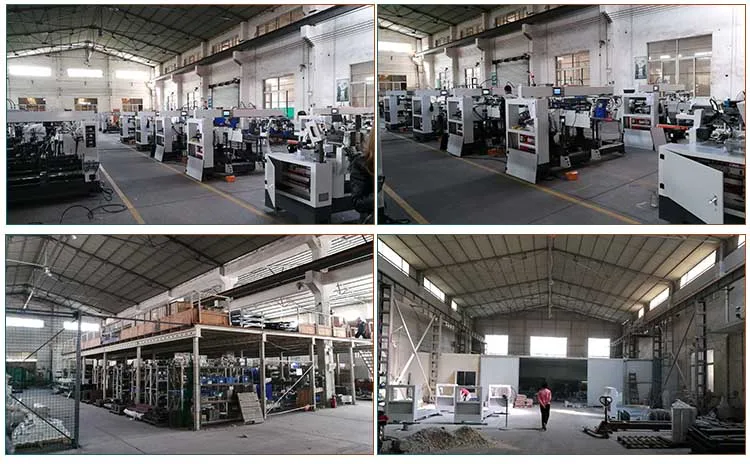

Factory Picture:
How to Maintain
Clean up the table after using the machine
Clean up wood rails to prevent debris interference, causing the machine card machine in the work process.
Regular cleaning of the screw to prevent sticking a foreign body on the screw, screw is the most important equipment, which affects the accuracy of the machine, and screw plays an important role in the transmission process.
Regular cleaning of industrial containers, dust is the biggest killer platoon drill.
To row drilling weekly slide rail dusted oiling work
Factory Picture:

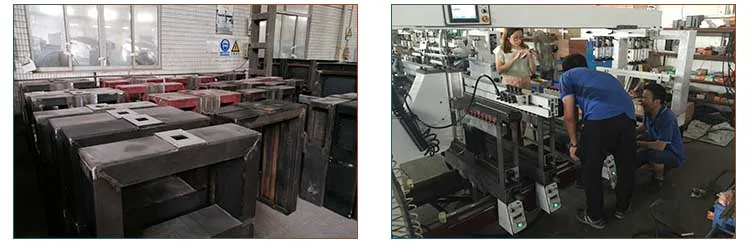

Packing&Shipping
Related Products
Company Introduction
1.15 years woodworking machinery experience
2. 8 years exportation experience
3. Engineer team with +20 years experience
4. We joined Alibaba Trade Assurance to make sure the buyer’s benefit.
5.Guarantee and After-sale service:
a. 12 months warranty for the whole machine
b. Technical support by phone, email or WhatsApp/Skype around the clock.
c. Friendly English version manual and operation video CD disk
d. Engineer available to service machinery overseas.
6. Customer Feedback
2. 8 years exportation experience
3. Engineer team with +20 years experience
4. We joined Alibaba Trade Assurance to make sure the buyer’s benefit.
5.Guarantee and After-sale service:
a. 12 months warranty for the whole machine
b. Technical support by phone, email or WhatsApp/Skype around the clock.
c. Friendly English version manual and operation video CD disk
d. Engineer available to service machinery overseas.
6. Customer Feedback
7. Our company and products have been verified onsite by SGS Group
