marble workshop crane puente grua 40 ton for fabrica



1.Single Beam Overhead Crane Description

marble workshop crane puente grua 40 ton for fabrica is widely used in plants,warehouses,material stocks to lift godds. It is prohibited to use the equipment in the combustiblle,explosive or corrosives enviroment.

The capacity:1-30ton

The span : 7.5-31.5m

The working grade : A3-A5

The working temperature:-25℃ to 40℃



Technical parameters of single girder overhead crane:



Mechanism			Item		Unit	Result
Item
Lifting capacity					ton	1-30ton
Working grade						A3-A5
Span					m	7.5-31.5m
Working environment temperture					°C	-25~40
Travelling mechanism		working speed			m/min	20-75
		motor	type			ZDY1 21-4	ZDR 100-4
			power		kw	2*0.8	2*1.5
			rotational speed		m/min	1380
Lifting mechanism		lifting speed			m/min	8/0.8(7/0.7)   3.5(3.5/0.35)    8(7)
		lifting height			H(m)	6  9  12  18  24  30
		travelling speed			m/min	20    30
working system					A3-A5
power source					three-phase 380V 50HZ





2.Single Beam Overhead Crane Details

marble workshop crane puente grua 40 ton for fabrica is improved and designed on the basis of LD model. It is characterized by more reasonable structure and higher strenght steel as a whole, Used together with CD  model, MD model electric hoist as a complete set.



The detail show of single girder bridge crane:

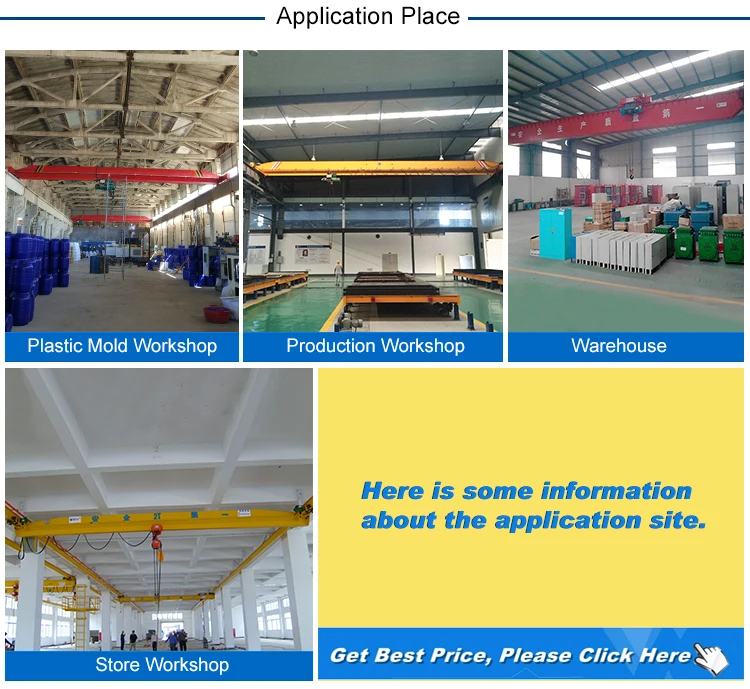

3.Application Place
