Одномодовый передатчик 2 ядра G657A LSZH наряжняя волоконно-оптического волокна FTTH

Описание и отзывы

Характеристики

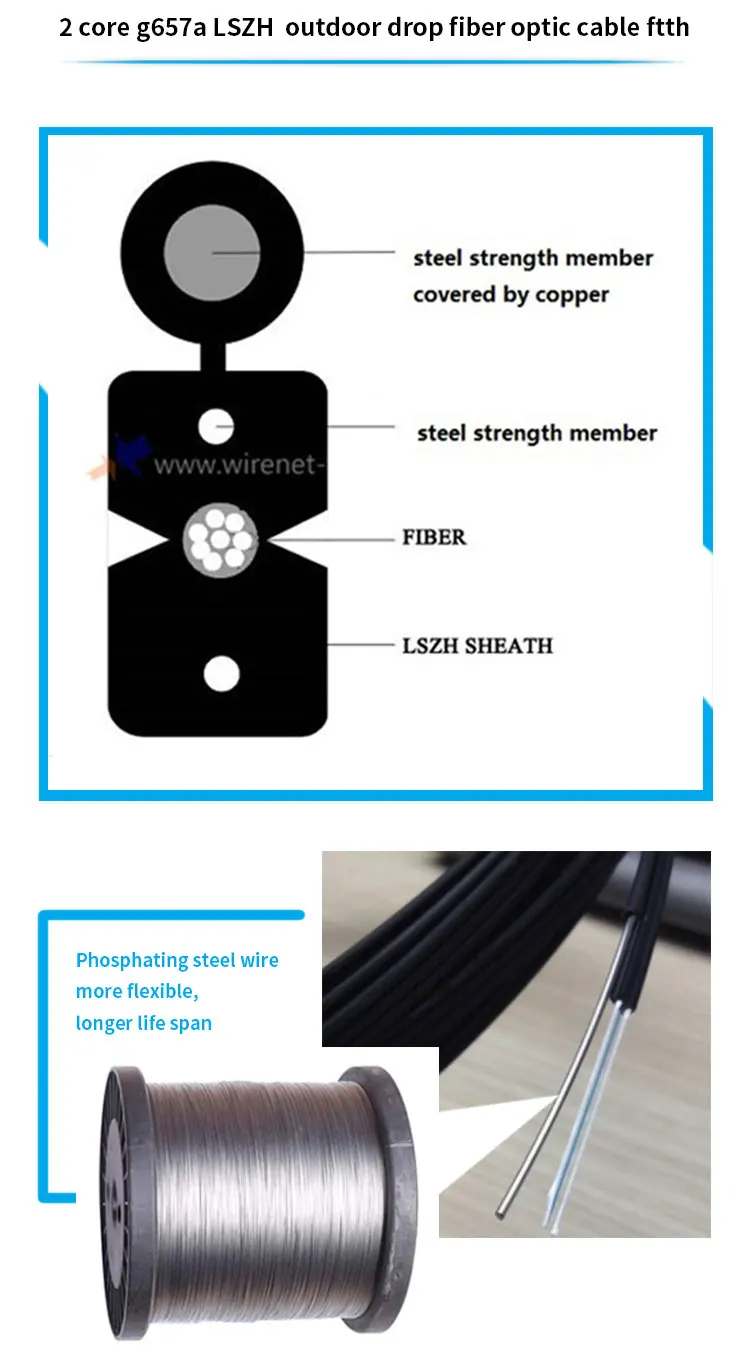

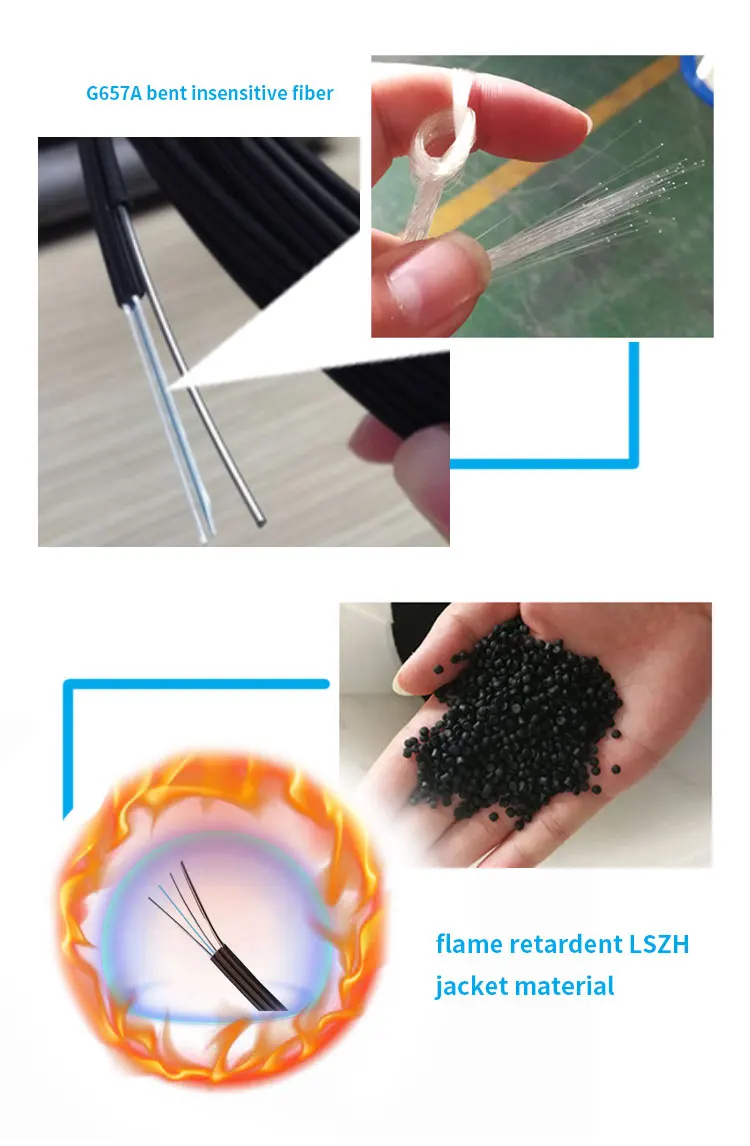

2 Core G657A LSZH Outdoor Fiber Optic FTTH Drop Cable

Application:

1.   Adopted to indoor distribution.


2.   As pigtail of communication equipment


3.   Suitable for communication equipment servrd


4.   Can be installed conveniently and perated simply

Fiber parameter:


No.	Items			Unit	Specification
					G.657A1
1	Mode Field Diameter		1310nm	μm	9.0±0.4
			1550nm	μm	10.1±0.5
2	Cladding Diameter			μm	124.8±0.7
3	Cladding Non-Circularity			%	≤0.7
4	Core-Cladding Concentricity Error			μm	≤0.5
5	Coating Diameter			μm	245±5
6	Coating Non-Circularity			%	≤6.0
7	Cladding-Coating Concentricity Error			μm	≤12.0
8	Cable Cutoff Wavelength			nm	λcc≤1260
9	Attenuation(max.)		1310nm	dB/km	≤0.35
			1550nm	dB/km	≤0.21
10	Macro-Bending Loss	1turn×10mm radius @1550nm		dB	≤0.75
		1turn×10mm radius @1625nm		dB	≤1.5



Mechanical and Environmental for 2 core g657a LSZH  outdoor drop fiber optic cable ftth



Items	Unite	Specifications
Tension(Long Term)	N	100
Tension(Short Term)	N	200
Crush(Long Term)	N/10cm	1000
Crush(Short Term)	N/10cm	2200
Min. Bend Radius(Dynamic)	mm	20D
Min. Bend Radius(Static)	mm	5D
Operating Temperature	℃	–20~+60
Storage Temperature	℃	–20~+60
