Product Description
Please contact our sales representative for the latest price. The final price will subject to customer option on the machine configurations and functions. Thank you.
The LTA-5070 roll to roll screen printing machine is a fully automatic equipment for producing IMD and IML.More Applications:

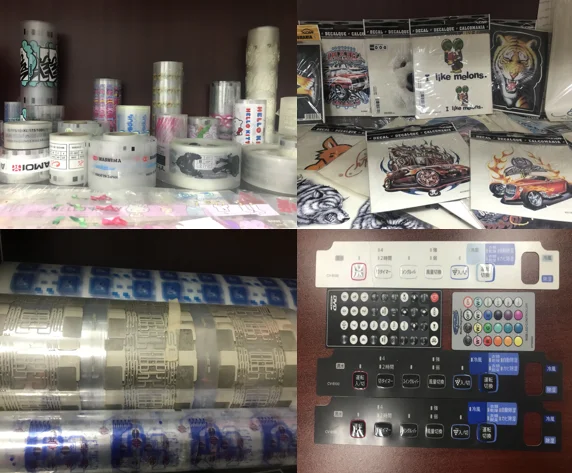

Heat transfer labels for garments, shoes, gloves; vulcanizing labels for rubber hose and tyres; RFID antenna for smart cards; auto dials; in-mould decoration labels; membrane switches; home appliance panels; flexible printed circuit and all kinds of plastic film material in roll.
Technical Data | ||
Name | Automatic Roll to Roll Screen Printing Machine | |
Model | LTA-5070 | |
Print Area | 530*750mm | |
Print Speed | 0-2500t/h | |
Screen Frame Area | 800*1100mm | |
Max. Paper Width | 520mm | |
Inspection Table Max. Size | 600*600mm | |
Air Source | 0.4-0.6mpa | |
Power | 1P 220V 3KW/3P 380V 3KW(Customizable) | |
Printing Material Thickness | 0.02-0.5mm | |
Weight | 1700kg | |
Machine Size | L2950*W1160*H1865mm | |
Main Features | ||
It has an automatic register system with 3 sensors to ensure high printing accuracy in multi pass printing.
The machine adopts the modular design to reserve space for other functions, which can be added at any time.
The fuselage is painted with electrostatic spray, which is not easy to corrode and fall off.
Each part of the machine is hollowed out from a single piece of aluminum to make it stronger.
Detailed Images

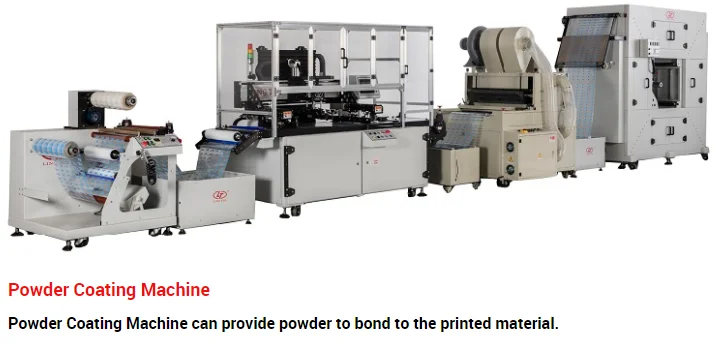

Three Components
A feeding machine + A printing unit （LTA-5070）+ A hot air dryer
1-Automatic Feeding Machine
1. It is mainly used to feed all kinds of roll material and cooperate with automatic screen printer.
2. The feeding and winding mechanism utilizes advanced sonar sensor for accurately sensing transparent and non-transparent film.
2. The feeding and winding mechanism utilizes advanced sonar sensor for accurately sensing transparent and non-transparent film.
Main Features
3. Adopting Japan Mitsubishi frequency converter, automatic control the feeding speed.
4. Adopting imported photoelectric switch control, avoid scratching material, can automatically adjust the feeding length.
Technical Parameters | ||||||||
Name | Automatic feeding machine | |||||||
Model | LTC-480B | LTC-600B | LTC-700B | LTC-900B | ||||
Max.Wed Width | 490mm | 610mm | 710mm | 910mm | ||||
Power | 0.3kw | |||||||
Tension | ≤0.1N | |||||||
Weight | 300kg | 320kg | 350kg | 400kg | ||||
Machine Size | L1100*W1000*H1200mm | L1100*W1080*H1200mm | L1100*W1220*H1200mm | L1750*W1250*H1260mm | ||||
Optional Functions: 1) Electromagnetic tension control 2) Double-sided dust removal 3) Automatic deviation correction function 4) Electrostatic removal function 5) Tear film function 6) Splice station 7) Anti-scratch device | ||||||||
2-Automatic Printing Machine
1. The printing seat adopts 4-column precise linear guide rail, with high repeatable positioning accuracy, strong stability and durability.
2. With off-screen function, printing a large area of background color and printing glue, to prevent the sticky screen.
Main Features
3. With anti-drip ink function, to prevent color difference between ink with ink, to achieve high quality printing.
4. Equipped with a man-machine system.
Technical Parameters | ||||||
Name | Automatic Roll to Roll Screen Printing Machine | |||||
Model | LTA-3040 | LTA-4050 | LTA-6080 | |||
Print Area | 330*450mm | 430*550mm | 630*850mm | |||
Print Speed | 0-6000t/h | 0-6000t/h | 0-2500t/h | |||
Screen Frame Area | 600*800mm | 700*900mm | 900*1200mm | |||
Max. Paper Width | 320mm | 420mm | 620mm | |||
Inspection Table Max. Size | 400*400mm | 500*500mm | 700*800mm | |||
Air Source | 0.4-0.6mpa | |||||
Power | 1P 220V 3KW/3P 380V 3KW(Customizable) | |||||
Printing Material Thickness | 0.02-0.5mm | |||||
Weight | 1200kg | 1500kg | 2000kg | |||
Machine Size | L2560*W980*H1865mm | L2620*W1100*H1865mm | L3150*W1260*H1865mm | |||
Optional Functions 1) Automatic punching function 2) automatic registration function 3) dust elimination roller 4) pneumatic frame fixing function 5) CCD optical device | ||||||
3-Hot Air Dryer
1. Adopts uniform speed function to ensure that the material stays in the oven at any position for the same time and rewinding speed.
2. Equipped with heat insulation layer, so as not to scald the operator, saving electricity, energy saving and environmental protection.
2. Equipped with heat insulation layer, so as not to scald the operator, saving electricity, energy saving and environmental protection.
Main Features
3. Oven with 4 sides, 4 sides heating, air circulation more smooth.
4. The suction tension can be arbitrarily stepless adjustment, convenient to control the material tension, to ensure that the printing material does not stretch deformation.
Technical Parameters | ||||||||
Name | Hot air dryer | |||||||
Model | LTB-350 | LTB-460 | LTB-600 | LTB-800 | ||||
Material quality | Baogang-45#steel plate | |||||||
Power | 14kw | 14kw | 22kw | 22kw | ||||
temperature | Room temperature-140℃ | |||||||
Insulation layer thickness | 50mm | 50mm | 50mm | 100mm | ||||
Temperaturer controller | 2pcs | 2pcs | 4pcs | 4pcs | ||||
Weight | 400kg | 500kg | 600kg | 700kg | ||||
Machine Size | L1970*W780*H1810mm | L1970*W900*H1810mm | L2830*W1060*H2150mm | L3000*W1260*H2260mm | ||||
Optional Functions 1) Uniform speed device 2) Radiator fan 3) Automatic double-side dust elimination 4) Correction device 5) Anti-pull device 6) Laminating device | ||||||||

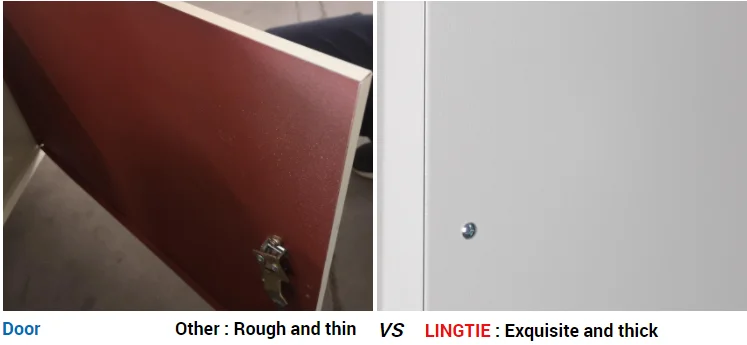

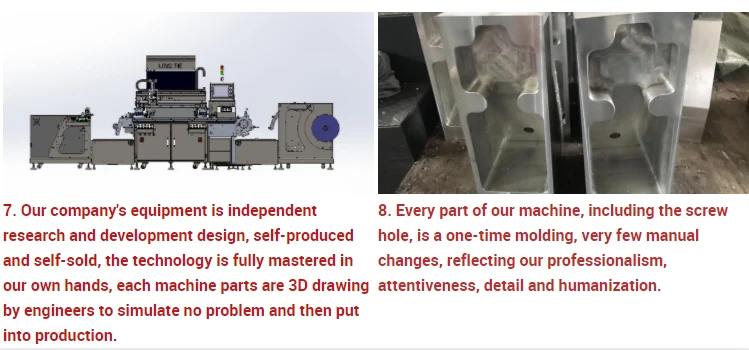

Outstanding Design

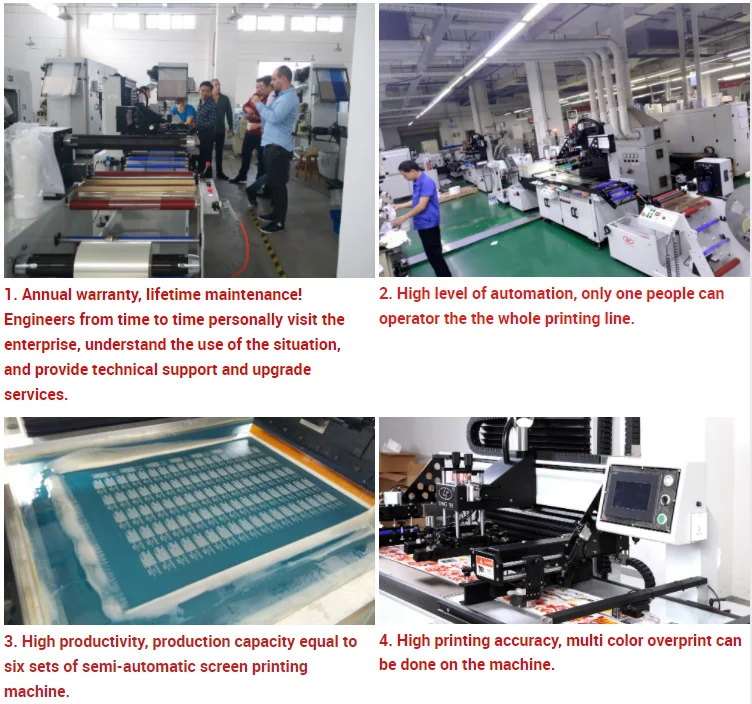

Our Highlights

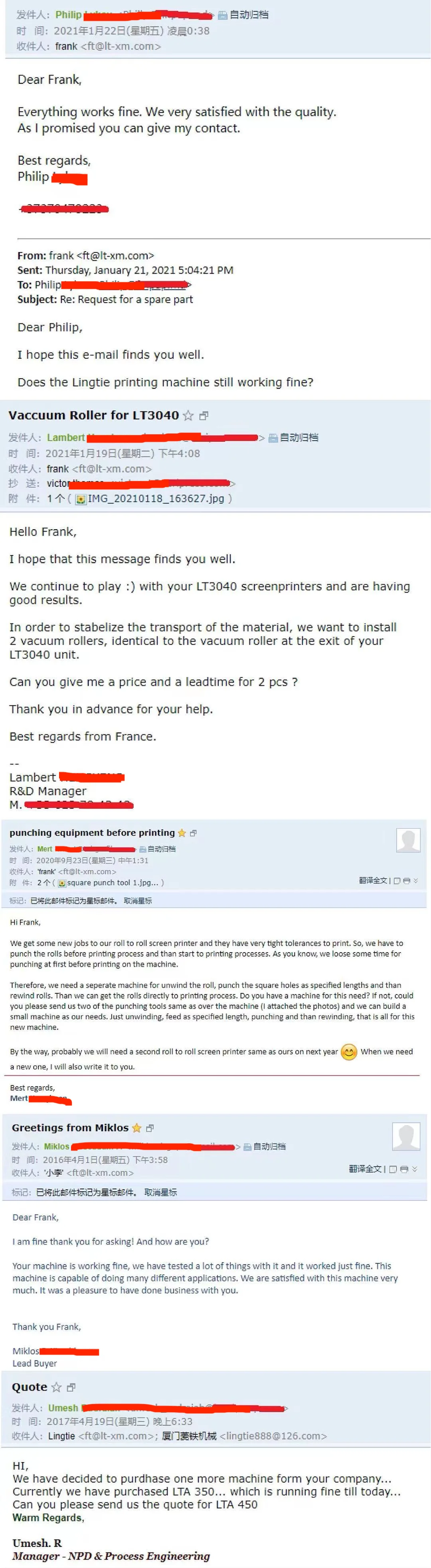

Customer Evaluation

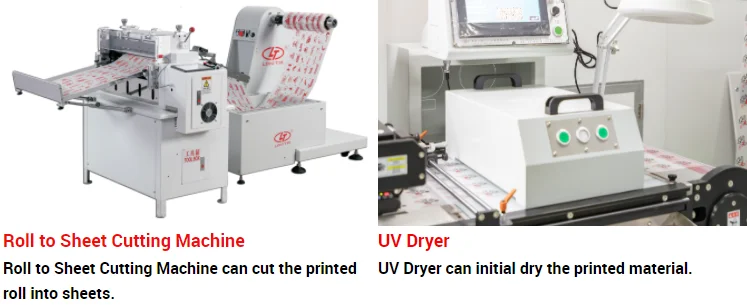

Best Selling

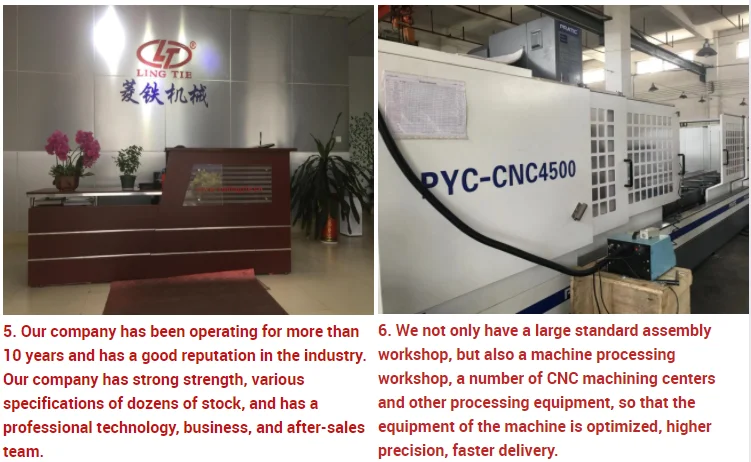

Company Introduction

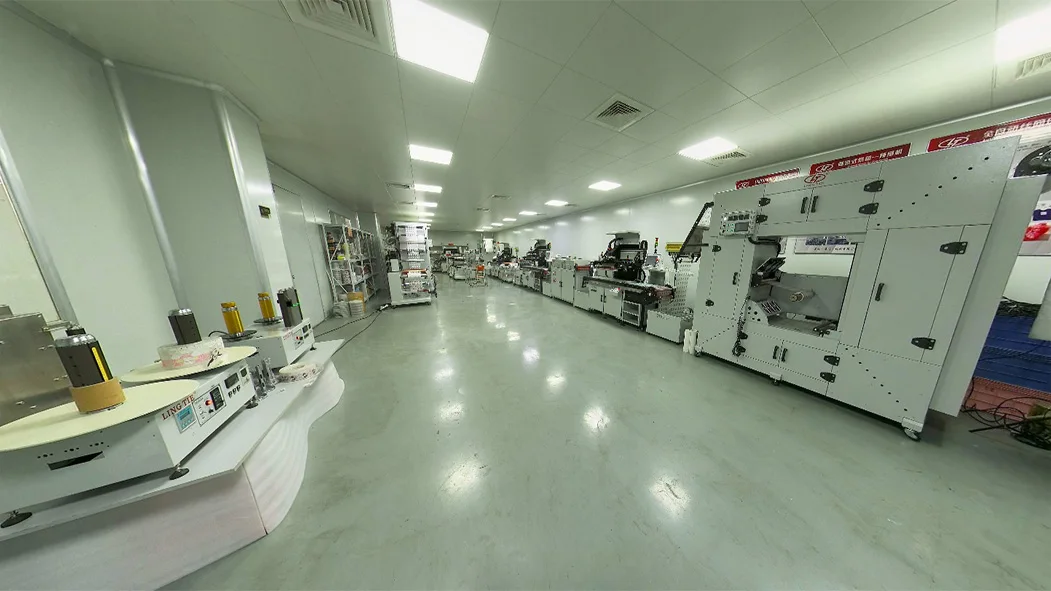

VR
