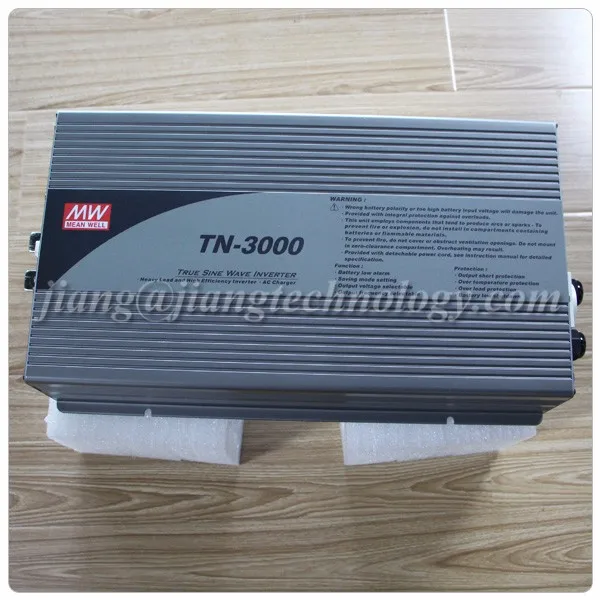

Meanwell 3000 Вт Солнечный инвертор TN-3000-212B 12 Вольт 220 вольт с зарядным
- Категории: Продукты солнечной энергетики >>>
- Поставщик: Hangzhou,Jiang,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
11.Product Details-P
Features:
- Meanwell Soalr Inverter
- True sine wave output (THD<3%)
- High surge power up to 6000W
- U.P.S. mode and energy saving mode (selectable)
- High efficiency up to 92%
- Power ON-OFF switch
- Standby saving mode can be selectable
- Front panel indicator for operating status
- Thermostatically controlled cooling fan
- Protections: Bat. low alarm / Bat. low shut down / Over voltage / Over temperature / Output short / Input polarity reverse / Overload / AC circuit breaker
- Applications: home appliance, power tools, office and portable equipment, vehicle and yacht...etc
- Built-in solar / AC charger
- Optional monitoring software and connection cable (MW oeder No.: DS-TN-1500)
- 3 years warranty

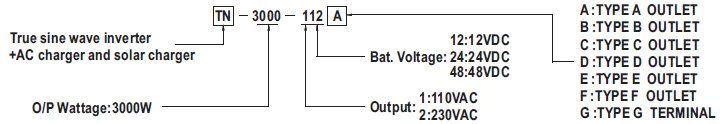

Model Series:
TN-3000-112A / TN-3000-124A / TN-3000-148A / TN-3000-212B / TN-3000-224B / TN-3000-248B
Detailes:

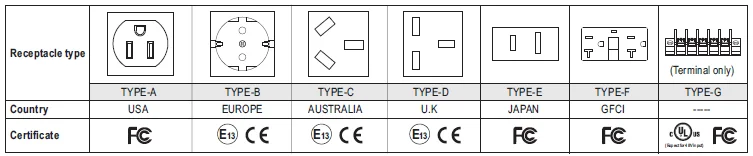

AC Output Receptacles (optional):
Details:
| Model | TN-3000-112A | TN-3000-124A | TN-3000-148A | TN-3000-212B | TN-3000-224B | TN-3000-248B | |
| OUTPUT | RATED POWER | 3000W | |||||
| MAXIMUM OUTPUT POWER | 3450W for 180 sec. / 4500W for 10 sec. / surge power 6000W for 30 cycles | ||||||
| AC VOLTAGE | Factory setting set at 110VAC | Factory setting set at 230VAC | |||||
| 100 / 110 / 115 / 120VAC selectable by setting button S.W | 200 / 220 / 230 / 240VAC selectable by setting button S.W | ||||||
| FREQUENCY | 60±0.1Hz 50/60Hz selectable by setting button S.W | 50±0.1Hz 50/60Hz selectable by setting button S.W | |||||
| WAVEFORM | True sine wave (THD<3%) | ||||||
| AC REGULATION (Typ.) | ±3.0% | ||||||
| TRANSFER TIME (Typ.) | 10ms inverter ---- by pass | ||||||
| SAVING MODE (Typ.) | Default disabled. Load≤5Wwill be changed to standby mode | ||||||
| FRONT PANEL INDICATOR | Battery voltage level, output load level, saving mode, fault and operation status | ||||||
| INPUT | BAT. VOLTAGE | 12V | 24V | 48V | 12V | 24V | 48V |
| VOLTAGE RANGE (Typ.) | 10.5 ~ 15VDC | 21~ 30VDC | 42 ~ 60VDC | 10.5 ~ 15VDC | 21~ 30VDC | 42 ~ 60VDC | |
| DC CURRENT (Typ.) | 300A | 150A | 75A | 300A | 150A | 75A | |
| NO LOAD CURRENT DRAW (Typ.) | ≤10W @ standby saving mode | ||||||
| OFF MODE CURRENT DRAW | ≤1mA | ||||||
| EFFICIENCY (Typ.) | 88% | 90% | 91% | 89% | 91% | 92% | |
| BATTERY TYPES | Open & sealed lead acid battery | Open & sealed lead acid battery | |||||
| BATTERY INPUT PROTECTION | FUSE | 40A*12 | 40A*6 | 20A*6 | 40A*12 | 40A*6 | 20A*6 |
| BAT. LOW ALARM | 11.3V | 22.5V | 45V | 11.3V | 22.5V | 45V | |
| BAT. LOW SHUTDOWN | 10.5V | 21V | 42V | 10.5V | 21V | 42V | |
| BAT. POLARITY | By internal fuse open | ||||||
| OUTPUT PROTECTION | OVER TEMPERATURE | 90°C±5°C | 85°C±5°C | 85°C±5°C | 80°C±5°C | 75°C±5°C | 75°C±5°C |
| Protection type : Shut down o/p voltage, re-power on to recove | |||||||
| OUTPUT SHORT | Protection type : Shut down o/p voltage, re-power on to recover | ||||||
| OVER LOAD (Typ.) | 105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec. | ||||||
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||
| CIRCUIT BREAKER | AC output: 40A, AC receptacle:15A | ||||||
| GFCI PROCTECTION | Optional (Only type F) | None | |||||
| ENVIRONMENT | WORKING TEMP. | 0 ~ +40°C @ 100% load ; +60°C @ 50% load | |||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||
| STORAGE TEMP. HUMIDITY | -30 ~ +70°C / -22 ~ +158 °F 10 ~ 95% RH | ||||||
| VIBRATION | 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||
| SAFETY & EMC | SAFETY STANDARDS | UL458 (only for Type G ) | None | ||||
| LVD | None | EN60950-1 | |||||
| WITHSTAND VOLTAGE | Bat I/P - AC I/P:3.0KVAC Bat I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC | ||||||
| ISOLATION RESISTANCE | Bat. I/P-AC O/P, AC O/P-FG:100M Ohms / 500VDC / 25°C / 70%RH | ||||||
| EMC EMISSION | Compliance to FCC class A | Compliance to EN55022 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark | |||||
| EMC IMMUNITY | None | Compliance to EN61000-4-2,3,4,5,6,8,11 | |||||
| AC CHARGER | CHARGE CURRENT (Typ.) | 25A | 12A | 6A | 25A | 12A | 6A |
| CHARGE VOLTAG | 14.3V | 28.5V | 57V | 14.3V | 28.5V | 57V | |
| SOLAR PANEL | MAX OPEN CIRCUIT VOLTAGE | 25V | 45V | 75V | 25V | 45V | 75V |
| SHORT CIRCUIT CURRENT (max.) | 30A | ||||||
| OTHERS | CONTROL WIRING | RJ11 -RS232 | |||||

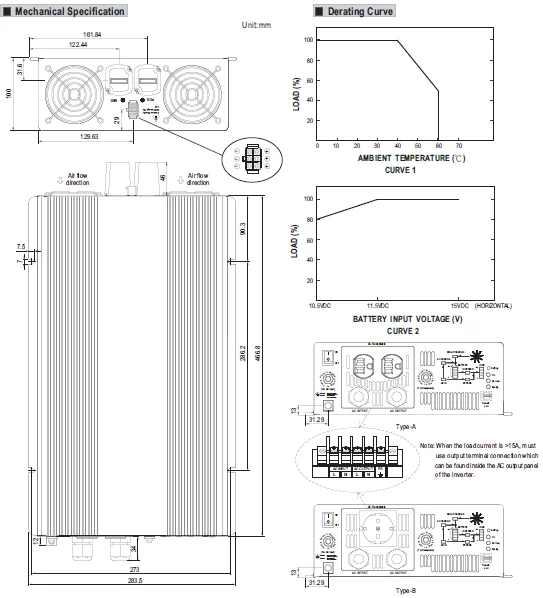

| DIMENSION | 466.8*283.5*100mm (L*W*H) | ||||||
| PACKING | 12.9Kg; 1pcs/14Kg/1.49CUFT | ||||||
