High Performance 48V Brushless DC Motor Controller 1kw bldc controller For Magnetic Track Guided AGV,Tracked Vehicle
I. Overview
KYDBL2450-2E is an intelligent brushless DC dual-motor controller. The brushless dual-motor driver can control two brushless DC motors at the same time. It adopts 32-bit high-performance MCU and advanced movement processing algorithm to realize internal electric differential function. The controller uses the Hall signal inside the motor as the rotor position feedback and works with the external incremental encoder (1000—2500 line) signal to control the movement of motor, realizing speed open-loop, close-loop modes, position mode and torque mode. It has two-way independent driver chip, two-way encoder processing chip, two-way Hall signal processing chip. Meanwhile, it has multiple failure alarm functions. It has two working modes: independent mode and mixed mode.
II. Specification and Model
MAX MAX DC
OUTPUT AMP OUTPUT VOLT RANGE
MODEL AC : (A) DC:(V) DC:(V)
KYDBL4850-2E 50 55 10
Product Features
| 1. Power voltage: 10-55VDC. |
| 2. At the ambient temperature 25℃, continuous working current 30A, transient current up to 75A 30S. |
| 3. Minimum speed: 10 RPM in the speed close-loop mode; 1 RPM in the position mode. |
| 4. Out+5VDC power (It can power up the encoder): 5V DC 20mA |
| 5. Analog input range: 0-- 5VDC |
| 6. Impulse input range: 500Hz—5000Hz (corresponding maximum speed) |
| 7. Input range of duty ratio 0%-- 100% (input frequency range f ≤1KHz, recommend to use the frequency of 250Hz). |
| 8. Temperature protection status: When the temperature is 70℃, the controller will reduce output by overheating protection and will stop output when the temperature is 80℃. |
| 9. Working temperature: -20℃-- +60℃. |
| 10. Ambient humidity: Relative humidity≤80RH. |

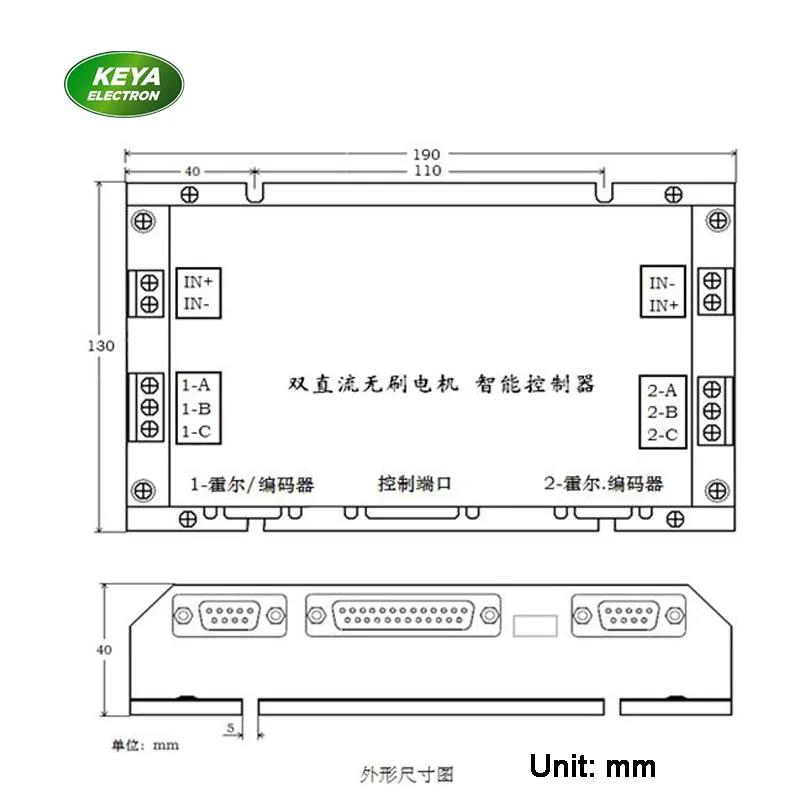

Wiring
High Performance 48V Brushless DC Motor Controller 1kw bldc controller For Magnetic Track Guided AGV,Tracked Vehicle
Definition of interface |
Function |
Remark |
1 | Controller output DC 5V (20mA) | Red wire |
2 | Brushless motor Hall wire---A | Yellow wire |
3 | Brushless motor Hall wire---B | Green wire |
4 | Brushless motor Hall wire---C | Blue wire |
5 | GND | black wire |
6 | Controller output DC 5V (20mA) | Red wire |
7 | Encoder output phase A | Green wire |
8 | Encoder output phase B | White wire |
9 | GND | Black wire |
Product Overviews
Factory
Packaging
Certifications
Application
FAQ
Q: What kind motors you can provide?
A: For now, we mainly provide permanent magnet brushed dc motors (including low power and high power dc motors) with power range in 20~5000w.
Q: Is there a MOQ for your motor controller?
A: There is no MOQ requirement. But the more the better.
Q: How do you ensure the product quality?
A: We have strict test system in every link of material selection, production and final product, packing according to ISO9001 management.
Q: Is it possible for you to develop new controllers if we provide the tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
