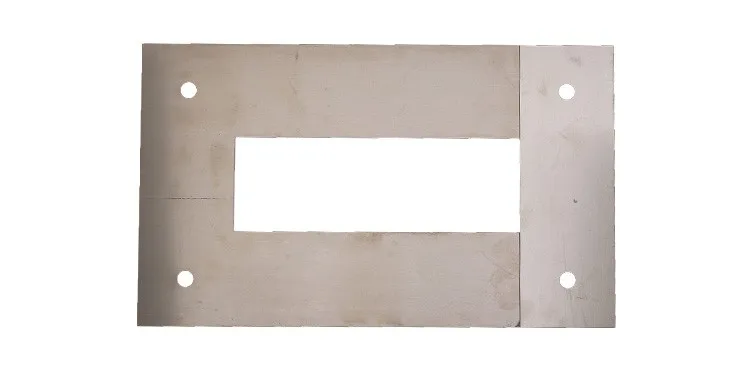

best price scrap silicon steel
1. A variety of different specifications to meet your requirements. Or customized according to your needs.
2. According to your needs, to recommend suitable materials, or in accordance with your request.
3. The advanced slitting machine from Taiwan cuts silicon steel coils into strips with different width.
4. With well-trained technicians and advanced equipments, we are very skilled in making moulds for various kinds of silicon steel products.
Specifications

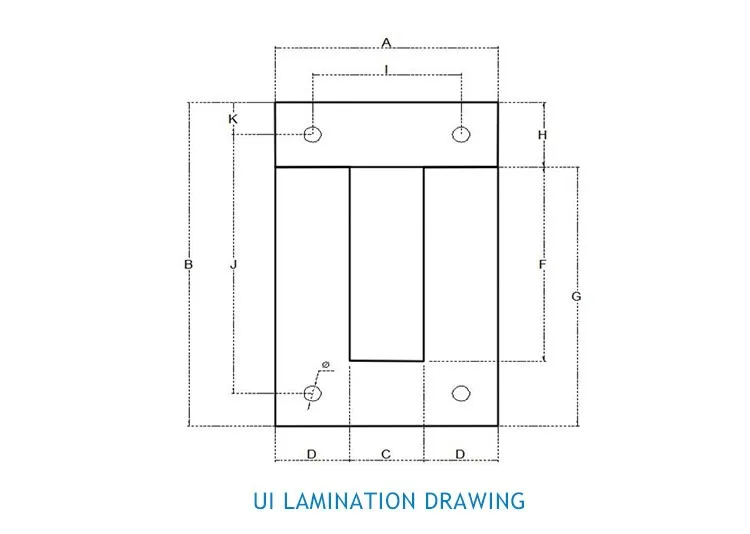

UI Size List
| Specification | Dimension for each part | ||||||||||
| GOODS | A | B | C | D | F | G | H | I | J | K | Φ |
| UI-30B | 90 | 150 | 30 | 30 | 90 | 120 | 30 | 60 | 120 | 15 | 8 |
| UI-35B | 105 | 175 | 35 | 35 | 105 | 140 | 35 | 70 | 140 | 17.5 | 8 |
| UI-38B | 114 | 190 | 38 | 38 | 114 | 152 | 38 | 76 | 152 | 19 | 8 |
| UI-40B | 120 | 200 | 40 | 40 | 120 | 160 | 40 | 80 | 160 | 20 | 10 |
| UI-44B | 132 | 220 | 44 | 44 | 132 | 176 | 44 | 88 | 176 | 22 | 8 |
| UI-50B | 150 | 250 | 50 | 50 | 150 | 200 | 50 | 100 | 200 | 25 | 8 |
| UI-60B | 180 | 300 | 60 | 60 | 180 | 240 | 60 | 120 | 240 | 30 | 13 |
| UI-70B | 210 | 350 | 70 | 70 | 210 | 280 | 70 | 140 | 280 | 35 | 12 |
| UI-80B | 240 | 400 | 80 | 80 | 240 | 320 | 80 | 160 | 320 | 40 | 14 |
| UI-90B | 270 | 450 | 90 | 90 | 270 | 360 | 90 | 180 | 360 | 45 | 14 |
| UI-100B | 300 | 500 | 100 | 100 | 300 | 400 | 100 | 200 | 400 | 50 | 14 |
Related Products
Company Information

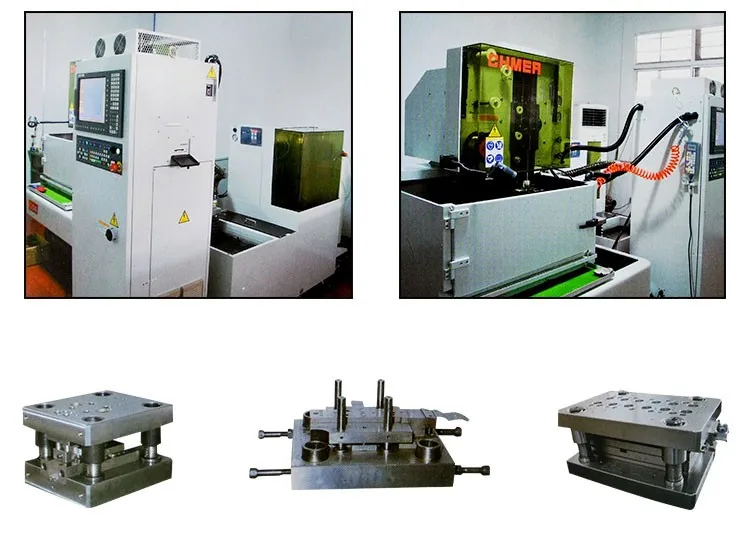

Jiangyin Suokang Electricity Co., LTD. is located in Chengjiang Industrial Park of Jiangyin City. Covering an area of more than 30,000 square meters and with the building area of around 18,000 square meters, our company boasts of 30 automatic punching machines introduced from Japan and Taiwan, 2 automatically controlled slitting lines, 1 G53S Wire-cut EDM from CHMER EDM Taiwan, 5 sets of vacuum nitrogen-charging heat treatment equipment, and 2 sets of testing instruments for electromagnetic performance. At present, we have 120 employees, including 15 technicians and engineers. With well-trained technicians and advanced equipments, we are very skilled in opening new moulds for various kinds of silicon steel products.
+
Cold rolled non-oriented electrical silicon steel
The advanced slitting machine from Taiwan cuts silicon steel coils into strips with different width
Samller coils be punched by the use of automaticaly high-speed puching machine into laminations
The package for exportation is offered based on the shipping standard, such as, free-fumigation pallets, non-fumigation wooden boxes, or packing as per customer’s definite requirement.
The top quality is assured by the superior equipment. Soukang insists on developing automatization, intellingentizing, and high efficiency, in pursuit of manufacturing fine products to satisfy with customers.
