Взрывозащищенный однополюсный переключатель изолятора 35 А 250
- Категории: Rotary Switches >>>
- Поставщик: Yueqing,Feeo,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
AC isolator switch Product Features:
1.Rated insulation voltage 690V, current 20A~160A,commonly used in single-phase or three-phase AC system;
2.IP66 box body design, with the import of the sealing strip of the safety seal and dust,waterproof, anti ultraviolet materials;

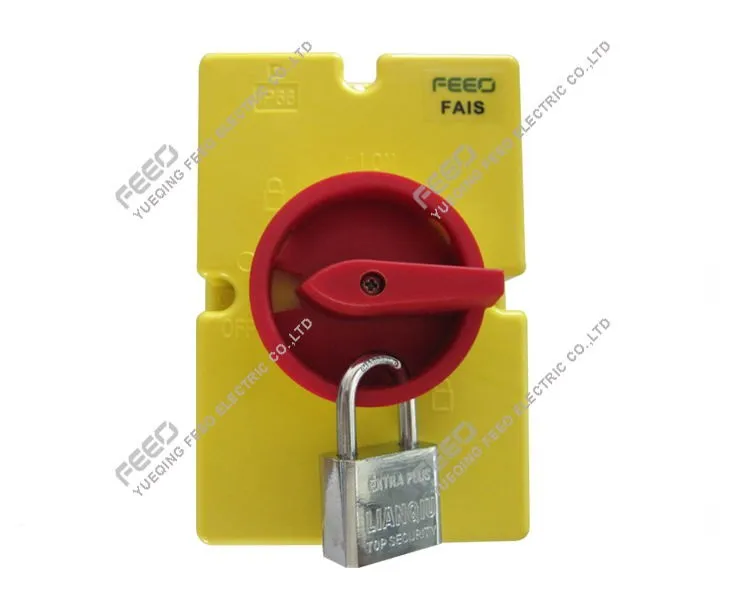

3.Switch rotating operator (knob) with three lock position, reliable to prevent misuse;
4.Suitable for different cable connectors: M25, M20, M16 and M12, optional waterproof cable connectors;
5.Large wiring operation space, the product is fixed on the box body, the connection is still convenient;
6.Adequate internal space, good heat dissipation effect, the whole machine can be loaded at -25℃ -70℃;
7.Large contrast color design, easy to distinguish;
8.Protection degree: IP66.
AC isolator switch Technical Date:
| Technical Parameters | FAIS-20-3 FAIS-20-4 | FAIS-25-3 FAIS-25-4 | FAIS-32-3 FAIS-32-4 | FAIS-40-3 FAIS-40-4 | FAIS-63-3 FAIS-63-4 | FAIS-80-3 FAIS-80-4 | ||||
| Rated Insulation Voltage | Ui | 690 | 690 | 690 | 690 | 690 | 690 | |||
| Rated Current | Ith | 20A | 25A | 32A | 40A | 63A | 80A | |||
| Rated Value@415V | AC21 | A | 20 | 25 | 32 | 40 | 63 | 80 | ||
| AC22 | A | 20 | 25 | 32 | 40 | 63 | 80 | |||
| AC23 | kw | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | |||
| Switching Capacity@415V | Aeff | 120 | 150 | 220 | 300 | 370 | 440 | |||
| Breaking Capacity@415V | Aeff | 110 | 135 | 200 | 250 | 330 | 380 | |||
| Electrical Life Under Rated Load | ||||||||||
| Mechanical Life | ×103 | 20 | 20 | 20 | 20 | 10 | 10 | |||
| Maximum Cable Size | mm2 | 10 | 10 | 10 | 10 | 25 | 25 | |||
| Weight | g | 380 | 380 | 380 | 380 | 380 | 380 | |||

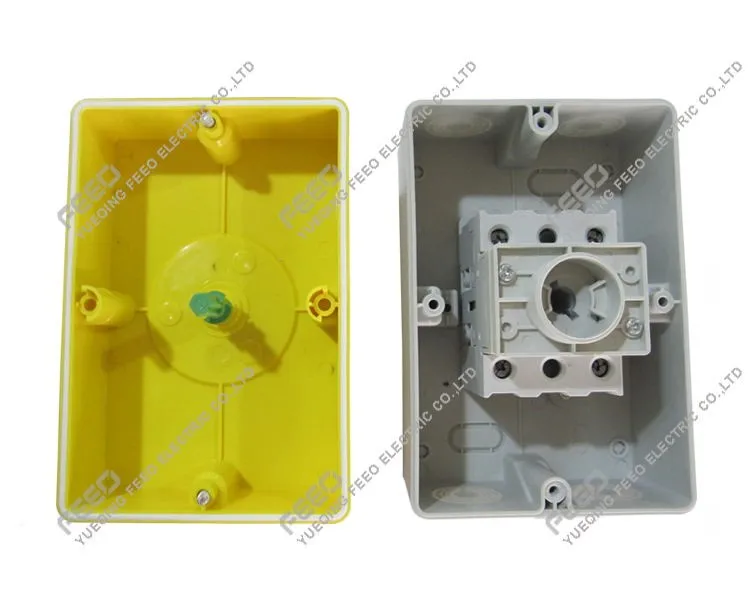

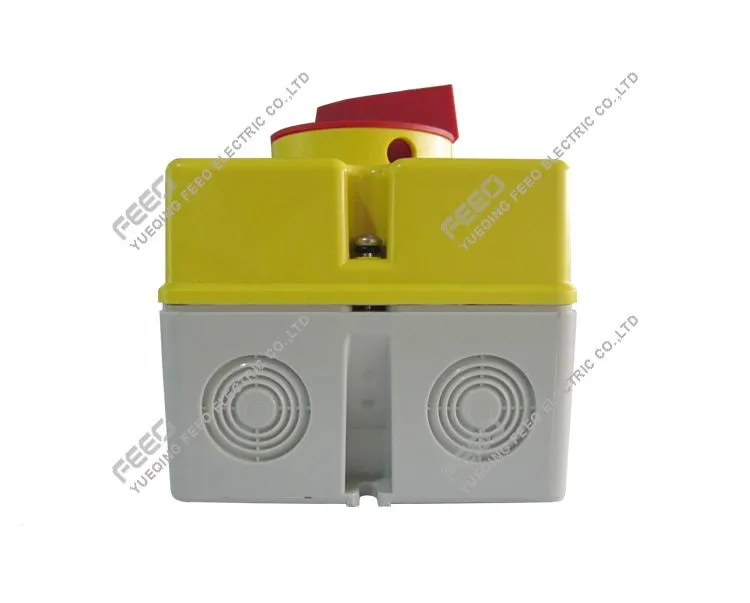

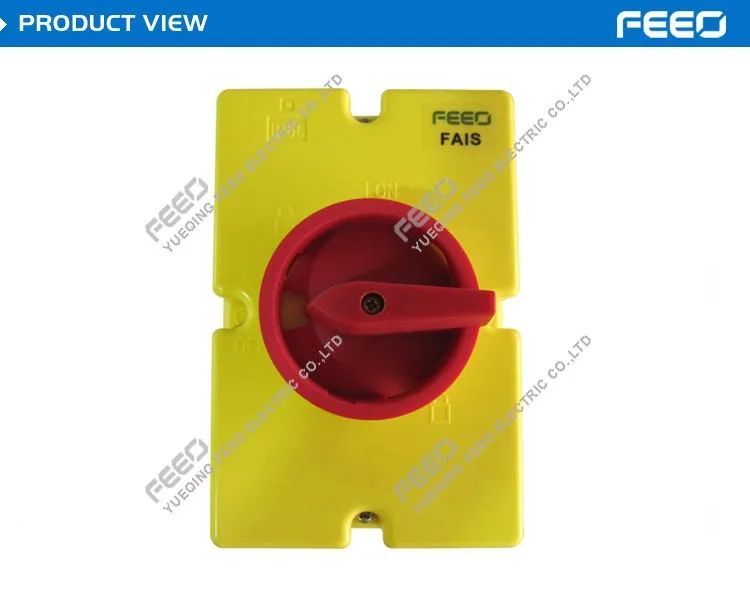

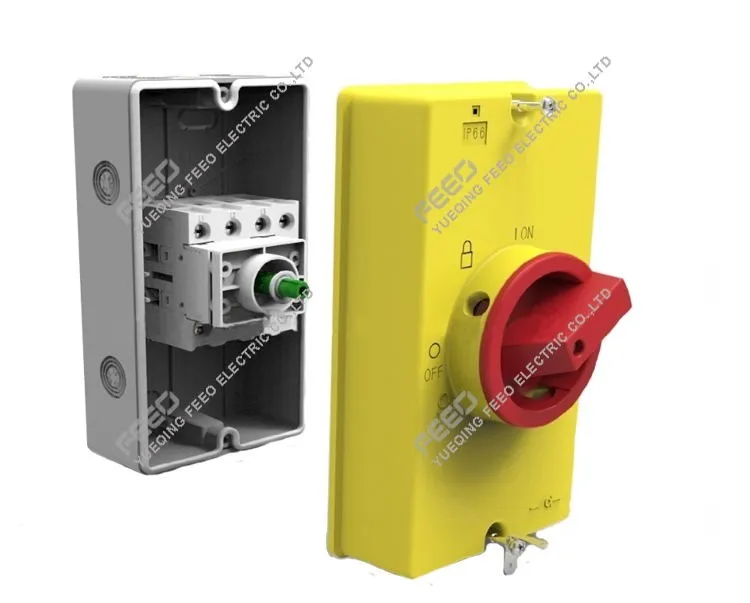

AC isolator switch Pictures Show:
AC isolator switch Dimension:
Packaging & Shipping
AC isolator switch Packing:
1.Standard export box package
2.Delivery Time: 10-15 days for batch goods.
AC isolator switch Shipping:
1.Shipment port:SHANGHAI/NINGBO;
2.By Air or by Sea for batch goods,Airport/Port receiving;
3.Customers specifying freight forwarders or negotiable shipping methods!
Our Services
1. One to one service,Feedback within 24 hours
2. Design for special packing, Products printing and logo OEM
3. Find the solution for any problems actively
Company Information
FAQ
Q: If I'm interested in your AC Isolator when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.
Q:Your AC Isolator seems perfect but what's the difference between you and other suppliers?Because I find some cheaper price from others!
A: Our AC Isolator is IP66 degree and they are high quality customized.for solar system I think compare the quality first and then compare the price is the best way.
Q:Can I get a sample before the order because I really don't how is your AC Isolator quality?
A:Of course!We also think sample order is the best way to build the trust.
Q:How's the delivery?Because I really need them is urgently?
A:For sample order 3~7days will be no problem.And for regular order we promise in 15days.
Q:How's the warranty period for your AC Isolator?
A:We offer one year warranty for our customer.
