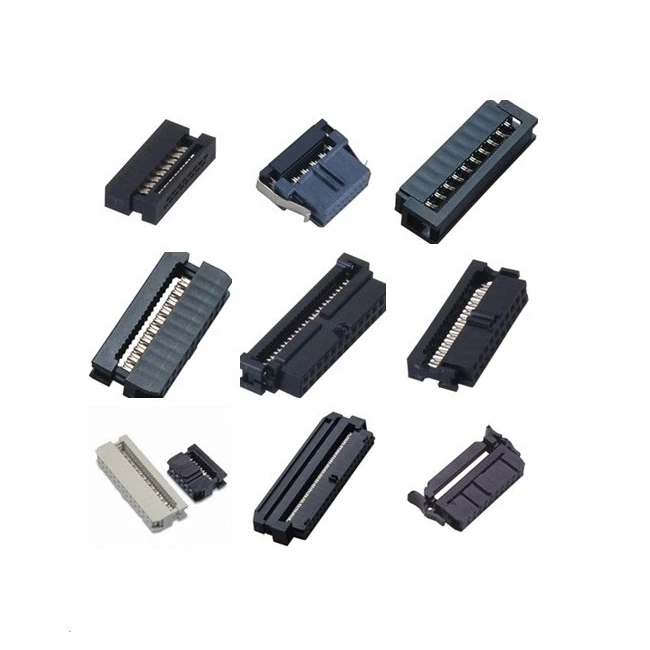

1 27 мм 2 54 x Шаг 6P 64P с ударом и SR столбом ушами разъем IDC для плоского ленточного
- Категории: Разъемы >>>
- Поставщик: Dongguan,Winpin,Electronics,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Environmental Compliance: RoHS & REACH
333
Contact Resistance: | 20m Ω Max | Insulation Resistance: | 1000m Ω Min |
Contact Material: | Brass or Phosphor Bronze | Insulation Material: | Polyester PBT Black/Grey427C |
Contact Plating: | Au, Sn over Ni | Material Flammability Rating: | UL94-V0 |
Contact Plating Thickness: | 1U to 30U | Operating Temperature: | -40°C to +105°C |
Current Rating: | 1.0 to 3.0AMP | Withstand Voltage: | 250V/500V AC/DC |
No. of Row: | 2 | Mounting Type: | Free Hanging (In-Line) |
No. of Positions: | 06-64P | Connector Type: | Receptacle |
Pitch: | 1.27*1.27mm, 1.27*2.54mm, 2.0*2.0mm, 2.54*2.54mm | Contact Type: | Forked |
Wire Type: | Ribbon Cable | Cable Termination: | IDC Type |
Wire Gauge: | 20-28 AWG | Packing: | Original Packing |
Manufacturer Standard Lead Time: | 1-3 Weeks |
