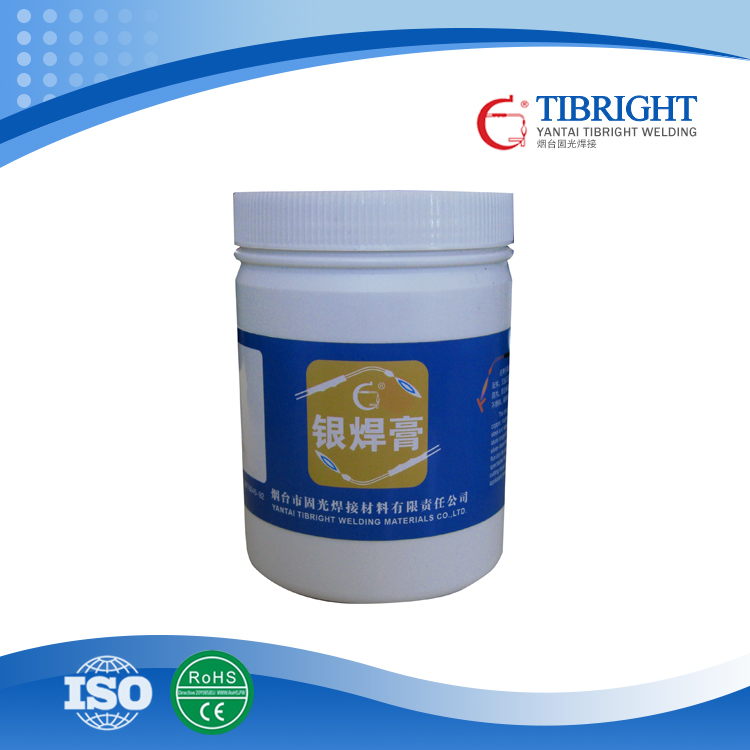

A1CD091 Silver brazing Welding solder Flux Paste
Product Description
| Application | Use with silver base brazing alloy at the temperature range:600-850°C,for brazing copper and copper alloy,stainless steel,nicke alloy,carbide steel,dimond PCD.TiBright’s silver brazing flux paste can be use with most heating method, include flame torch, induction, or furnace, high frequency, electrical resistance welding, and so on. |

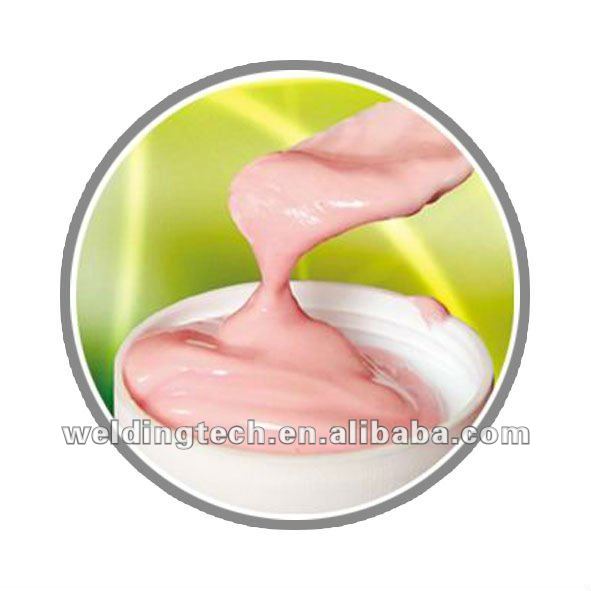

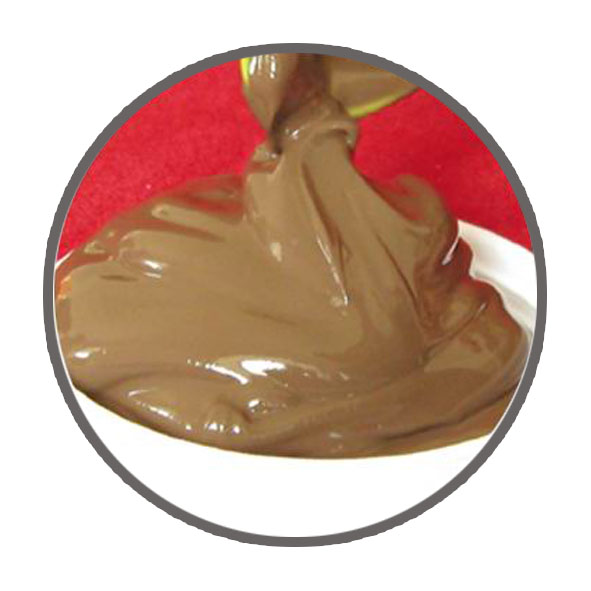

| General Appearance | Paste form,Density:1.9-2.1 Granularity ≤150um |
| Current Standard | JB/T6045-92<Flux for Brazing> |
| Commonents | KF,Complex borate,Borofluoride |
| Caution | Inesculent. Immediate water flashing is needed if it is splashed into eyes or mouth. Do not mix it with other impurity materials. After the packaging is opened the paste can be hardened easily |
Product list&photo
TiBright has many kinds of product for different utility purposes. We also customerize our product for unique utilities. The following information can not exclusively cover all of our product. Please contact us for details and support.
| Specification | Brazing Temperature | Character | Application area |
| FB102C-11 | 600–850 °C 1110–1562°F | General purpose & Common used silver brazing flux paste, brazing with silver base filler metals, for brazing copper and copper alloy; steel and stainless steel; carbides; PCD etc. | Common used at tube of air condition and refrigerator, valve, compressors for air condition, gas heat water heater, stainless vacuum cups, motor, wiring, cut tool, glasses etc. |
| FB102C-21 | 650 –870 °C 1200–1562 °F | Similar products with FB102C-11, but little high activity temperature than FB102C-11, mostly suitable for long time heating processing and also recommend use with lower silver content brazing alloy. | Good brazing results at hydrant, valve,refrigerator tube, kitchenware, hardware and glasses. |
| FB102C-31 | Good fluidity,high active action when brazing carbides,high strength at joint gap. | Current appliaction is brazing carbides cutting and tools,slao use for brazing kitchenware | |
| FB102C-41 | 600–800 °C 1110 – 1472 °F | Better performance than FB102C-21, mainly used for brazing steel or stainless steel and copper. | Current application is brazing refrigerator tube, glasses, vacuum cups, hydrant, valve, hardware and so on. |
FB102 series is the most commonly used flux product. The following chart is detail comparison of FB102 series product.
For low silver component brazing wire, Silver brazing flux FB102- | |||||||||
Parent pieces materials | Suitable Field | Oxide layer decompose | Prevent rexidation | Fluidity of filling metal | Corrosivity | Filling metal attachment | Brazing gap strength | Brazing gap air tightness | |
-11 | Very broad, copper or iron alloys | Very broad: electrical devices, cutters, hardware tools, glasses, spectacle frame and so on. | ++ | ++ | ++++ | +++++ | +++++ | +++ | ++++ |
-21 | Better for copper alloys | Electrical devices: refrigerator, A/C, compressors, and so on | ++++ | ++++ | ++++ | + | +++++ | +++++ | ++++ |
-31 | Better for steel and red copper | Heat-exchanger producer, precise military applications | ++++ | ++++ | +++ | ++ | +++++ | +++++ | ++++ |
-41 | Better for stainless steel and red copper | Automotive, engine, compressors, and so on | +++++ | ++++ | ++++ | ++ | +++++ | +++++ | ++++ |
-41C | Better for stainless steel and brass copper | A/C accessories | +++++ | ++++ | ++++ | ++ | +++++ | +++++ | +++++ |
-51 | Better for steel and copper alloys | Electrical devices: refrigerator, A/C, compressors, and so on | +++++ | ++++ | ++++ | + | +++++ | ++++ | ++++ |
-61 | Better for copper and copper alloys | Precise welding, spectacle frame | +++ | +++ | ++++ | ++ | +++++ | ++++ | ++++ |
Buying Guides
Yantai Tibright Welding Materials Co. Ltd. is a manufacturer of all kinds brazing materials, equipments, and utensils. The company has started since 2000. We are the most professional researcher and developer of brazing materials in China. We have accumulated dozens of different product technology and subsequenly abundant product pool. We are also glad to customize product for specific costomers.
When choose from our product pool, please check out our recommended product list and if you have any questions, please let us know and we will try our best to satisfy your inquiry. Some time we need our customers to try different sample to make the perfect decision. Generally, we need to know the following information to choose a right product for you.
1. Materials of your to-be-brazed parts.
2. Heat method. (eg. flame, induction, vacuum furnace etc. )
3. Dimensions of your parts, photoes or graphes are preferred. (Different dimensions requires different procesure.)
4. If available, what kind of brazing materials are currently being used.
5. What industry you are in. (help us refer to similar samples.)
Company Information
Yantai Tibright Welding Materials Co. Ltd. (Chinese name, Guguang) was started from laboratory in 1996 and founded in 2000. The company is the first one who specialized on brazing materials in China, which means we did not have much foundations, and the pioneers of the company started product formulars from very basic researches. Ever since then, Tibright have had all product developed by ourselves.
As we focus on brazing materials, our main product is brazing fluxes, brazing alloys, self flux brazing alloys, brazing alloy paste, and brazing materials. We make brazing alloys with main compositions of silver, copper, aluminum, nickel, chromium, zinc, tin, mangenese. We make fluxes and binder agents for these alloys.
Since 2010, our research has been specially on the brazing alloy powder and paste as long as the self flux alloys, such as flux coated wire and rings, flux cored wire and rings and flux added alloy paste.
In the year 2015, TiBright's was asked to be the first draftsman of the industry standard of China "JB 6045-2015 The FLux For Brazing" and attended the drafting work of many standards as expertise. So far we have authoized 15 patent.
Our main current customers are in dozens of different fields, such as radiator, compressor, electic utility, glasses, auto parts, tools, nuclear station, and so on. Our big customers include Haier, Gree, Media, Siemens, Sanhua, and so on.
Our Services
One headlight of our service is that we provide costomized product specially designed for specific costomer. We have a lot of successful cases in which the customer had the product suitable for their own procedure, environment and operation habits perfectly.
We also provide entire brazing solution for customers to solve all the problems related to brazing process. For those brazing parts, materials and dimensions which are hard to braze we can come up with a solution after enough research for our customers.
About sixty percent of our equipments are designed and crafted in our own machine workshop. We also produce the service of special designed brazing tools and machines. We have the ability to reserch product together with our customers.
Packaging & Shipping
Basically our package issue for powder product is for 500 gram/box, 20 box/carton. However, we have several special package for international customers: 20 gram/box, 225 gram/box, 400 gram /box. Small packages are popular for customers in reparement industry.
Utility
The Silver brazing flux is actually a kind of flux preferably works with silver based brazing filler metal. It can also work very well with copper based filler metal. Some of the product on the list can also work with nickel based filler metal. The welding parts can be copper, copper alloy, steel, stainless steel, diamend, hard carbide.
There are several ways of dispensing the flux to the brazing joint. One can heat the filler metal (wire/strip) to about 400 degree C and dip the hot part into the flux powder. The powder will attached on the strop. Also, the flux can be used with brushes, and spry. Some of the product on the list can also be used as the core flux of flux cored brazing wire.
Another popular way of using the powder is to mix it with water to make paste and dispense the paste with brushes, athogh we highly recommend our customer to use flux paste instead.
