Characteristic
1.leading Rack Drive, fast, high efficiency, air speed can reach 35 m / min or more, against the wave
plate is carved in manufacturing can be up to 20 m / min above the speed equivalent to the purchase
of 4 -- 5 ordinary type machines.
2. intelligent protection work table: Prevention of misoperation or software errors, and so on the surfa
ce may cause damage. Intelligent processing of cross border protection: preventing processing form
at over the layout design of mechanical collision caused the phenomenon.
3. fully in line with international standards: can use any CAD / ArtCAM software and other relief.
4. advanced DSP control handle, control automatically processing multiple levels 3 D. To carry out ra
pid, smooth 3D processing, carving or cutting. Offline operation can be realized.
5.the overall program structure welding tempering aging treatment, is not strong deformation. Gantry
mobile, fixed working table can be arbitrary processing work table material.
6. suitable for a variety of materials processing large quantities of production.
7.Take the water cooling system for marble tool when works for marble ,granite ,stone and so on.
Performance parameter
number |
Description |
parameter |
1 |
XYZ working area |
1300*2500*200mm |
2 |
Table size |
1400*2800mm |
3 |
XYZ travel positioning accuracy |
±0.01mm |
4 |
XYZ repositioning positioning accury |
±0.01mm |
5 |
Table surface |
Aluminum molding |
6 |
frame |
Tube structure |
7 |
drive system X-Y axis |
Rack |
8 |
drive system Z axis |
Ball screw |
9 |
Max power consumption |
3/4.5KW |
10 |
Max velocity |
25m/min |
11 |
Max working speed |
15m/min |
12 |
Spindle speed |
0-24000rmp |
13 |
work mode |
Stepper |
14 |
Working voltage` |
AC220/380V |
15 |
Command language |
G code |
16 |
Interface |
USB or parallel port |
17 |
Operating system |
Ncstudio or DSP |
18 |
Flash memory |
128 |
19 |
X-Y resolution |
<0.025mm |
20 |
Software environment |
Wentai type3 artcam |
21 |
Running environment |
Temperature:0-45℃ |
22 |
Packing size |
3300*1650*1350mm |
23 |
Net weight |
1300kg |
24 |
Gross weight |
1500kg |
Training and Use
1. We will supply with the machine operation manual in English version for installing and operation.
2.Customer can come to our factory training .

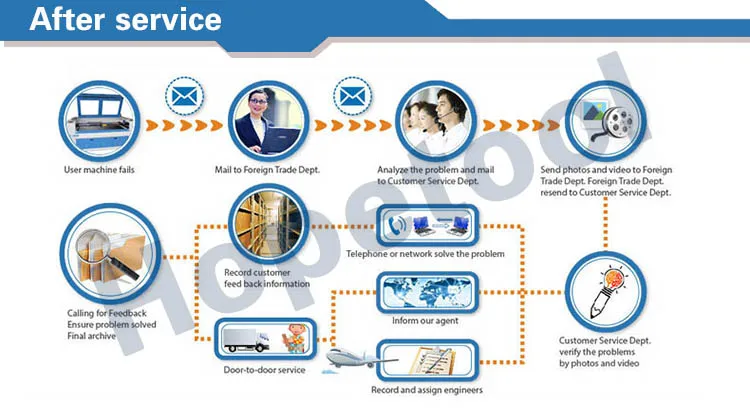

Warranty and After service
1. Our warranty is 2years counting from the date when the Machine arrives at the port of
destination.
2. We will supply after service 24 hours,customer can contact us any time.
3.When some problems can’t be solved by customers, our engineer can go to door to help.
Why choose HOPETOOL product?
1. HOPETOOL company is specialized in manufacturing and selling n CNC Router and laser
machine for many years . We have lots of experience.
2,Our worker have experience,they can produce machines professional and skilled,so make the
machine with high quality and can work well.
3.All the parts of our machines are famous brand in China or in international,so it make sure our
machine have high quality and long lifetime.
4. Our company has all kinds of machines in store, so we can make sure deliver quickly.
5. Our company has international technical service team and provides 24 hours online services and
technical supports for customers.
Questions and answer:
Q1.how to get the most suitable machine and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2.If we donot know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q3.How about your after-sales service?
we offer you 24 hours service phone,skype or MSN.
Q4. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The
complete machine will be tested to make sure they can work very well before being out of factory.
The testing video and pictures will be available before delivery.
