Мотор для ворот мотор автоматический двигателя

Описание и отзывы

Характеристики

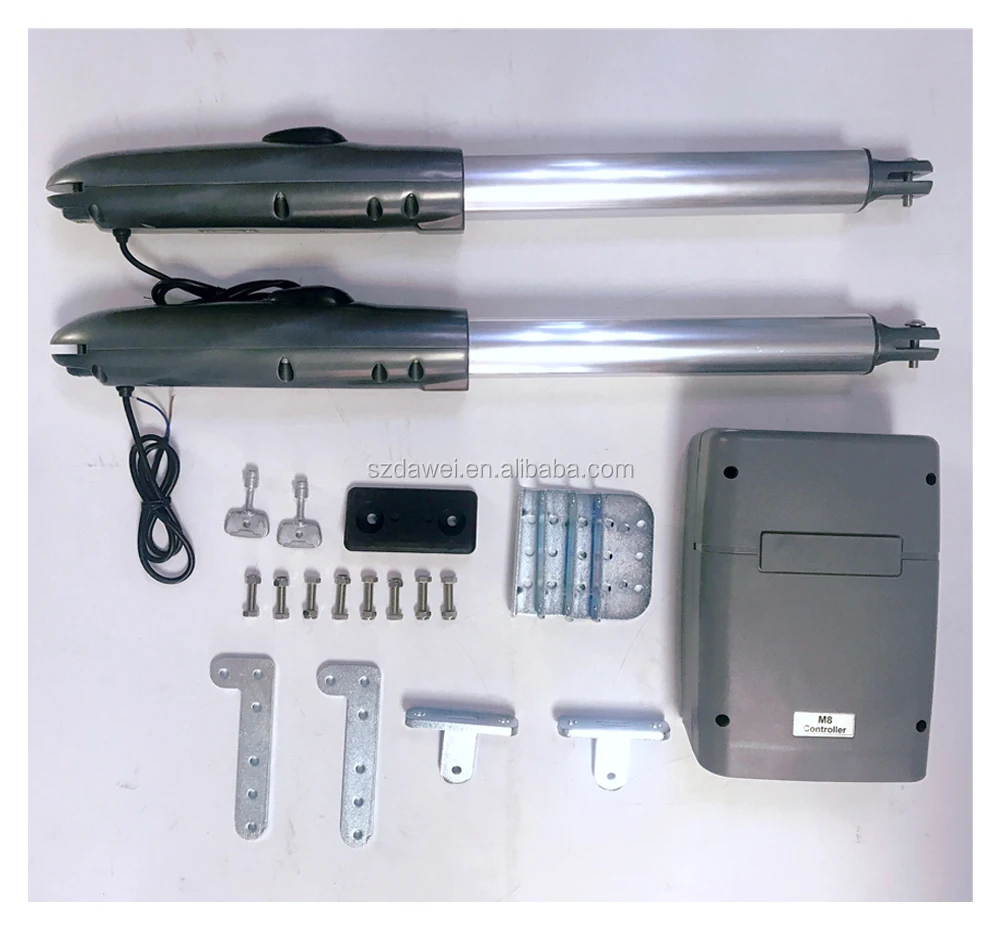

Automatic Gate Operator :



Key words: swing gate motor, gate motor, gate operator, automatic motor, automatic operators, home gate operator, gate opener, swing gate opener, swing door opener, swing door motor,home automation. automated gate motor for swing gate;



Specification:

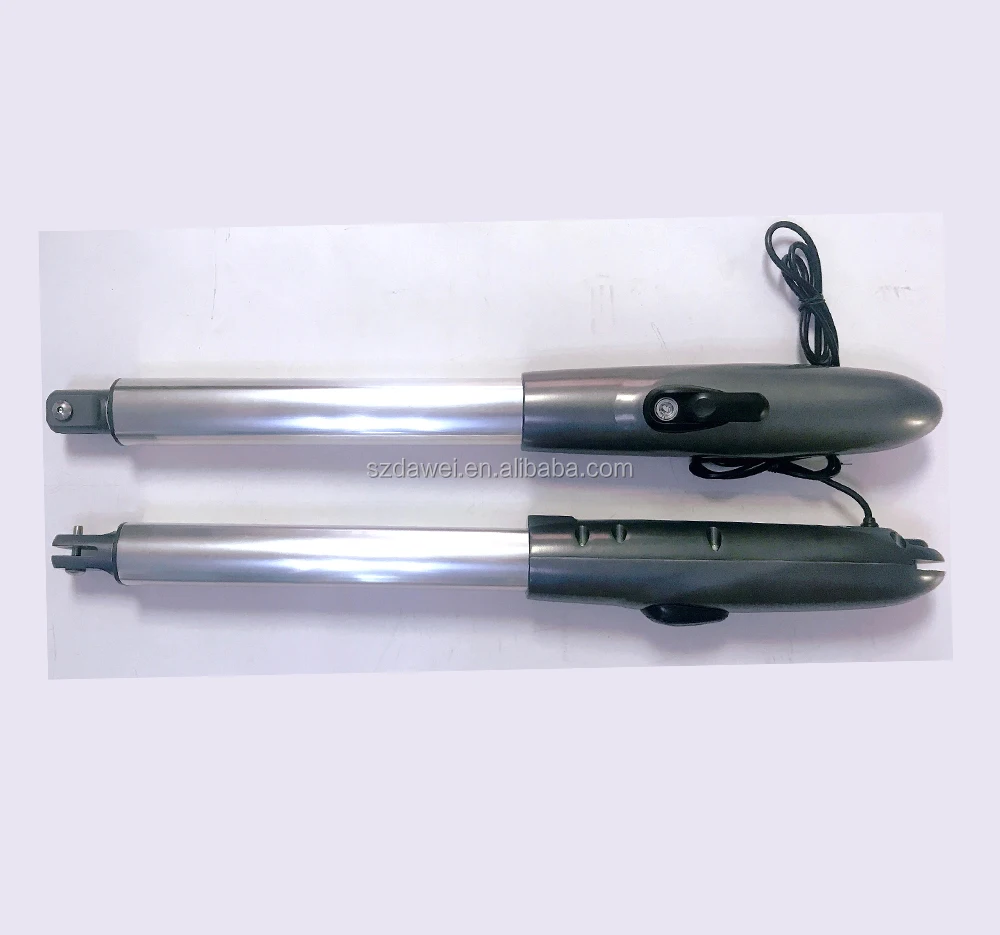

Motor:

 Supply voltage: 24VDC

 Power of motor: 40W

Rotational speed: 1800RPM

Rod's running speed: 1.6cm/s

 Rod's max travel: 300mm

Max leaf length: 300m x 2

 Max single-leaf weight: 450KG

Environment temperature: -20°C~+50°C

 Protection class IP66



Notes: In case of power failure, release the clutch easily, and operate the gate manually

Stop acting when gate meets with obstacle.

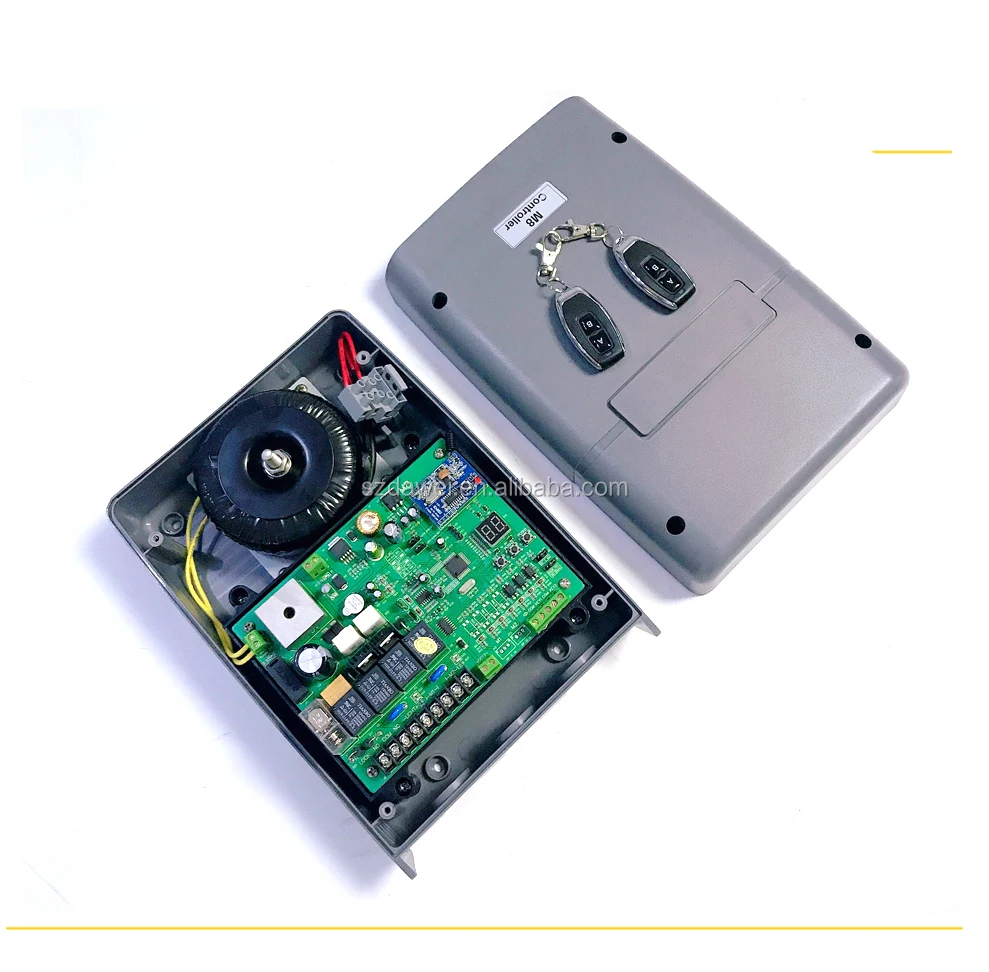

Control Panel:

Power supply: 220V,110V,AC 50Hz

Transformer:24V 150W

Accessories max loaded: 24VDC 500mA

Max load: 2×80W/24VDC

 Environment temperature: -20°C~+55°C

 Protection fuse: 10A

Running time protection: Adjustable

Auto closing delay time: Adjustable

 Force: Adjustable

 Protection class: IP55
