Product Description

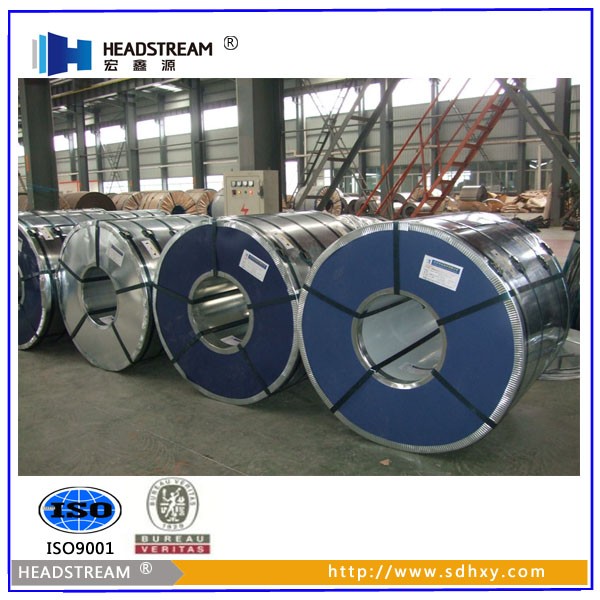

Prepainted/color coated steel coil / PPGI / PPGL color coated galvanized steel sheet in coil
Width: 600~1250mm
Thickness: 0.13~2mm
Grade: JIS G3312-CGCC, CGC340-570, (G550) ASTM A755M CS-B, SS255-SS550
Coil Weight: 3~15MT
Coil ID: 508mm/610mm
Chemical Treatment: Chromated (Cr 3+, 6+, 0+)
Surface: Skin pass/Non Skin Pass, Slight Oiled/Dry
Spangle: Regular/Zero/Big
Color: according to RAL standard
Zinc Coating: Z40~Z275gr/m2 (both side total coating thickness)
MOQ: 25MT per size/color
Packing: Standard Export Packing
SPECIFICATIONS:
Name | color coated steel coil,prime prepainted galvanized steel coil,ppgi coil z275 |
Description | Prepainted Galvanized Steel Coil |
Model Number | Hongxinyuan STEEL |
Type | Cold rolled steel sheet, hot dipped zinc coated steel sheet, hot dipped A-Z coated steel sheet |
Paint Color | Based on RAL No. or customers' color sample |
Paint | Polyester , and your special requirement to be discussed |
Paint Thickness | 1 Top side: 25+/-5 micron 2 Back side: 5-7micron Or based on customers' requirement |
Steel Grade | Base material SGCC or your requirement |
Thickness Range | 0.16mm-1.2mm |
Width | 1000mm,1200mm,1250mm |
Zinc Coating | Z30-Z275 |
Coil ID | 508mm or 610mm |
Coil Weight | 3-5MT, or as per customers' requests |
Technique | Cold Rolled |
Surface Protection | PE,PVDF,SMP,HDP,etc |
Surface Treatment | Galvanized,Chromated,Unoiled/Oiled,Bright Finished,Spangle,Fingerprint Resistance. |
Application | General Use,Roofing, Corrugated Roofing Making,Outside of the buildings, Structure,Tile Row Plate, Wall, Deep Drawing and Deep Drawn |

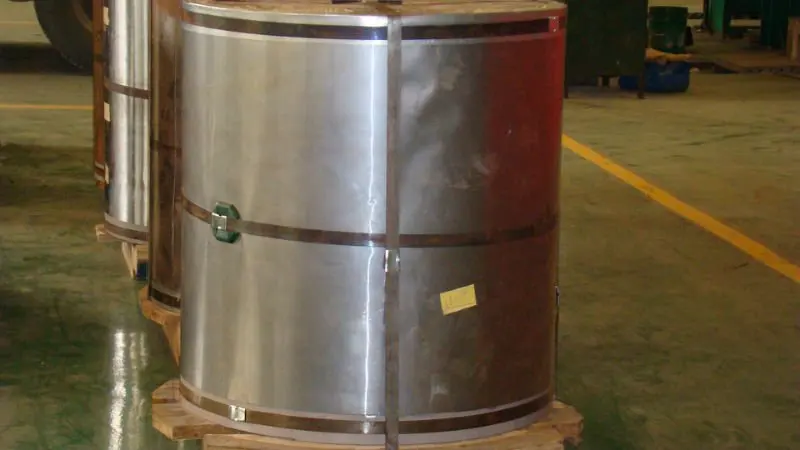

Hot dipped galvanized steel coil/ steel sheet / GI/HDGI
Grade: SGCC, DX51D, ASTM A653,SGCH
Thickness: 0.13mm-2.0mm
Width: 600mm-1250mm
Zinc coating: 30g/m2 - 275g/m2
Coil ID: 508mm or 610mm
Coil weight: 3-15 tons
Surface: chromated, oiled/unoiled, skin pass, regular spangles,
zero spangles,mini spangles
Application: roofing sheet, building materials, construction materials, home appliance etc.
Base Material: Al-Zn Galvanized Steel Coil.SGLCC
Top side: 15-25 microns primer microns polyester. Back side: 5-8 microns primer epoxy.
The width;914mm, 960mm, 1000 mm, 1220 ,1219, 1103, 1060, 1080, 1090, 1040, 1250mm
Thickness:0.15 -2.0mm
Al-Zn coating: 30 -150g /sq.m. or can be provided as clients' requirements
Color: According to color samples from customers.
weight of each coil: 4-10tons
Guarantee/ warranty
Al-Zn coated steel coils GL
Base material: SPCC
Available thickness: 0.15 -2.0mm
Available width: 600mm-1250mm
Aluzinc coating mass: 30 -150g /sqm or can be provided as clients' requirements
Spangle: regular spangle
Surface treatment: chromated or not; oiled or not, antifinger or not
weight of each coil: 3-15tons
Packing: Seaworthy, in container or in bulk (according to customer's demand)

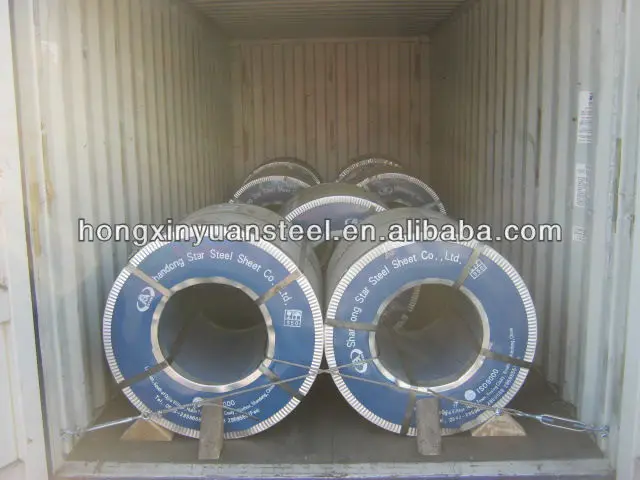

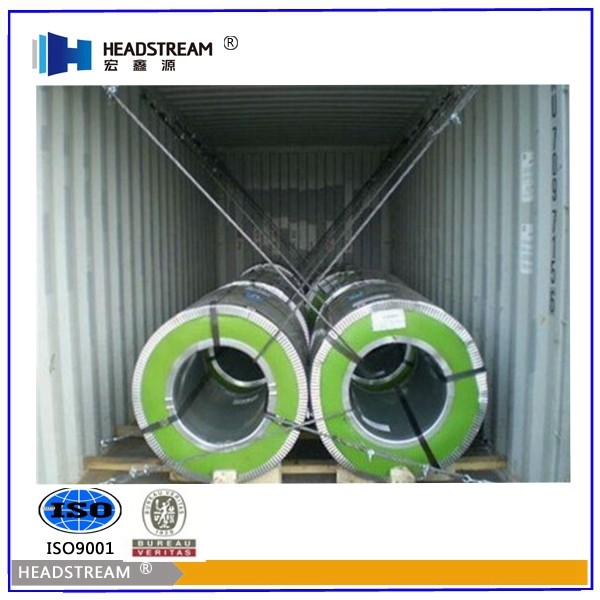

Packaging & Shipping
