Высокая мечта мультиголовочный дозатор автоматическая упаковочная машина для чипсов вертикальная
Высокая мечта мультиголовочный дозатор автоматическая упаковочная машина для чипсов вертикальная
Высокая мечта мультиголовочный дозатор автоматическая упаковочная машина для чипсов вертикальная
Высокая мечта мультиголовочный дозатор автоматическая упаковочная машина для чипсов вертикальная
Высокая мечта мультиголовочный дозатор автоматическая упаковочная машина для чипсов вертикальная

Высокая мечта мультиголовочный дозатор автоматическая упаковочная машина для чипсов вертикальная


Поделиться:

Цена:*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики





Specification








Item
Multifunctional Fully automatic High speed high quality potato chips biscuit granule packing machine
Generation
4.0
Weighing Range
15g ~ 1000g
Accuracy
± (0.5-2g)
Max. Speed
110WPM
Power Supply
220V, 50Hz, 1.5KW
Hopper Volume
1.6L/3L
Monitor
10.4 inches color touch screen

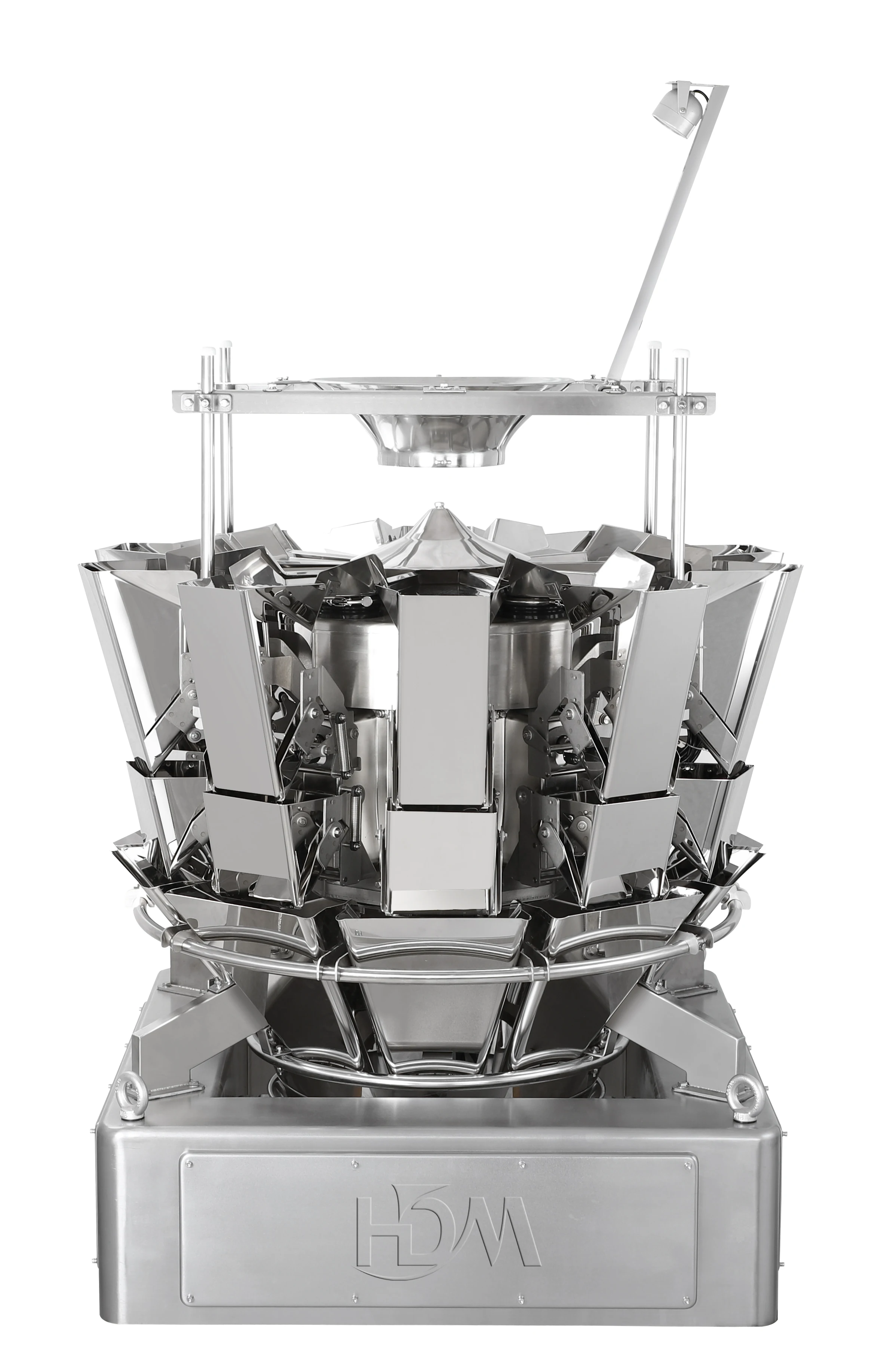

Multihead Weigher:
* Waterproof and dustproof, full stainless steel construction
* Stagger dump avoids big pieces stuck
* Multi Language HMI
* Screen backlight adjustment
* 99 of preset programs are preprogrammed in stock.


Item
4.0G PLUS 10 Heads Weigher
4.0G PLUS 14Heads Weigher
Weighing range
15-1000g
15-1000g
Accuracy
±0.5-2g
±0.5-2g
Max. Speed
80WPM
130WPM
Power supply
220V, 50/60HZ, 1.5KW
220, 50/60HZ, 1.5KW
Hopper volume
1.6L/3L
1.6L/3L
Monitor
10 inches color touch screen


VFFS Packaging Machine
The HSD-510 bag maker is a continuous motion vertical form fill seal packing machine. It utilizes a draw bar pulling mechanism
which includes a hydraulic draw bar which moves vertically up and down, and pull the film with the end seal jaws.
* Servo Motor Controlled Film Pull Belts
* Dual Servo Controlled End Seal Drive
* Color Touch Screen Operator Interface
* PLC Control System
* Instant Product/Program Changeover
* Quick-Change Former Assembly (No Tools)
* Former Assembly (One)
* Mechanical Film Unwind
* Full Safety Guarding Interlocks
* CE Approved Electricals


Name
Continuous reciprocating vertical packing machine
Model
HSD-510
Sealing jaws motion
Continuous reciprocating
Film width
130-510mm
Bag length
50-300mm
Packing speed
Up to 180bpm
Power supply
380V, 50HZ, 9Kw
Air request
0.25m3/min, 0.6Mpa


Check Weigher & Metal Detector Combination
AC-MCD series is a combined unit of metal and weight detection. Compact design, with two rejecting arms for respectively rejecting metallic impurites product at over/less weight. It's the best solution for online metal and weight detection.
Double touch screen display, easy opertion.
Compact design, composalbe system
Double detecting functiions


Tunnel size
330mm(W)*150mm(H)
Passing through area
280mm(W)*110mm(H)
Product length
≤350mm
Detecting accuracy
FEΦ:1mm  SUSΦ:2.0mm
Sorting accuracy
±0.5g-1.0g
Conveyor belt speed
10-45m/min
Power
350W
Weight
About 160kg
Weighing range
5g-900g






Company Profile














FAQ


1.What is the after-sales service?
We offer 1 year warranty for easy wear spare part. Ovearsea technical support is available. We have professional team with rich experienced technician to serve abroad to assure the machine whole life usage.

2.How can I turst you for the first time business?
We are the gold supplier in Alibaba, and we participate in many interantaional famous exhibitions every year, such as Interpack, Allpack, Propak, Packexpo etc.

3.What is the payment methods?
T/T or L/C by our bank account directly, or by alibaba trade assurance service.
