Автоматическая машина для резки сердцевины

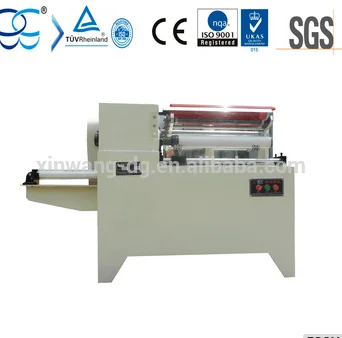

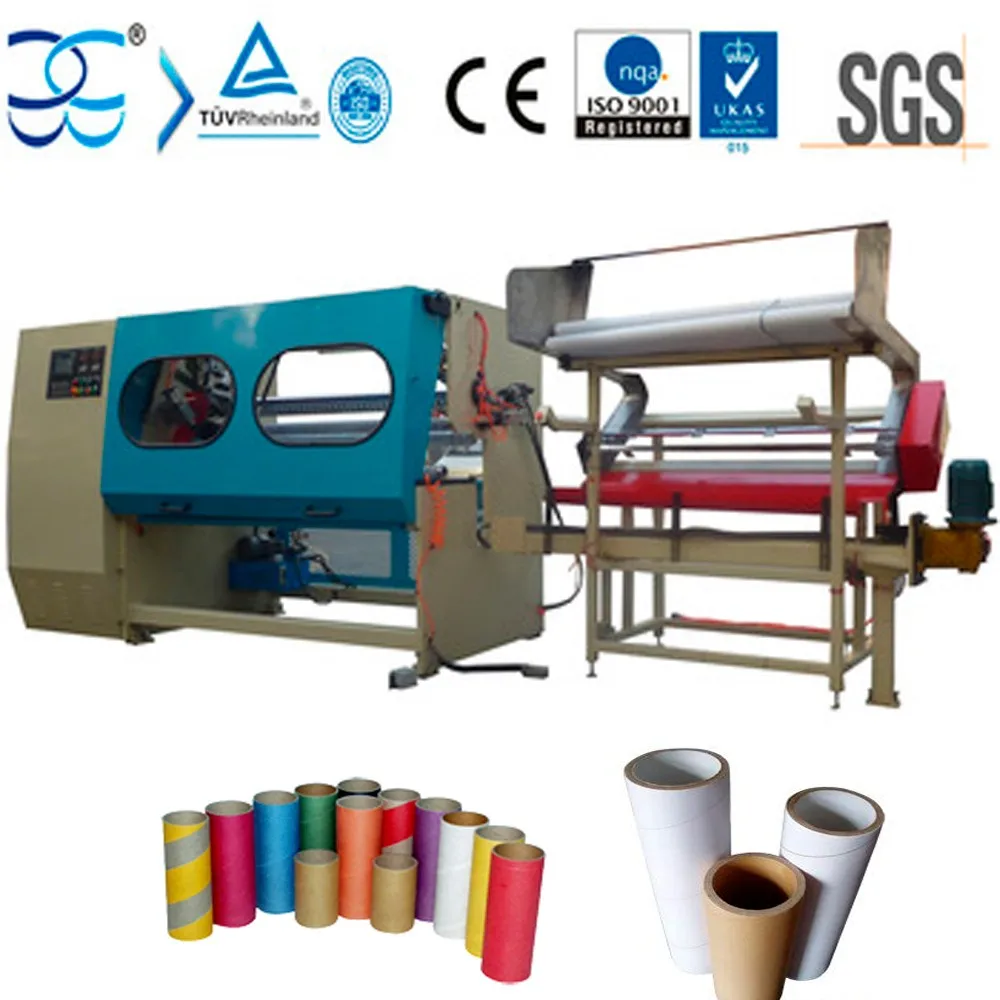

Automatic Cutting Core Machine for Paper Core Cutting

Product Application

The Automatic Paper Core, paper pipe paper tube Cutting Machine is suitable for cutting Paper Core/Paper Tube/Paper Pipe for roll materials core into small widths. Fully automatic cutting with high speed and high efficency.

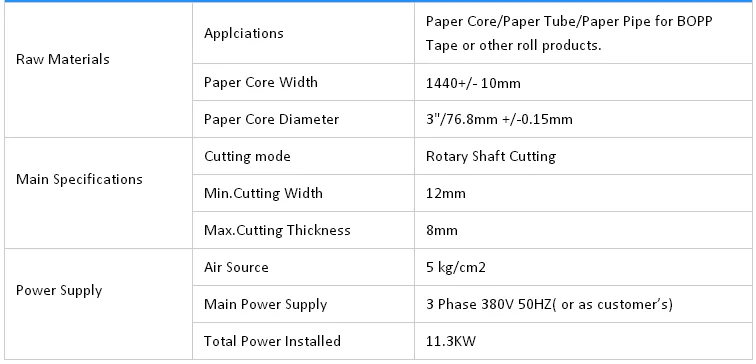

Basic Parameters

Main Features

1. The max.paper core loading of the paper pipe cutting machine: 120pcs/time.
2. Max.Pipe cutting machine speed: 250pcs/mins ( as paper pipe small roll’s width 48mm).

3. With PLC and touch screen to realize human-computer interface control.
4. The paper pipe will be fixed well, paper pipe will be down automatic , cutting , exchange , come out etc.

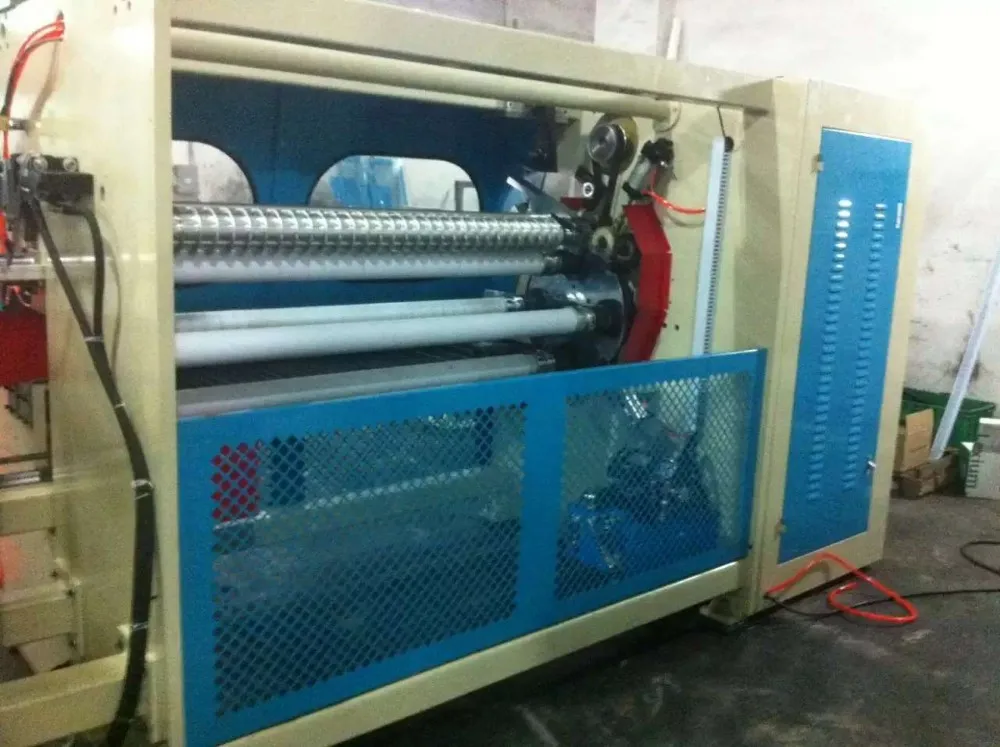

Machine Part 1(Main part of the Paper Pipe Cutting Machine)

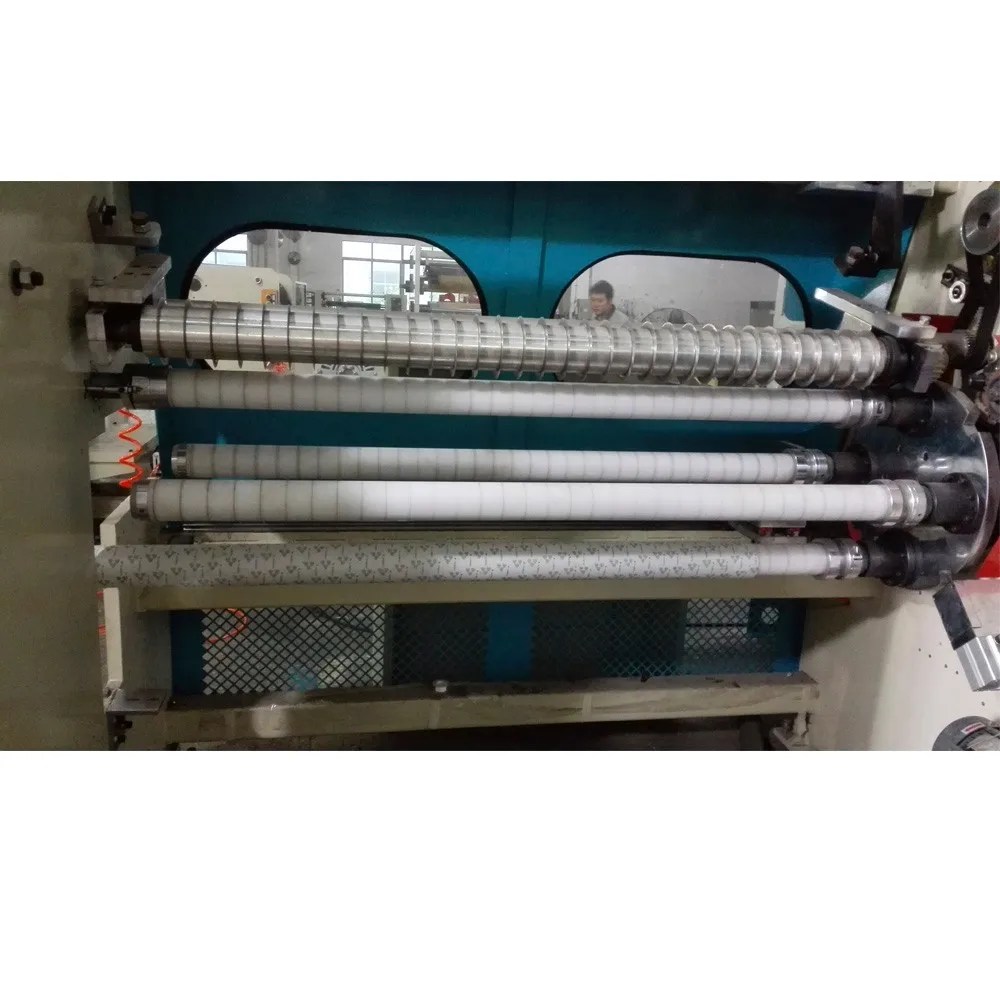

Name: Rotary Cutting Mechanism
Cutting Shaft: Four Cutting Shaft with PE tube Cover
Paper Core Feeding: Automatic
After the paper core log automatic fed on the shaft, the shaft with paper core will be rotated to the cutting position and automatically cut,after finished, the cut core will be automatically push out of the shaft.

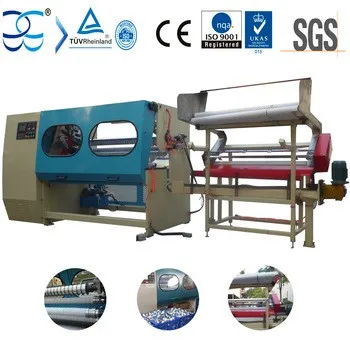

Machine Part 2 :

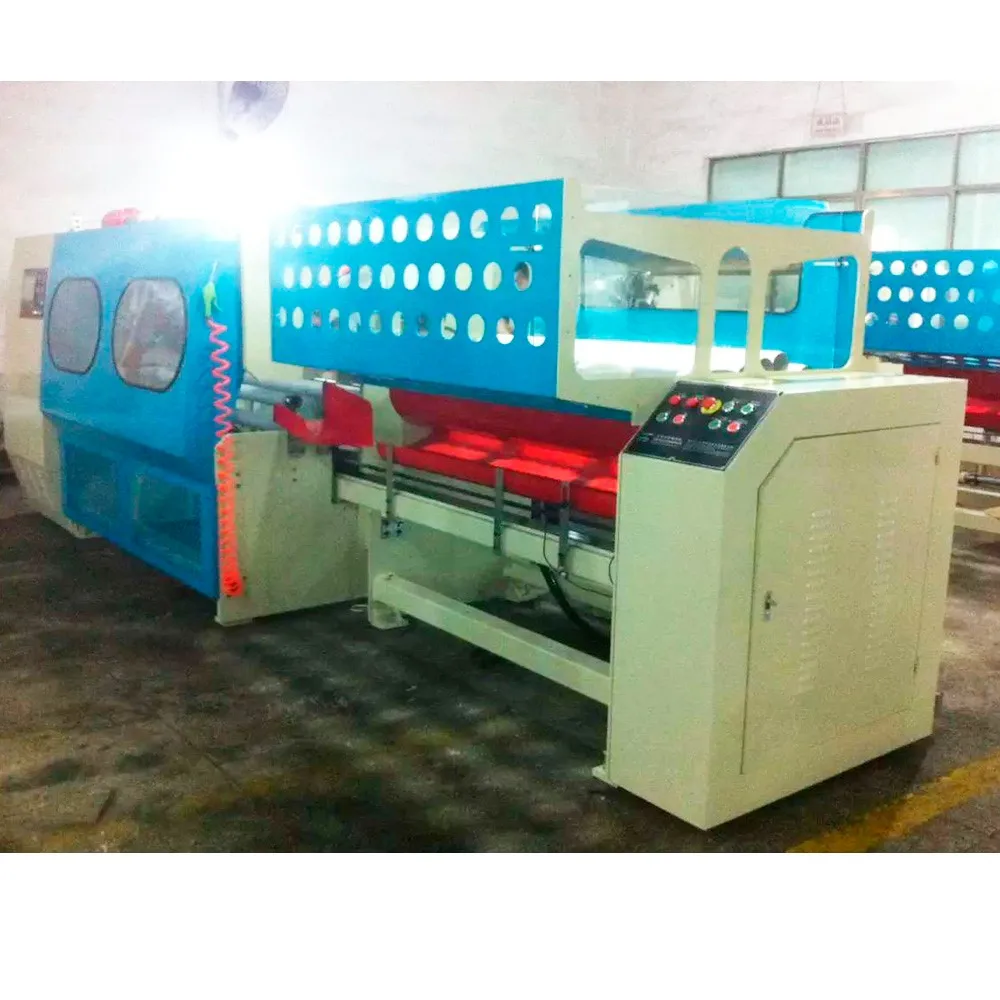

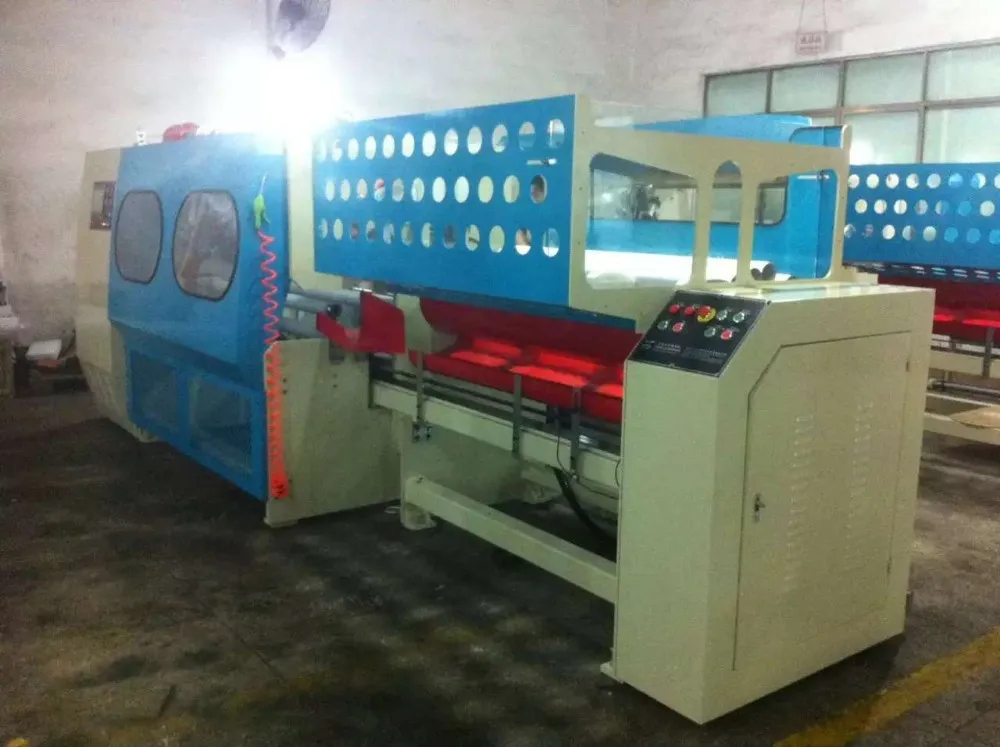

Name: Paper Core Loader
Loading: Manually
Loading quantity: 120 pcs
The loader can load 120 pcs paper core log at one time, but you need to put the paper core in the loader manually at one time and then the core will automatically feeding.

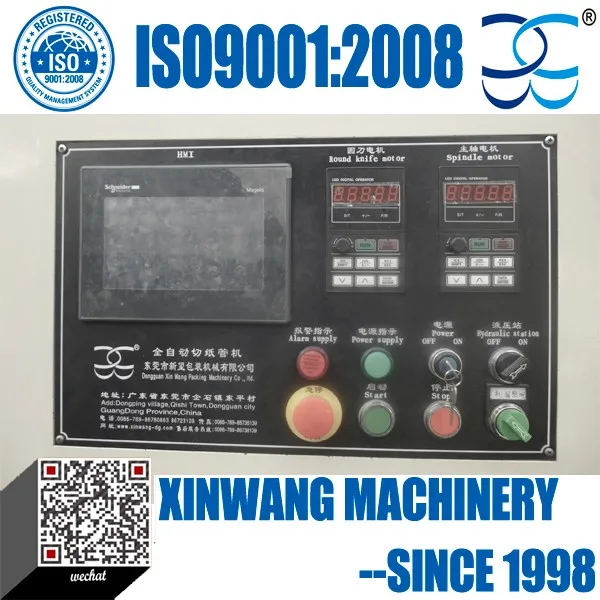

Name: Control Panel
Brand: Schneider
Control: PLC control
PLC control with touch screen, which highly increased the operation efficiency and the machine performance.
