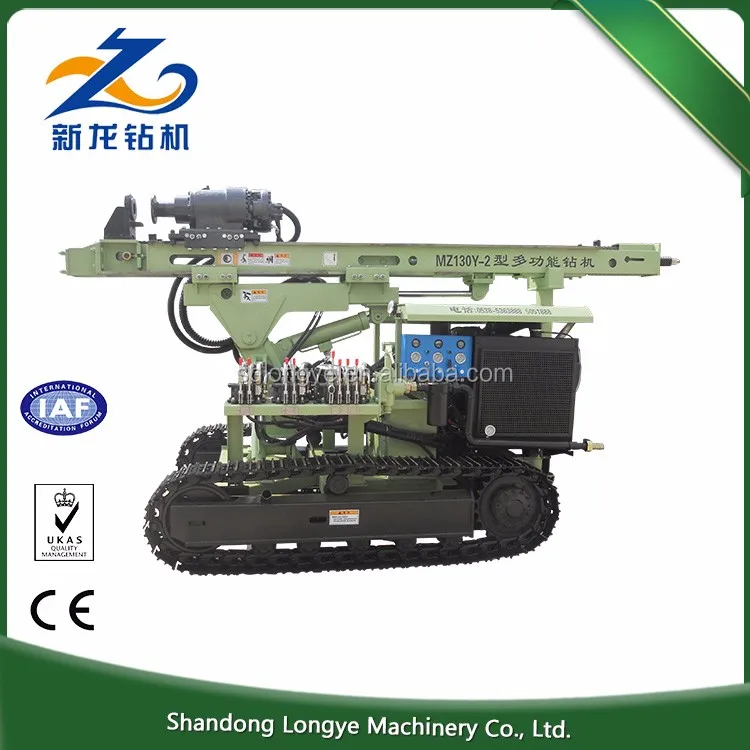

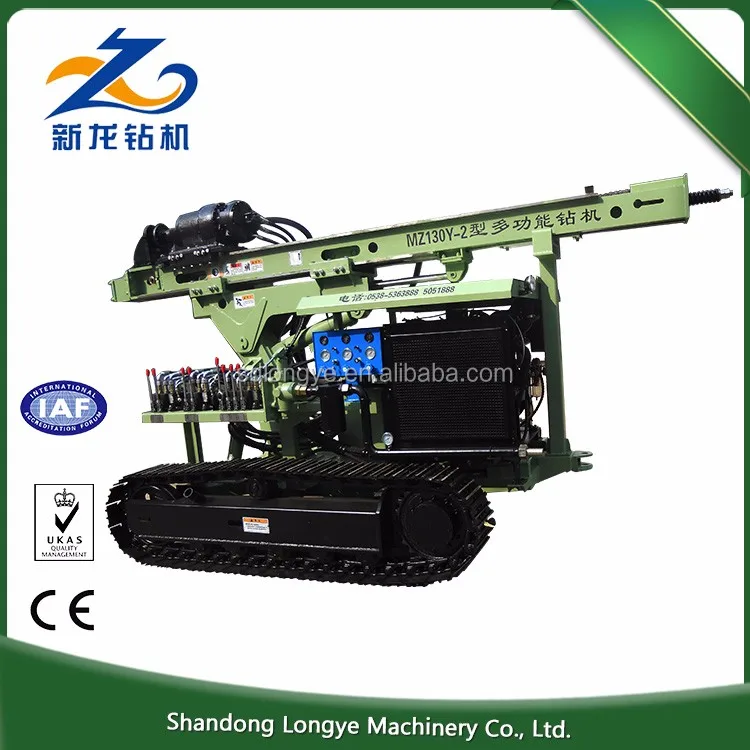

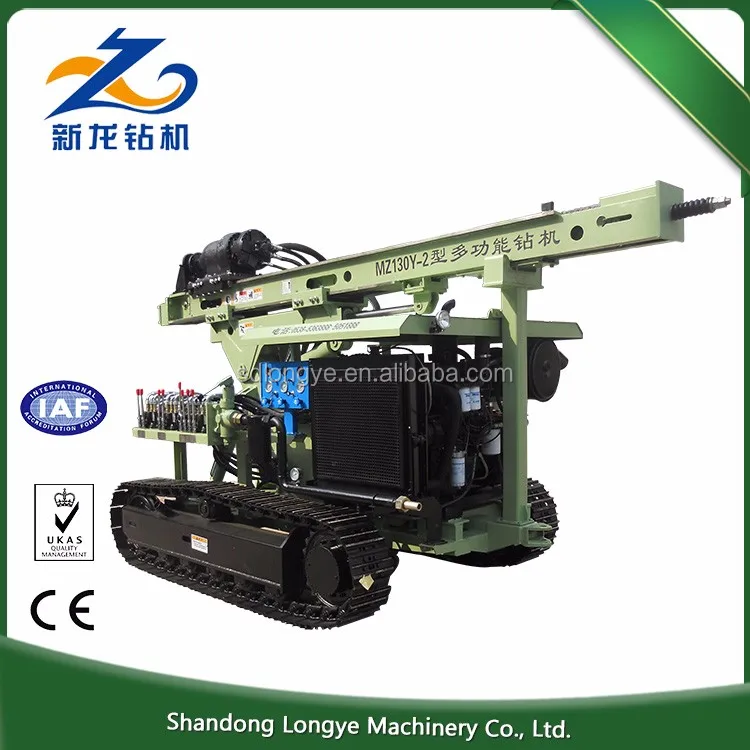

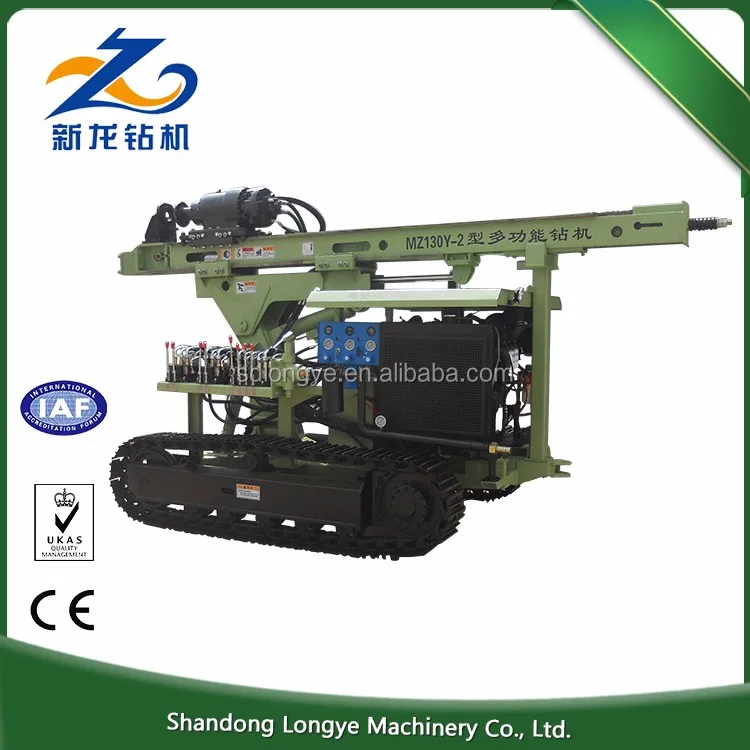

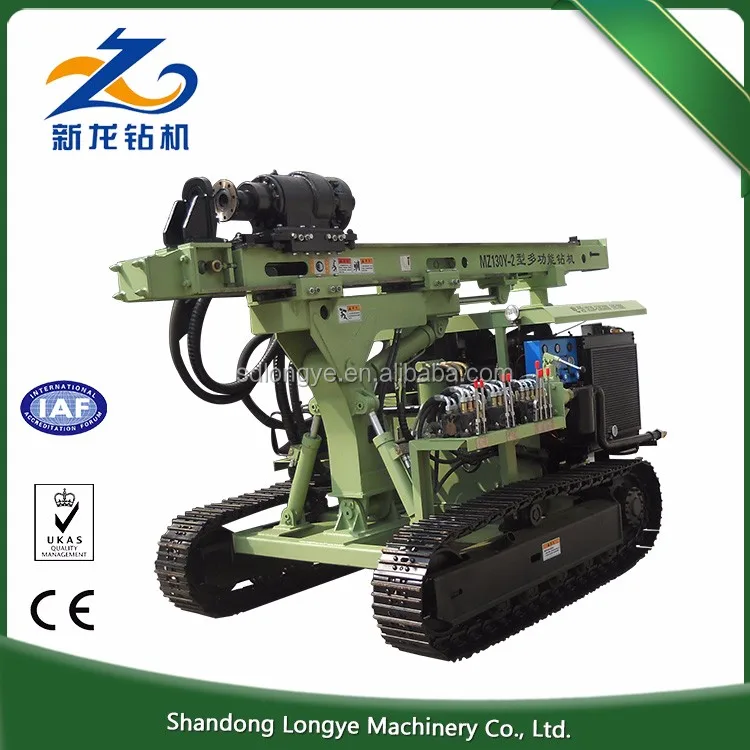

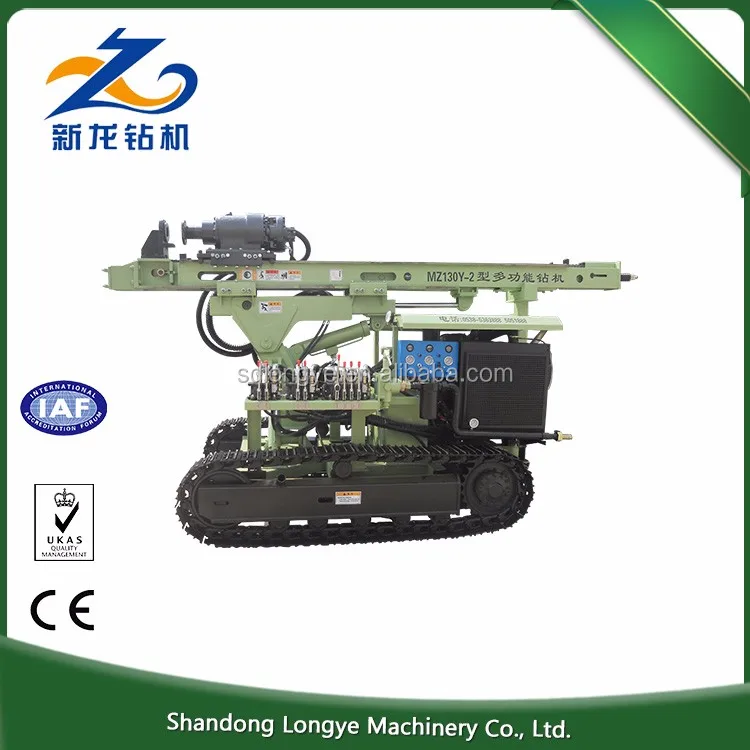

MZ130Y-2 hydraulic crawler drill rig, using new type of hydraulic technology, low consumption, large rotary torque, convenient hole deflection . The drilling machine structure is compact,.while the mast has adjustable compensation function.when drilling, the mast supported on the ground, borehole stability is good. MZ130Y-2 drilling rig has reliable performance, high efficiency, suitable for operating conditions.It also reduce costs and improve the efficiency .
The drilling rig is mainly used for piling anchor, water Wells, photovoltaic solar spiral pile, DTH blasting construction, etc. The Technical parameters as follow:



Technical parameters

Air pressure  (Mpa)	0.7-1.6Mpa(medium) 1.6-2.46Mpa(high)
Air consumption (m3/min)	10-26
Bore diameter(hammer)  (mm)	90-300mm
Bore depth  (m)	20-100
Once promotion(mm)	2000
Screw pipe diameter  (mm)	76/89
For rock	F=6-20
Bore diameter(screw)(mm)	Max 400mm
Skid pitch(.)	100
Swinging angle of skid(.)	Left and right total 40°
Bore depth(m)	0-30
Screw pipe diameter(mm)	130-400
Rotation speed<="">	0-70
Host power(kw)	56
Climb ability(.)	35
Walk speed(kw/h)	0-2.5
weight(Kg)	4360
Dimension(L*W*H)mm	4460*1950*2460



























Shandong Longye Machinary Co., Ltd. is specialized in the production of hydraulic pressure down-hole drilling rigs, engineering drills and water well drilling rigs. Our company is a backbone enterprise in the industry.
Our company is located at the foot of Mountain Tai which has the reputation of "Chief of the Five Sacred Mountains", neighboring to Beijing-Shanghai High-speed Way, with convenient transportation and excellent location. Your satisfaction is our promise.
Our company covers an area of 35,000 square meters, and has more than 160 employees, including 20 engineering technicians, who all are specialized drilling rig mechanical design talents.

Our company has more than 30 sets of advanced CNC machining equipment and more than 10 sets of special processing equipment. Our company has our own heat treatment production workshops and surface treatment equipment.

On the basis of advanced production equipment and more than 10 years of experience, our company has developed and produced three series of products, including high, medium and low-grade air pressure equipment. 15 kinds of products sell well throughout China, Russia, Kenya, Brazil, India and some other countries in Europe.
